Topcon Technology 565W 570w 580w 590w Half Cell Mono solar panels
Products
Home / SOLAR PANEL / TOPCon PV Module / Monofacial 182mm M10 /

Topcon Technology 565W 570w 580w 590w Half Cell Mono solar panels

Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels
Topcon solar panels

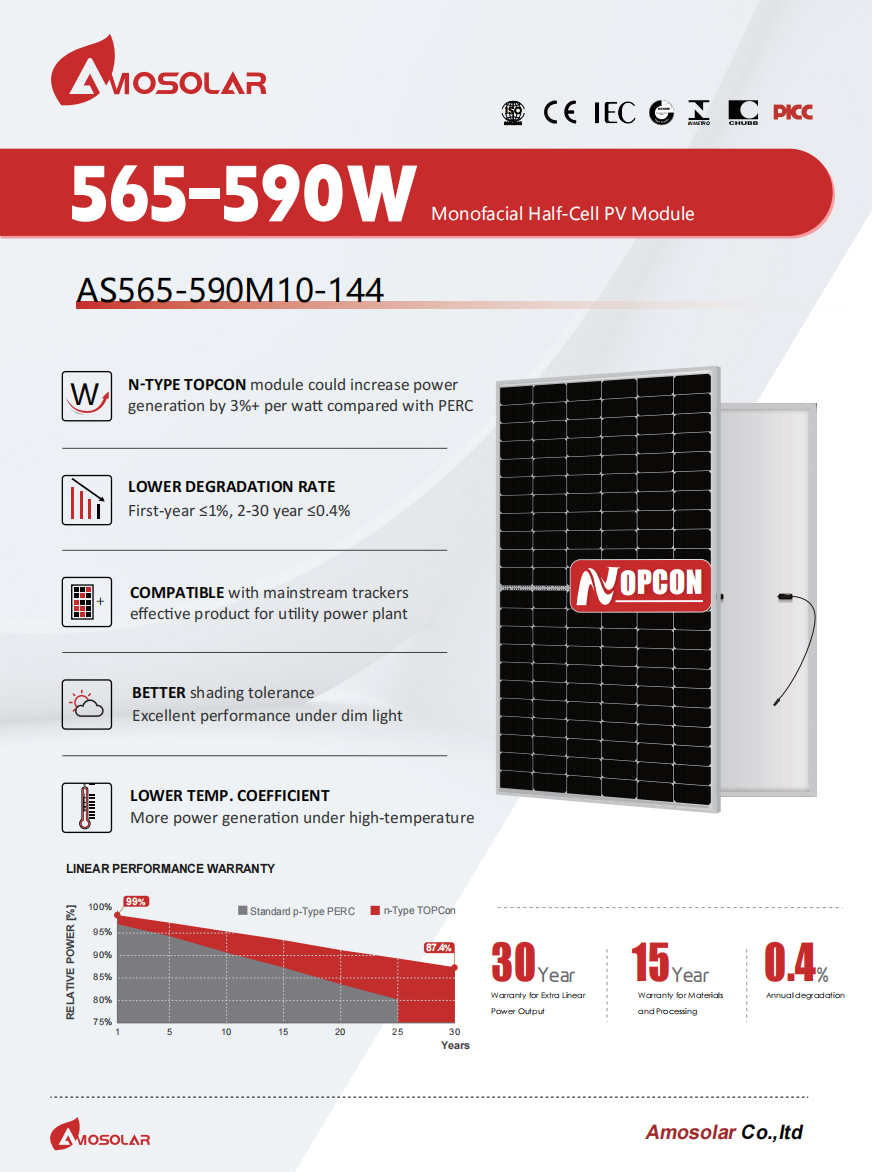

Topcon Technology 565W 570w 580w 590w Half Cell Mono solar panels

AS565-590M10-144

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
590W
Maximum Efficiency 22.83%
Weight
28.6kgs±3%
Cells Type
Mono 182x91mm
Dimension(LxWxT)
2279±2mmx1134±2mmx35±1m
Packaging
31pcs/pallet, 620pcs/40HQ container

565W-590W Half Cells Mono Solar Panel China Factory : 144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.

Monocrystalline Solar Panel 500W

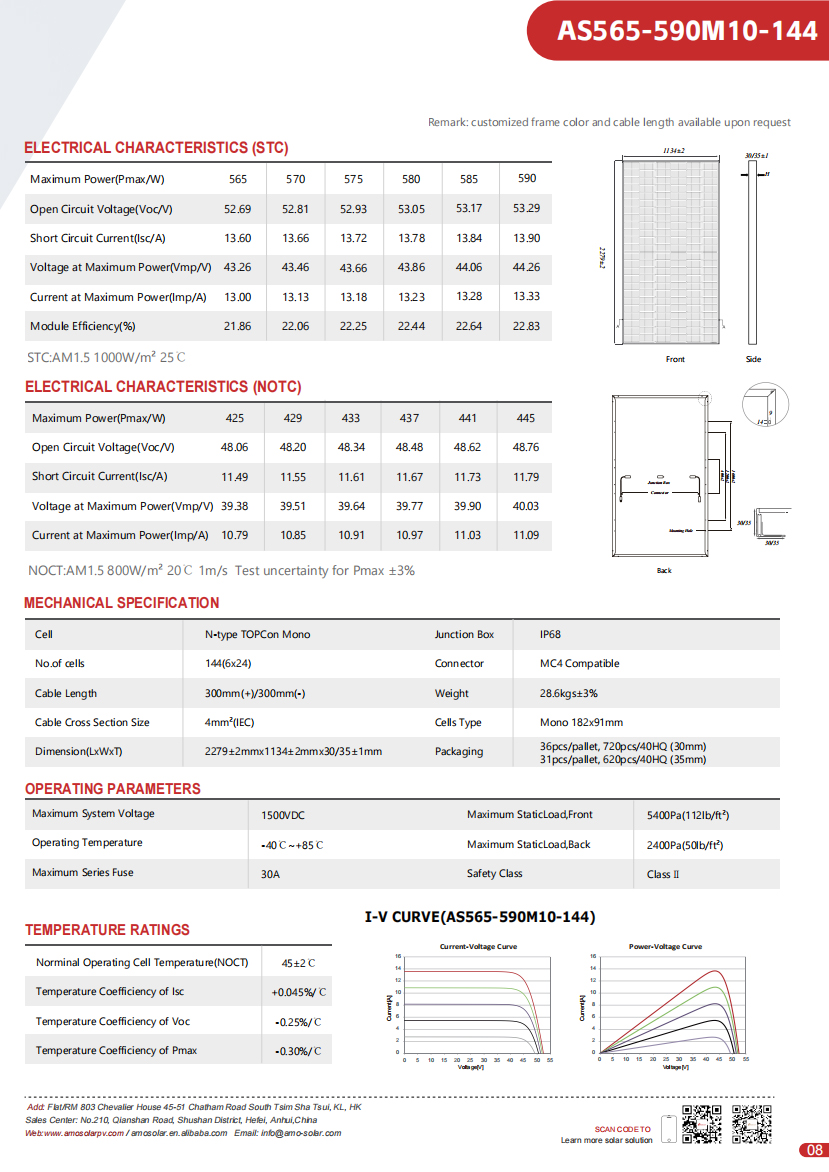

Electrical Performance Parameters (STC Test)


Model
AS565M10-144 AS570M10-144
AS575M10-144
AS580M10-144
AS585M10-144
AS590M10-144
Rated Maximum Power at STC 565W
570W 575W 580W 585W 590W
Open Circuit Voltage (Voc) 52.69 52.81 52.93 53.05 53.17 53.29
Maximum Power Voltage (Vmp) 43.26 43.46 43.66 43.86 44.06 44.26
Short Circuit Current (Isc) 13.60 13.66 13.72 13.78 13.84 13.90
Maximum Power Current (Imp) 13.08 13.13 13.18 13.23 13.28 13.33
PV Module Efficiency (%) 21.86 22.06 22.25 22.44 22.64 22.83
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Half Cut

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   28.6KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2278×1134×35mm

  Packaging:              31 pcs / pallet

                                   620 pcs / 40HQ container
