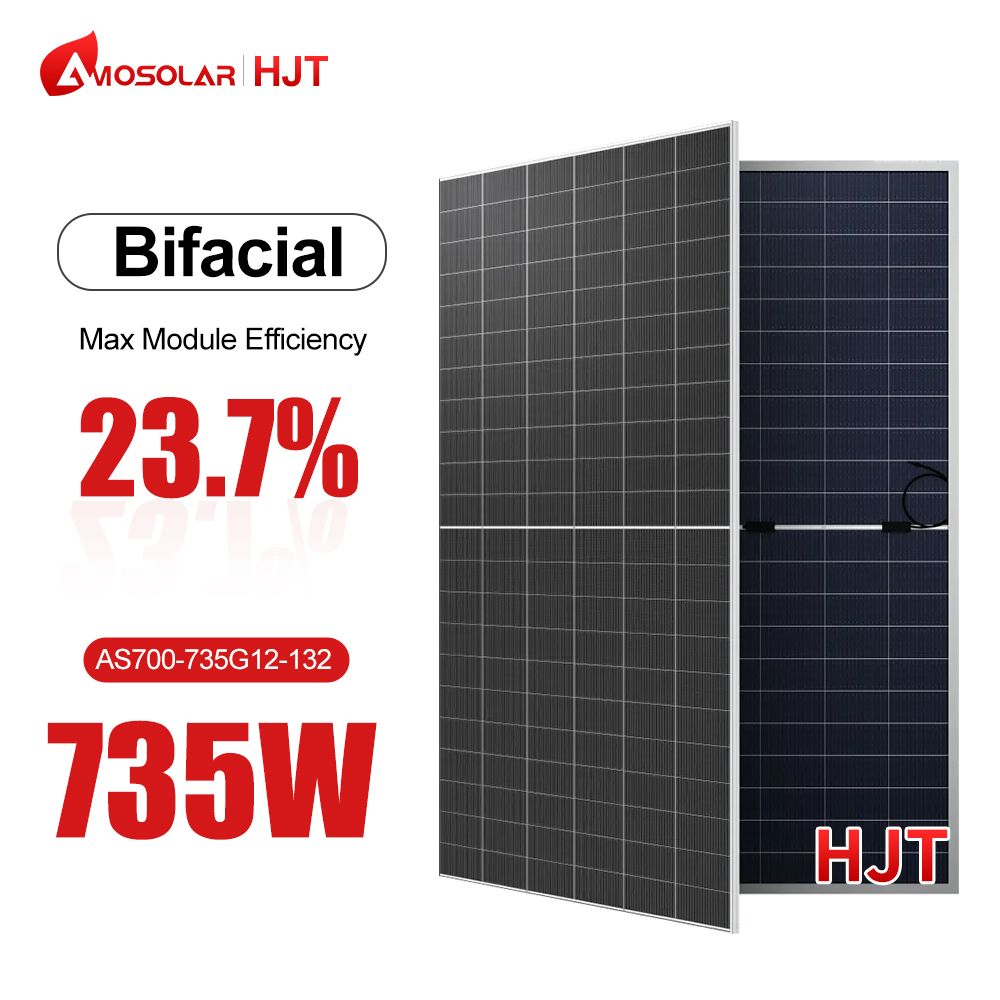

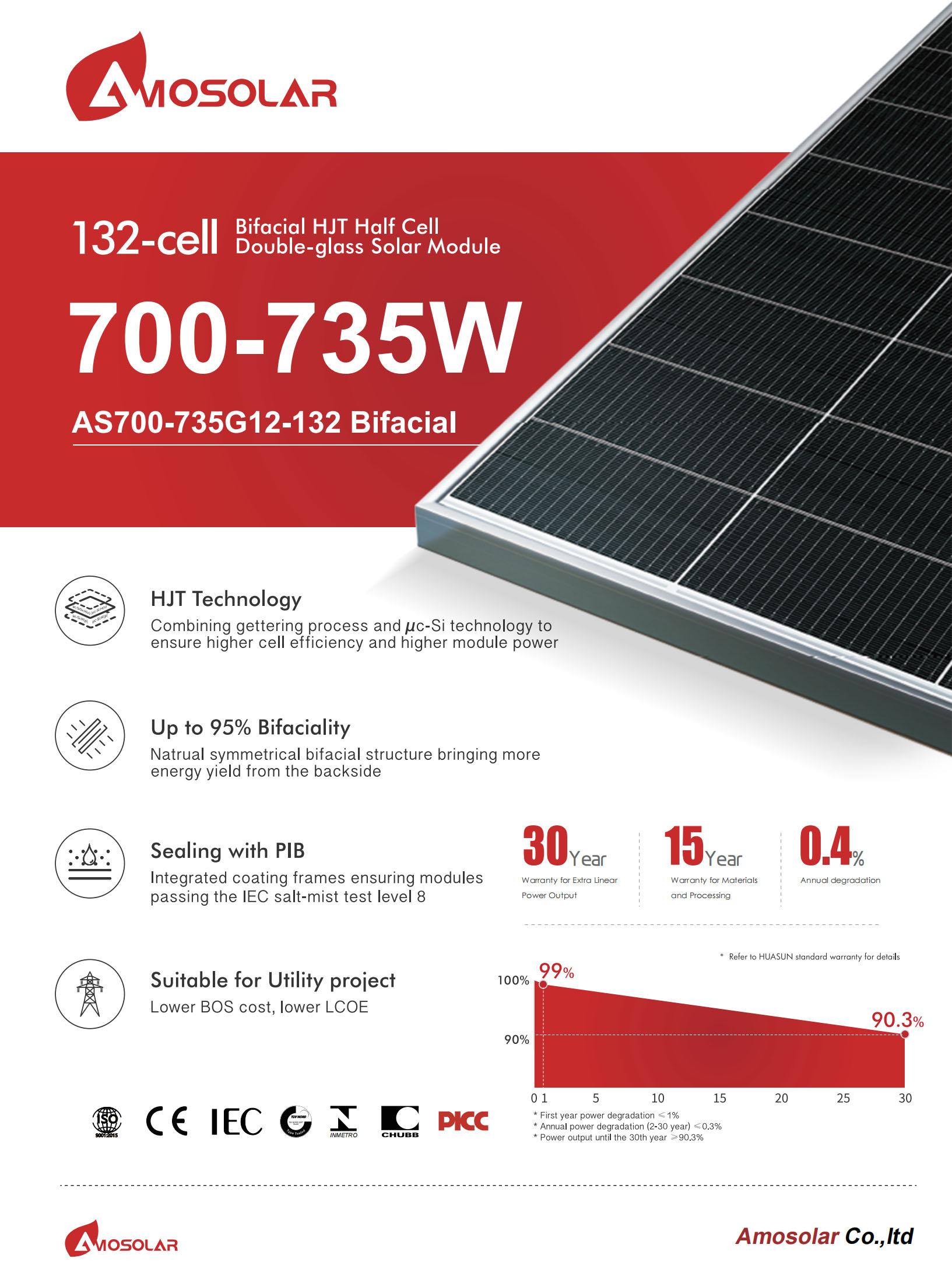

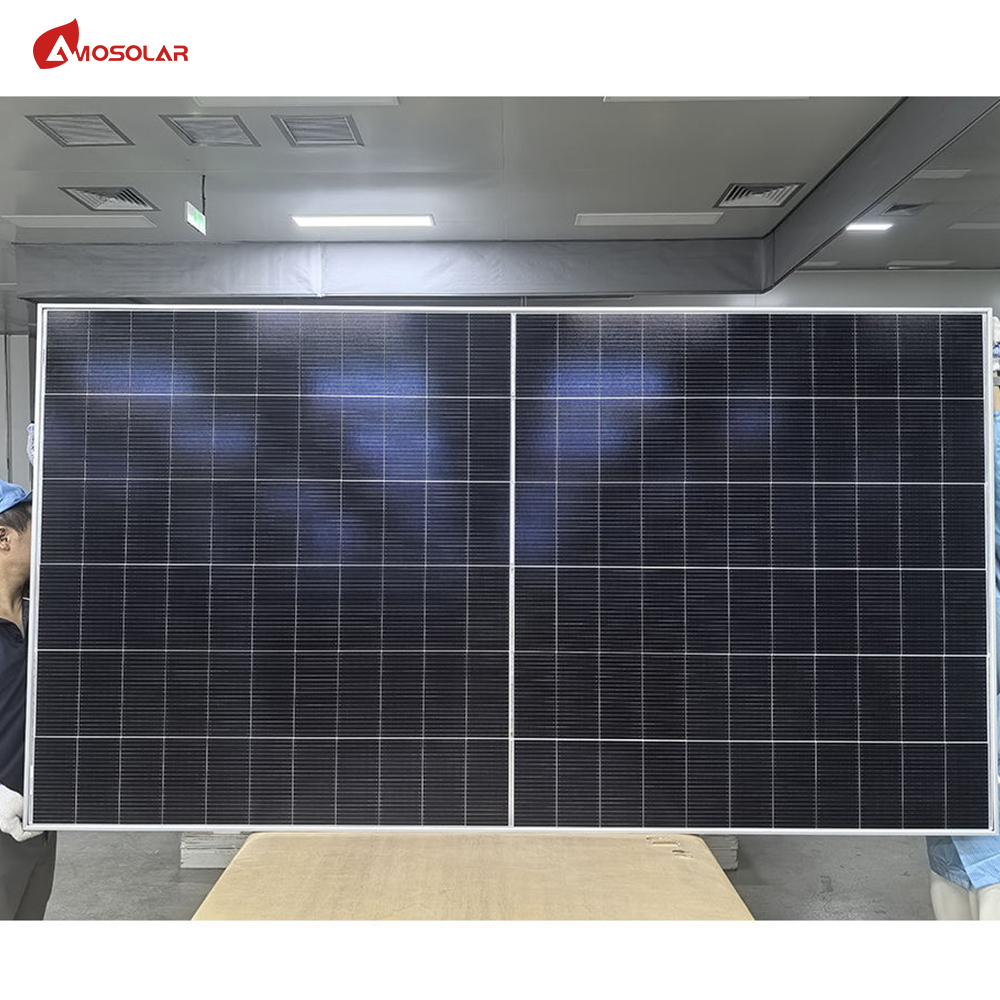

AS700-735G12-132 Bifacial
| Cell Type | HJT |
| No. of Cells | 132 (6x22) |
| Dimensions | 2384 x1303 x33 mm |
| Weight | 37.9kg |
| Junction Box | IP68 |
| Cable | 4mm2;+350/-250mm or customized; UV resistant |
| Connector | MC4/MC4-EV02A/PV-H4/Z4S-abcd/ST4 |
| Frame | Anodized aluminum alloy frame |
| Max Static Load (front side/rear side) | 5400Pa/2400Pa |
| Glass | Dual glass,2.0mm |
| AS705-G12-132 | AS710-G12-132 | AS715-G12-132 | AS720-G12-132 | AS725-G12-132 | AS730-G12-132 | AS735-G12-132 | |
| Maximum Power (Pmax'W) | 705 | 710 | 715 | 720 | 725 | 730 | 735 |
| Module Efficiency (%) | 22.5 | 22.9 | 23.0 | 23.2 | 23.3 | 23.5 | 23.7 |
| Maximum Power Valtage (Vmp/V) | 41.78 | 41.96 | 42.05 | 42.14 | 42.23 | 42.32 | 42.41 |
| aximum Power Curent (lmp/A) | 16.76 | 16.93 | 17.02 | 17.10 | 17.18 | 17.26 | 17.34 |
| Open Circuit Voltage (Voc/V) | 49.77 | 49.97 | 50.07 | 50.17 | 50.27 | 50.37 | 50.47 |
| Short Circuit Curent (lsc/A) | 17.81 | 17.99 | 18.08 | 18.17 | 18.26 | 18.35 | 18.44 |
HJT solar panels (Heterojunction Technology) combine the advantages of crystalline silicon and thin-film technology, offering ultra-high efficiency, excellent low-light performance, and lower temperature coefficients. These high efficiency solar panels are ideal for both commercial and utility-scale projects, delivering more energy output over time. With bifacial design, HJT solar modules can generate power from both sides, maximizing ROI.
AS580-600M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet;20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
OBB AS580-610M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
AS615-635M10-132 Bifacial Cell Type HJT No. of Cells 182x105 All Dimensions Dimensions 2382x1134x30 mm Weight 33.6±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
Model Number M15S100BL-U0 Capacity(Ah) 100 Nominal Voltage 48V Weight( Approx) (KG) 45kg Dimension(W/D/H)(mm) 515×493×175mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Model Number M15S100BL-U0 Capacity(Ah) 100 Nominal Voltage 48V Weight( Approx) (KG) 45kg Dimension(W/D/H)(mm) 515×493×175mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More

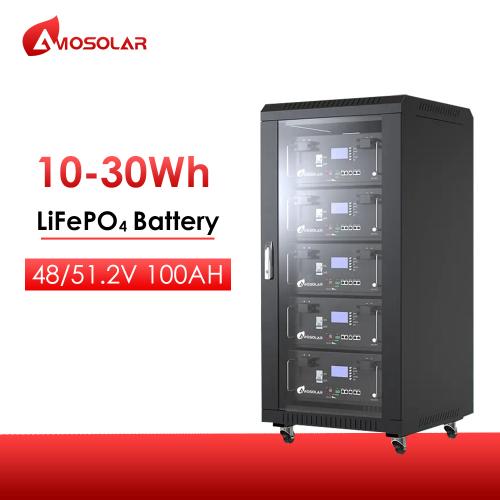

Model Number AMO 20.48-51.20K_HV-S1 Capacity(Ah) 100AH Battery Module AMO5.12K_HV-S1(51.2V100Ah,48kg) Max. Charge Discharge Current(A) 100A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25'C,0.5C,80%DOD,70%EOL
Learn More
AS530-560M10-144 Cell Mono Rated Maximum Power 560W Maximum Efficiency 21.67% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS440-465M6-144 Cell Mono Rated Maximum Power 465W Maximum Efficiency 21.39% Weight 23.0kg±3% Cells Type Mono 166x83mm Dimension(LxWxT) 2094±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 726pcs/40HQ container
Learn More
