10KW 11KW 12KW Hybrid Solar System Energy Storage

10000W 11000W 12000W Hybrid Solar System
10000W 11000W 12000W Hybrid Solar System
10000W 11000W 12000W Hybrid Solar System
10000W 11000W 12000W Hybrid Solar System

10KW 11KW 12KW Hybrid Solar System Energy Storage

Amosolar 10KW 11KW 12KW Hybrid Solar System


Name
Hybrid 10KW System
Warranty 25 Years Output Power Guarantee
Certificate TUV/IEC/CEC/CE/ISO/Inmetro
Application Home/Business
Output Voltage EU:220/230/240V ; 380/400V
Monitoring Wifi/GPRS
Mounting Brackets Roof/Ground installation

All Black Solar Panels 550W



Electrical Performance Parameters (STC Test)

10KW Hybrid Solar System Equipment
Name
Description
Quantity

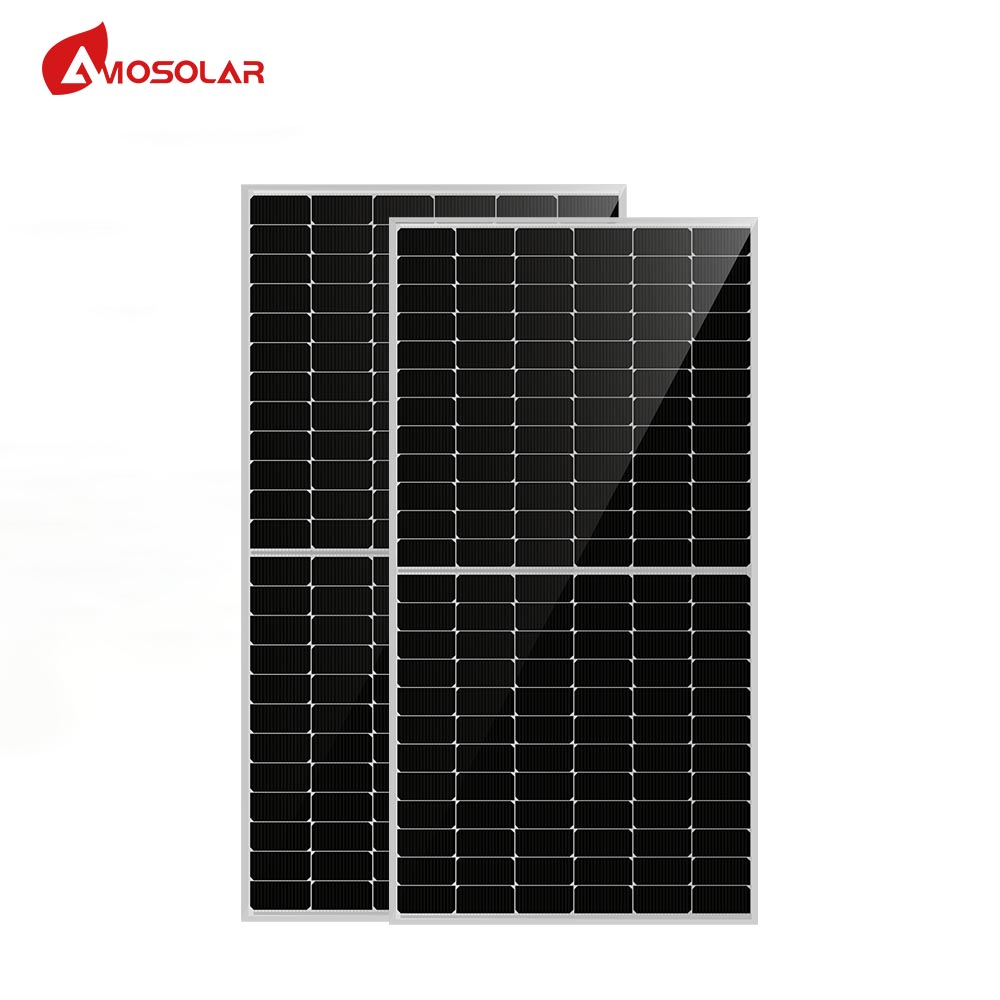

Solar Panel
Half Cell 550W
20 PCS
PV Combiner Box
0 ~ 4 input 1 output , (Switches,Breaker,SPD)
1 PCS
Inverter
10kw Hybrid Inverter 1 PCS
Battery AGM/GEL/Lithium Battery 4~32 PCS

Mounting Structure

Roof/Ground Install (Customized) 1 Set

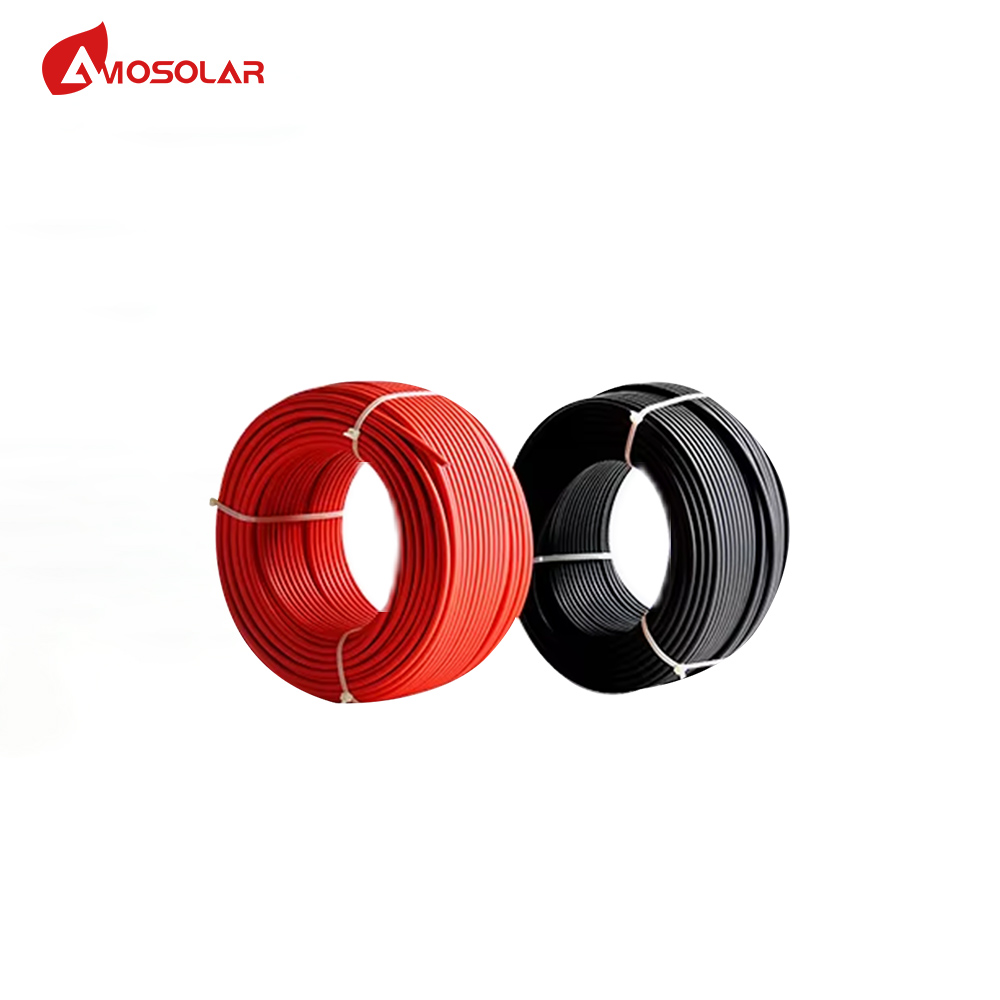

PV Cable

4mm² PV Cable

200~800m

MC4

MC4 Connector

20 Prs

Standard Wooded Package + System Connecting Drawings (Easy Installing)

System Capacity could be adjustable according customer's situation

Mechanical Parameters


Solar Panel Mono 320W Black



            High Efficiecy PV Module


           ·30-year Linear Performance Warranty

           ·Higher Output Power

           ·Less Shading And Lower Resistive Loss

           ·Better Mechanical Loading

           ·Lower LCOE






500Watts Full Black Solar Panel

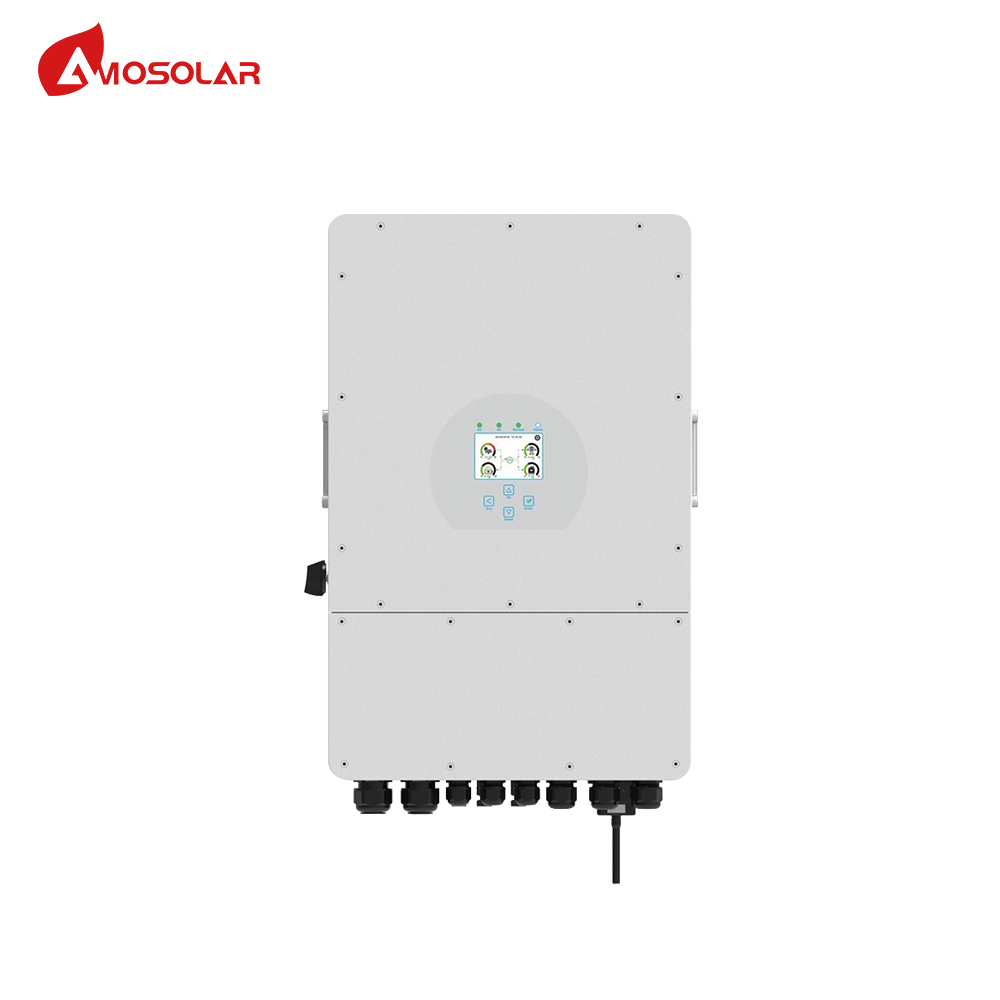

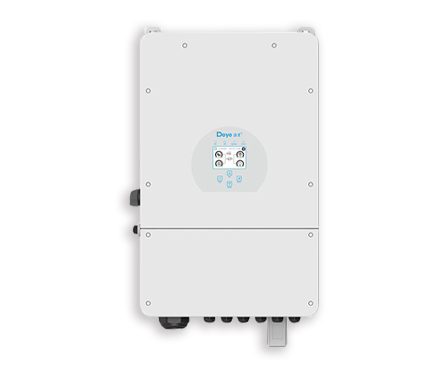

          Deye Hybrid Inverter


        ·SUN-3.6K/5K/8K-SG03LP1-EU, MAX 16 PCS in Parallel.

        ·SUN-8K/12K-SG04LP3, MAX 9 PCS in Parallel.

        ·Compatible With Different Grid Types: 230/400V, 120/208V.

        ·With Advance control algorithm.

        ·Parallel System Need Not Additional Control Device Even.




Ja Solar Panels Black Perc

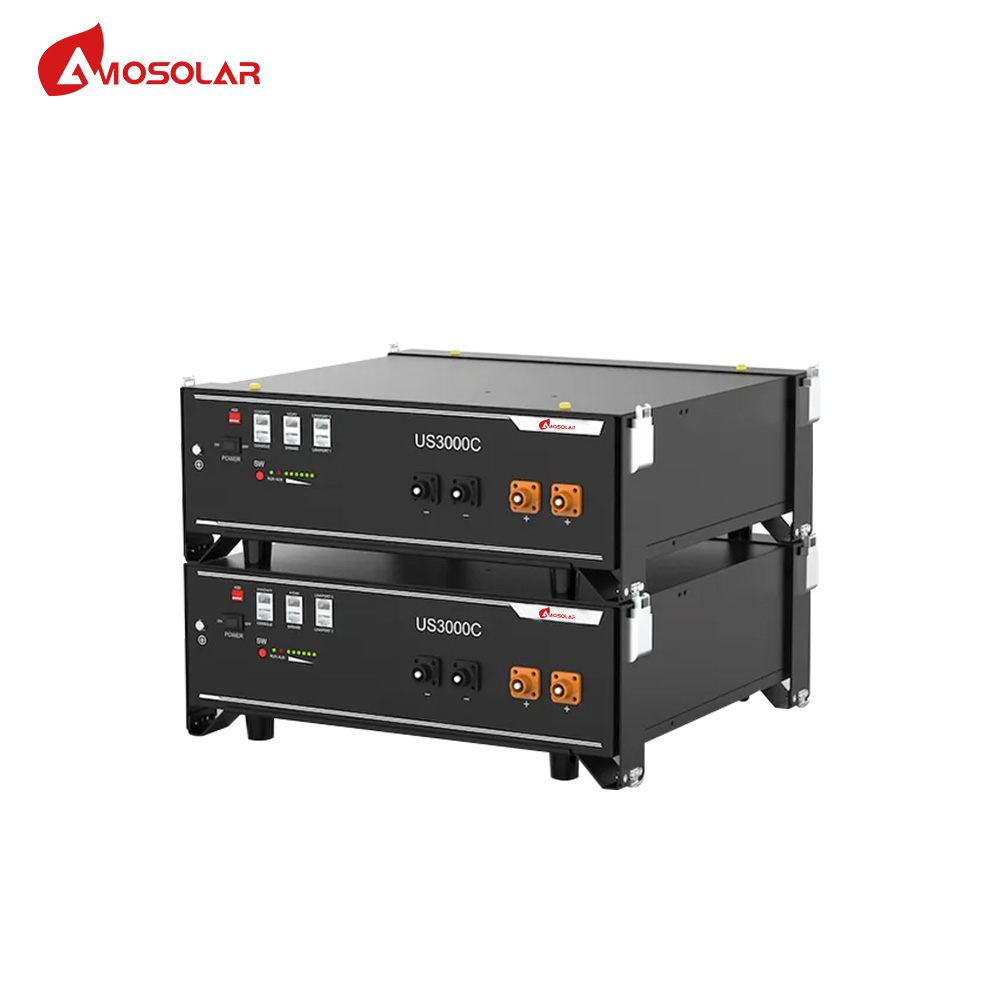

                    Battery Specification


                 ·Each Module Equiped With Independent BMS System

                 ·Practical Pull Ear Design Improves Operation Convenience

                 ·Safe Lithium Iron Phosphate Battery Cell

                 ·Compact Size Ultralight Module

                 ·Widely Used In Energy Storage And Electrical Products.



Solar Panel Monocrystalline 600W Black




             Solar Mounting Solutions


            ·Good Stability 、Good Load-Bearing Capacity And Stable Structure

            ·Flat Surface 、Neat Incision And Assembled Installation

            ·Support Customization According To Needs

            ·Integrated Services

            ·Adequate Inventory






Solar Panel 545 Full Black




560Watt Solar Panel All Black




· Question 1: What kind of solar system we have?

Answer 1:Off grid solar system, On grid solar system and hybrid solar system.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 4: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
