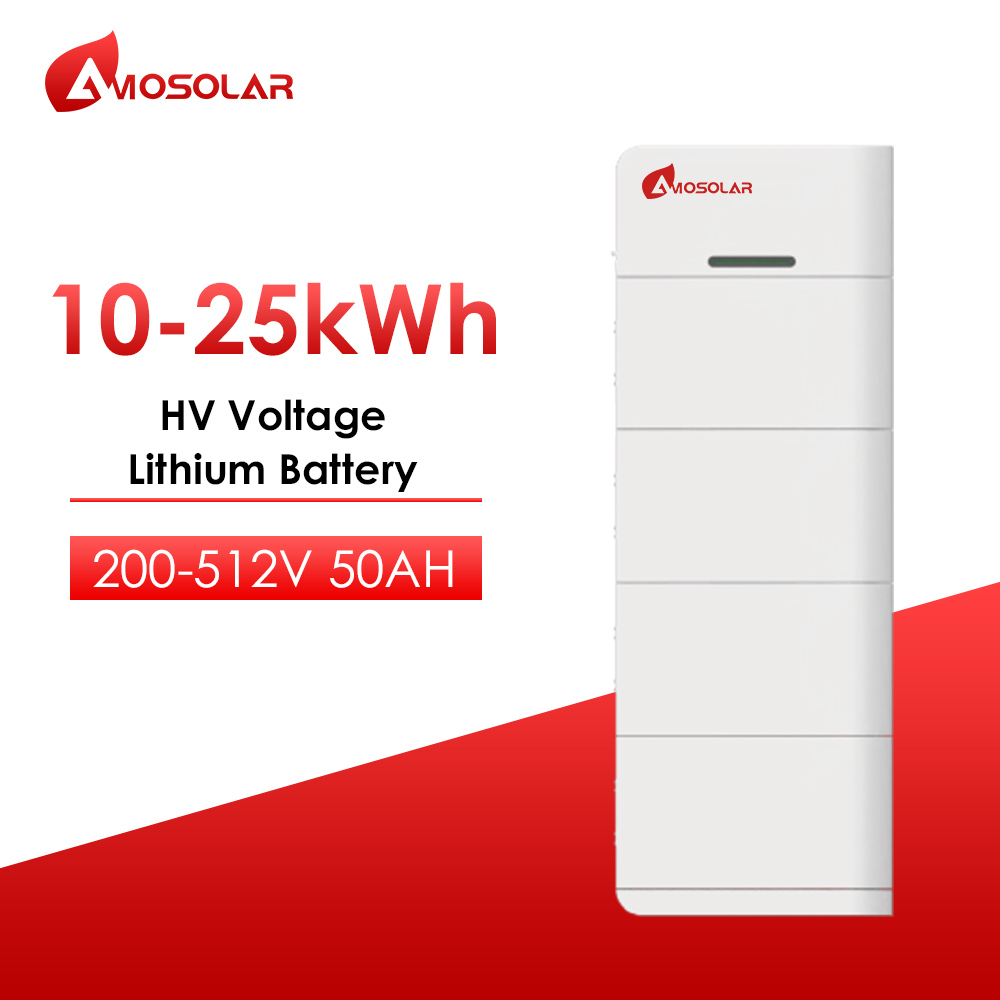

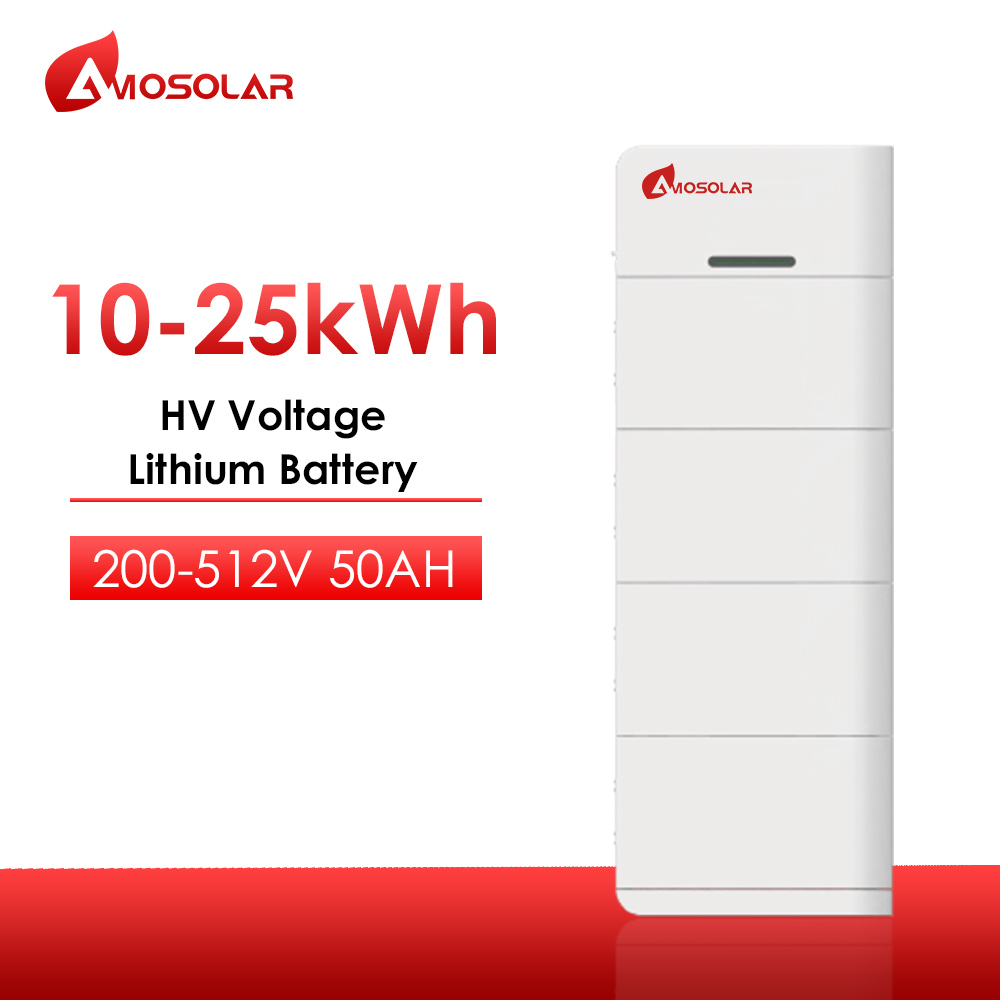

AST10-25
Amosolar High-voltage lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS.
Model Number |
AST10-25 |
Capacity(Ah) | 50Ah |
Maximum Nominal Voltage | 512V |
Energy(Kwh) | 10~25Kwh |
Charge Temperature(℃) | 0~60℃ |
DisCharge Temperature(℃) |
-20~60℃ |
Cycle Life |
6000 Cycles |

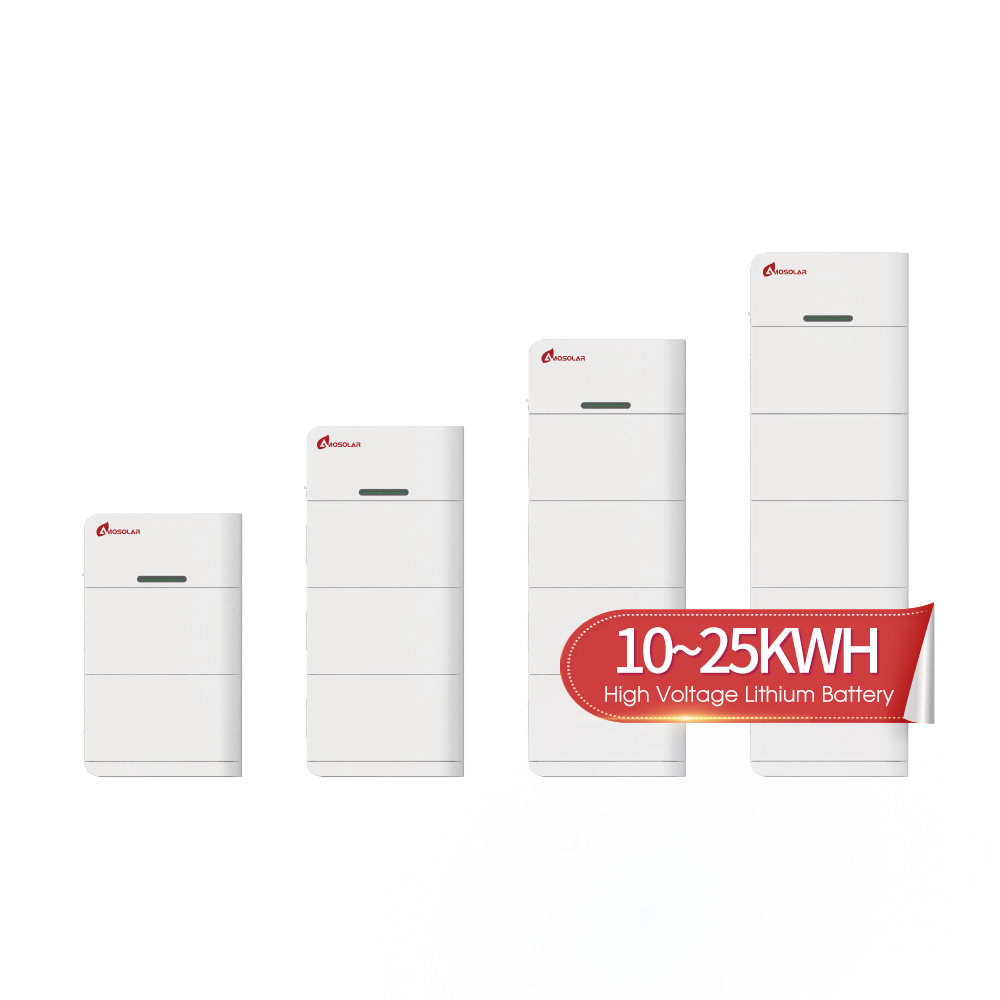

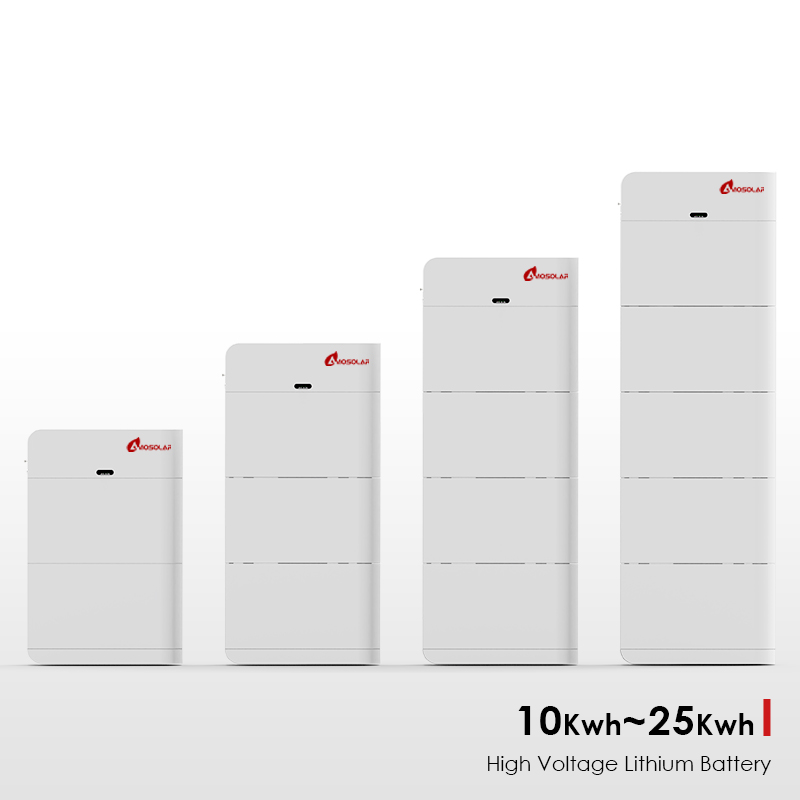

10.24Kwh 15.36Kwh 20.48Kwh 25.6Kwh HV Battery Storage System Lithium Ion Battery
Solar Battery Tower is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.
PERFORMANCE SPECIFICATIONS
MODEL
AST10
AST15
AST20
AST25
Nominal Voltage
204.8V(64series)
307.2v(96series)
409.6V(128series)
512V(160series)
Capacity
50Ah
50Ah
50Ah
50Ah
Energy
10KWh
15KWh
20KWh
25KWh
lnternal Resistance
≤80mQ
≤100mQ
≤120mQ
≤150mQ
Charge Cut-off Voltage
228V±2V
340V±2V
450V±2V
560V±2V
Discharge Cut-off Voltage
180V±2V
270V±2V
350V±2V
440V±2V
Dimensions
630*180*930mm
630*185*1265mm
630*185*1600mm
630*185*1935mm
Weight
Approx:130kg
Approx:180kg
Approx:230kg
Approx:280kg
Cycle Life
>6000 Cycles @80%Dod, 25℃ ,0.5C
Max.Continuous Work Current
100A
Charge Temperature
0℃~60℃
Discharge Temperature
-20℃~60℃
Storage Temperature
-40℃~55 C@ 60%+25% relative humidity
Protocol(optional)
RS232-PC, RS485(B)-PC,RS485(A)-Inver ter, Canbus-Inverter
Certification
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
Warranty
5 Years
