Model Number |
AMO 20K-T2 |
| Capacity(Ah) | 52Ah |
| Maximum Nominal Voltage | 512V |
| Energy(Kwh) | 7.5KWh~20Kwh |
| Max. Charge/Discharge Current(A) | 35A |
| lPGrade | IP65 |
| Cycle Life | 6000 Cycles |
LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information, including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.

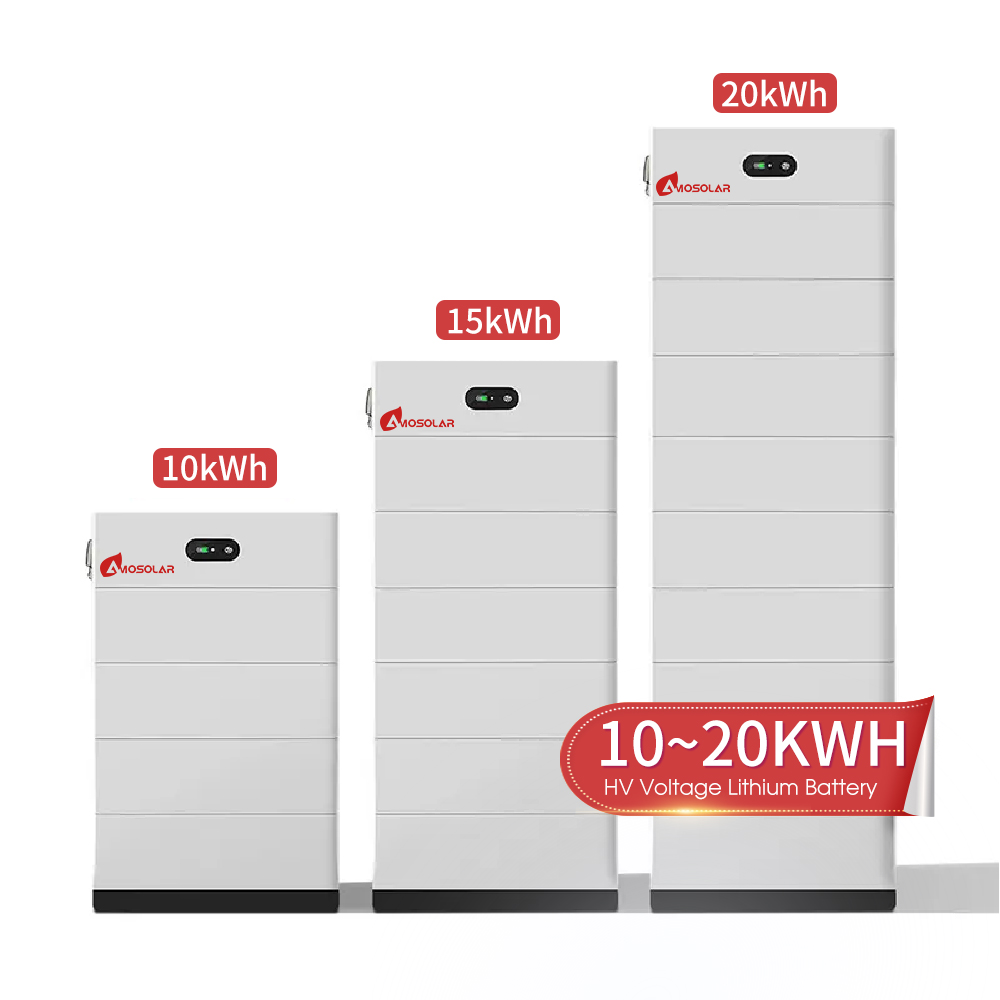

| Model | AMO 7.5K-T2 | AMO 10K-T2 | AMO 12.5K-T2 | AMO 15K-T2 | AMO 17.5K-T2 | AMO 20K-T2 |
| Nominal Voltage | 144V | 192V | 240V | 288V | 336V | 384V |
| Capacity(Ah) | 52Ah | |||||
| Rated Energy(KWH)/Module | 7.488KWH | 9.984KWH | 12.48KWH | 14.976KWH | 17.472KWH | 19.968KWH |
| Usable Energy(KWH)/Module | 6.739KWH | 8.986KWH | 11.232KWH | 13.478KWH | 15.725KWH | 17.971KWH |
| Max. Charge/Discharge Current(A） | 35A | |||||
| Voltage Range(Vdc) | 114.7V-159.7V | 153V-213V | 191.2V-266.2V | 230V-319V | 267.7V-372.7V | 306V-426V |
| Scalability | Up to 1 parallel | |||||
| Communication | RS232-PC, RS485-Inverter, Can-Inverter | |||||
| Cycle Life | 6000 Cycles @25℃, 0.5C, 90%DOD, 60%EOL | |||||
| Weight( Approx) (KG) | 84.5KG | 109KG | 133.5KG | 158KG | 182.5KG | 207KG |
| Dimension(W/D/H)(mm) | 606*220*730 | 606*220*900 | 606*220*1070 | 606*220*1240 | 606*220*1410 | 606*220*1580 |

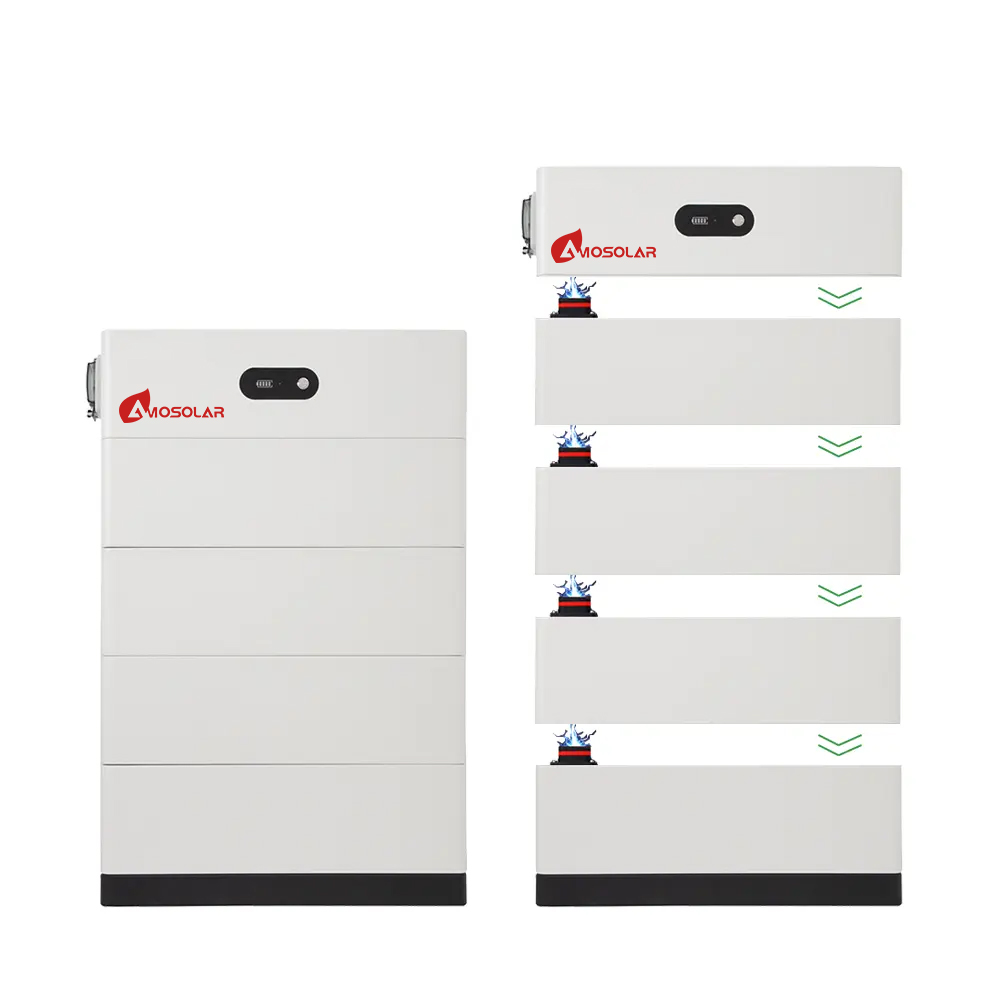

| lnstallation Mode | Stack | |||||
| lPGrade | IP65 | |||||
| Safety(Pack) | UN38.3,MSDS | |||||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||
| Protection | BMS, Breaker | |||||
| Operating Temperature(℃) | Charge: 0℃-55℃; Discharge: -20℃-55℃ | |||||
| Altitude (m) | ≤2000 | |||||
| Humidity | ≤95%(No Condensing) | |||||
| Warranty | 5 Years(25℃) | |||||
| Design Life | 10+Years (25℃/77F) | |||||
AST10-25 Amosolar High-voltage lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AST10-25 Capacity(Ah) 50Ah Maximum Nominal Voltage 512V Energy(Kwh) 10~25Kwh Charge Temperature(℃) 0~60℃ DisCharge Temperature(℃) -20~60℃ Cycle Life 6000 Cycles
Learn More
Model Number AMO 15K-T2 Capacity(Ah) 104Ah Max. Charge/Discharge Current(A) 50A Energy(Kwh) 15KWh~40Kwh Safety(Pack) UN38.3,MSDS lPGrade IP65 Cycle Life 6000 Cycles
Learn More
Amosolar 3KW 5KW 6KW Hybrid Solar System Name Hybrid 5KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
Amosolar 10KW 11KW 12KW Hybrid Solar System Name Hybrid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS410-430M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
LR7-72HGD 585~620M Cell Arrangement 144(24 X 6) Junction Box IP68, 3 diodes Weight 33.5KG Cable Length +400,-200mm/±1400mm Cable Size 4 mm2 (lEC) PV Size 2382x1134x30mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
Model Number AMO 107.5-215K HV-S1 Capacity(Ah) 280AH Battery Module AMO17.92K HV-S1(64V280Ah) Max. Charge Discharge Current(A) 140A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
Learn More
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
