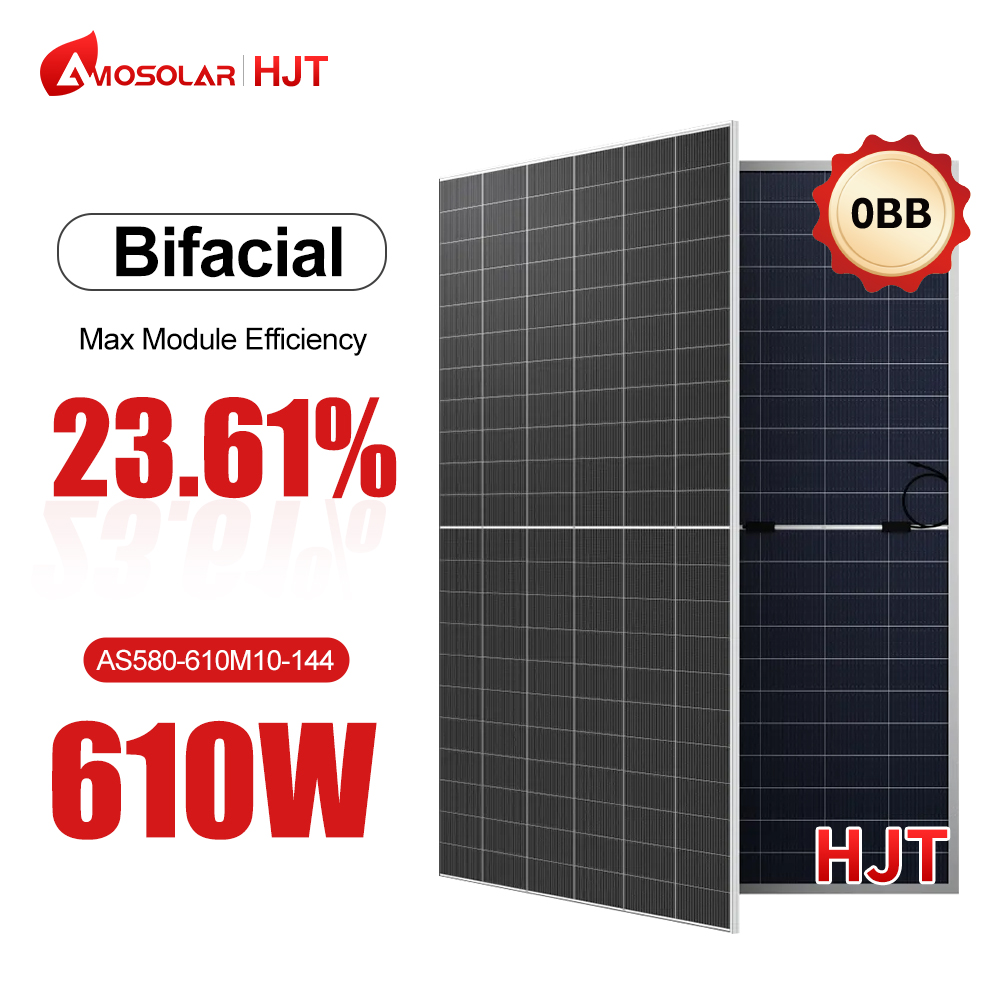

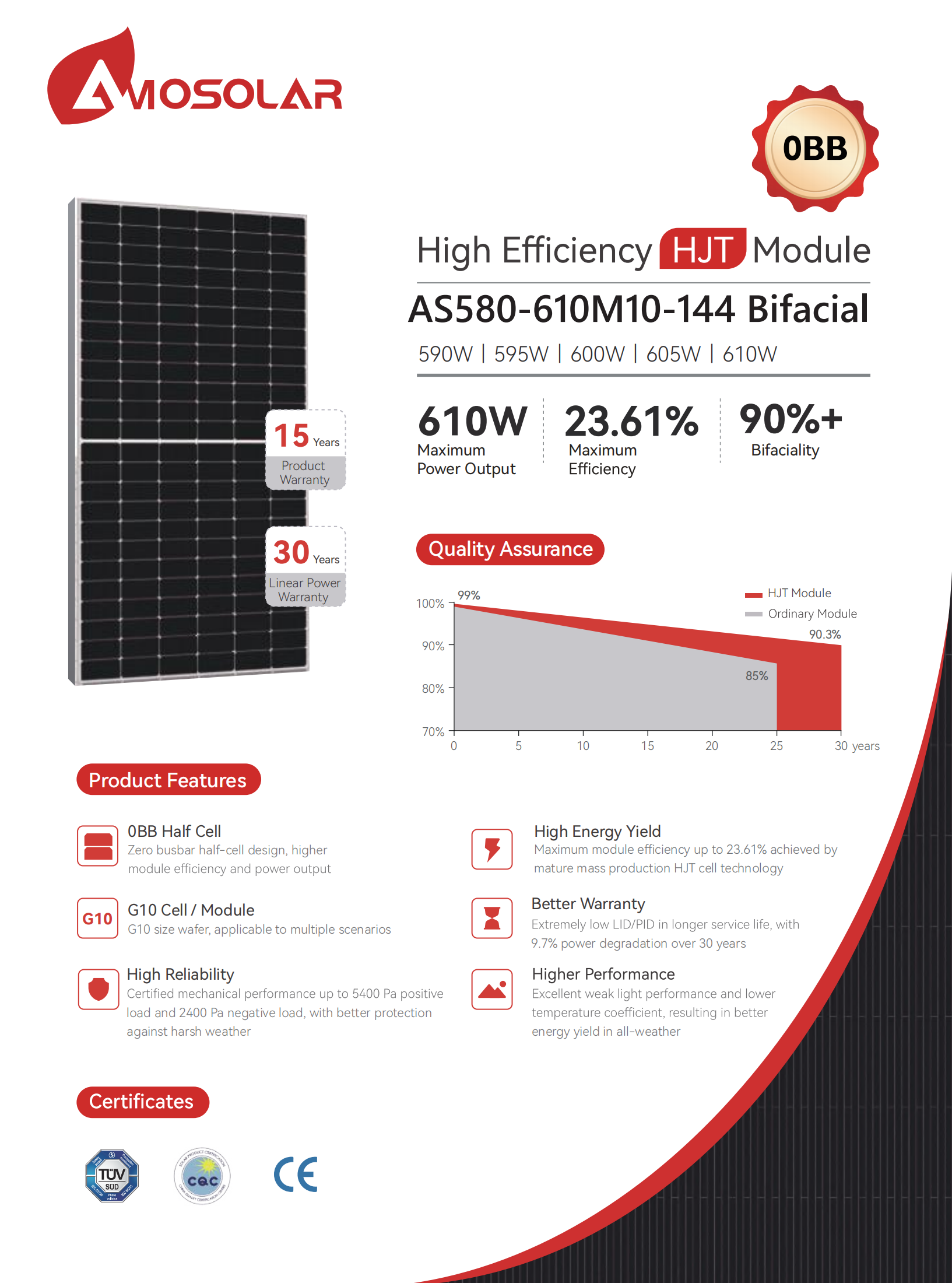

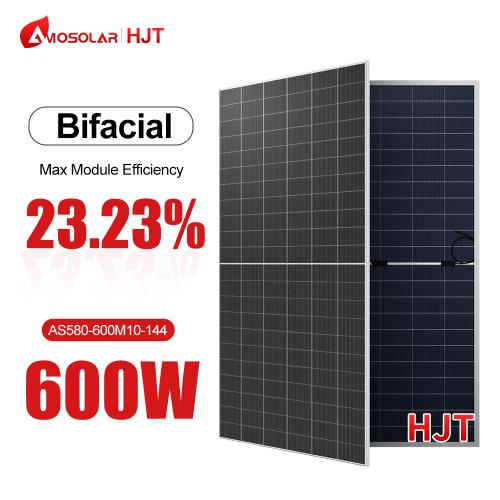

OBB AS580-610M10-144 Bifacial
| Cell Type | HJT |
| No. of Cells | 182x91 All Dimensions |
| Dimensions | 2278x1134x30 mm |
| Weight | 32.5±0.5kg |
| Junction Box | IP68,1500VDC, 3Diodes |
| Cable | 4mm², 300mm(customized length based on needs) |
| Frame | Anodized aluminum |

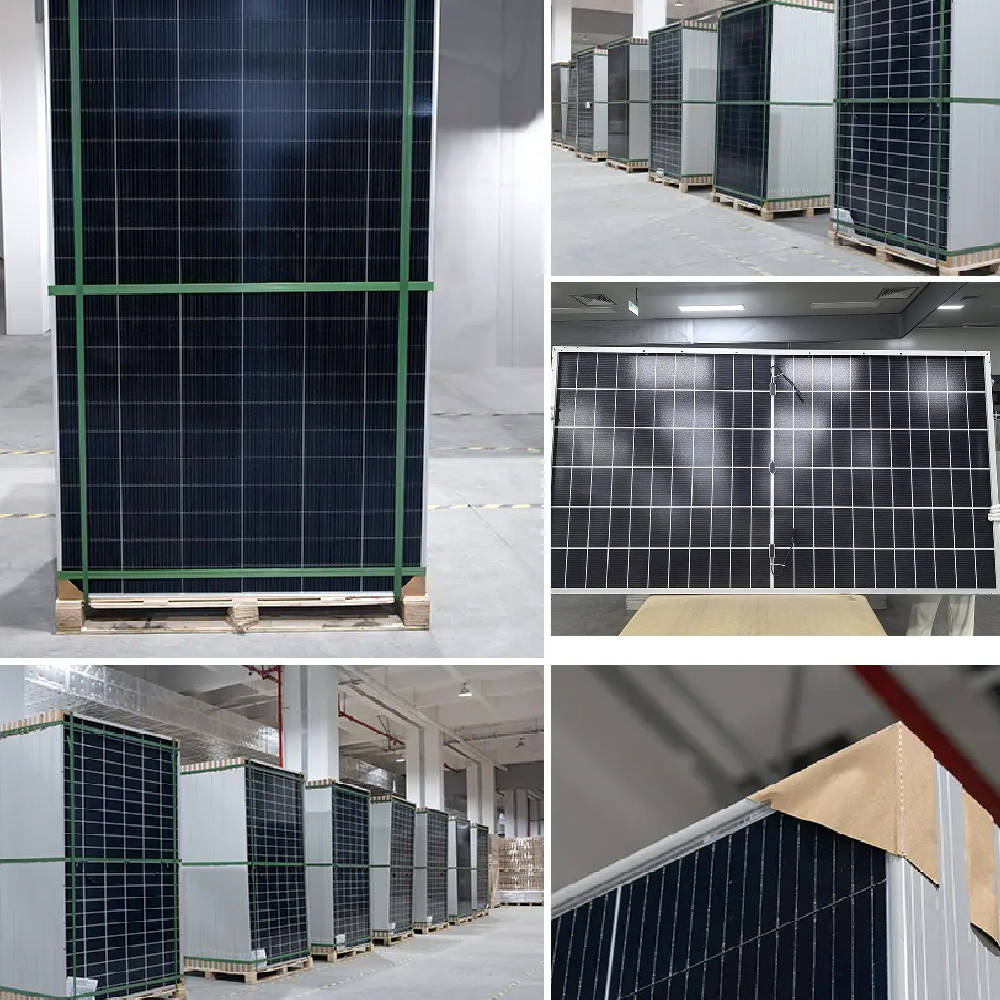

| Packaging configuration((40'Container; 17.5'Trailer) | 36pcs/pallet; 20pallet/container; 720pcs/container 36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer |
| Model | AS590M10-144 | AS595M10-144 | AS600M10-144 | AS605M10-144 | AS610M10-144 |
| Pmax(Wp) | 590 | 595 | 600 | 605 | 610 |
| Voc(V) | 53.33 | 54.52 | 54.71 | 54.90 | 55.09 |
| Isc(A) | 13.46 | 13.51 | 13.56 | 13.61 | 13.66 |
| Vmpp(V) | 45.44 | 45.65 | 45.86 | 46.07 | 46.28 |
| Impp(A) | 13.00 | 13.05 | 13.10 | 13.15 | 13.20 |
| Efficiency | 22.84% | 23.03% | 23.23% | 23.42% | 23.61% |

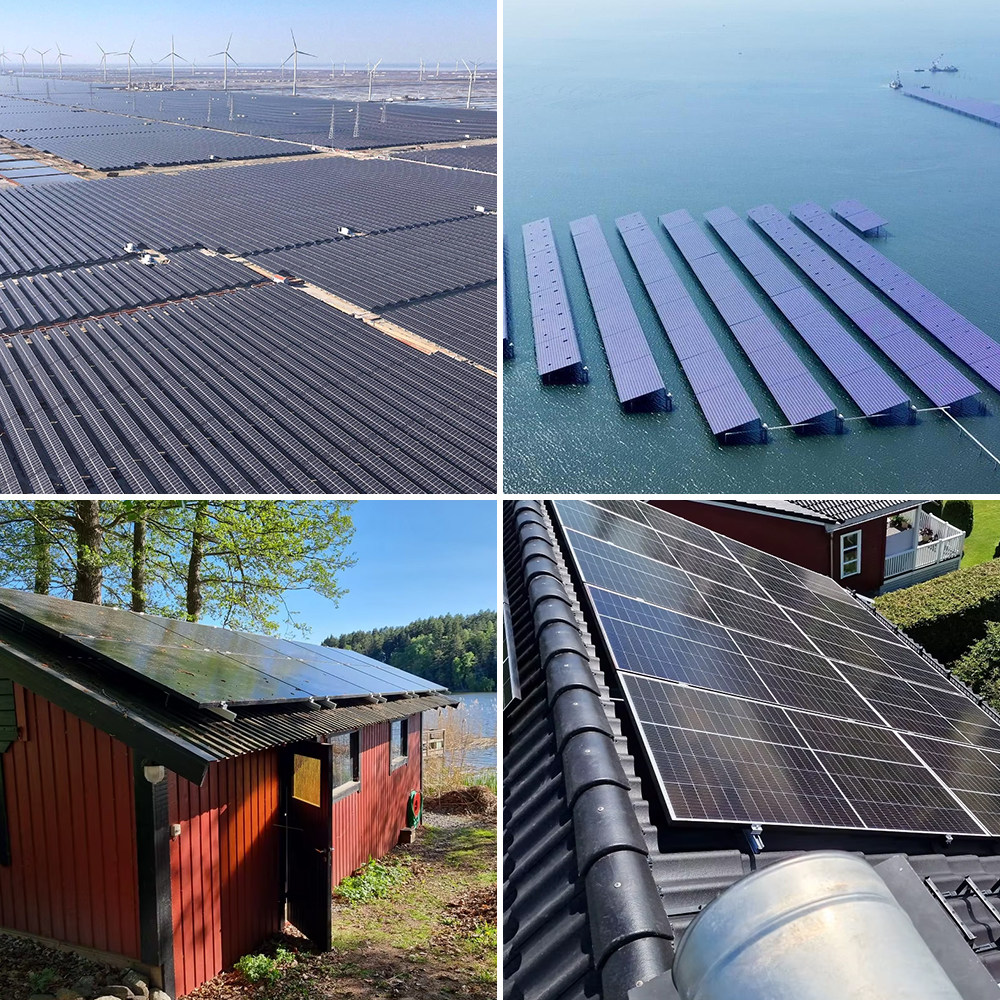

Heterojunction (HJT) solar panels deliver outstanding performance by combining crystalline silicon cells with advanced thin-film technology. This innovative structure enables higher energy conversion efficiency, better temperature performance, and superior durability. With their bifacial design, HJT modules can capture sunlight from both sides, making them ideal for commercial solar installations and utility-scale projects looking to maximize output.

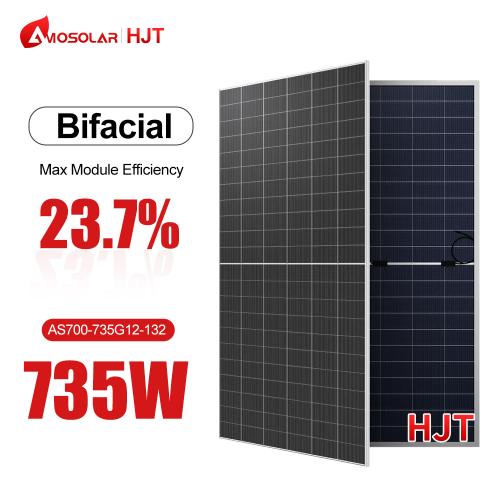

AS700-735G12-132 Bifacial Cell Type HJT No. of Cells 132 (6x22) Dimensions 2384 x1303 x33 mm Weight 37.9kg Junction Box IP68 Cable 4mm2;+350/-250mm or customized; UV resistant Connector MC4/MC4-EV02A/PV-H4/Z4S-abcd/ST4 Frame Anodized aluminum alloy frame Max Static Load (front side/rear side) 5400Pa/2400Pa Glass Dual glass,2.0mm
Learn More
AS580-600M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet;20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More

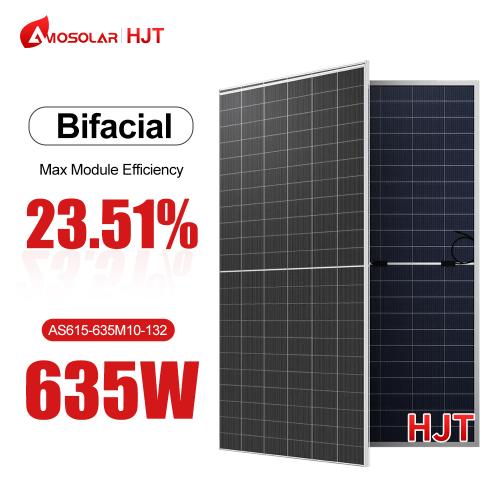

AS615-635M10-132 Bifacial Cell Type HJT No. of Cells 182x105 All Dimensions Dimensions 2382x1134x30 mm Weight 33.6±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
