AS485-505M10-108
| Cell | N-type TOPCon Mono |
| No.of cells | 108(2x54) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 24kgs±3% |
| Cells Type | Mono 182x9mm |
| Dimension(LxWxT) | 1961±2mmx1134±2mmx30±1mm |
| Packaging |
36pcs/pallet, 24 pcs/stack,;864pcs/40HQ(30mm) 31pcs/pallet, 24 pcs/stack,;744pcs/40HQ(35mm) |
485W-505W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

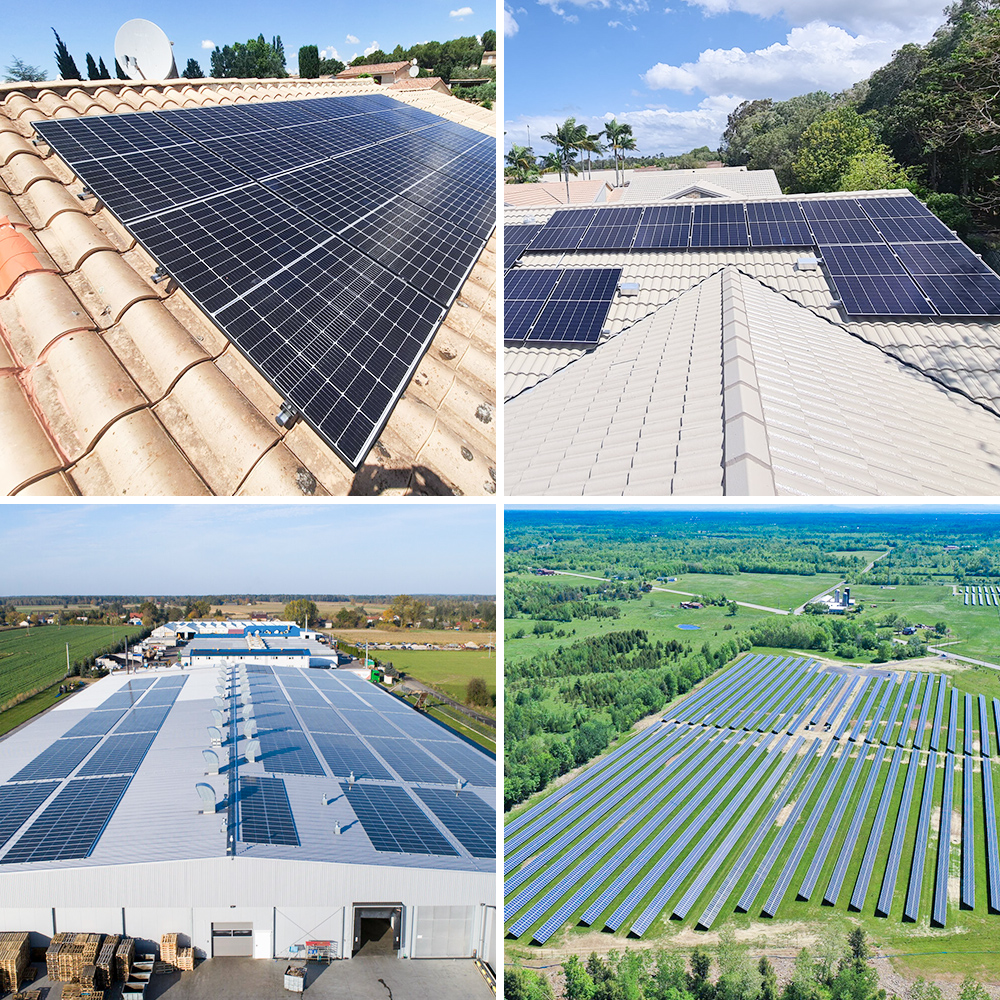

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS485M10-108 | AS490M10-108 | AS495M10-108 | AS500M10-108 | AS505M10-108 |
| Maximum Power(Pmax/W) | 485 | 490 | 495 | 500 | 505 |
| Open Circuit Voltage(Voc/V) | 39.20 | 39.50 | 39.80 | 40.10 | 40.40 |
| Short Circuit Current(Isc/A) | 15.77 | 15.80 | 15.83 | 15.86 | 15.89 |
| Voltage at Maximum Power(Vmp/V) | 32.68 | 32.88 | 33.10 | 33.30 | 33.50 |
| Current at Maximum Power(Imp/A) | 14.85 | 14.91 | 14.97 | 15.03 | 15.08 |
| Module Efficiency(%) | 21.80 | 22.00 | 22.30 | 22.50 | 22.70 |
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
AS515-540M10-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 25.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,792pcs/40HQ container(30mm) 31pcs/pallet,682pcs/40HQ(container(35mm)
Learn More
AS575-600M10-132 Cell N-type TOPCon Mono No.of cells 144(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
JKM535-555M-72HL4-BDVP-F6EN Cell Arrangement 144 (6 X24) Junction Box IP68, 3 bypass diodes Weight 31KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2278X1134X30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
TSM-NEG21C.20 695-720W Cell Arrangement 132 (22X 6) Junction Box IP68 rated Weight 38.3KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 2384 x1303x30mm Packaging 33 pcs/ pallet 594pcs /40HQ container
Learn More
6-GFM(G)-200Ah Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan Model Number 6-GFM(G)-200Ah Capacity(Ah) 200 Nominal Voltage 12V Size(L×W×H×TH) 522×238×221×250 mm Battery Type GEL Cycle Life 1500times
Learn More
AS415-440M10-108 Cell Mono Rated Maximum Power 440W Maximum Efficiency 22.53% Weight 21kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
OBB AS580-610M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
