| Cell | Mono |

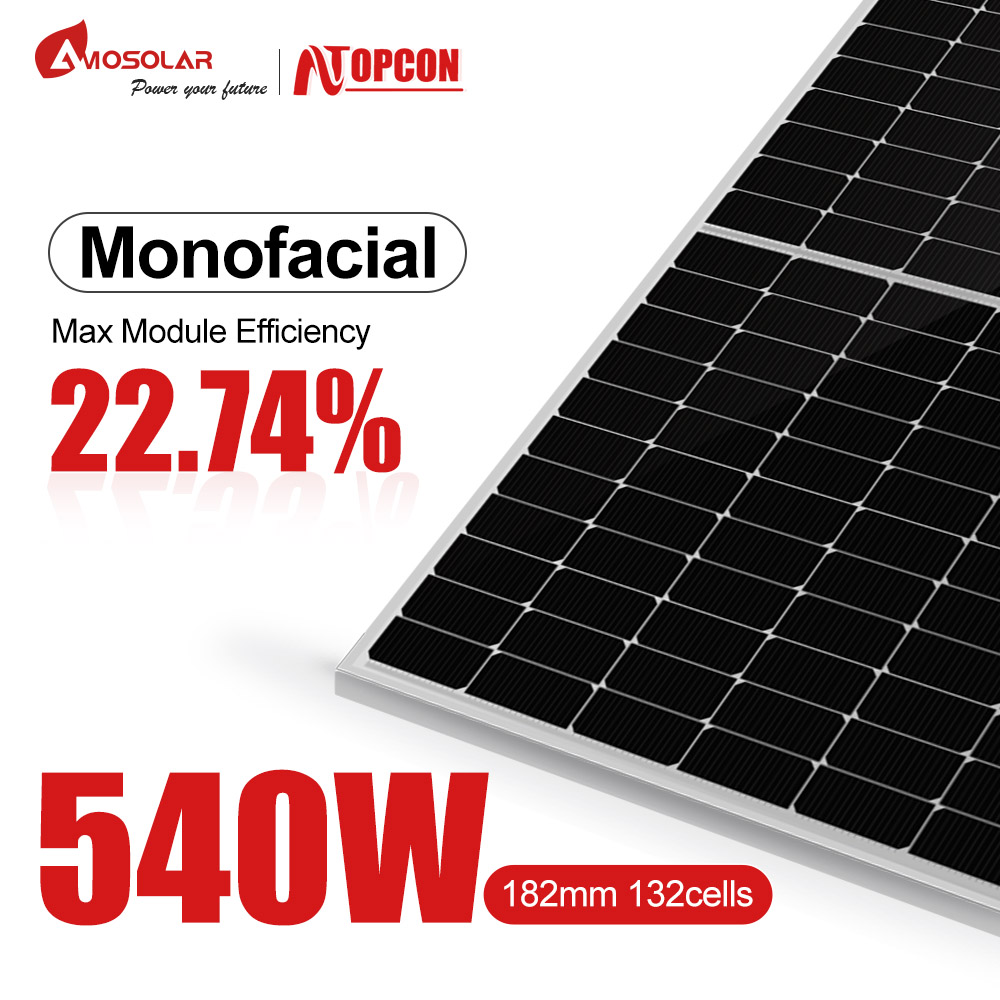

| Rated Maximum Power | 540W |
| Maximum Efficiency | 22.74% |
| Weight | 24.5kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 2094±2mmx1134±2mmx35±1m |
| Packaging | 31pcs/pallet, 682pcs/40HQ container |

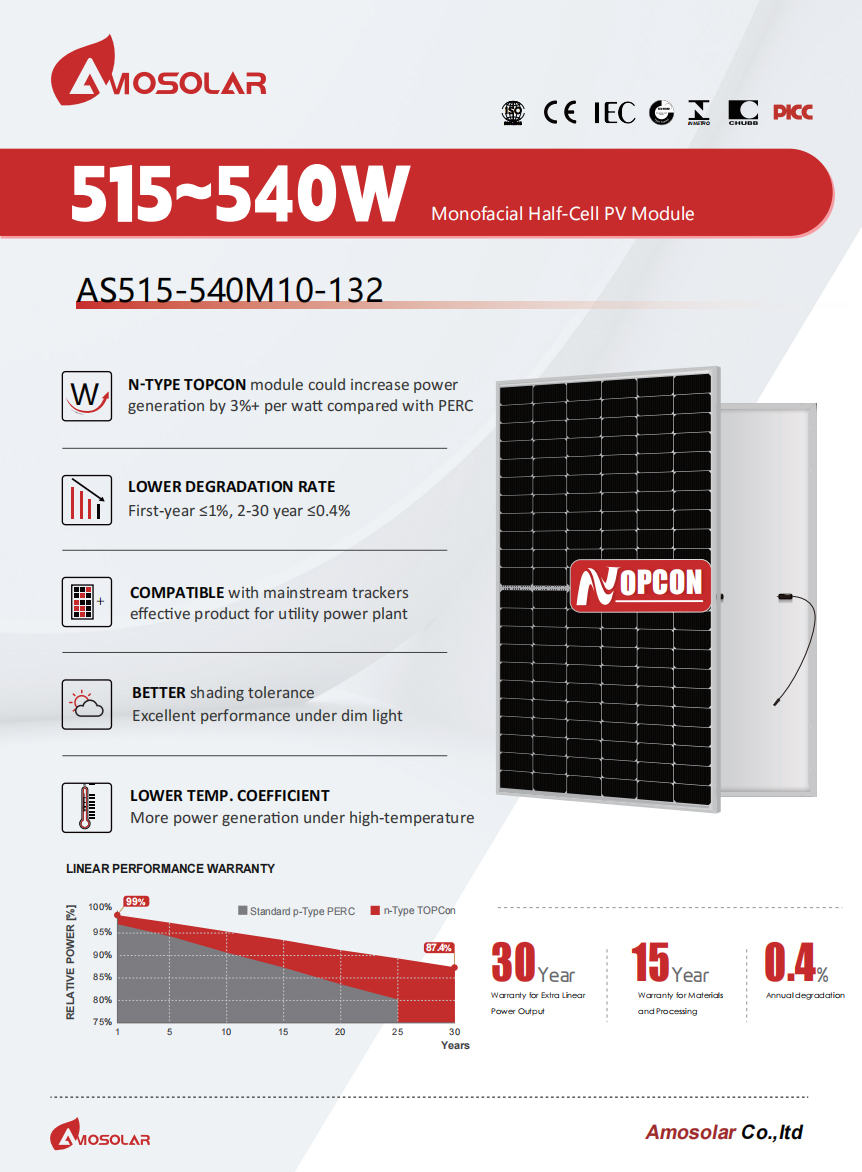

515W-540W Half Cells Mono Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.

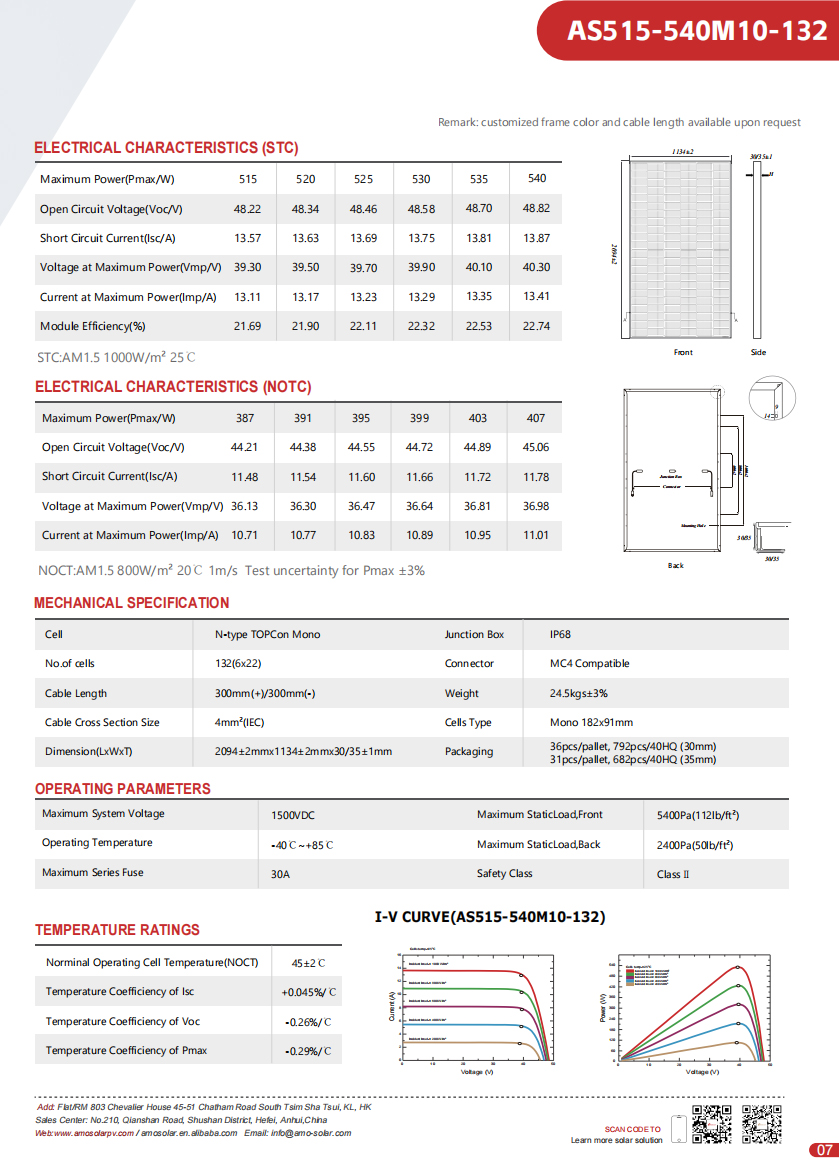

Electrical Performance Parameters (STC Test)
| Model | AS515M10-132 | AS520M10-132 | AS525M10-132 | AS530M10-132 | AS535M10-132 | AS540M10-132 |
| Rated Maximum Power at STC | 515W | 520W | 525W | 530W | 535W | 540W |
| Open Circuit Voltage (Voc) | 48.22 | 48.34 | 48.46 | 48.58 | 48.70 | 48.82 |
| Maximum Power Voltage (Vmp) | 39.30 | 39.50 | 39.70 | 39.90 | 40.10 | 40.30 |
| Short Circuit Current (Isc) | 13.57 | 13.63 | 13.69 | 13.75 | 13.81 | 13.87 |
| Maximum Power Current (Imp) | 13.11 | 13.17 | 13.23 | 13.29 | 13.35 | 13.41 |
| PV Module Efficiency (%) | 21.69 | 21.90 | 22.11 | 22.32 | 22.53 | 22.74 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | |||||
Solar panels convert sunlight into clean, renewable energy, helping reduce your electricity bills and carbon footprint. With high-efficiency solar panels, you can maximize energy production and enjoy a more sustainable future.
AS565-590M10-144 Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.83% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1m Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS415-440M10-108 Cell Mono Rated Maximum Power 440W Maximum Efficiency 22.53% Weight 21kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
AS48100/AS48200 Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS48100/AS48200 Capacity(Ah) 100/200 Nominal Voltage 48V Weight( Approx) (KG) 43.2kg/76.8kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement 150 Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 (IEC) PV Size 2384x1134x30 mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
AS440-465M10-120 Cell Mono Rated Maximum Power 465W Maximum Efficiency 21.47% Weight 23.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1910±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet, 864pcs/40HQ container
Learn More
AMO 10.24K-20.48K_LV-T1 Amosolar Low-voltage lithium battery:6000 Cycles,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AMO 10.24K_LV-T1 AMO 15.36K_LV-T1 AMO 20.48K_LV-T1 Capacity(Ah) 200Ah 300Ah 400Ah Maximum Nominal Voltage 51.2V Energy(Kwh) 10.24~20.48Kwh Charge Temperature(℃) 0~55℃ DisCharge Temperature(℃) -20~55℃ Cycle Life 6000 Cycles
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
Model Number AMO 20.48-51.20K_HV-S1 Capacity(Ah) 100AH Battery Module AMO5.12K_HV-S1(51.2V100Ah,48kg) Max. Charge Discharge Current(A) 100A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃,0.5C,80%DOD, 70%EOL
Learn More
