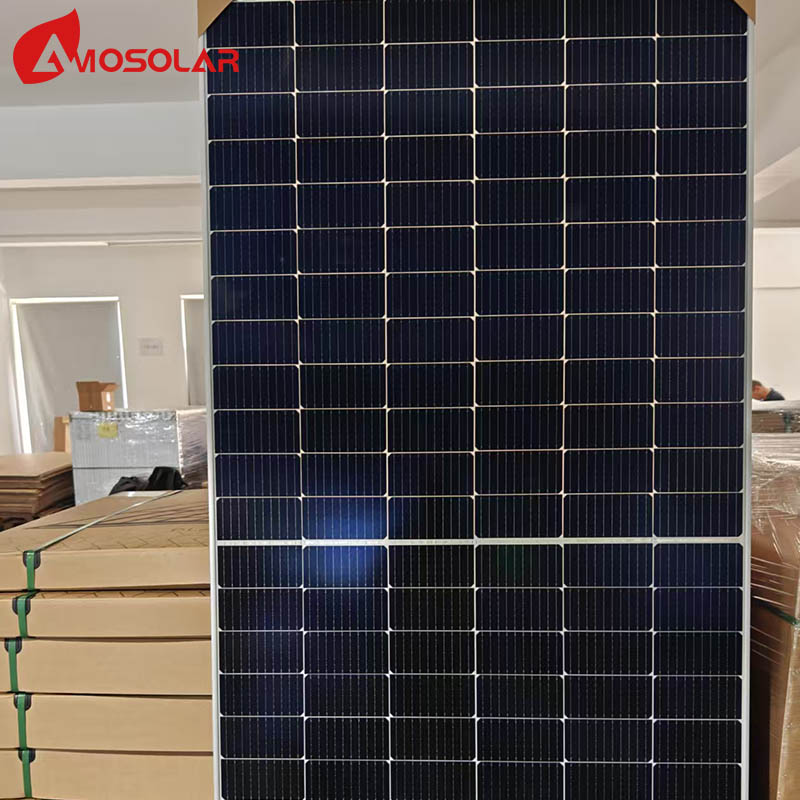

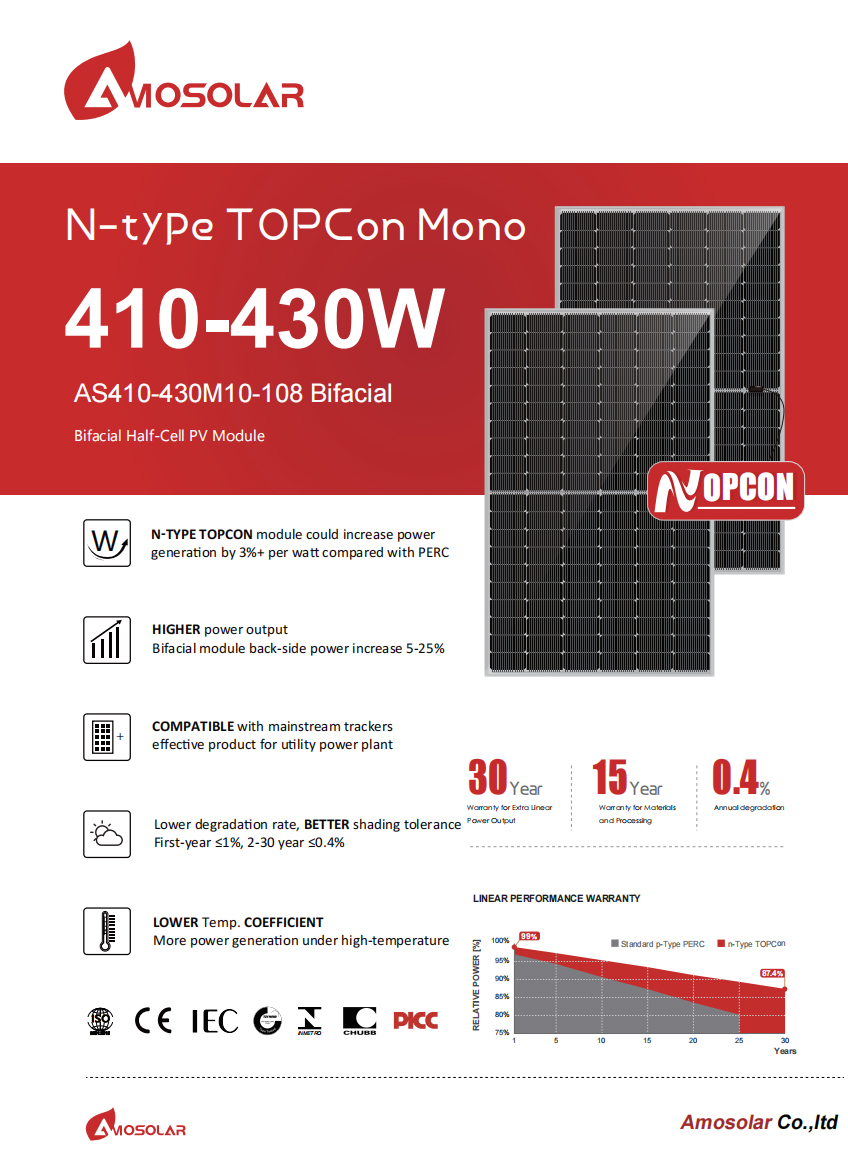

AS410-430M10-108 Bifacial
| Cell | N-type TOPCon Mono |
| No.of cells | 108(6x18) |
| Cable Length | 300mm(+)/300mm(-) |
|
Cable Cross Section Size
|
4mm²(IEC)
|
|
Junction Box
|
IP68
|
|
Connector
|
MC4 Compatible
|
|
Weight
|
24.2kgs±3%
|
|
Cells Type
|
Mono 182x91mm
|
|
Dimension(LxWxT)
|
1722±2mmx1134±2mmx30/35±1mm
|
|
Packaging
|
36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
|
410W-430W Half Cells Mono Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

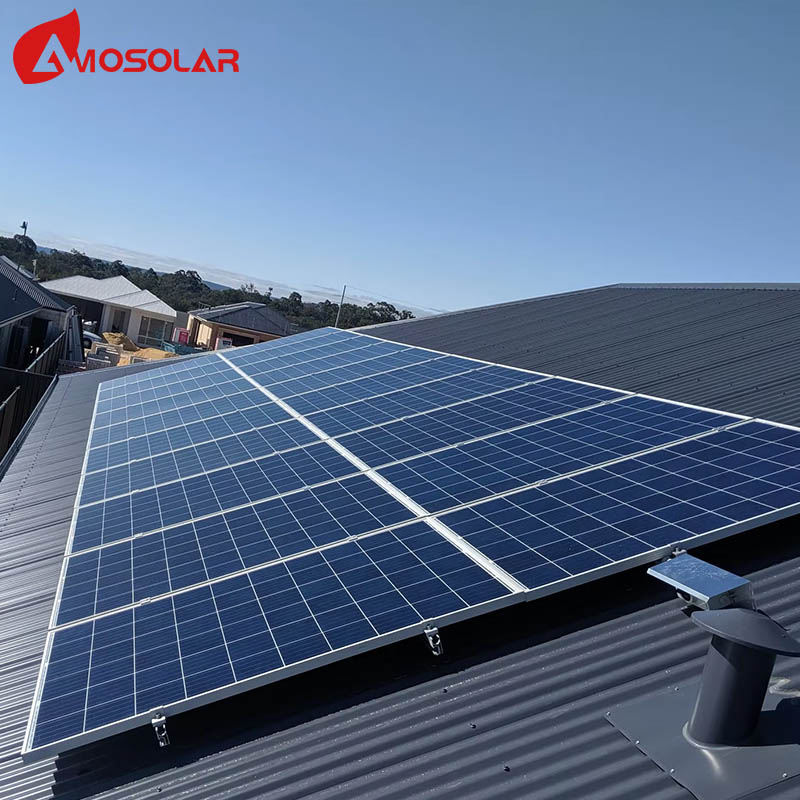

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Model | AS410M10-108 | AS415M10-108 | AS420M10-108 | AS425M10-108 | AS430M10-108 |
| Rated Maximum Power at STC | 410W | 415W | 420W | 425W | 430W |
| Open Circuit Voltage (Voc) | 38.01 | 38.25 | 38.49 | 38.73 | 38.96 |
| Maximum Power Voltage (Vmp) | 31.2 | 31.42 | 31.63 | 31.84 | 32.04 |
| Short Circuit Current (Isc) | 13.85 | 13.92 | 13.99 | 14.06 | 14.13 |
| Maximum Power Current (Imp) | 13.14 | 13.21 | 13.28 | 13.35 | 13.42 |

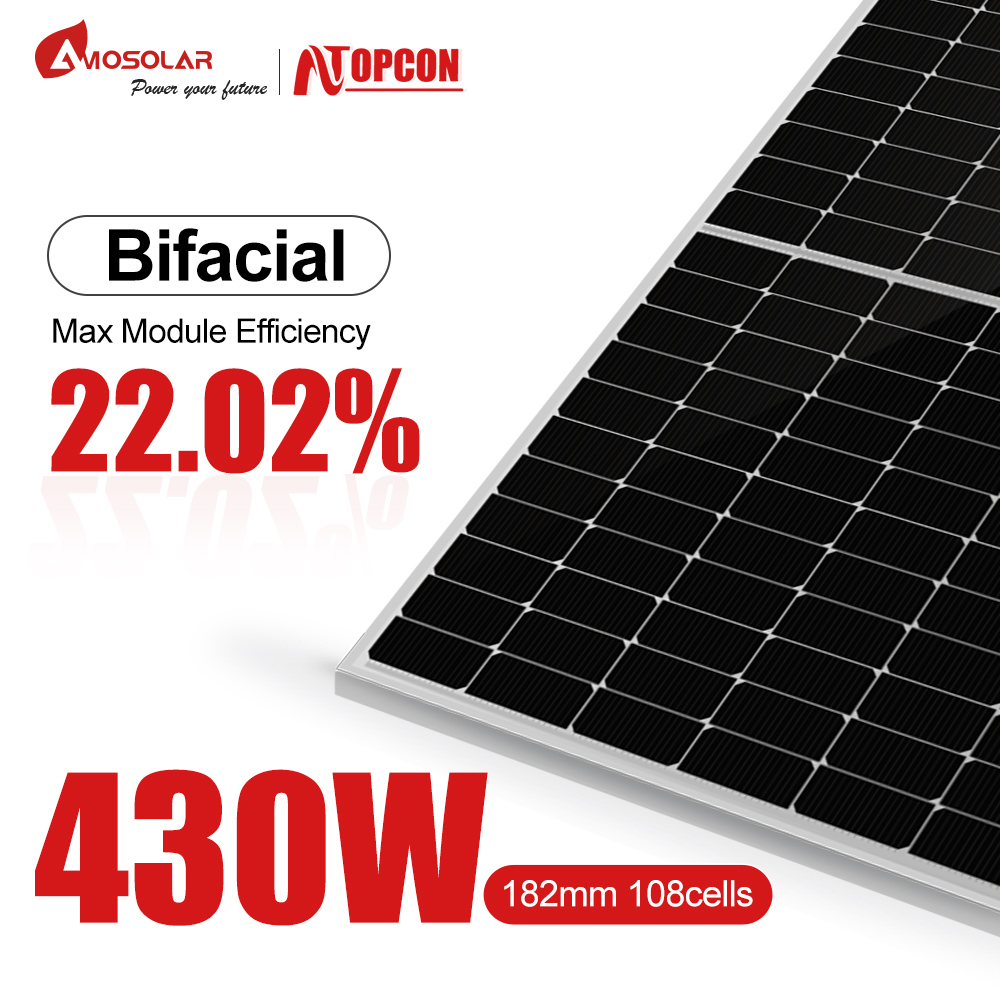

| PV Module Efficiency (%) | 21.00 | 21.25 | 21.51 | 21.76 | 22.02 |
AS420-440M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
AS425-450M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
Amosolar 1KW 3KW 5KW Off Grid Solar System Name Off Grid 5KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V US:110/120V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS530-560M10-144 Cell Mono Rated Maximum Power 560W Maximum Efficiency 21.67% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 120 [2 X (10 X 6)] Junction Box IP68, 3 bypass diodes Weight 31.0KG Cable Length 460 mm (18.1 in)(+)/340 mm (13.4 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2172 X1303 X35 mm Packaging 31 pcs/pallet 527pcs/40HQ container
Learn More
AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
AS695-720G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 38.3kgs±3% Cells Type Mono 210x91mm Dimension(LxWxT) 2384±2mmx1303±2mmx33±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm)
Learn More
