48V Lithium Ion Battery Pack Rack Mounted 5KWh 10KWh Solar Battery
Products
Home / SOLAR BATTERY / Lithium Battery / Rackmount /

48V Lithium Ion Battery Pack Rack Mounted 5KWh 10KWh Solar Battery

rack mount lithium battery
rack mount lithium battery
rack mount lithium battery
rack mount lithium battery

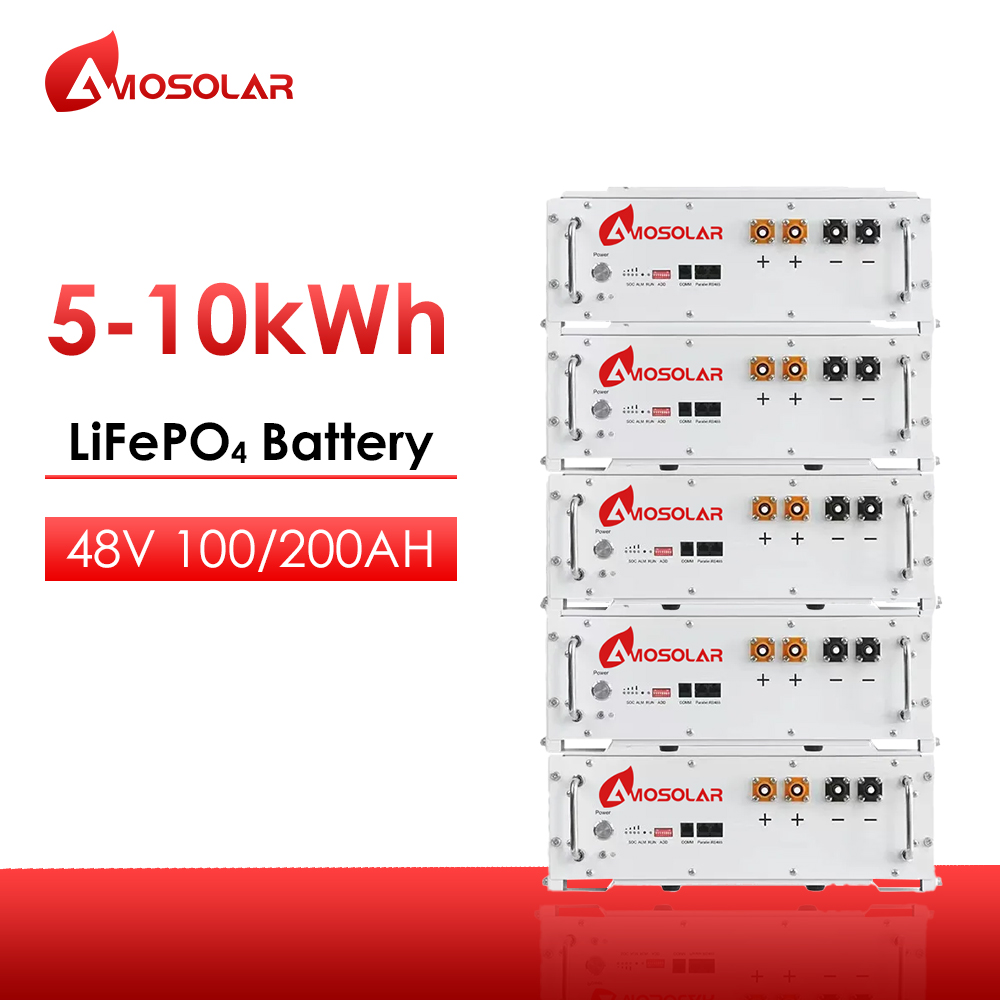

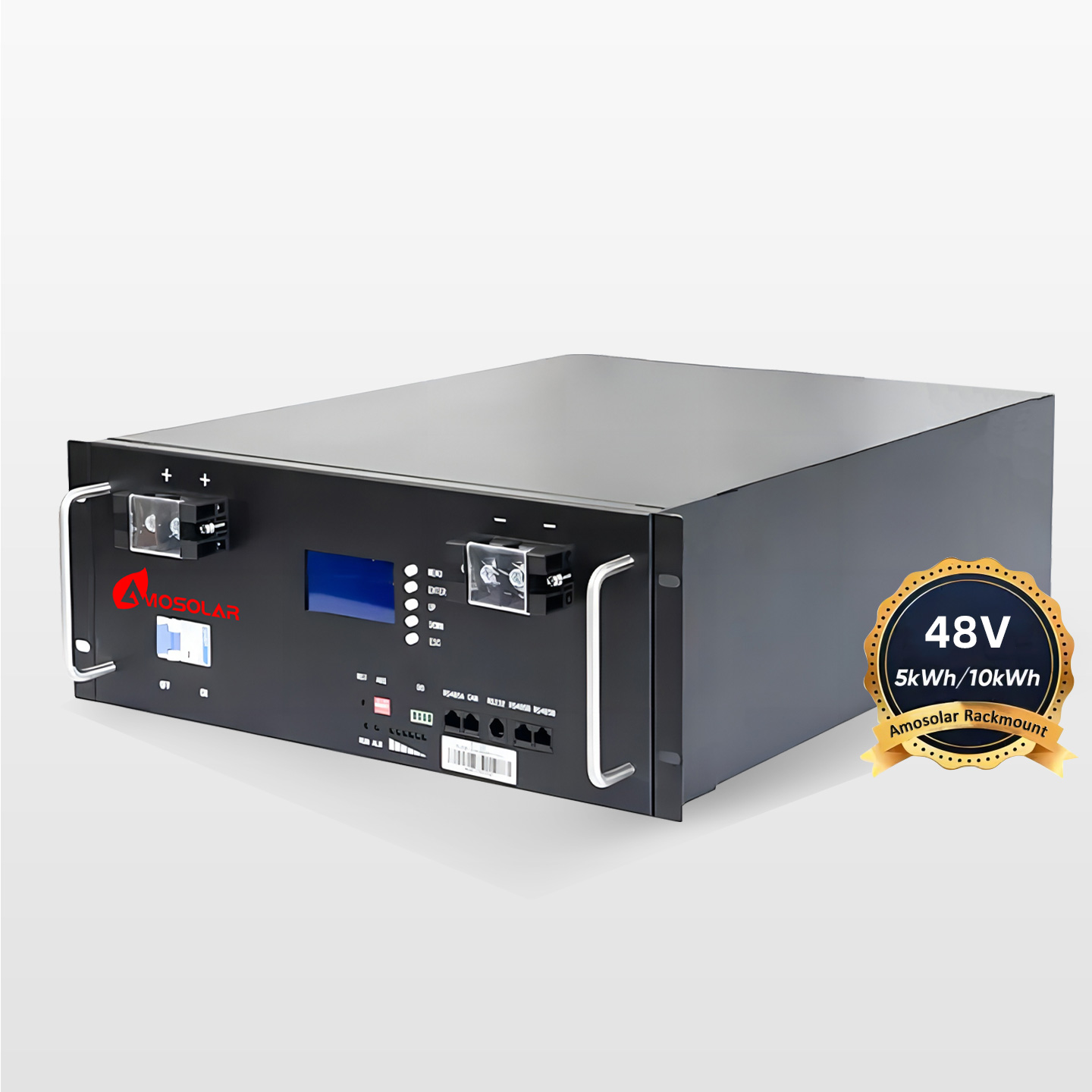

48V Lithium Ion Battery Pack Rack Mounted 5KWh 10KWh Solar Battery

AS48100/AS48200

Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS.

Model Number

AS48100/AS48200
Capacity(Ah)
100/200
Nominal Voltage
48V
Weight( Approx) (KG)
43.2kg/76.8kg
Dimension(W/D/H)(mm)
480*483*178mm/680*483*178mm
Battery Type
LiFePo4(LFP)
Cycle Life
6000 Cycles

48V 100AH 200AH Lifepo4 Battery Lithium Ion Battery

LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.



PERFORMANCE SPECIFICATIONS
MODEL
100AH
200AH
Nominal Voltage
48V
Cell model/Configuration
3.2V 100Ah(ANC)/15S1P
3.2V 100Ah(ANC)/15S2P
Capacity(Ah)
100AH
200AH
Rated Energy (KWH)
4.8KWH
9.6KWH
Usable Energy(KWH)
3.84KWH
7.68KWH
Max.Charge/Discharge Current(A)
100A/100A
Voltage Range (Vdc)
42-54V
Scalability
Up to 15 parallel
Communication
RS232-PC,RS485(B)-BATRS485(A)-Inverter,Canbus-Inverter
Cycle Life
≥6000cycles@25℃,80%DOD,60%EOL
Design Life
≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)
43.2kg
76.8kg
Dimension(W/D/H)(mm)
480*483*178mm
680*483*178mm
lnstallation Mode
Stack
lPGrade
lP20
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3,MSDS
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(C)
Charge:0°C~55℃; Discharge: -20°C-55℃
Altitude (m)
≤2000
Humidity
≤95%(Non-condensing)
