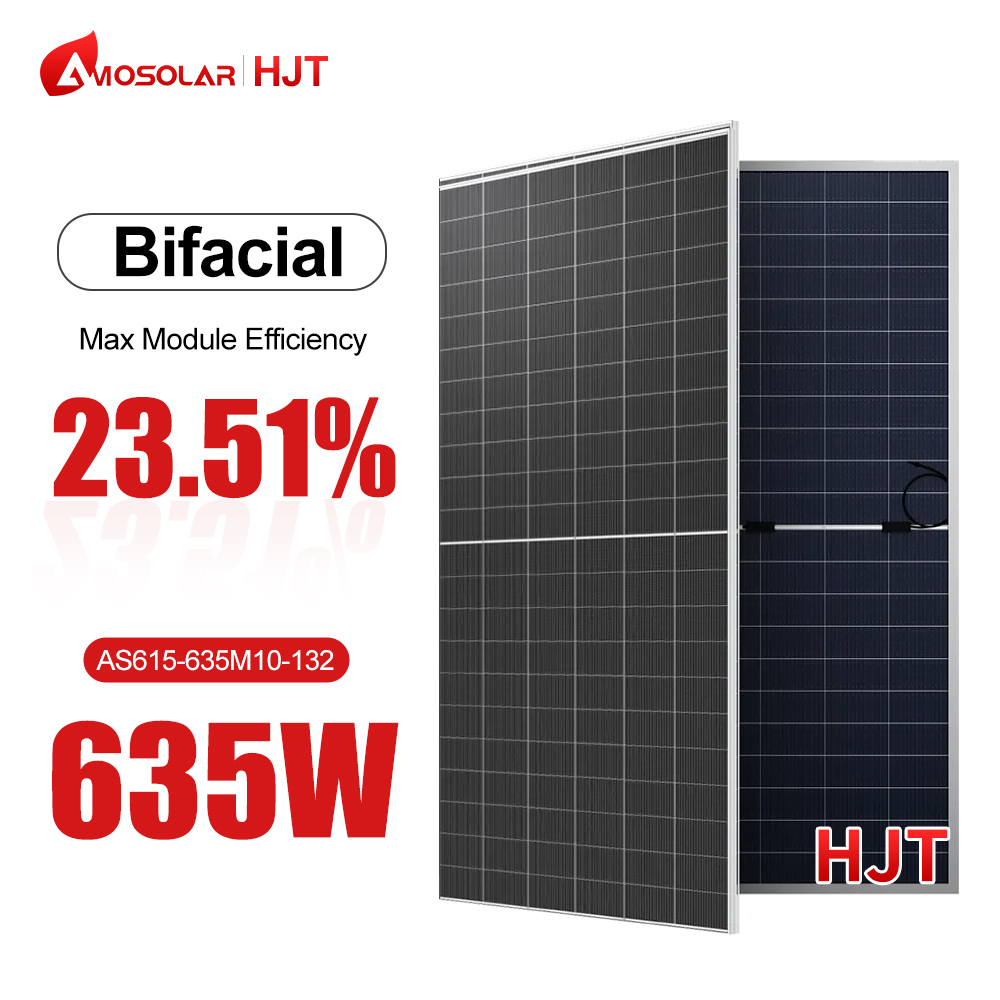

AS615-635M10-132 Bifacial
| Cell Type | HJT |
| No. of Cells | 182x105 All Dimensions |
| Dimensions | 2382x1134x30 mm |
| Weight | 33.6±0.5kg |
| Junction Box | IP68,1500VDC, 3Diodes |
| Cable | 4mm², 300mm(customized length based on needs) |
| Frame | Anodized aluminum |
| Packaging configuration((40'Container; 17.5'Trailer) | 36pcs/pallet; 20pallet/container; 720pcs/container 36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer |
| Model | AS615M10-132 | AS620M10-132 | AS625M10-132 | AS630M10-132 | AS635M10-132 |
| Pmax(Wp) | 615 | 620 | 625 | 630 | 635 |
| Voc(v) | 49.19 | 49.31 | 49.43 | 49.56 | 49.68 |
| Isc(A) | 15.79 | 15.90 | 16.01 | 16.12 | 16.23 |
| Vmpp(V) | 41.16 | 41.31 | 41.47 | 41.63 | 41.78 |
| Impp(A) | 14.95 | 15.02 | 15.08 | 15.14 | 15.20 |
| Efficiency | 22.77% | 22.95% | 23.14% | 23.32% | 23.51% |
Heterojunction (HJT) solar panels deliver outstanding performance by combining crystalline silicon cells with advanced thin-film technology. This innovative structure enables higher energy conversion efficiency, better temperature performance, and superior durability. With their bifacial design, HJT modules can capture sunlight from both sides, making them ideal for commercial solar installations and utility-scale projects looking to maximize output.
AS700-735G12-132 Bifacial Cell Type HJT No. of Cells 132 (6x22) Dimensions 2384 x1303 x33 mm Weight 37.9kg Junction Box IP68 Cable 4mm2;+350/-250mm or customized; UV resistant Connector MC4/MC4-EV02A/PV-H4/Z4S-abcd/ST4 Frame Anodized aluminum alloy frame Max Static Load (front side/rear side) 5400Pa/2400Pa Glass Dual glass,2.0mm
Learn More
AS580-600M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet;20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
OBB AS580-610M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
C&I ESS HV 30KW 50KW 100KW Energy Storage System Manufacturer 30000 Watt Battery System For Commercial And Industrial. Brand Amosolar Type C&I ESS Max.Power 30-100kW
Learn More
AS370-395M6-120 Cell Mono Rated Maximum Power 395W Maximum Efficiency 21.67% Weight 20.5kgs±3% Cells Type Mono 166x83mm Dimension(LxWxT) 1756±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 858pcs/40HQ container
Learn More
JKM425-450N-54HL4R-BDB-F3-EN Cell Arrangement 108 (2 X54) Junction Box IP68, 3 bypass diodes Weight 24.5KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30mm Packaging 37pcs/pallet 936pcs/40HQ container
Learn More
AS380-410M10-108 Cell Mono Rated Maximum Power 410W Maximum Efficiency 21.00% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
