| Cell | Mono |
| Rated Maximum Power | 440W |
| Maximum Efficiency | 22.53% |
| Weight | 21kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 1722±2mmx1134±2mmx30±1mm |
| Packaging | 36pcs/pallet, 936pcs/40HQ container |

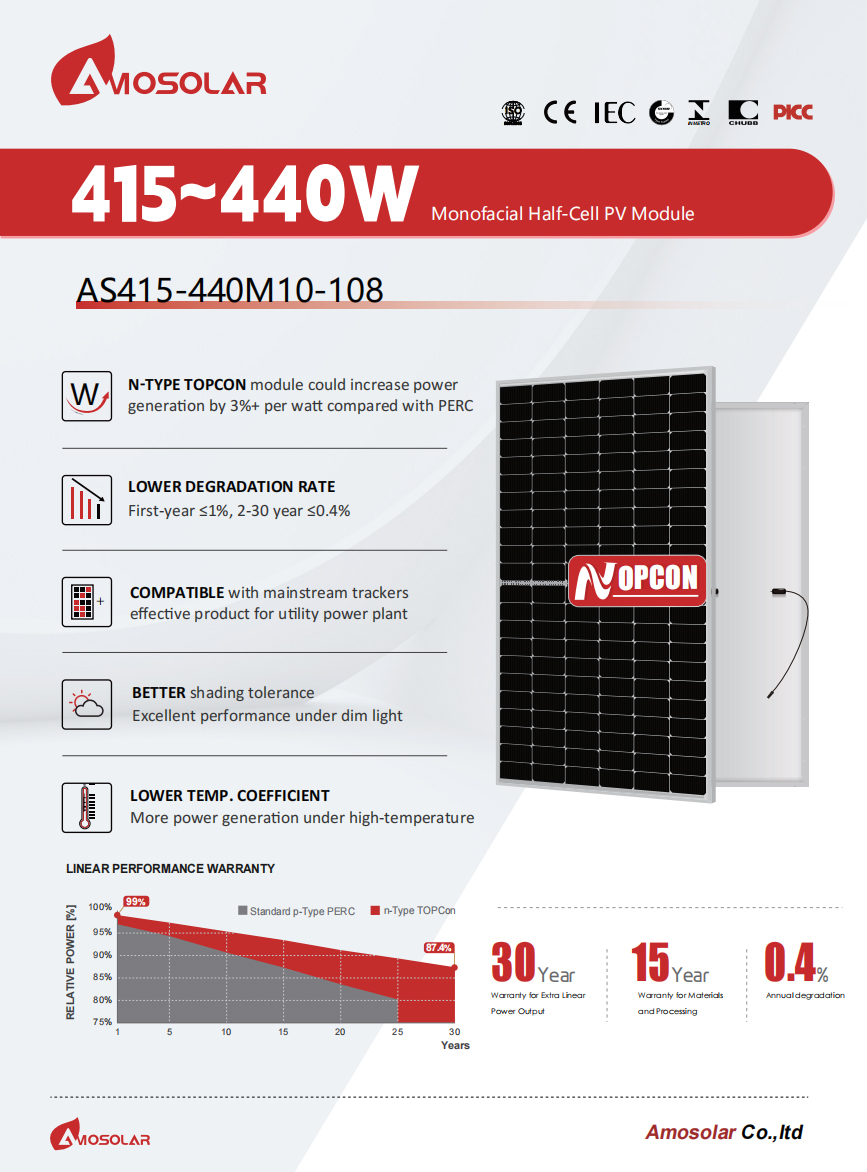

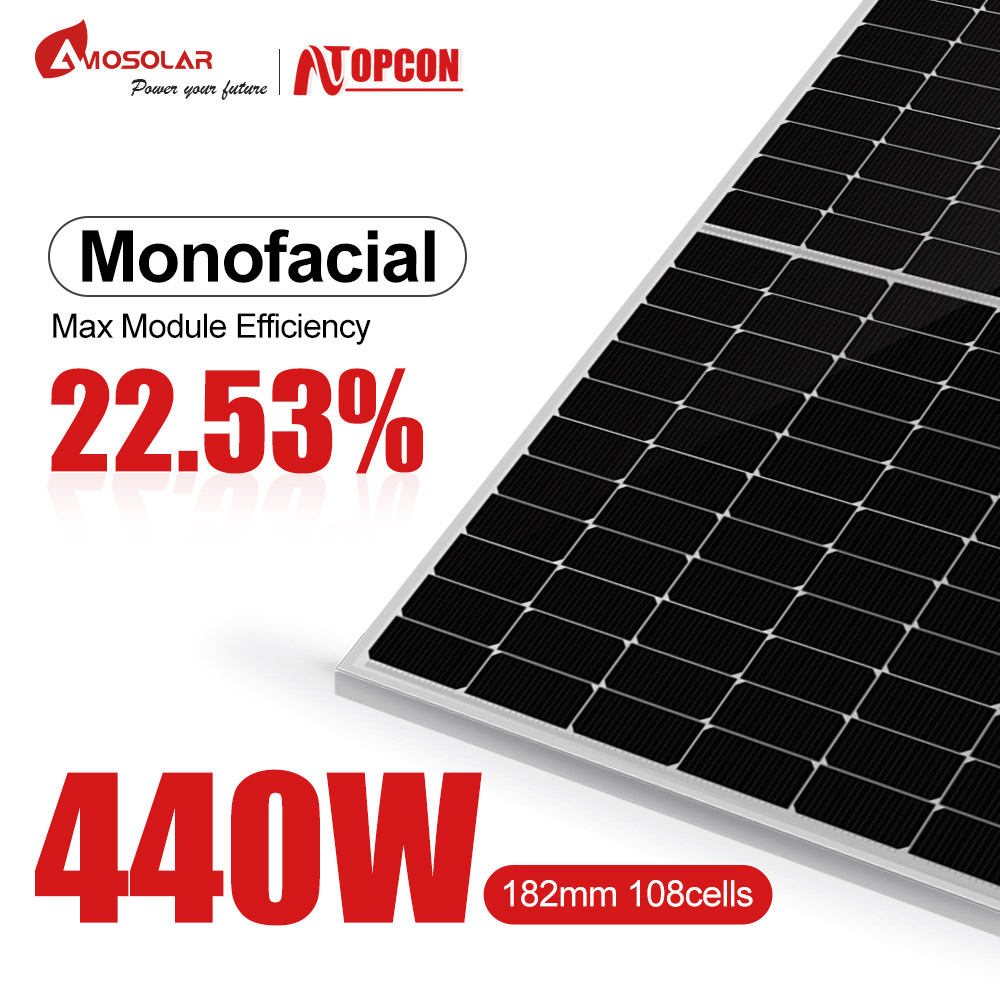

415W-440W TOPcon N-Type Photovoltaic Panel Solar PV Module that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
Electrical Performance Parameters (STC Test)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Investing in solar panels is an eco-friendly solution for your home or business. They harness solar energy to provide reliable, low-cost power and help reduce dependence on fossil fuels.
AS565-590M10-144 Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.83% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1m Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS515-540M10-132 Cell Mono Rated Maximum Power 540W Maximum Efficiency 22.74% Weight 24.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx35±1m Packaging 31pcs/pallet, 682pcs/40HQ container
Learn More
LR5-54HPH405~425M Cell Arrangement 108 (6 X18) Junction Box IP68, 3 diodes Weight 20.8KG Cable Length +400,-200mm/±1400mm Cable Size 4 mm2 (lEC) PV Size 1722x1134x30mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
AS435-455G12R-96 Cell N-type TOPCon Mono No.of cells 96(6x16) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1762±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm)
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
AS525-550M10-144 Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS330-355P-72 Cell Poly Rated Maximum Power 355W Maximum Efficiency 18.30% Junction Box IP 67 Maximum System Voltage 1000V/1500V DC Operating Temperature -40℃ ~ +85℃ Connectors MC4 EVO2/QC4.10-35
Learn More
AS620-640G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 33.7kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 2382×1134×30 mm (93.86×44.65×1.18 inches) Packaging 36pcs/pallet, 720p cs/40HQ (30mm)31pcs/pallet, 620p cs/40HQ (35mm)
Learn More
