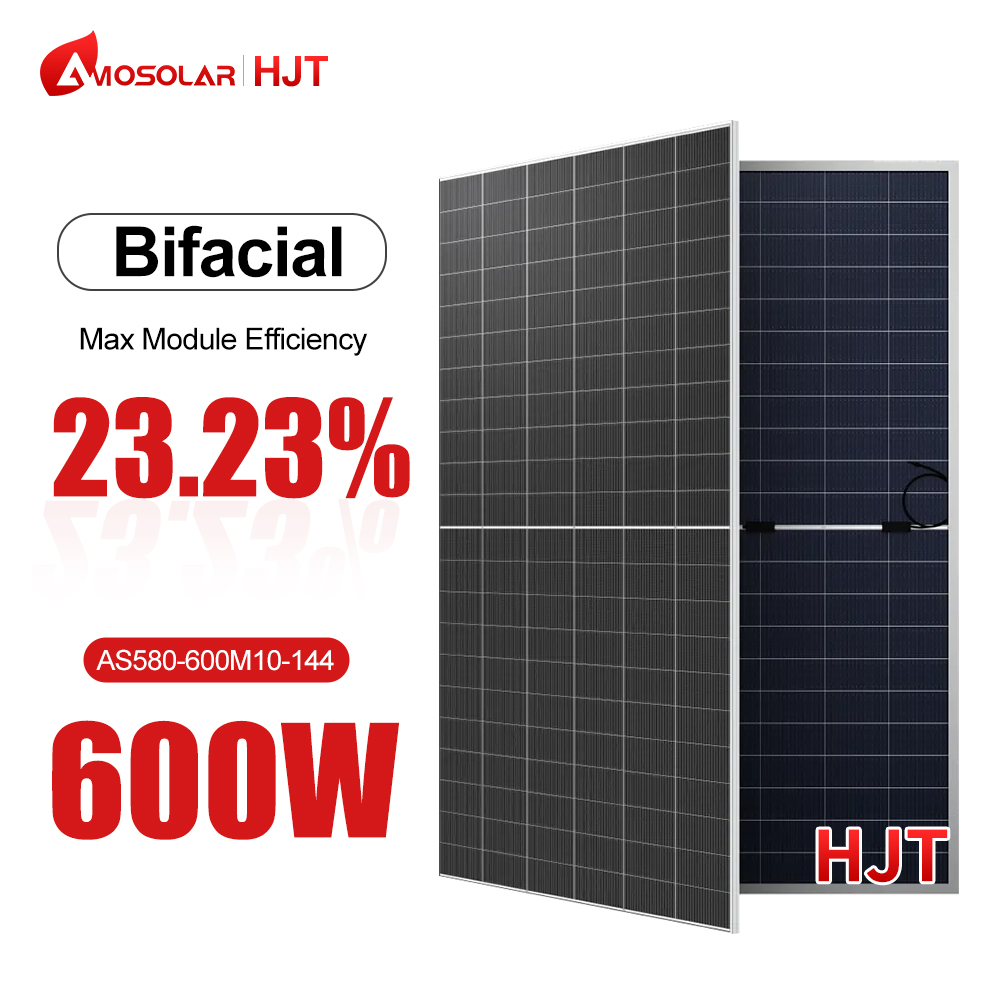

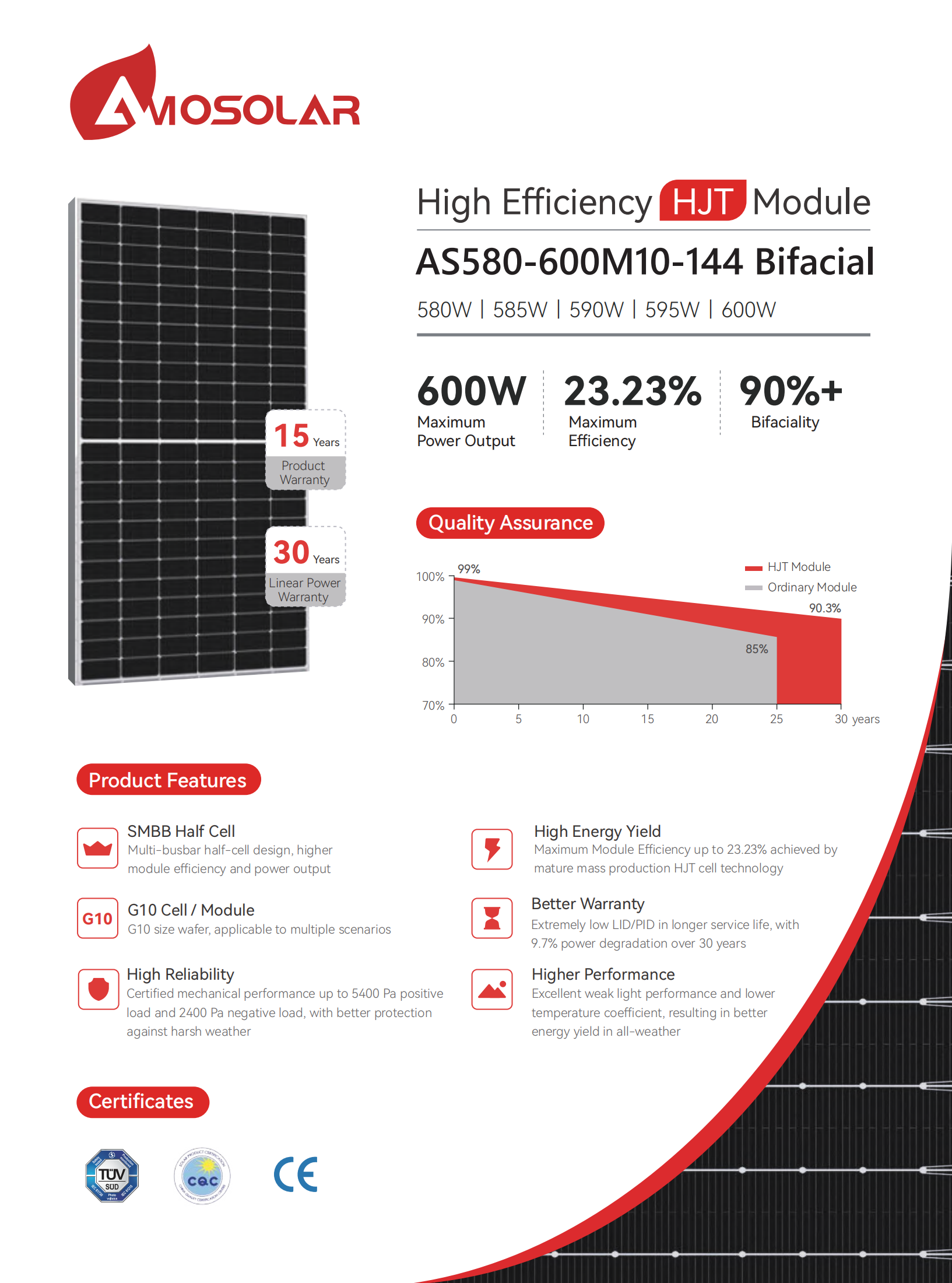

AS580-600M10-144 Bifacial
| Cell Type | HJT |
| No. of Cells | 182x91 All Dimensions |
| Dimensions | 2278x1134x30 mm |
| Weight | 32.5±0.5kg |
| Junction Box | IP68,1500VDC, 3Diodes |
| Cable | 4mm², 300mm(customized length based on needs) |
| Frame | Anodized aluminum |
| Packaging configuration((40'Container; 17.5'Trailer) | 36pcs/pallet;20pallet/container; 720pcs/container 36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer |
| Model | AS580M10-144 | AS585M10-144 | AS590M10-144 | AS595M10-144 | AS600M10-144 |
| Pmax(Wp) | 580 | 585 | 590 | 595 | 600 |
| Voc(V) | 53.95 | 54.14 | 54 33 | 54.52 | 54.71 |
| Isc(A) | 13.36 | 13.41 | 13.46 | 13.51 | 13.56 |
| Vmpp(V) | 45.02 | 45.23 | 45.44 | 45.65 | 45.86 |
| Impp(A) | 12.90 | 12.95 | 13.00 | 13.05 | 13.10 |
| Efficiency | 22.45% | 22.65% | 22.84% | 23.03% | 23.23% |
HJT solar panels (Heterojunction Technology) combine the advantages of crystalline silicon and thin-film technology, offering ultra-high efficiency, excellent low-light performance, and lower temperature coefficients. These high efficiency solar panels are ideal for both commercial and utility-scale projects, delivering more energy output over time. With bifacial design, HJT solar modules can generate power from both sides, maximizing ROI.
AS700-735G12-132 Bifacial Cell Type HJT No. of Cells 132 (6x22) Dimensions 2384 x1303 x33 mm Weight 37.9kg Junction Box IP68 Cable 4mm2;+350/-250mm or customized; UV resistant Connector MC4/MC4-EV02A/PV-H4/Z4S-abcd/ST4 Frame Anodized aluminum alloy frame Max Static Load (front side/rear side) 5400Pa/2400Pa Glass Dual glass,2.0mm
Learn More
OBB AS580-610M10-144 Bifacial Cell Type HJT No. of Cells 182x91 All Dimensions Dimensions 2278x1134x30 mm Weight 32.5±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
AS615-635M10-132 Bifacial Cell Type HJT No. of Cells 182x105 All Dimensions Dimensions 2382x1134x30 mm Weight 33.6±0.5kg Junction Box IP68,1500VDC, 3Diodes Cable 4mm², 300mm(customized length based on needs) Frame Anodized aluminum Packaging configuration((40'Container; 17.5'Trailer) 36pcs/pallet; 20pallet/container; 720pcs/container36pcs/pallet; 24pallet/Trailer; 864pcs/Trailer
Learn More
AS370-395M6-120 Cell Mono Rated Maximum Power 395W Maximum Efficiency 21.67% Weight 20.5kgs±3% Cells Type Mono 166x83mm Dimension(LxWxT) 1756±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 858pcs/40HQ container
Learn More
Amosolar 8KW 9KW 10KW Hybrid Solar System Name Hybrid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS525-550M10-144 Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement 150 Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 (IEC) PV Size 2384x1134x30 mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
AS330-355P-72 Cell Poly Rated Maximum Power 355W Maximum Efficiency 18.30% Junction Box IP 67 Maximum System Voltage 1000V/1500V DC Operating Temperature -40℃ ~ +85℃ Connectors MC4 EVO2/QC4.10-35
Learn More
