Amosolar 200KW PV Solution
|
Name |
Storage 200KW System |
| Warranty | 25 Years Output Power Guarantee |
| Certificate | TUV/IEC/CEC/CE/ISO/Inmetro |
| Application | Home/Business |
| Output Voltage | EU:220/230/240V ; 380/400V |
| Monitoring | Wifi/GPRS |
| Mounting Brackets | Roof/Ground installation |
Electrical Performance Parameters (STC Test)
Mounting Structure

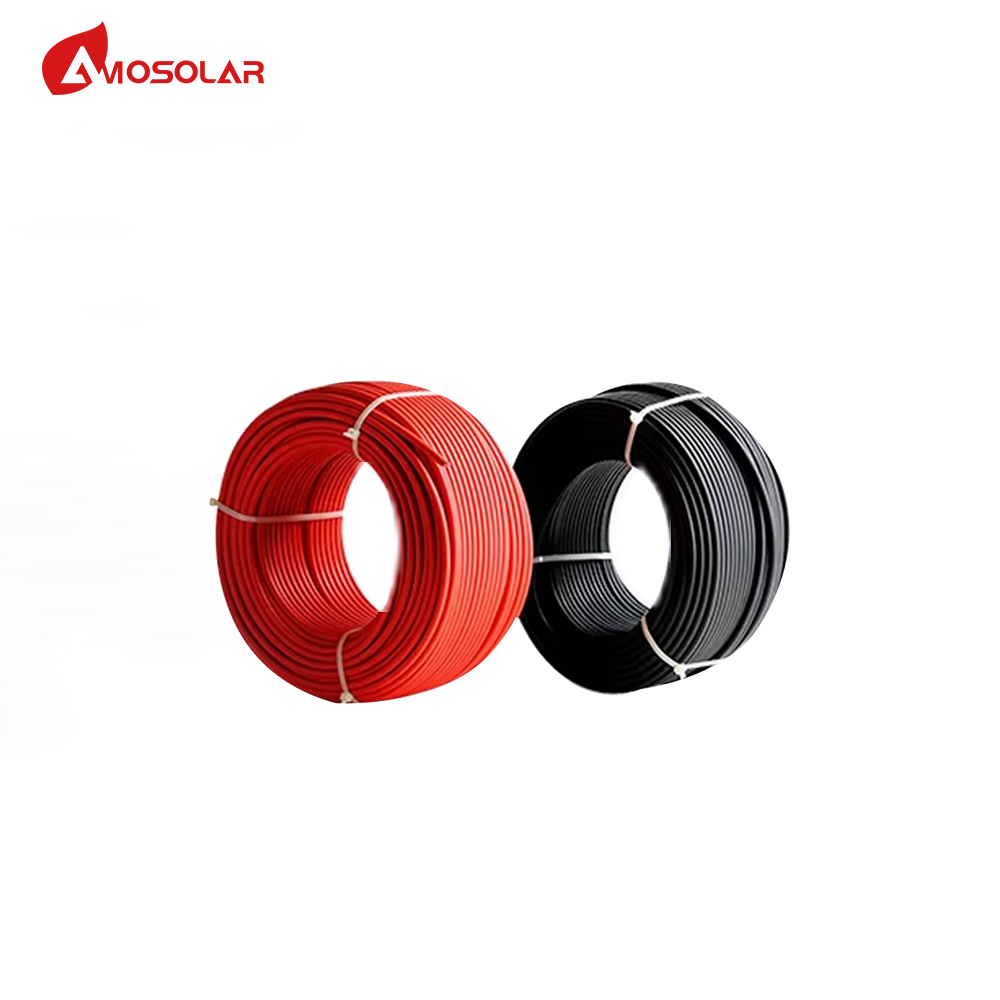

PV Cable
6mm² PV Cable
MC4
MC4 Connector
Standard Wooded Package + System Connecting Drawings (Easy Installing)
System Capacity could be adjustable according customer's situation
Mechanical Parameters
200KW PV Solution
Name
Description
Quantity

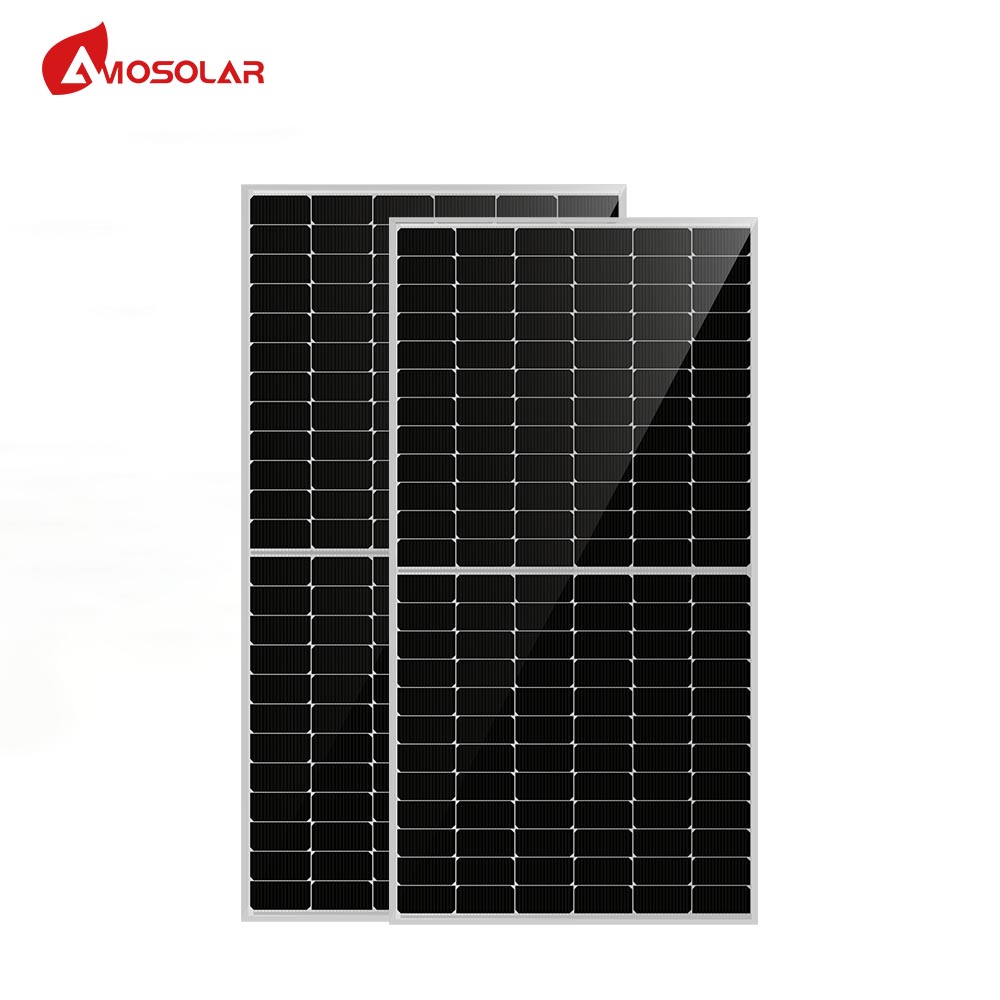

Solar Panel
Half Cell 550W
364 PCS

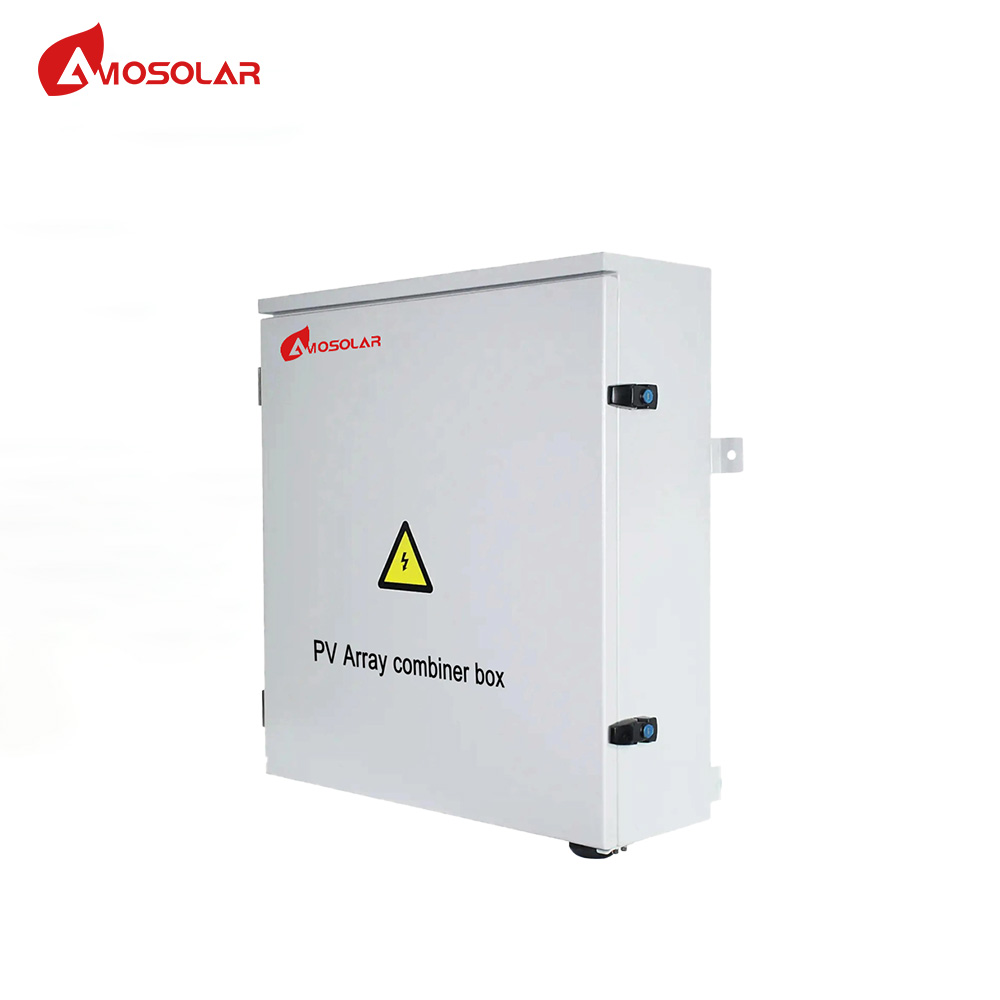

PV Combiner Box
10 ~ 20 input 1 output , (Switches,Breaker,SPD)
1 PCS

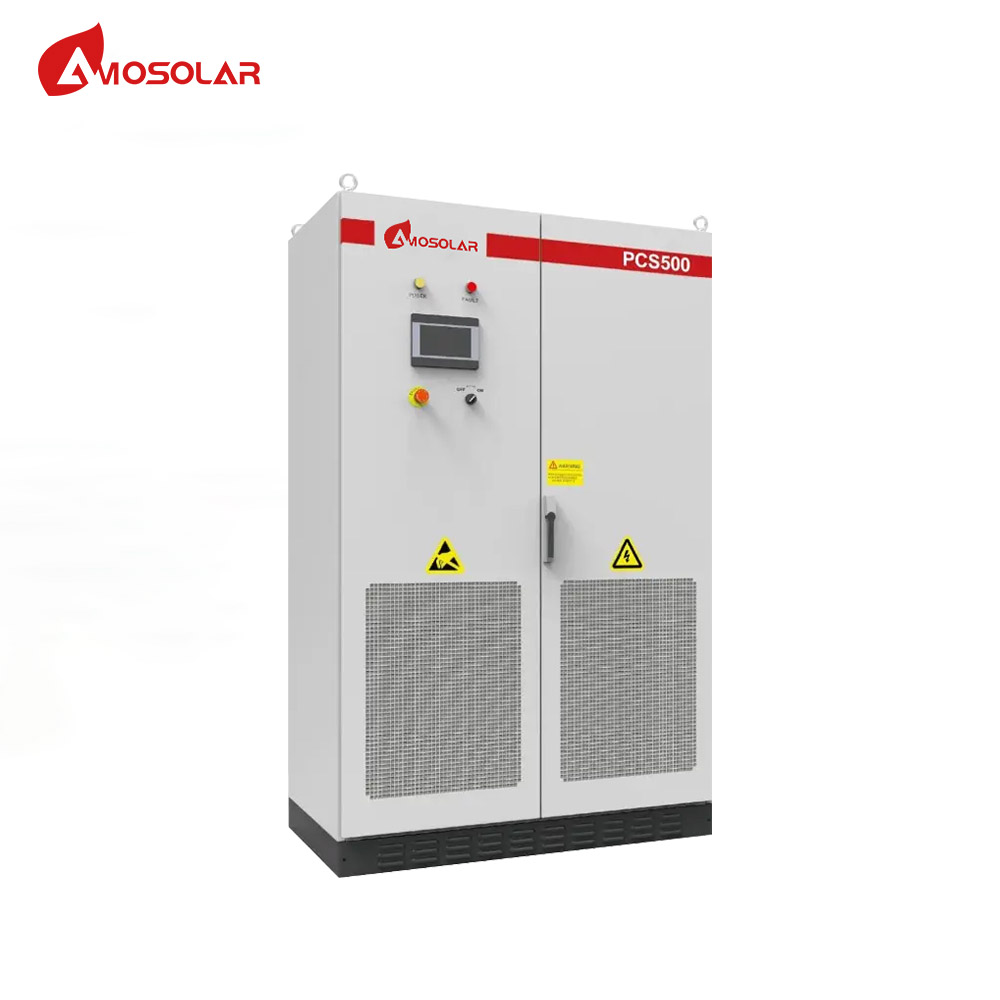

Inverter
100kw Hybrid Inverter
1 PCS

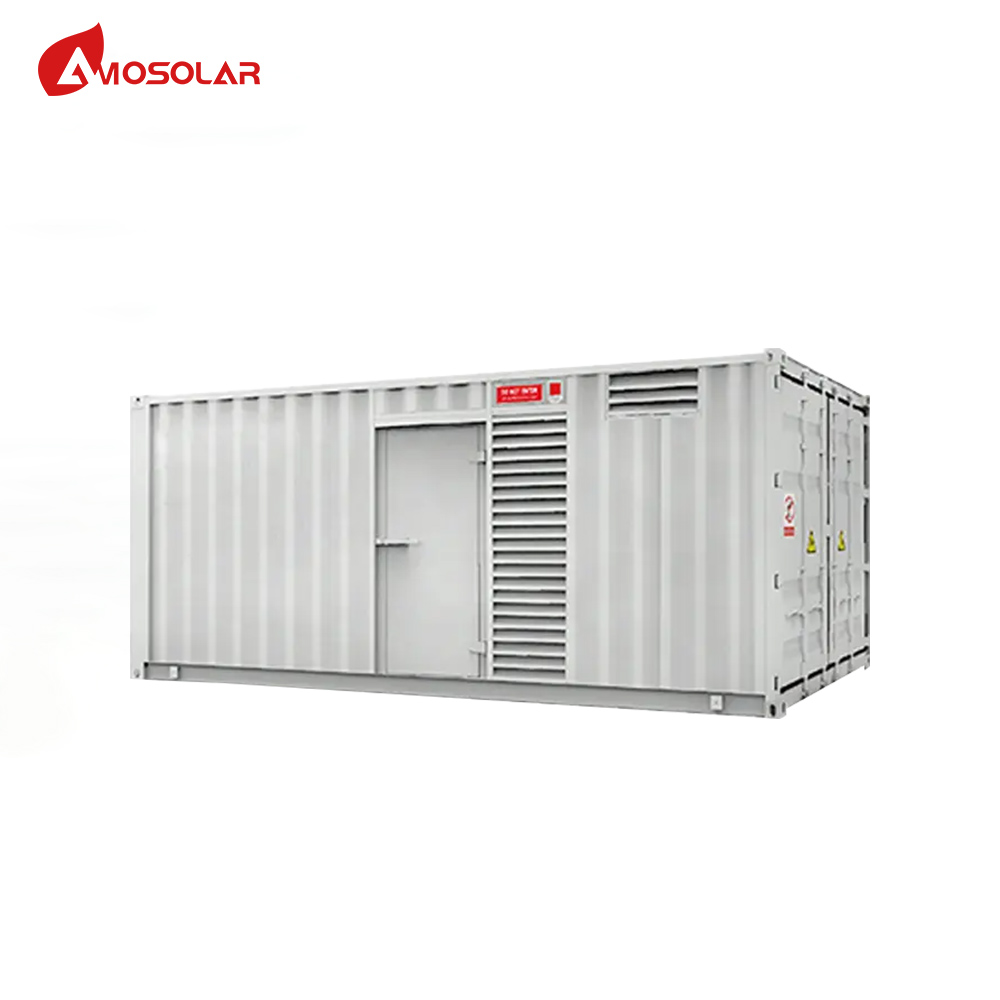

Battery
AGM/GEL/Lithium Battery
260~500 PCS
Roof/Ground Install (Customized)
1 Set
550~2000m
100 Prs
High Efficiecy PV Module
·Higher Output Power
·Less Shading And Lower Resistive Loss
·Better Mechanical Loading
·Lower LCOE
Hybrid Solar Inverter
·Seamless on/off grid transfer
·Programmable working mode
·Support remote control of DG
·Touchscreen LCD
·Quadruple capacity by paralleling 4 units
Battery Specification
·Safety first
·High density
·Long lifespan
·Cell balancing technology
Solar Mounting Solutions
·Good Stability 、Good Load-Bearing Capacity And Stable Structure
·Flat Surface 、Neat Incision And Assembled Installation
·Support Customization According To Needs
·Integrated Services
·Adequate Inventory
Answer 1:Off grid solar system, On grid solar system and hybrid solar system.
· Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
· Question 3:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
· Question 4: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
