Professional Deep Cycle Battery 12v 200ah Gel Battery Manufacturers,China Deep Cycle Battery 12v 200ah Gel Battery

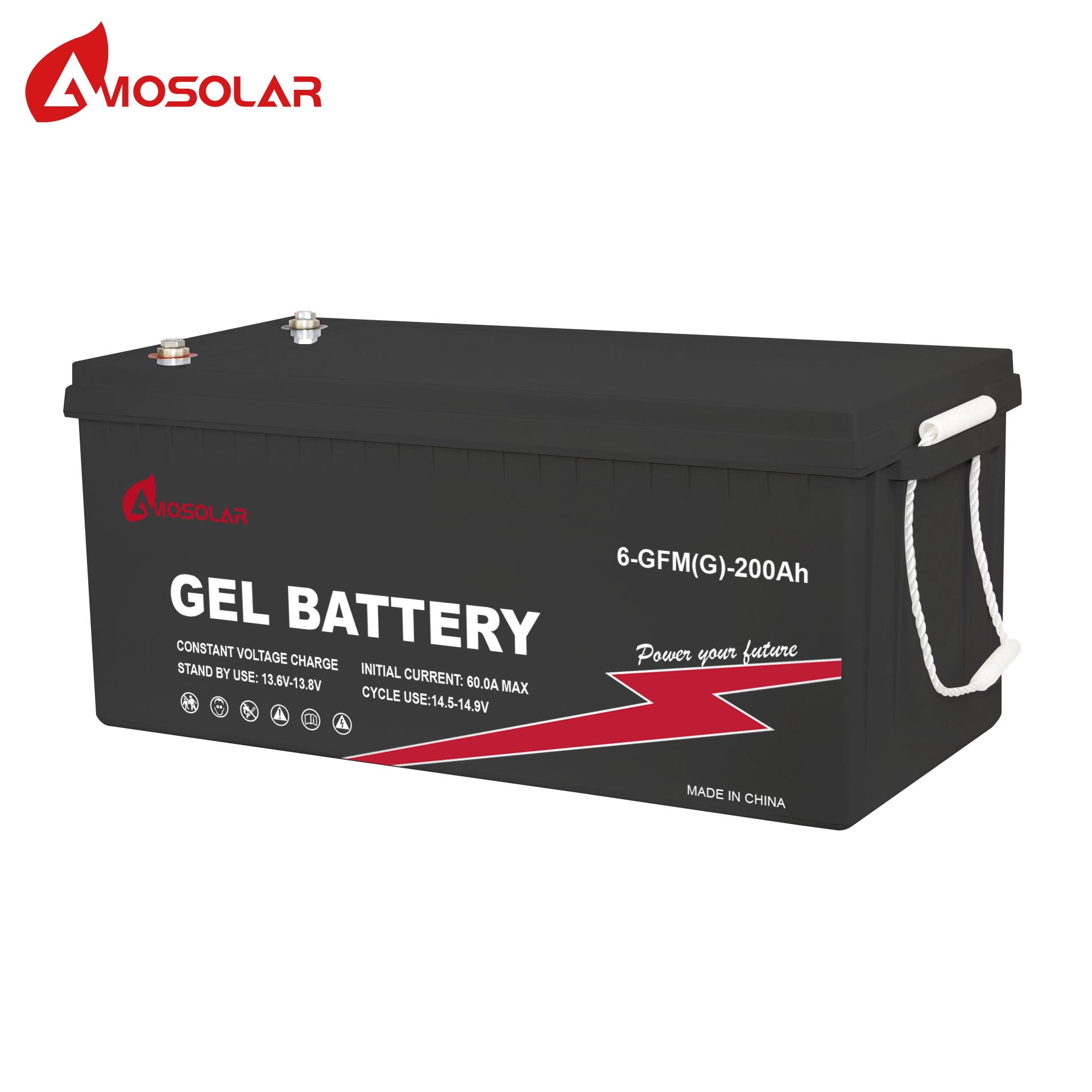

Deep Cycle Battery 12v 200ah Gel Battery

6-GFM(G)-200Ah

Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Model	6-GFM(G)-100Ah	6-GFM(G)-150Ah	6-GFM(G)-200Ah	6-GFM(G)-250Ah
Cells Per Unit	6
Voltage Per Unit	12V
Capacity	100Ah@10hr-rate to 1.80V per cell @25°C	150Ah@10hr-rate to 1.80V per cell @25°C	200Ah@10hr-rate to 1.80V per cell @25°C	250Ah@10hr-rate to 1.80V per cell @25°C
Internal Resistance	Approx. 7.5mΩ	Approx. 4mΩ	Approx. 3.5mΩ	Approx. 2.5mΩ
Terminal	F1/F2
Max. Discharge Current	1000A(5s)	2250A(5s)	3000A(5s)	3750A(5s)
Design Life	10~15 years
Maximum Charging Current	20A	37.5A	50A	62.5A
Float Charging Voltage	13.6 V~13.8 V @ 25°C Temperature, Compensation: -20mV/°C/Cell
Cycle Use Voltage	14.5 V~14.9 V @ 25°C, Cycle Use Voltage, Temperature Compensation: -30mV/°C/Cell
Operating Temperature Range	Discharge: -20°C~60°C, Charge: 0°C~50°C , Storage: -20°C~60°C
Container Material	A.B.S. UL94-HB, UL94-V0 Optional.
Normal Operating Temperature Range	25°C±5°C
Self Discharge	Less than 3% at 25°C per month
Container Material	A.B.S. UL94-HB, UL94-V0 Optional
