AS12-Gel-200
Amosolar lead acid battery:Better operations across temperature extremes,Slower discharging for a longer lifespan
Model Number |
AS12-Gel-200 |
Capacity(Ah) | 200 |
Nominal Voltage | 12V |
Weight( Approx) (KG) | 58.5kg |
Size(L×W×H×TH)
|
522×238×221×250 mm
|
Battery Type |
GEL |
Cycle Life |
1500times |

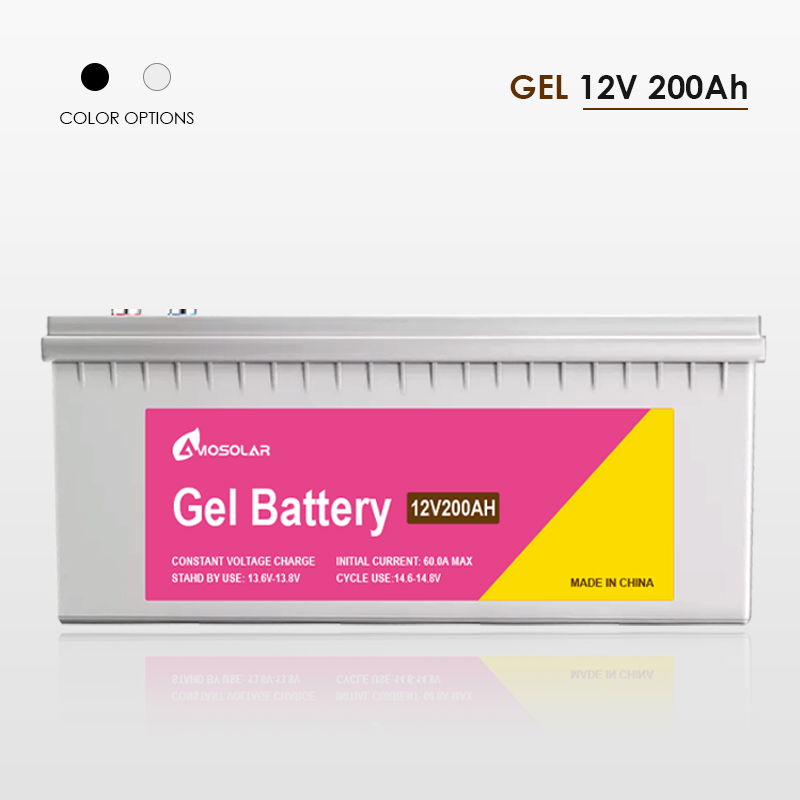

12V 200AH Lead Acid Gel Battery
Offers more cyclic life than standby series. It is suitable for solar energy systems, marine and RV etc.
Model
6-GFM(G)-100Ah
6-GFM(G)-150Ah
6-GFM(G)-200Ah
6-GFM(G)-250Ah
Cells Per Unit
6
Voltage Per Unit
12V
Capacity
100Ah@10hr-rate to 1.80V per cell @25°C
150Ah@10hr-rate to 1.80V per cell @25°C
200Ah@10hr-rate to 1.80V per cell @25°C
250Ah@10hr-rate to 1.80V per cell @25°C
Weight
29kg
42kg
58.5kg
67kg
Internal Resistance
Approx. 6mΩ
Approx. 4mΩ
Approx. 3.5mΩ
Approx. 2.5mΩ
Terminal
F1/F2
Max. Discharge Current
1500A(5s)
2250A(5s)
3000A(5s)
3750A(5s)
Design Life
10~15 years
Maximum Charging Current
25A
37.5A
50A
62.5A
Float Charging Voltage
Cycle Use Voltage
Operating Temperature Range
Container Material
A.B.S. UL94-HB, UL94-V0 Optional.
Normal Operating Temperature Range
25°C±5°C
Self Discharge
Less than 3% at 25°C per month
Container Material
A.B.S. UL94-HB, UL94-V0 Optional
