Gel solar Battery
Reliable energy storage solution to complement solar power system.
Type: | Lead acid battery |
Model: |
6-GFM(G)-120 |
Norminal Voltage: | 12V |
Capacity(Ah): | 120Ah |

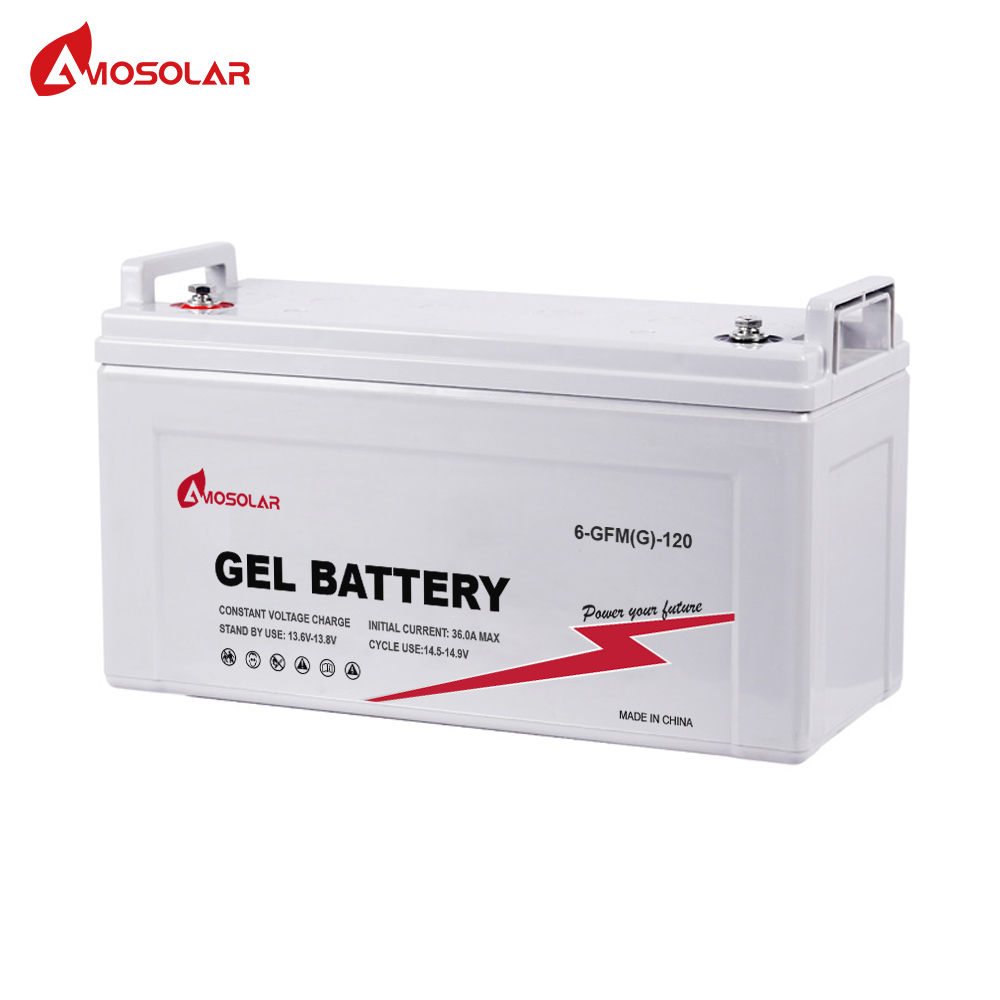

12V 120AH Lead Acid Gel Battery
This gel battery is specially designed to thrive in demanding environments, providing reliable power storage even in extreme temperatures. Its deep-cycle design enables it to withstand frequent and deep discharges, making it perfect for off-grid applications and renewable energy systems.
Well matched to variety pv modules and inverters to solar power system use.
Model |
6-GFM(G)-100Ah |
6-GFM(G)-120Ah |
6-GFM(G)-150Ah |
6-GFM(G)-200Ah |
6-GFM(G)-250Ah |
Cells Per Unit |
6 |
|
|||
Voltage Per Unit |
12V |
|
|||
Capacity |
100Ah@10hr-rate to 1.80V per cell @25°C |
120Ah@10hr-rate to 1.80V per cell @25°C |
150Ah@10hr-rate to 1.80V per cell @25°C |
200Ah@10hr-rate to 1.80V per cell @25°C |
250Ah@10hr-rate to 1.80V per cell @25°C |
Internal Resistance |
Approx. 7.5mΩ |
Approx. 5.5mΩ |
Approx. 4mΩ |
Approx. 3.5mΩ |
Approx. 2.5mΩ |
Terminal |
F1/F2 |
|
|||
Max. Discharge Current |
1000A(5s) |
1200A(5s) |
2250A(5s) |
3000A(5s) |
3750A(5s) |
Design Life |
10~15 years |
|
|||
Maximum Charging Current |
20A |
24A |
37.5A |
50A |
62.5A |
Float Charging Voltage |
13.6 V~13.8 V @ 25°C Temperature, Compensation: -20mV/°C/Cell
|
|
|||
Cycle Use Voltage |
14.5 V~14.9 V @ 25°C, Cycle Use Voltage, Temperature Compensation: -30mV/°C/Cell
|
|
|||
Operating Temperature Range |
Discharge: -20°C~60°C, Charge: 0°C~50°C , Storage: -20°C~60°C
|
|
|||
Container Material |
A.B.S. UL94-HB, UL94-V0 Optional. |
|
|||
Normal Operating Temperature Range |
25°C±5°C |
|
|||
Self Discharge |
Less than 3% at 25°C per month |
|
|||
Container Material |
A.B.S. UL94-HB, UL94-V0 Optional |
|
