| Cell | Mono silicon |
| Rated Maximum Power | 420W |
| Maximum Efficiency | 21.5% |
| Weight | 20.90kgs±3% |
| Cells Type | Mono 210*35mm |
| Dimension(LxWxT) | 1723±2mmx1134±2mmx35±1mm |
| Packaging | 31pcs/pallet, 806pcs/40HQ container |
400W-420W Half-Cell High Efficiency PV Module that's grade A quality for ensuring stable performance and 30 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( Lifepo4 battery，solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery, Gel batteries, OPZV battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.

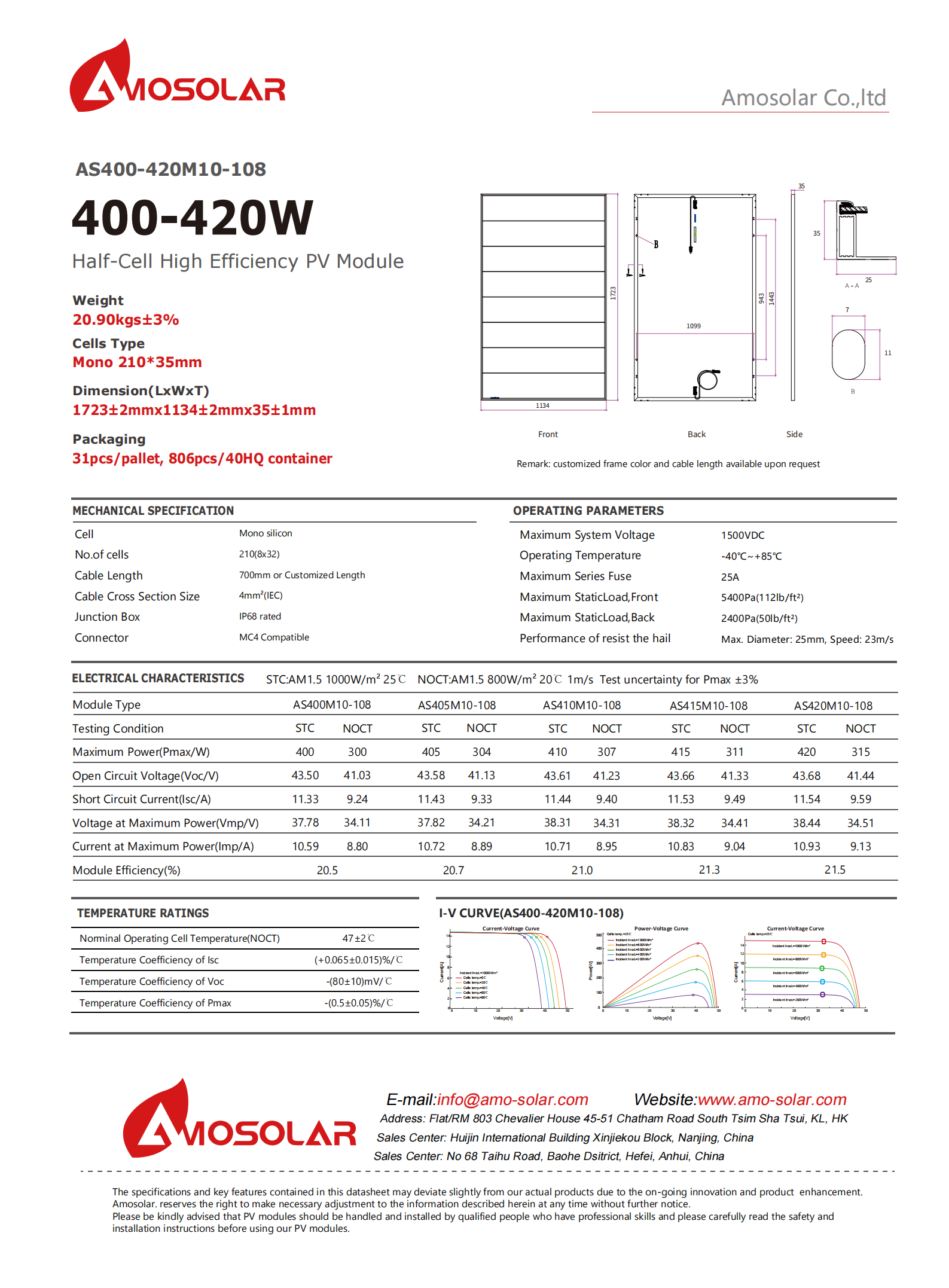

Electrical Performance Parameters (STC Test)
| Model | AS400M10-108 | AS405M10-108 | AS410M10-108 | AS415M10-108 | AS420M10-108 |
| Rated Maximum Power at STC | 400W | 405W | 410W | 415W | 420W |
| Open Circuit Voltage (Voc) |
43.50
|
43.58 | 43.61 | 43.66 | 43.68 |
| Maximum Power Voltage (Vmp) | 37.78 | 37.82 | 38.31 | 38.32 | 38.44 |
| Short Circuit Current (Isc) | 11.33 | 11.43 | 11.44 | 11.53 | 11.54 |
| Maximum Power Current (Imp) | 10.59 | 10.72 | 10.71 | 10.83 | 10.93 |
| PV Module Efficiency (%) | 20.5 | 20.7 | 21.0 | 21.3 | 21.5 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||||

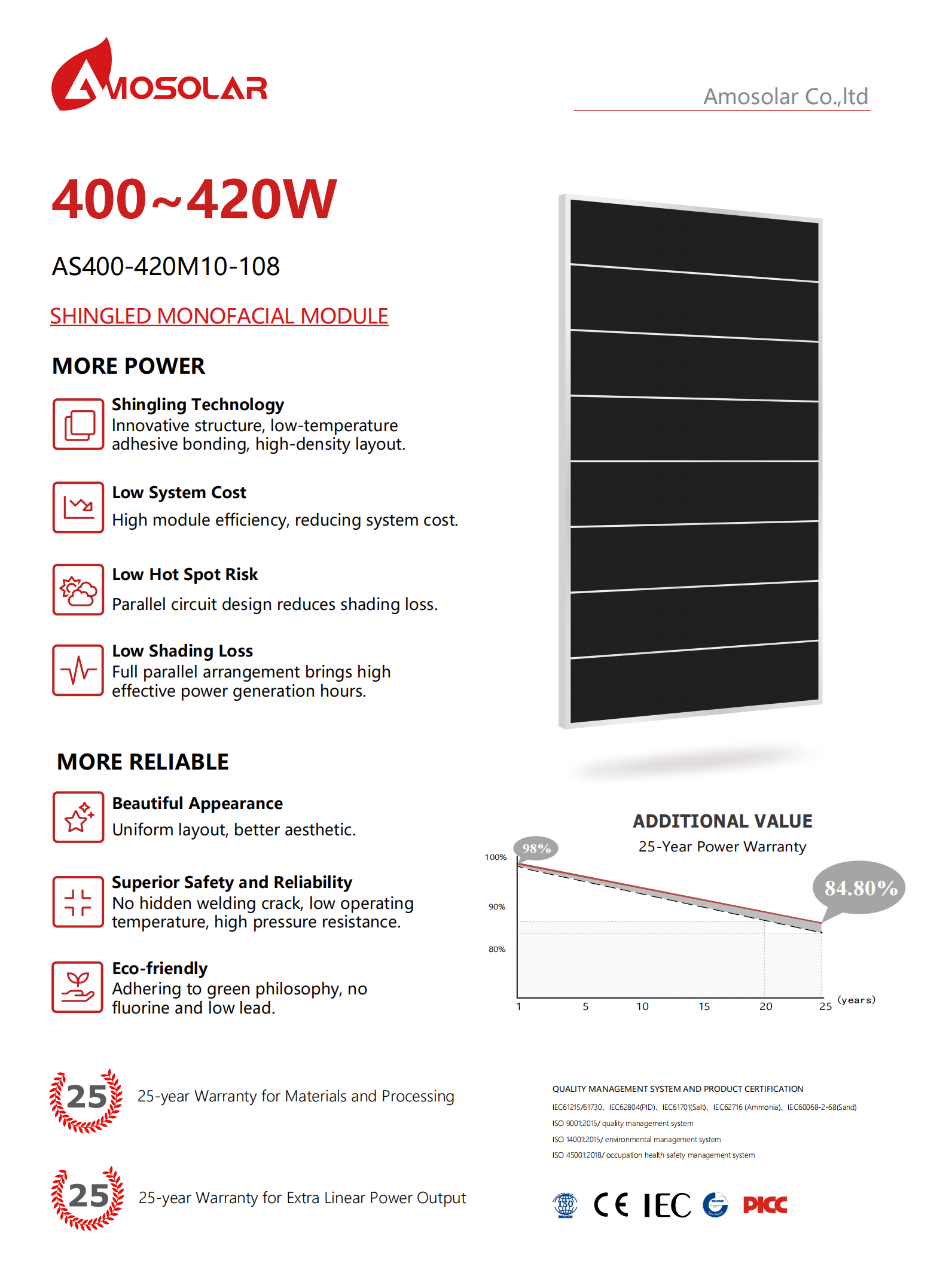

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Gel solar Battery Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan MODEL NUMBER 6-GFM(G)-250 CAPACITY(AH) 250 NORMINAL VOLTAGE(V) 12V SIZE(L×W×H×TH) 520×268×220×225 mm BATTERY TYPE GEL CYCLE LIFE 1500times
Learn More
JKM605-630N-66HL4M-BDV-F3-EN Cell Arrangement 132 (66 X2) Junction Box IP68, 3 diodes Weight 32.4KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2382X1134X30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
Amosolar 10KW 12KW 15KW ON Grid Solar System Name ON Grid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V;380V/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
Amosolar 500KW PV Solution Name 500KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:380/400V(330-440V) Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS585-605G12-120B Cell Mono Rated Maximum Power 615W Maximum Efficiency 21.40% Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
AS530-560M10-144B Cell Mono Rated Maximum Power 545W Maximum Efficiency 21.67% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx30±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS620-640G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 33.7kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 2382×1134×30 mm (93.86×44.65×1.18 inches) Packaging 36pcs/pallet, 720p cs/40HQ (30mm)31pcs/pallet, 620p cs/40HQ (35mm)
Learn More
Amosolar 8KW 10KW 15KW Off Grid Solar System Name Off Grid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V;380V/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
