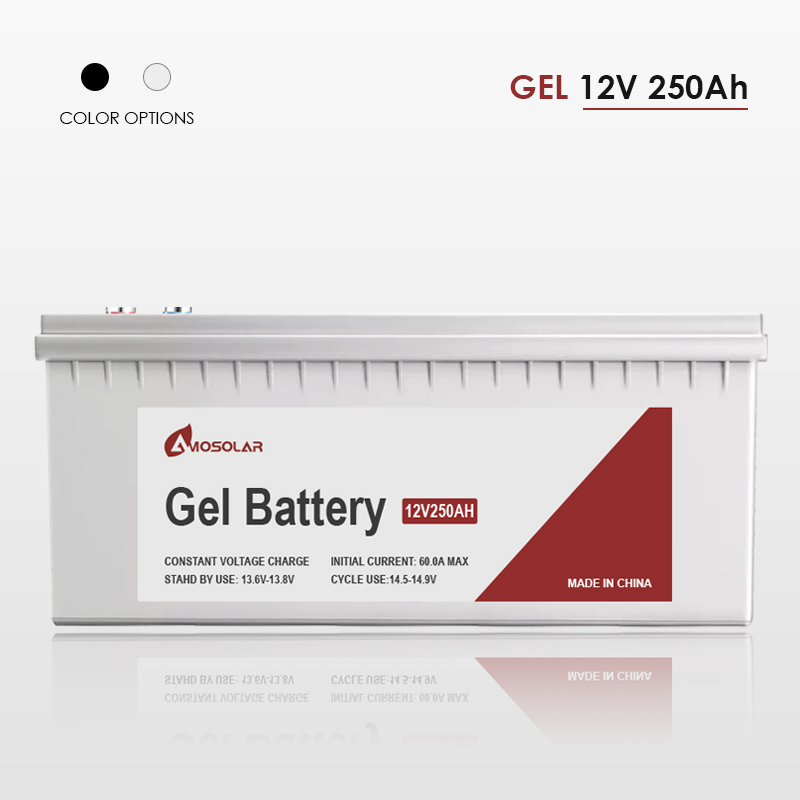

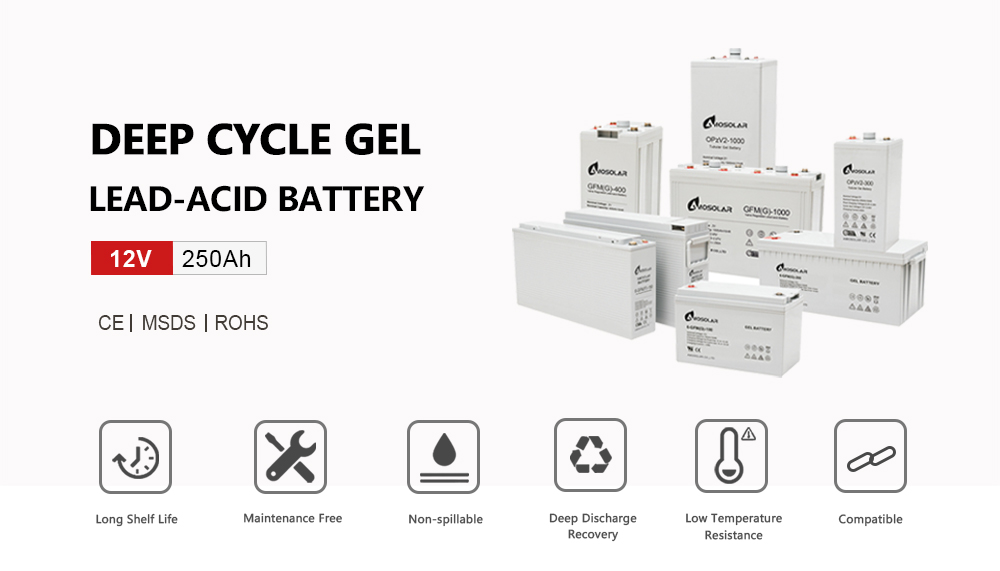

Amosolar lead acid battery:Better operations across temperature extremes,Slower discharging for a longer lifespan
MODEL NUMBER |
6-GFM(G)-250 |
CAPACITY(AH) |
250 |
NORMINAL VOLTAGE(V) | 12V |

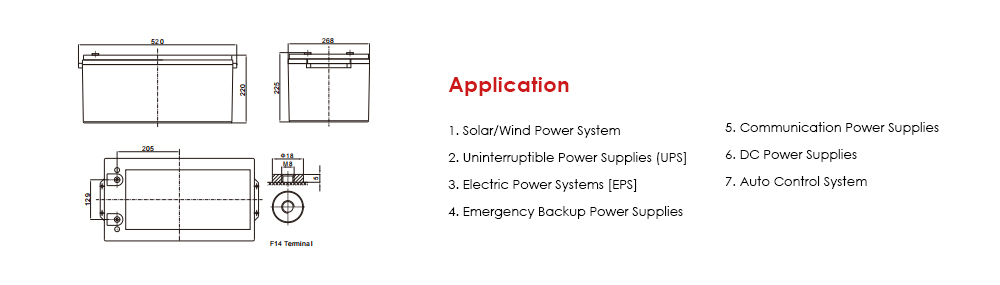

SIZE(L×W×H×TH) | 520×268×220×225 mm |
BATTERY TYPE |
GEL |
CYCLE LIFE |
1500times |

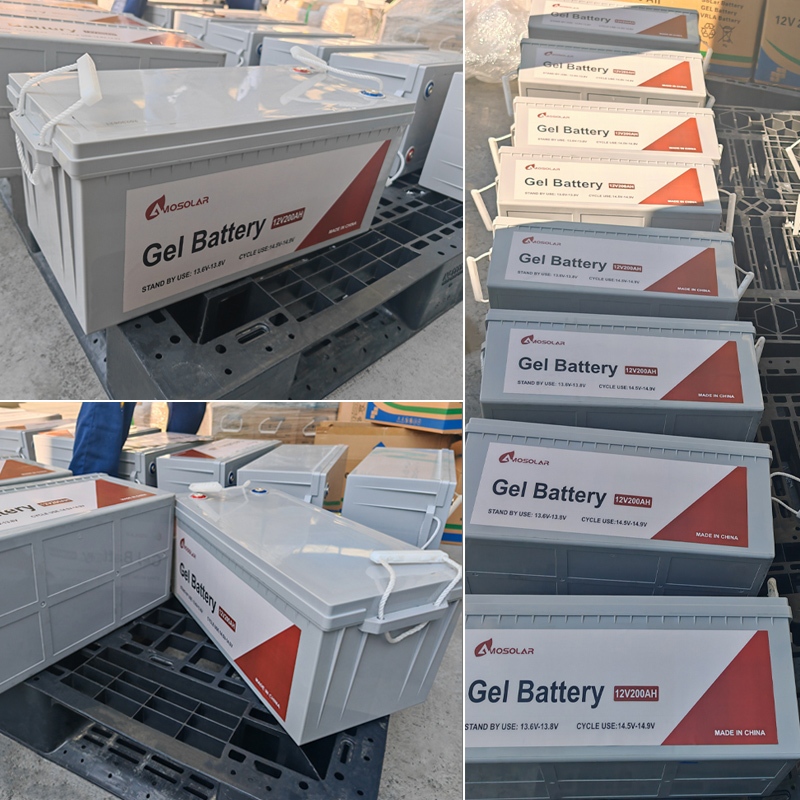

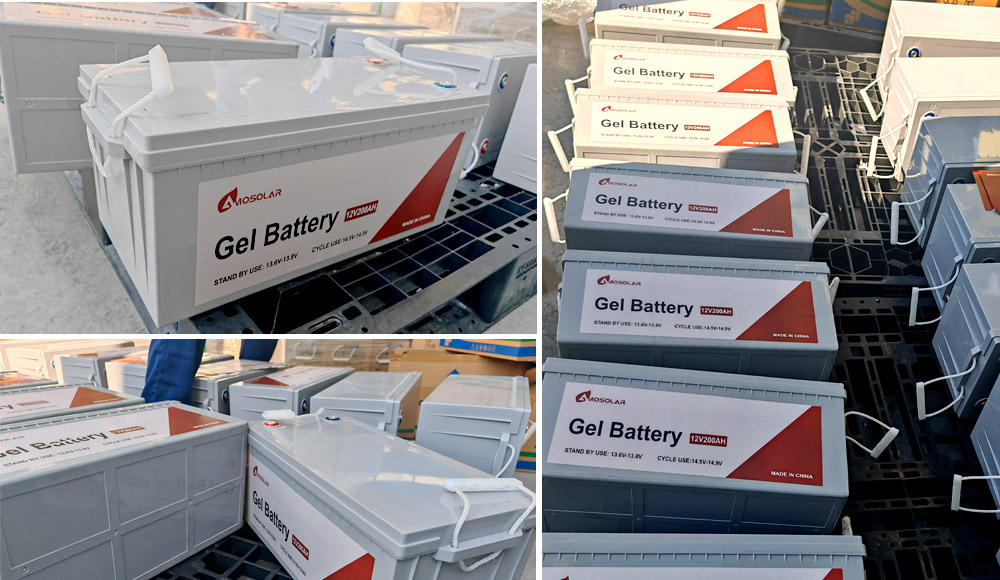

12V 200AH Lead Acid Gel Battery

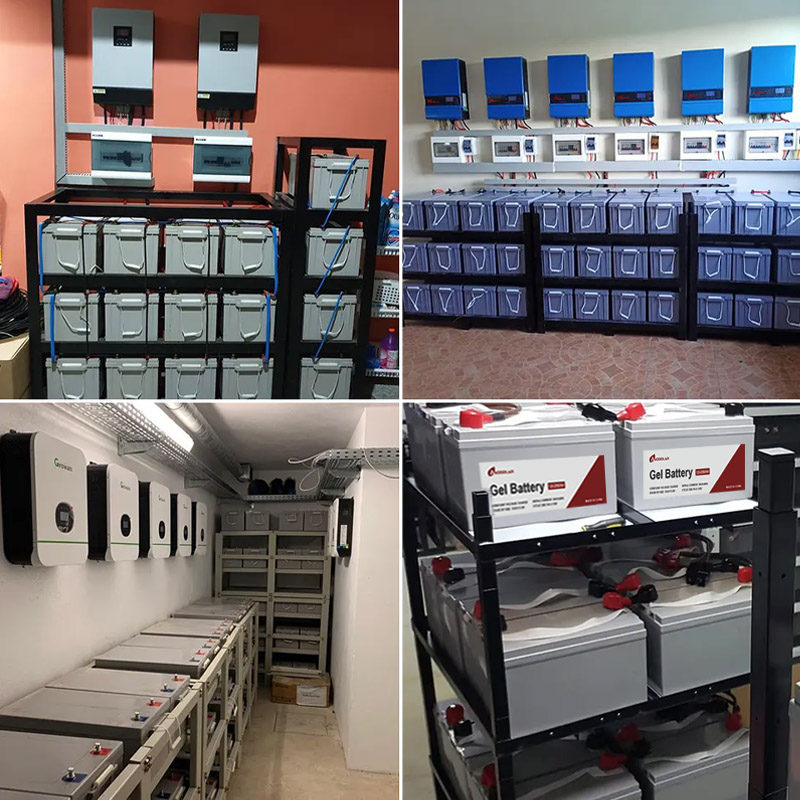

Offers more cyclic life than standby series. It is suitable for solar energy systems, marine and RV etc.
Model |
6-GFM(G)-100Ah |
6-GFM(G)-150Ah |
6-GFM(G)-200Ah |
6-GFM(G)-250Ah |
Cells Per Unit |
6 |
|||
Voltage Per Unit |
12V |
|||
Capacity |
100Ah@10hr-rate to 1.80V per cell @25°C |
150Ah@10hr-rate to 1.80V per cell @25°C |
200Ah@10hr-rate to 1.80V per cell @25°C |
250Ah@10hr-rate to 1.80V per cell @25°C |
Internal Resistance |
Approx. 7.5mΩ |
Approx. 4mΩ |
Approx. 3.5mΩ |
Approx. 2.5mΩ |
Terminal |
F1/F2 |
|||
Max. Discharge Current |
1000A(5s) |
2250A(5s) |
3000A(5s) |
3750A(5s) |
Design Life |
10~15 years |
|||
Maximum Charging Current |
20A |
37.5A |
50A |
62.5A |
Float Charging Voltage |
13.6 V~13.8 V @ 25°C Temperature, Compensation: -20mV/°C/Cell
|
|||
Cycle Use Voltage |
14.4 V~14.9 V @ 25°C, Cycle Use Voltage, Temperature Compensation: -30mV/°C/Cell
|
|||
Operating Temperature Range |
Discharge: -20°C~60°C, Charge: 0°C~50°C , Storage: -20°C~60°C
|
|||
Container Material |
A.B.S. UL94-HB, UL94-V0 Optional. |
|||
Normal Operating Temperature Range |
25°C±5°C |
|||
Self Discharge |
Less than 3% at 25°C per month |
|||
Container Material |
A.B.S. UL94-HB, UL94-V0 Optional |
