| Cell | Mono |
| Rated Maximum Power | 590W |
| Maximum Efficiency | 22.84% |
| Weight | 32.3kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 2278±2mmx1134±2mmx30±1m |
| Packaging | 36pcs/pallet, 720pcs/40HQ container |

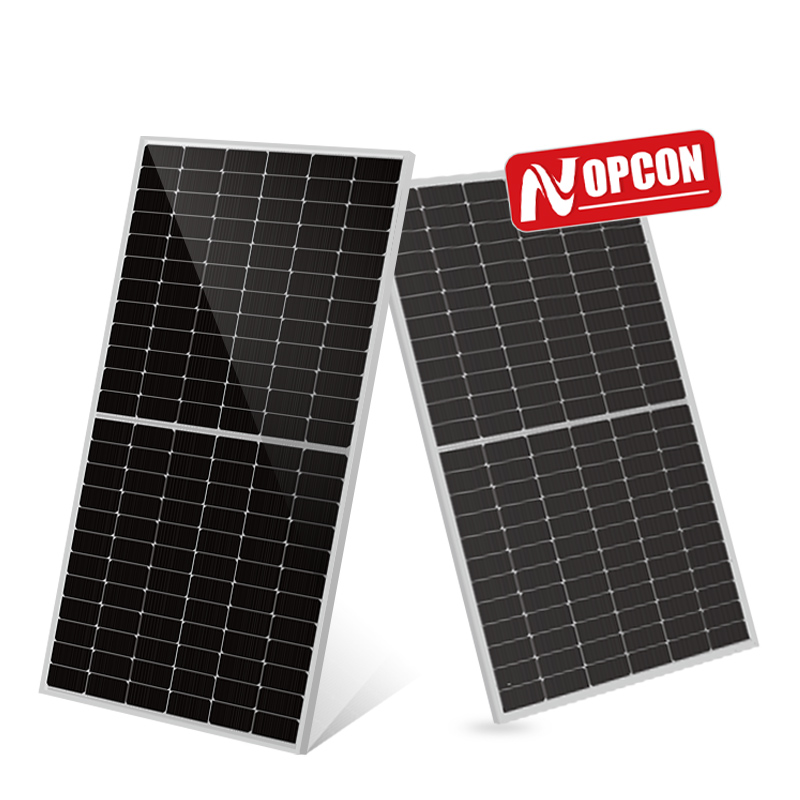

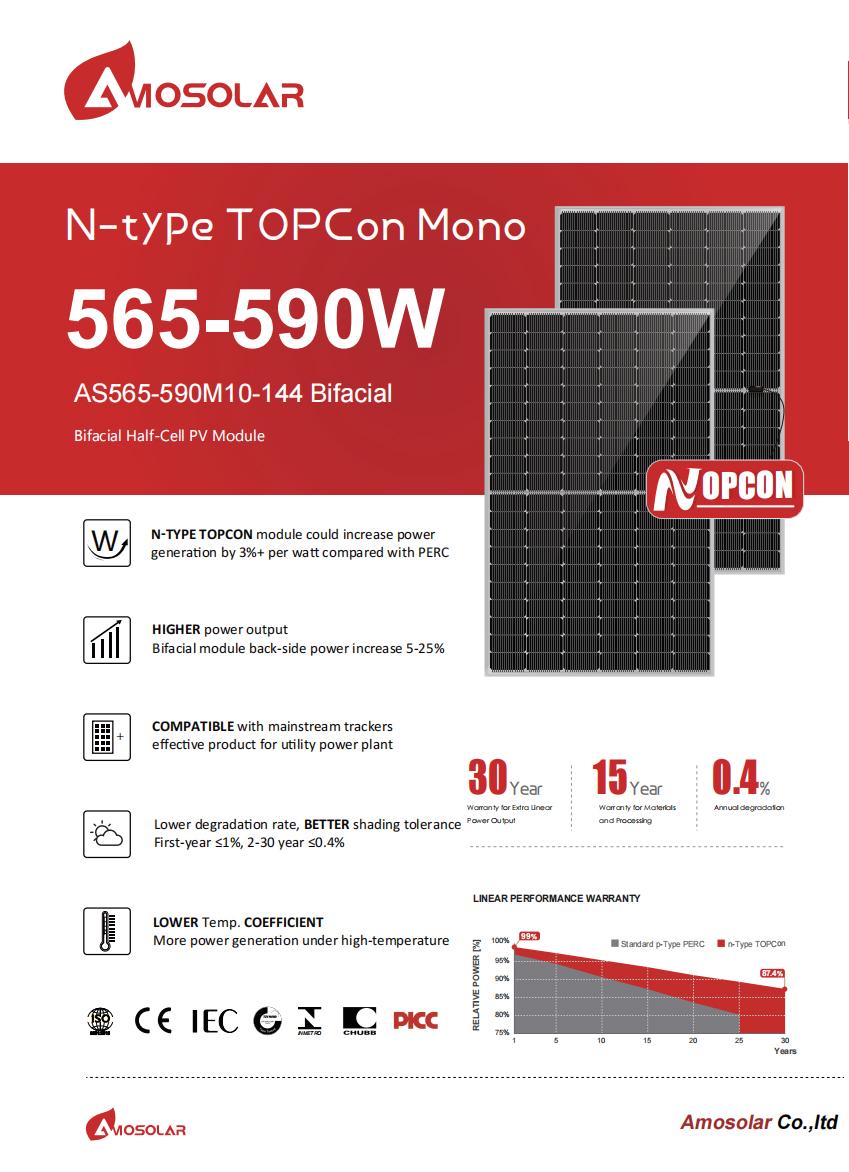

565W-590W Bifacial Half Cells Mono Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
Electrical Performance Parameters (STC Test)
| Model | AS560M10-144B | AS565M10-144B | AS570M10-144B | AS575M10-144B | AS580M10-144B | AS585M10-144B | AS590M10-144B |
| Rated Maximum Power at STC | 560W | 565W | 570W | 575W | 580W | 585W | 590W |
| Open Circuit Voltage (Voc) | 50.99 | 51.09 | 51.19 | 51.30 | 51.41 | 51.52 | 51.63 |
| Maximum Power Voltage (Vmp) | 42.82 | 42.91 | 43.00 | 43.11 | 43.22 | 43.33 | 43.44 |
| Short Circuit Current (Isc) | 13.89 | 13.97 | 14.05 | 14.14 | 14.22 | 14.30 | 14.38 |
| Maximum Power Current (Imp) | 13.08 | 13.17 | 13.26 | 13.34 | 13.42 | 13.51 | 13.59 |
| PV Module Efficiency (%) | 21.68 | 21.87 | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||||||
144 half cut solar cell MBB A grade PV Modules from Chinese manufactory.
AS485-505M10-108 Cell N-type TOPCon Mono No.of cells 108(2x54) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24kgs±3% Cells Type Mono 182x9mm Dimension(LxWxT) 1961±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 24 pcs/stack,;864pcs/40HQ(30mm) 31pcs/pallet, 24 pcs/stack,;744pcs/40HQ(35mm)
Learn More
AS515-540M10-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 25.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,792pcs/40HQ container(30mm) 31pcs/pallet,682pcs/40HQ(container(35mm)
Learn More
AS575-600M10-132 Cell N-type TOPCon Mono No.of cells 144(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS200M6-64 Cell Mono Rated Maximum Power 200W Maximum Efficiency 19.01% Junction Box IP 67 Maximum System Voltage 1000VDC Weight 11.67kg Solar Cells Mono crystalline 166X83mm (4X16pcs)
Learn More
6-GFM(G)-200Ah Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan Model Number 6-GFM(G)-200Ah Capacity(Ah) 200 Nominal Voltage 12V Size(L×W×H×TH) 522×238×221×250 mm Battery Type GEL Cycle Life 1500times
Learn More
JKM695-720N-66HL5-BDV-F2C1-EN Cell Type N-Type Mono-crystalline No.of Cell 132 (2X66) Junction Box IP68, Rated Weight 37.5KG Frame Anodized Aluminium Alloy Protection Class Class II PV Size 2382X1134X30mm Packaging 33pcs/pallet 594pcs/40HQ container
Learn More
AS580-615G12-120 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 615W Maximum Efficiency 21.73% Weight 30.9kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2172±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
Hybrid Grid Solar System Brand Amosolar Type Hybrid Solar System Max.Power 3-10kW Application Home/Business Certificate TUV/IEC/CEC/CE/ISO/Inmetro
Learn More
