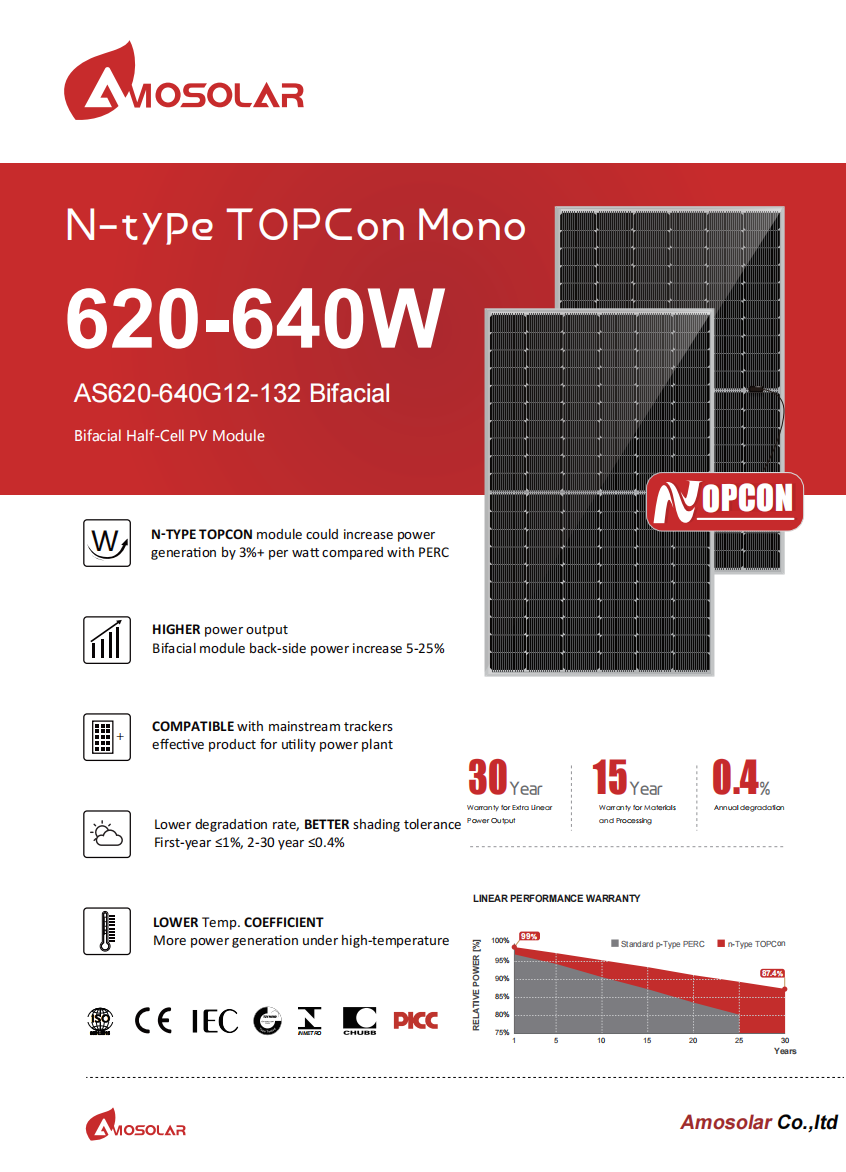

AS620-640G12-132
| Cell | N-type TOPCon Mono |
| No.of cells | 132(6x22) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68, 3 diodes |
| Connector | MC4 Compatible |
| Weight | 33.7kgs±3% |
| Cells Type | Mono 182x105mm |
| Dimension(LxWxT) | 2382×1134×30 mm (93.86×44.65×1.18 inches) |
| Packaging |
36pcs/pallet, 720p cs/40HQ (30mm) |

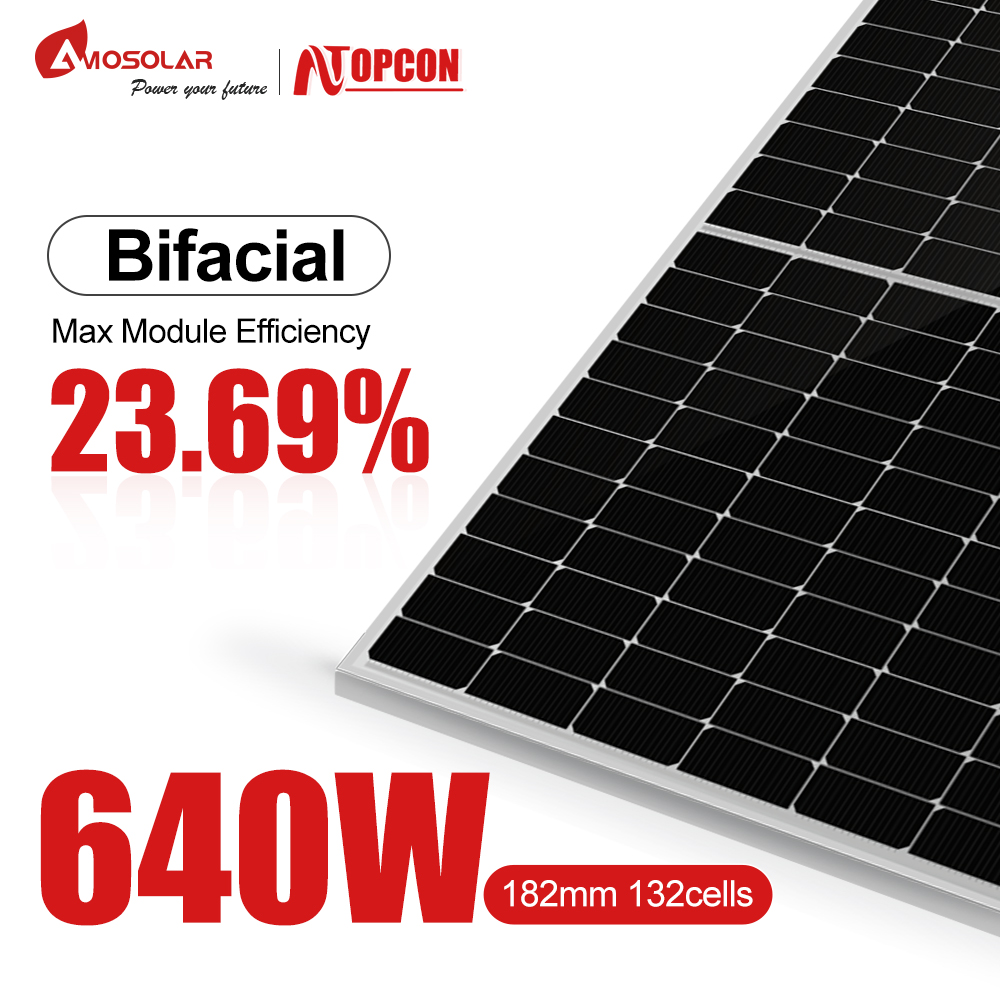

620W-640W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

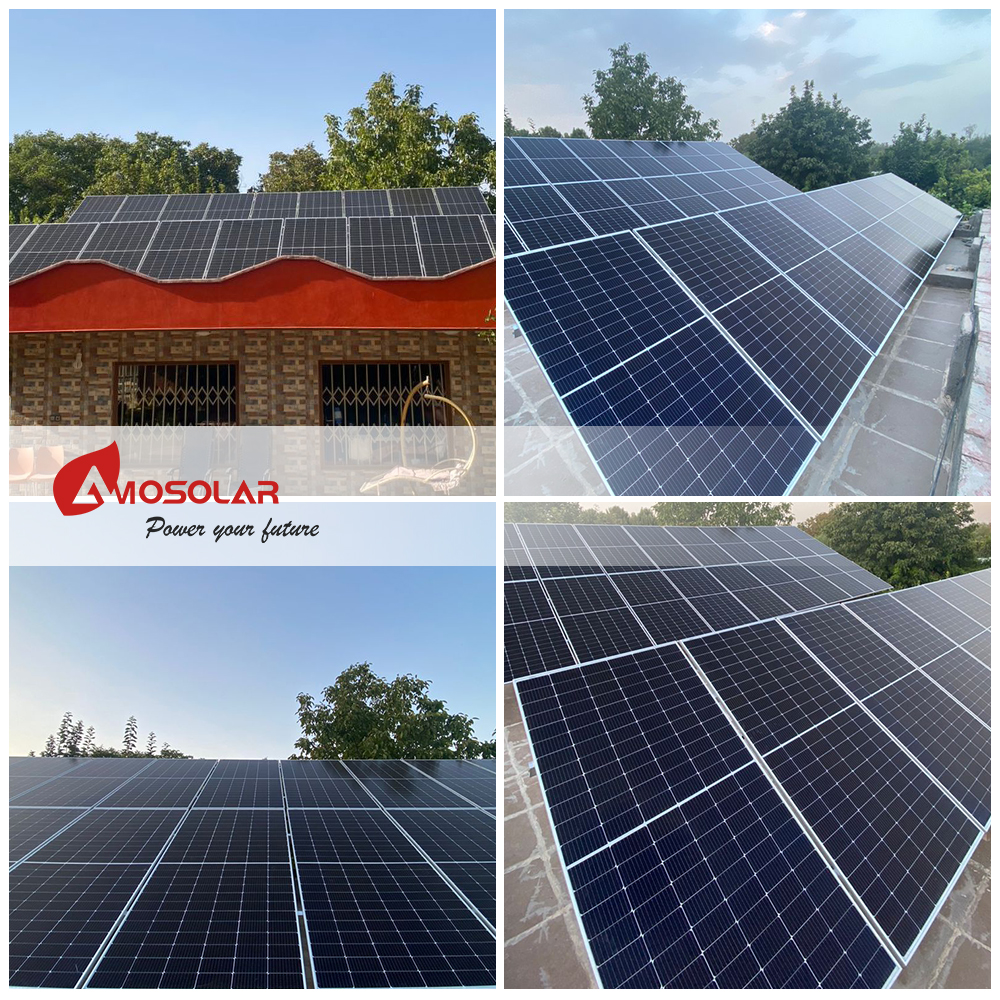

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS620G12-132 | AS625G12-132 | AS630G12-132 | AS635G12-132 | AS635G12-132 |
| Maximum Power(Pmax/W) | 620 | 625 | 630 | 635 | 640 |
| Open Circuit Voltage(Voc/V) | 48.50 | 48.70 | 48.90 | 49.10 | 49.30 |
| Short Circuit Current(Isc/A) | 16.13 | 16.15 | 16.18 | 16.21 | 16.24 |
| Voltage at Maximum Power(Vmp/V) | 40.21 | 40.45 | 40.70 | 40.95 | 41.20 |
| Current at Maximum Power(Imp/A) | 15.42 | 15.45 | 15.48 | 15.51 | 15.54 |
| Module Efficiency(%) | 23.00 | 23.10 | 23.30 | 23.50 | 23.69 |
AS435-455G12R-96 Cell N-type TOPCon Mono No.of cells 96(6x16) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1762±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm)
Learn More
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
AS555-580G12-110 Cell N-type TOPCon Mono No.of cells 110(5x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.6kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1096±2mmx30±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
AS695-720G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 38.3kgs±3% Cells Type Mono 210x91mm Dimension(LxWxT) 2384±2mmx1303±2mmx33±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm)
Learn More
JKM570-590N-72HL4-(V)-F7-EN Cell Arrangement 144 (2 X72) Junction Box IP68, 3 bypass diodes Weight 27.0KG Cable Length 500mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4mm2 (IEC), 12 AWG (UL) PV Size 2278X1134x30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
JKM605-630N-66HL4M-BDV-F3-EN Cell Arrangement 132 (66 X2) Junction Box IP68, 3 diodes Weight 32.4KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2382X1134X30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
AS270-295P-60 Cell Poly Rated Maximum Power 295W Maximum Efficiency 18.13% Junction Box IP 67 Maximum System Voltage 1000V/1500V DC Operating Temperature -40℃ ~ +85℃ Connectors MC4 EVO2/QC4.10-35
Learn More
