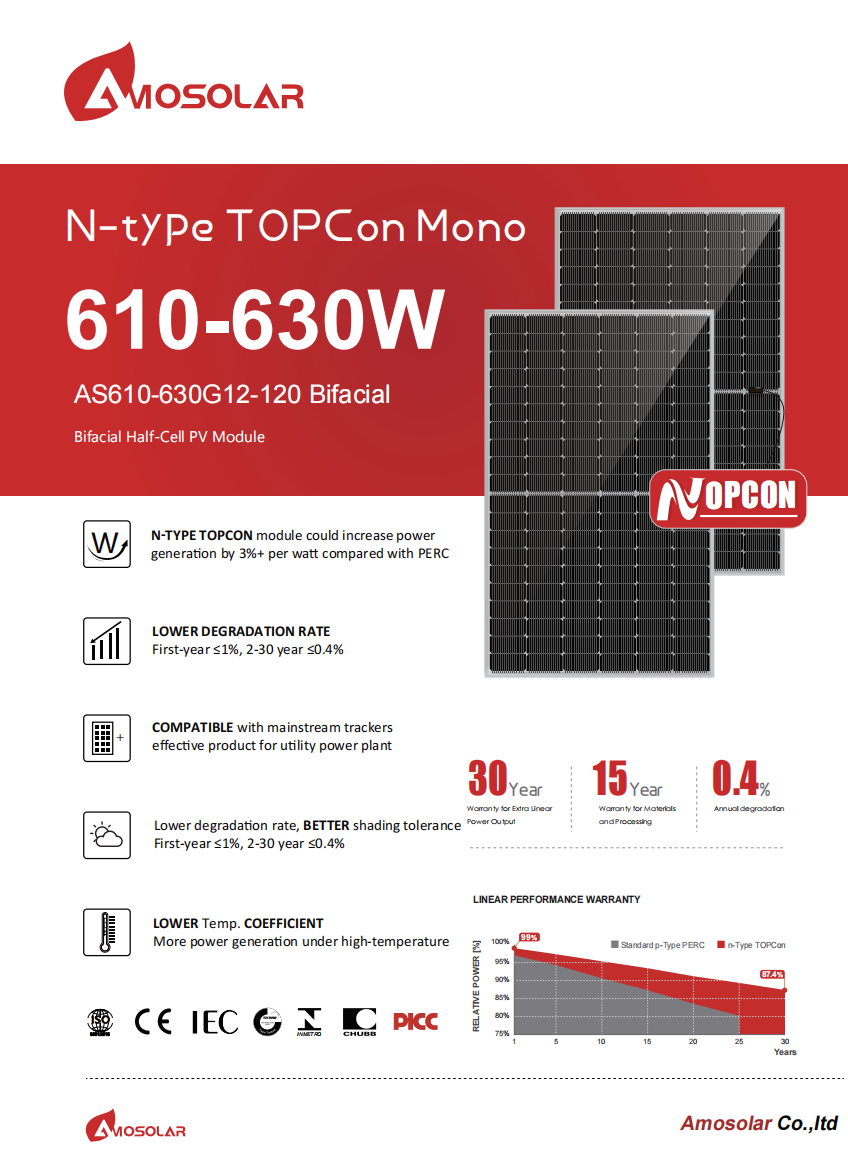

AS610-630G12-120
| Cell | N-type TOPCon Mono |
| No.of cells | 120(6x20) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68, 3 diodes |
| Connector | MC4 Compatible |
| Weight | 35.3kgs±3% |
| Cells Type | Mono 210x105mm |
| Dimension(LxWxT) | 2172±2mmx1303±2mmx35±1mm |
| Packaging |
36pcs/pallet, 648pcs/40HQ (30mm) |

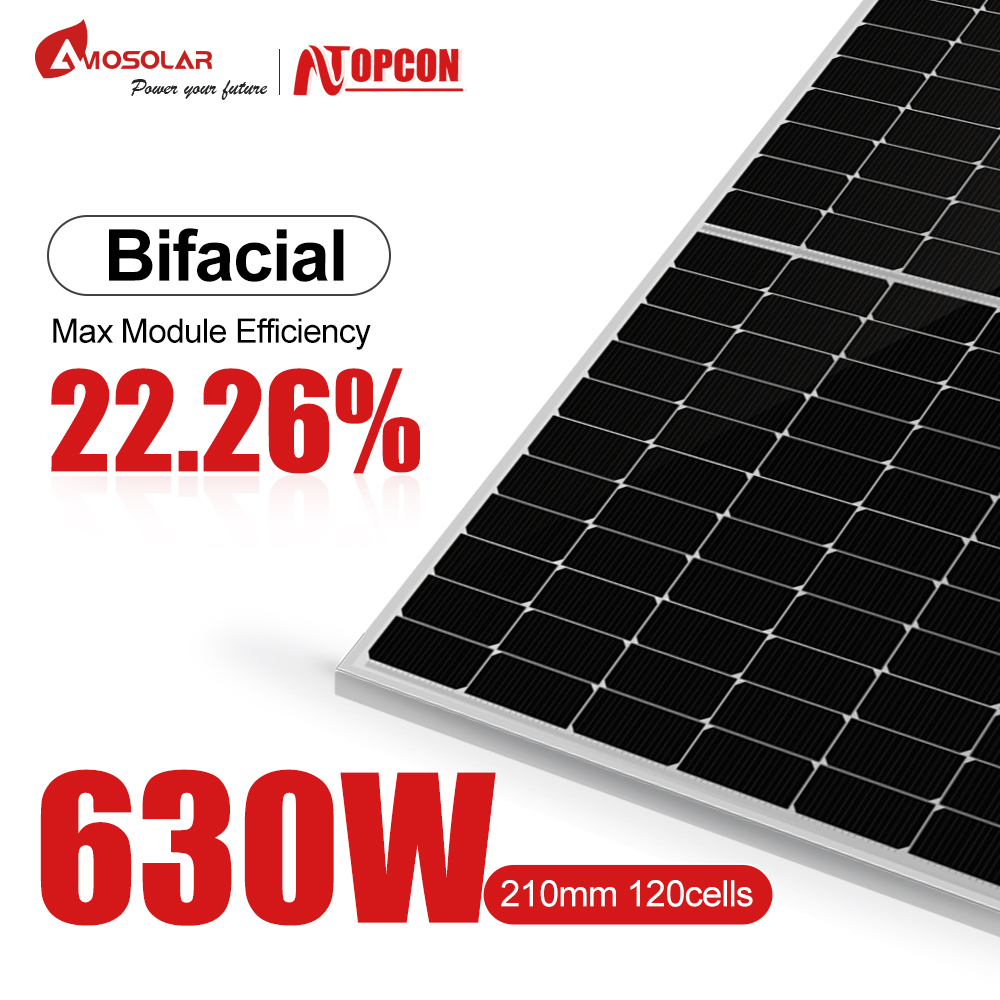

610W-630W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

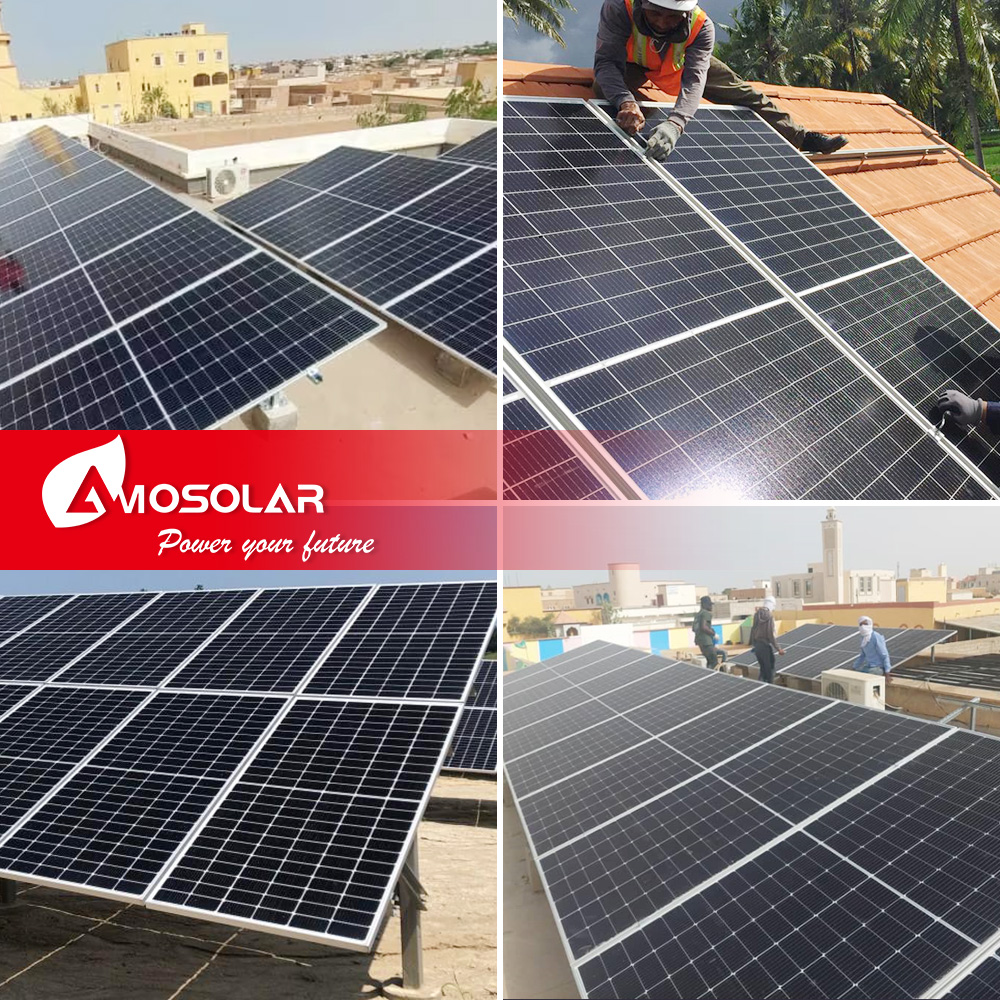

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS610G12-120 | AS615G12-120 | AS620G12-120 | AS625G12-120 | AS630G12-120 |
| Maximum Power(Pmax/W) | 610 | 615 | 620 | 625 | 630 |
| Open Circuit Voltage(Voc/V) | 42.16 | 42.28 | 42.40 | 42.52 | 42.64 |
| Short Circuit Current(Isc/A) | 18.29 | 18.35 | 18.35 | 18.35 | 18.35 |
| Voltage at Maximum Power(Vmp/V) | 35.20 | 35.40 | 35.40 | 35.40 | 35.40 |
| Current at Maximum Power(Imp/A) | 17.33 | 17.37 | 17.37 | 17.37 | 17.37 |
| Module Efficiency(%) | 21.55 | 21.73 | 21.91 | 22.08 | 22.26 |
AS435-455G12R-96 Cell N-type TOPCon Mono No.of cells 96(6x16) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1762±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm)
Learn More
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
AS555-580G12-110 Cell N-type TOPCon Mono No.of cells 110(5x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.6kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1096±2mmx30±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS620-640G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 33.7kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 2382×1134×30 mm (93.86×44.65×1.18 inches) Packaging 36pcs/pallet, 720p cs/40HQ (30mm)31pcs/pallet, 620p cs/40HQ (35mm)
Learn More
AS695-720G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 38.3kgs±3% Cells Type Mono 210x91mm Dimension(LxWxT) 2384±2mmx1303±2mmx33±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm)
Learn More
AS585-605G12-120B Cell Mono Rated Maximum Power 615W Maximum Efficiency 21.40% Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
AS415-440M10-108 Cell Mono Rated Maximum Power 440W Maximum Efficiency 22.53% Weight 21kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
Amosolar 8KW 10KW 15KW Off Grid Solar System Name Off Grid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V;380V/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
