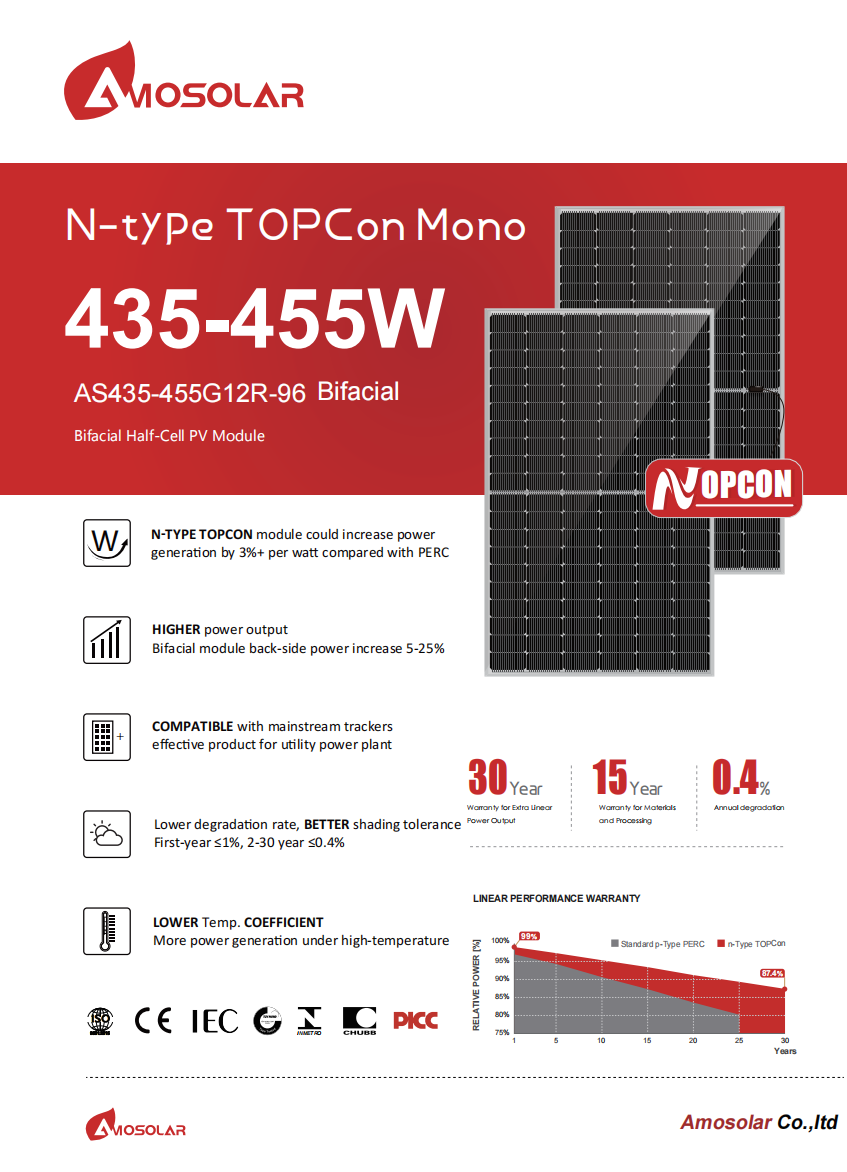

AS435-455G12R-96
| Cell | N-type TOPCon Mono |
| No.of cells | 96(6x16) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 24.2kgs±3% |
| Cells Type | Mono 182x105mm |
| Dimension(LxWxT) | 1762±2mmx1134±2mmx30±1mm |
| Packaging |
36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm) |
435W-455W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.

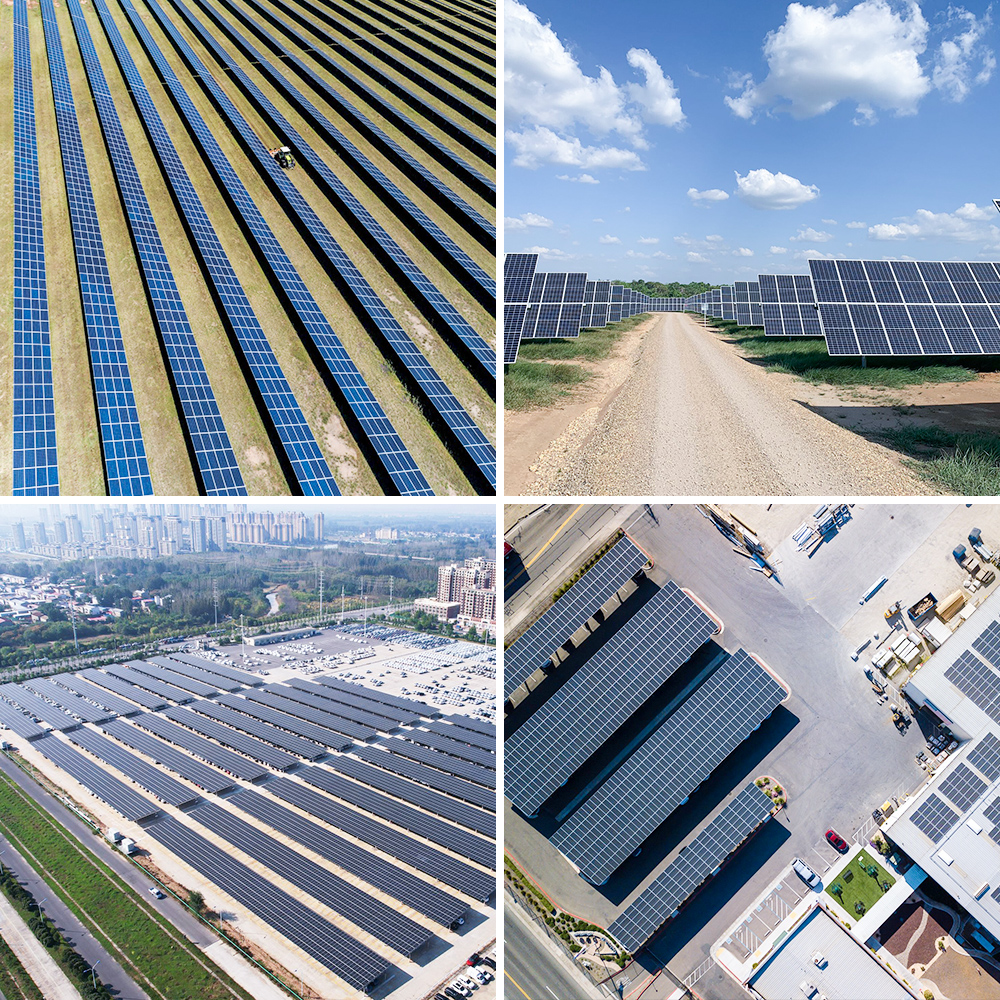

Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS420M10-108 | AS425M10-108 | AS430M10-108 | AS435M10-108 | AS440M10-108 |
| Maximum Power(Pmax/W) | 435 | 440 | 445 | 450 | 455 |
| Open Circuit Voltage(Voc/V) | 34.66 | 34.84 | 35.02 | 35.20 | 35.38 |
| Short Circuit Current(Isc/A) | 15.89 | 15.94 | 15.99 | 16.04 | 16.09 |
| Voltage at Maximum Power(Vmp/V) | 29.55 | 29.73 | 29.91 | 30.09 | 30.27 |
| Current at Maximum Power(Imp/A) | 14.73 | 14.81 | 14.89 | 14.97 | 15.05 |
| Module Efficiency(%) | 21.77 | 22.02 | 22.27 | 22.52 | 22.77 |
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
AS555-580G12-110 Cell N-type TOPCon Mono No.of cells 110(5x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.6kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1096±2mmx30±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
AS620-640G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 33.7kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 2382×1134×30 mm (93.86×44.65×1.18 inches) Packaging 36pcs/pallet, 720p cs/40HQ (30mm)31pcs/pallet, 620p cs/40HQ (35mm)
Learn More
AS695-720G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 38.3kgs±3% Cells Type Mono 210x91mm Dimension(LxWxT) 2384±2mmx1303±2mmx33±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm)
Learn More
Model Number AMO 20K-T2 Capacity(Ah) 52Ah Maximum Nominal Voltage 512V Energy(Kwh) 7.5KWh~20Kwh Max. Charge/Discharge Current(A) 35A lPGrade IP65 Cycle Life 6000 Cycles
Learn More
AS48100/AS48200 Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS48100/AS48200 Capacity(Ah) 100/200 Nominal Voltage 48V Weight( Approx) (KG) 43.2kg/76.8kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
