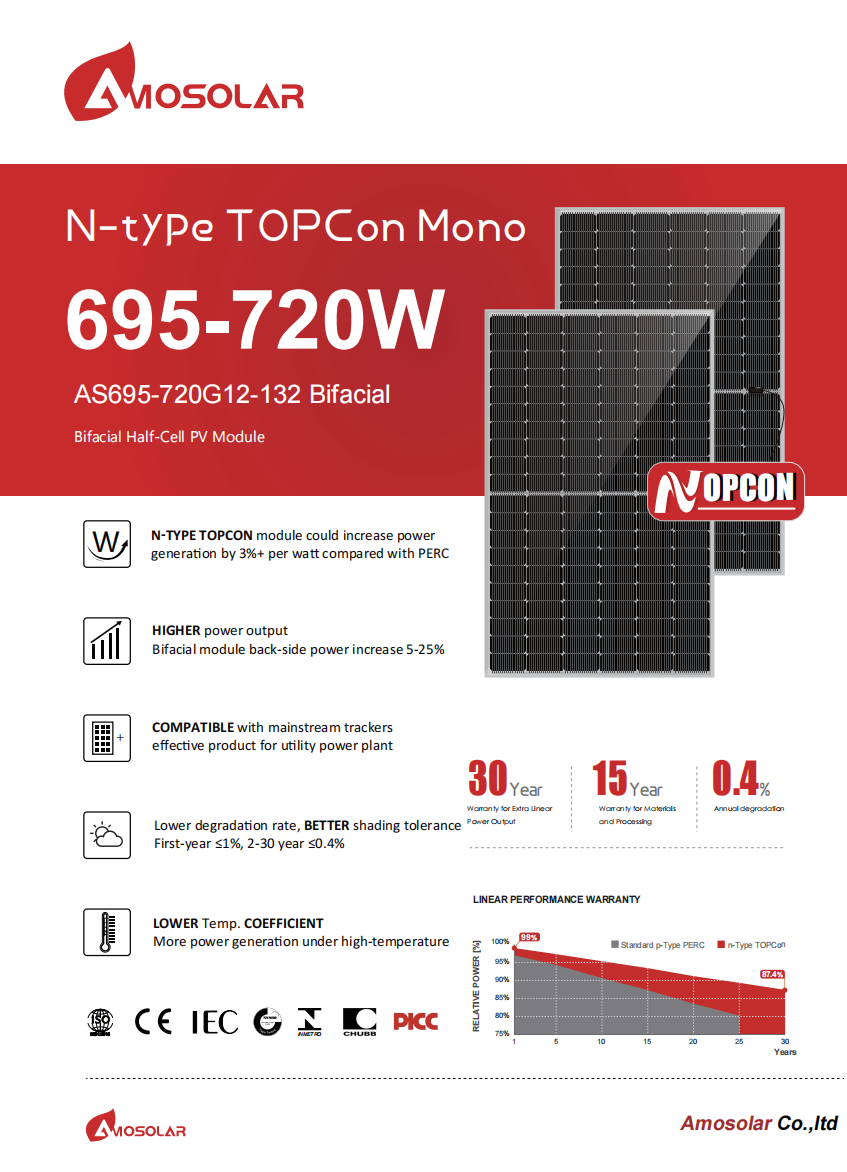

AS695-720G12-132
| Cell | N-type TOPCon Mono |
| No.of cells | 132(6x22) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 38.3kgs±3% |
| Cells Type | Mono 210x91mm |
| Dimension(LxWxT) | 2384±2mmx1303±2mmx33±1mm |
| Packaging |
36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm) |

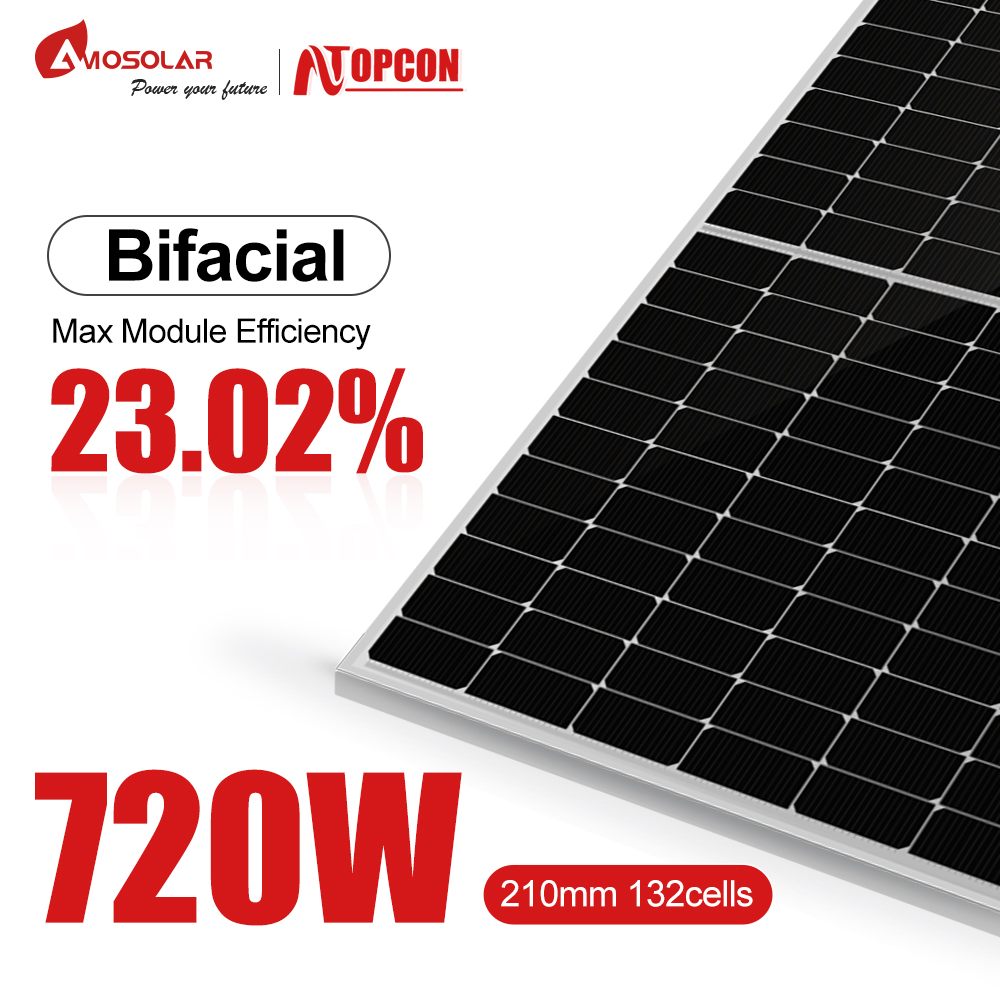

695W-720W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS555G12-110 | AS700G12-132 | AS700G12-132 | AS700G12-132 | AS715G12-132 | AS715G12-132 |
| Maximum Power(Pmax/W) | 695 | 700 | 705 | 710 | 715 | 720 |
| Open Circuit Voltage(Voc/V) | 46.92 | 48.60 | 48.77 | 48.94 | 49.11 | 49.28 |
| Short Circuit Current(Isc/A) | 18.54 | 18.35 | 18.40 | 18.45 | 18.50 | 18.55 |
| Voltage at Maximum Power(Vmp/V) | 39.80 | 40.35 | 40.52 | 40.69 | 40.86 | 41.03 |
| Current at Maximum Power(Imp/A) | 17.47 | 17.35 | 17.40 | 17.45 | 17.50 | 17.55 |
| Module Efficiency(%) | 22.37 | 22.37 | 22.70 | 22.90 | 23.00 | 23.02 |
AS435-455G12R-96 Cell N-type TOPCon Mono No.of cells 96(6x16) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1762±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm)
Learn More
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
AS555-580G12-110 Cell N-type TOPCon Mono No.of cells 110(5x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.6kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1096±2mmx30±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More

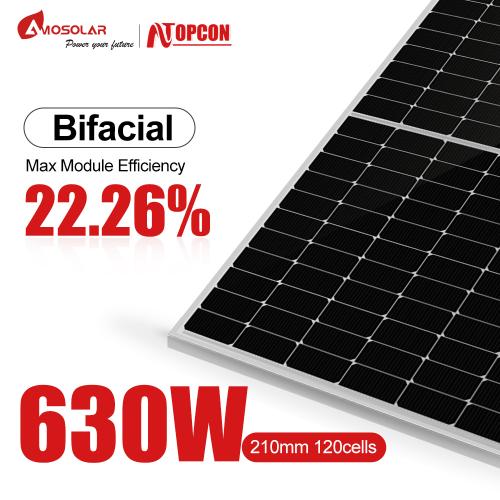

AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
AS620-640G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 33.7kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 2382×1134×30 mm (93.86×44.65×1.18 inches) Packaging 36pcs/pallet, 720p cs/40HQ (30mm)31pcs/pallet, 620p cs/40HQ (35mm)
Learn More
Amosolar 10KW 12KW 15KW ON Grid Solar System Name ON Grid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V;380V/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
AS270-295P-60 Cell Poly Rated Maximum Power 295W Maximum Efficiency 18.13% Weight 17.0kgs±3% Cells Type Poly-crystalline 156.75x156.75mm Dimension (LxW×T) 1640±2mmx992±2mmx30±1mm Packaging 36pcs/pallet,1078pcs/40HQ container
Learn More
