AS555-580G12-110
| Cell | N-type TOPCon Mono |
| No.of cells | 110(5x22) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 32.6kgs±3% |
| Cells Type | Mono 210x105mm |
| Dimension(LxWxT) | 2384±2mmx1096±2mmx30±1mm |
| Packaging |
36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm) |
555W-580W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS555G12-110 | AS560G12-110 | AS565G12-110 | AS570G12-110 | AS575G12-110 | AS575G12-110 |
| Maximum Power(Pmax/W) | 555 | 560 | 565 | 570 | 575 | 580 |
| Open Circuit Voltage(Voc/V) | 38.6 | 38.7 | 38.8 | 38.9 | 39.0 | 39.1 |
| Short Circuit Current(Isc/A) | 8.30 | 18.35 | 18.40 | 18.45 | 18.50 | 18.55 |
| Voltage at Maximum Power(Vmp/V) | 32.0 | 32.2 | 32.4 | 32.6 | 32.8 | 33.0 |
| Current at Maximum Power(Imp/A) | 17.35 | 17.40 | 17.45 | 17.50 | 17.55 | 17.60 |
| Module Efficiency(%) | 21.24 | 21.43 | 21.62 | 21.82 | 22.01 | 22.20 |

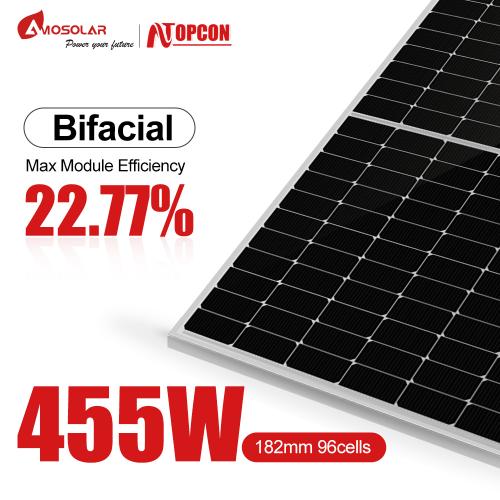

AS435-455G12R-96 Cell N-type TOPCon Mono No.of cells 96(6x16) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1762±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ(30mm) 31pcs/pallet, 806pcs/40HQ(35mm)
Learn More
AS500-520G12R-108 Cell N-type TOPCon Mono No.of cells 108(12x9) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 27.4kgs±3% Cells Type Mono 182x105mm Dimension(LxWxT) 1962±2mmx1134±2mmx30±1mm Packaging 37pcs/pallet ; 814pcs/40HQ(30mm)
Learn More
JKM425-450N-54HL4R-BDB-F3-EN Cell Arrangement 108 (2 X54) Junction Box IP68, 3 bypass diodes Weight 24.5KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30mm Packaging 37pcs/pallet 936pcs/40HQ container
Learn More
JKM445-470N-48HL4M-BDV-Z1-EN Cell Arrangement 96 (2 X48) Cell Type N- type Mono-crystalline Weight 24KG Junction Box IP68 Rated Protection Class Class II Pallet Dimensions 1792X1140x1249mm Packaging 37 pcs/pallets, 74 pcs/stack, 962 pcs/ 40'HQ Container
Learn More
TSM-NEG21C.20 695-720W Cell Arrangement 132 (22X 6) Junction Box IP68 rated Weight 38.3KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 2384 x1303x30mm Packaging 33 pcs/ pallet 594pcs /40HQ container
Learn More
AS380-410M10-108 Cell Mono Rated Maximum Power 410W Maximum Efficiency 21.00% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
AS435-455M0-120 Cell Mono Rated Maximum Power 455W Maximum Efficiency 21.02% Weight 24.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1909±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 744pcs/40HQ container
Learn More
