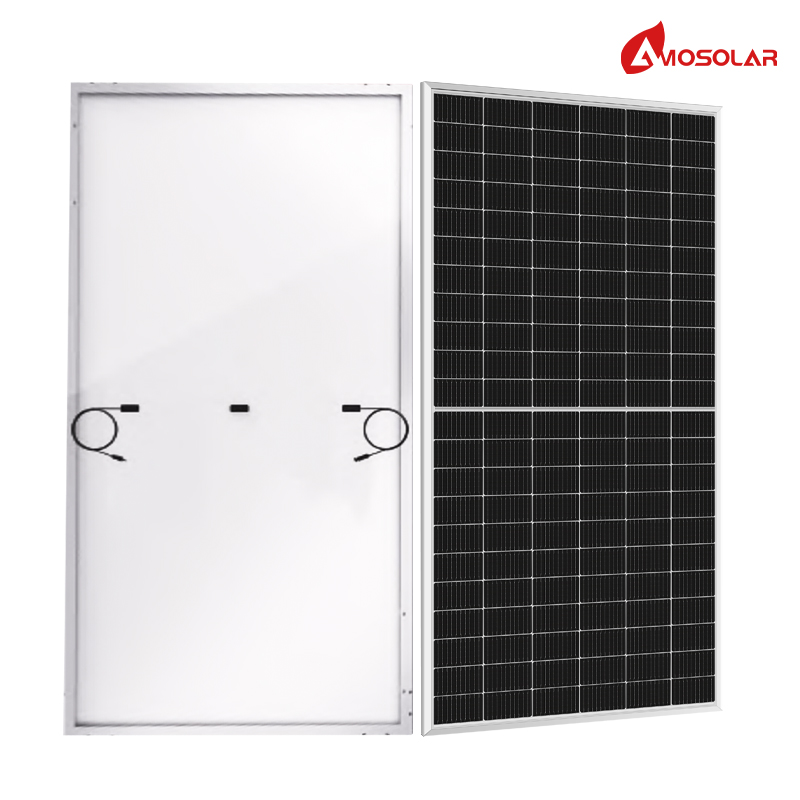

480w 485w 490w 495w 500w 505w Half Cut Mono PV Panel Chinese Manufactory

500 W Solar Panels
500 W Solar Panels
500 W Solar Panels
500 W Solar Panels
500 W Solar Panels

480w 485w 490w 495w 500w 505w Half Cut Mono PV Panel Chinese Manufactory

AS480-505M10-132


Cell Mono
Rated Maximum Power
505W
Maximum Efficiency 21.30%
Weight
26.0kgs±3%
Cells Type
Mono 182x91mm
Dimension(LxWxT)
2094±2mmx1134±2mmx35±1mm
Packaging
31pcs/pallet, 682pcs/40HQ container

480W-505W Half Cut Mono PV Panel Chinese Manufactory : With latest multi-busbar PERC technology, 182mm half-cell solar panels with bigger power, higher efficiency, longer life, better performance.

Solar Panel 450 W



Electrical Performance Parameters (STC Test)


Model
AS480M10-132 AS485M10-132
AS490M10-132
AS495M10-132
AS500M10-132
AS505M10-132
Rated Maximum Power at STC 480W
485W 490W 495W 500W 505W
Open Circuit Voltage (Voc) 45.07 45.22 45.37 45.52 45.67 45.82
Maximum Power Voltage (Vmp) 37.36 37.81 37.97 38.13 38.29 38.45
Short Circuit Current (Isc) 13.65 13.72 13.79 13.86 13.93 14.00
Maximum Power Current (Imp) 12.75 12.83 12.90 12.98 13.06 13.13
PV Module Efficiency (%) 20.21 20.42 20.64 20.85 21.06 21.30
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Panel Solar 500 Watt

  Layout :                  132( 6 × 22 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   26.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2094×1134×35mm

  Packaging:              31 pcs / pallet

                                   682 pcs / 40HQ container


Solar Panels 48V 500W
