Model Number |
AMO 20.48-51.20K_HV-S1 |
|
Capacity(Ah)
|
100AH |
|
Battery Module
|
AMO5.12K_HV-S1(51.2V100Ah,48kg) |
|
Max. Charge
Discharge Current(A)
|
100A
|
|
Scalability
|
Up to 4 parallel
|
|
Cycle Life
|
>6000 Cycles @25'C,0.5C,80%DOD,70%EOL
|
| PERFORMANCE SPECIFICATIONS | |||||
| Model | AMO 86K_HV-S1 |
AMO 100.4K HV-S1 |
AMO 114.8K_HV-S1 |
AMO 129.1K_HV-S1 |
AMO 143.4K_HV-S1 |
| Battery Module | AMO14.34K_HV-S1(51.2V280Ah,136kg) | ||||
| Number of Modules | 6 | 7 | 8 | 9 | 10 |
| Rated Energy(KWH) | 86 | 100.4 | 114.8 | 129.1 | 143.4 |
| Nominal Voltage | 307.2V | 358.4V | 409.6V | 460.4V | 512V |
| Capacity(Ah) | 280AH | ||||
| Max. Charge Discharge Current(A) | 140A | ||||
| Scalability | Up to 4 parallel | ||||
| Communication | RS485(B)-BAT/RS485(A)-PC/Canbus-Inverter | ||||
| Cycle Life | >6000 Cycles @25'℃,0.5C,80%DOD, 70%EOL | ||||
| Weight( Approx)(KG) | 850kg | 1000kg | 1110kg | 1450kg | 1400kg |
| Dimension(W/D/H)(mm) | 550*776*1985 | 550*776*2250 | 550*776*1450 | 550*776*1700 | 550*776*1690 |
| Charge Temperature | 0C~55 ℃C | ||||
| Discharge Temperature | -20 °C~55 °C | ||||
| Storage Temperature | -40'C~55C@ 60%+25% relative humidity | ||||
| Installation Mode | Rack Mounting | ||||
| IP Grade | IP20 | ||||
| Safety(Pack) | UN38.3,MSDS | ||||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | ||||
| Working Temperature(°C) | Charge:0'C-55°℃; Discharge: -20°C-55℃ | ||||
| Altitude (m) | ≤2000 | ||||
| Humidity | 5~85%RH Humidity | ||||
| Warranty | 5 Years(25°C) | ||||
| Design Life | 10+Years (25°C/77F) | ||||

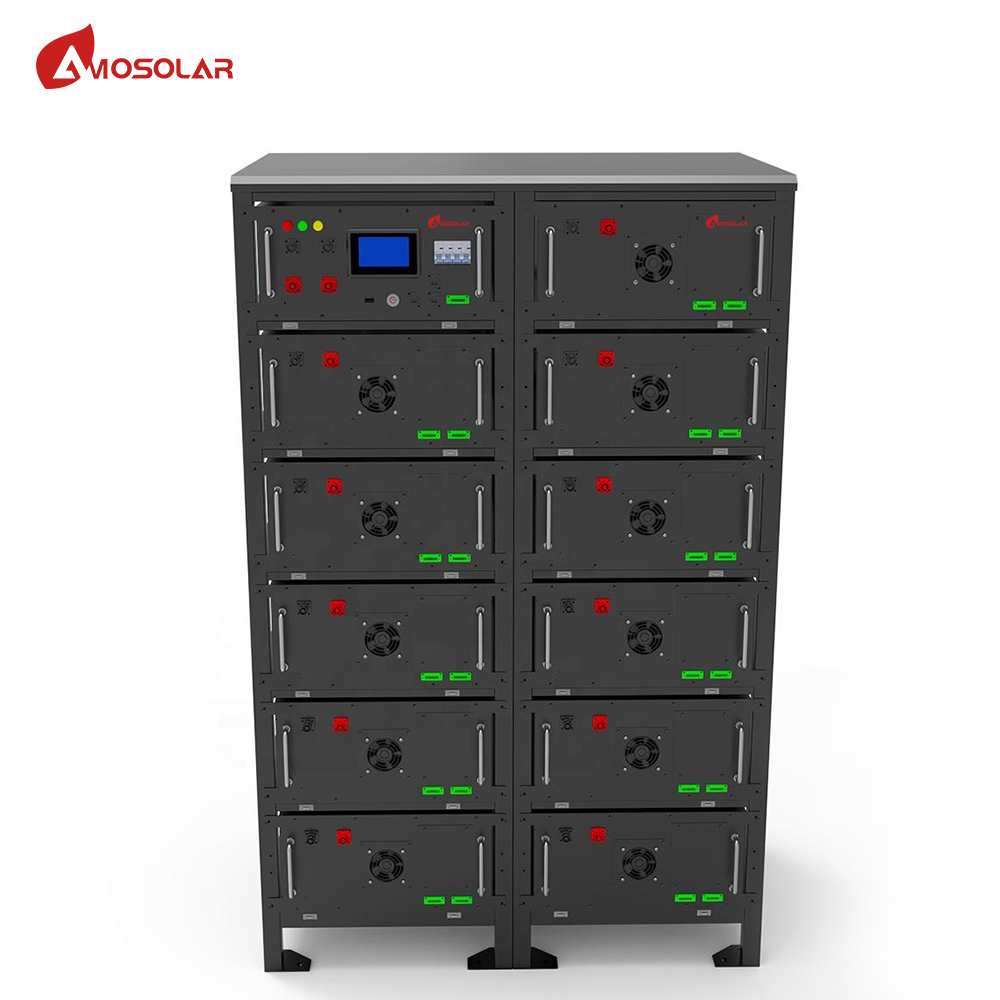

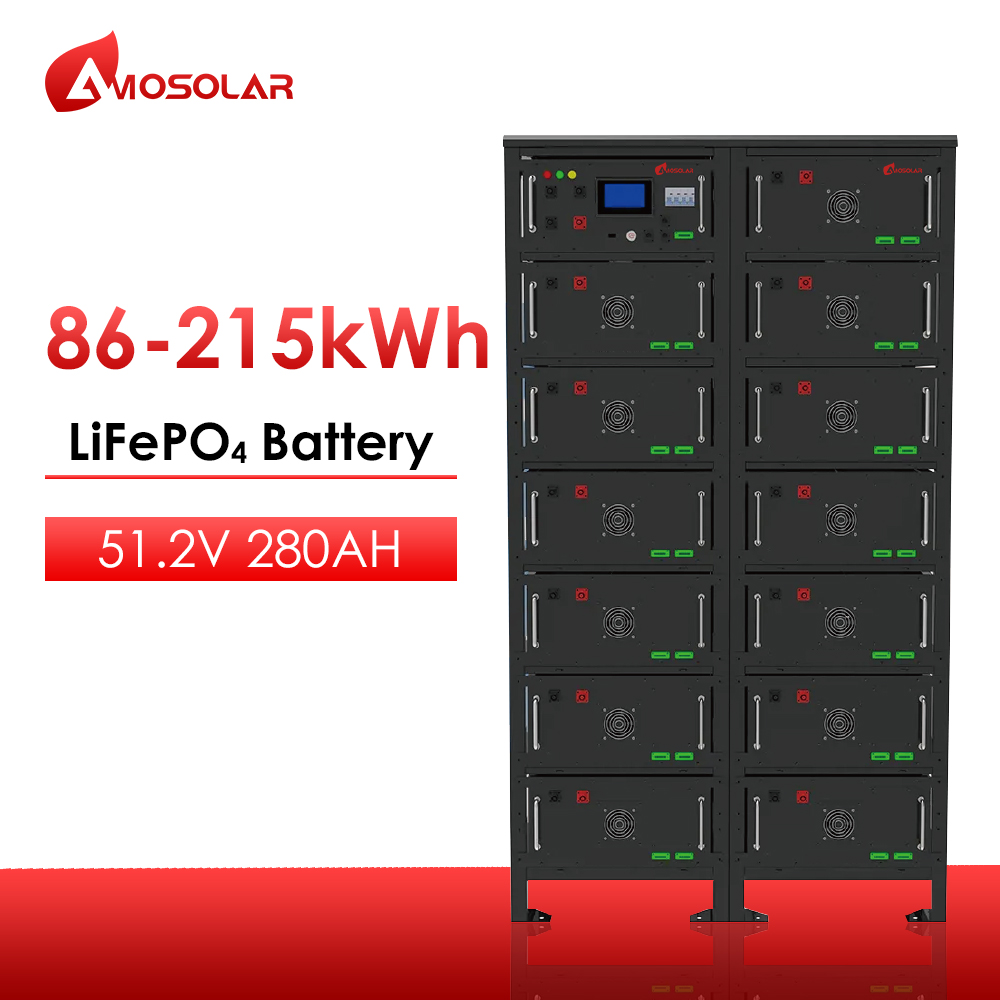

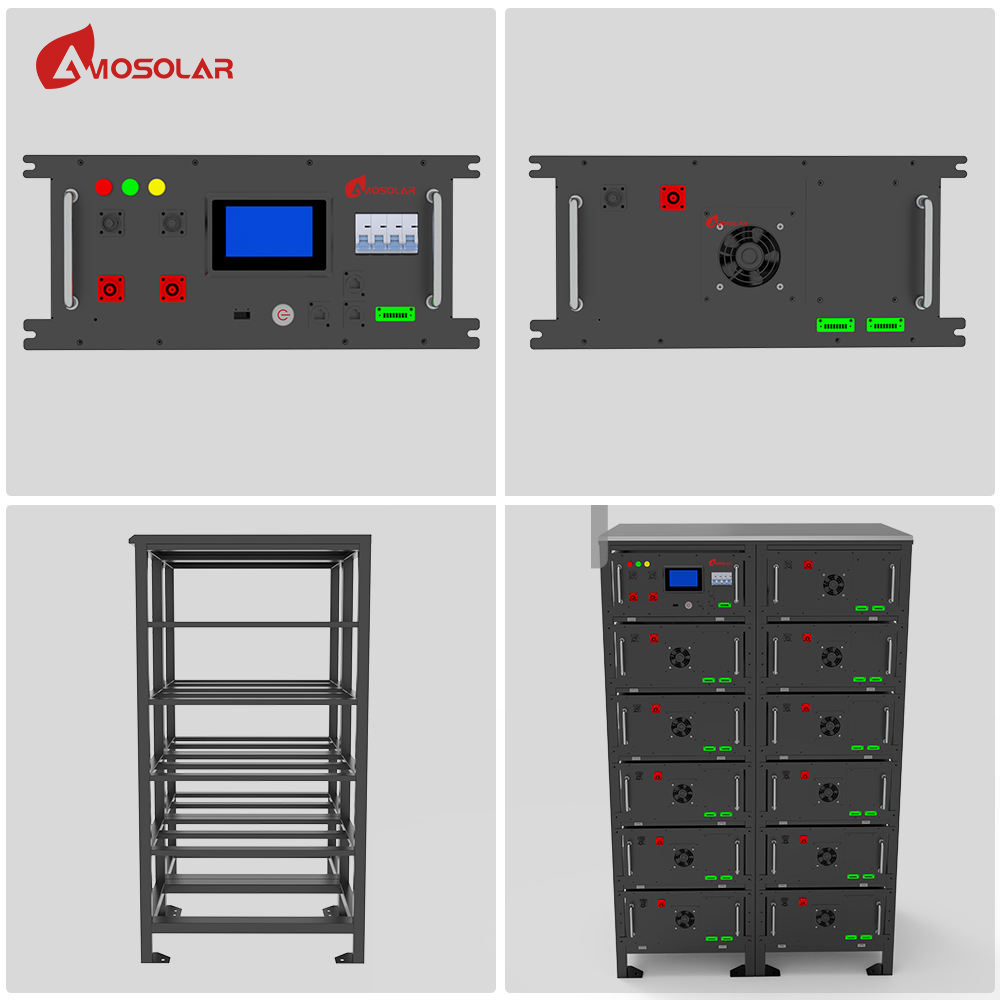

Amosolar’s Stackable High Voltage Lithium Battery is a modular energy storage solution designed for high-performance residential and commercial solar systems. It offers both scalability and space-saving installation. Built with Lithium Iron Phosphate (LiFePO4) technology, it ensures longer life, higher safety, and greater efficiency.
Key Features:
Modular & stackable design for easy capacity expansion
Compatible with mainstream high voltage hybrid inverters
Long cycle life: 6000+ cycles @ 80% DOD
Smart BMS for real-time protection and monitoring
Plug & play connection, simplified installation
This battery is ideal for home solar battery storage, hybrid solar systems, and energy storage for commercial use.
AS48100/AS48200 Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS48100/AS48200 Capacity(Ah) 100/200 Nominal Voltage 48V Weight( Approx) (KG) 43.2kg/76.8kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Model Number M15S100BL-U0 Capacity(Ah) 100 Nominal Voltage 48V Weight( Approx) (KG) 45kg Dimension(W/D/H)(mm) 515×493×175mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Model Number AMO 20.48-51.20K_HV-S1 Capacity(Ah) 100AH Battery Module AMO5.12K_HV-S1(51.2V100Ah,48kg) Max. Charge Discharge Current(A) 100A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃,0.5C,80%DOD, 70%EOL
Learn More
Model Number AMO 107.5-215K HV-S1 Capacity(Ah) 280AH Battery Module AMO17.92K HV-S1(64V280Ah) Max. Charge Discharge Current(A) 140A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
Learn More
Model Number AMO144.69-225.08K HV-S1 Capacity(Ah) 314AH Battery Module AMO16.077K_HV-S1(51.2V314Ah,136kg) Max. Charge Discharge Current(A) 157A/200A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
Learn More
AS440-465M6-144 Cell Mono Rated Maximum Power 465W Maximum Efficiency 21.39% Weight 23.0kg±3% Cells Type Mono 166x83mm Dimension(LxWxT) 2094±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 726pcs/40HQ container
Learn More
Hybrid Grid Solar System Brand Amosolar Type Hybrid Solar System Max.Power 30-150kW Application Home/Business Certificate TUV/IEC/CEC/CE/ISO/Inmetro
Learn More
Amosolar 10KW 11KW 12KW Hybrid Solar System Name Hybrid 10KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
