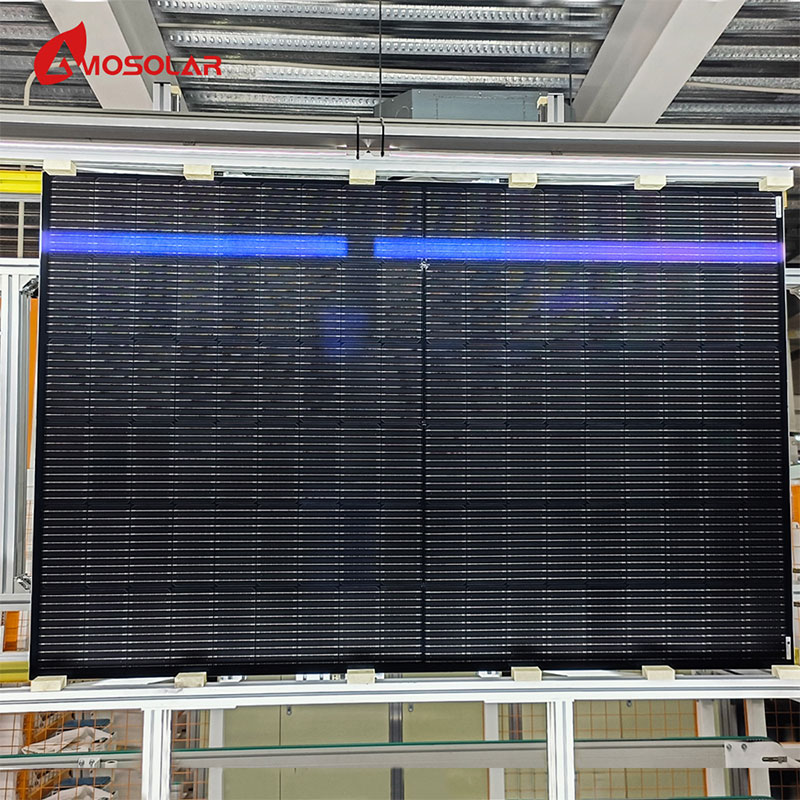

440w 445w 450w 455w 460w 465w All Black Half Cell Mono Solar Panel Chinese Supplier

Solar Panel 440-460 W All black
Solar Panel 440-460 W All black
Solar Panel 440-460 W All black
Solar Panel 440-460 W All black
Solar Panel 440-460 W All black
Solar Panel 440-460 W All black

440w 445w 450w 455w 460w 465w All Black Half Cell Mono Solar Panel Chinese Supplier

AS440-465BM6-144


Cell Mono
Rated Maximum Power
465W
Maximum Efficiency 21.27%
Junction Box IP 67
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

440W-465W All Black Half Cut Mono PV Panel Chinese Manufactory : 166mm half cut solar cells with multi-busbar PERC technology, high efficiency solar panels.

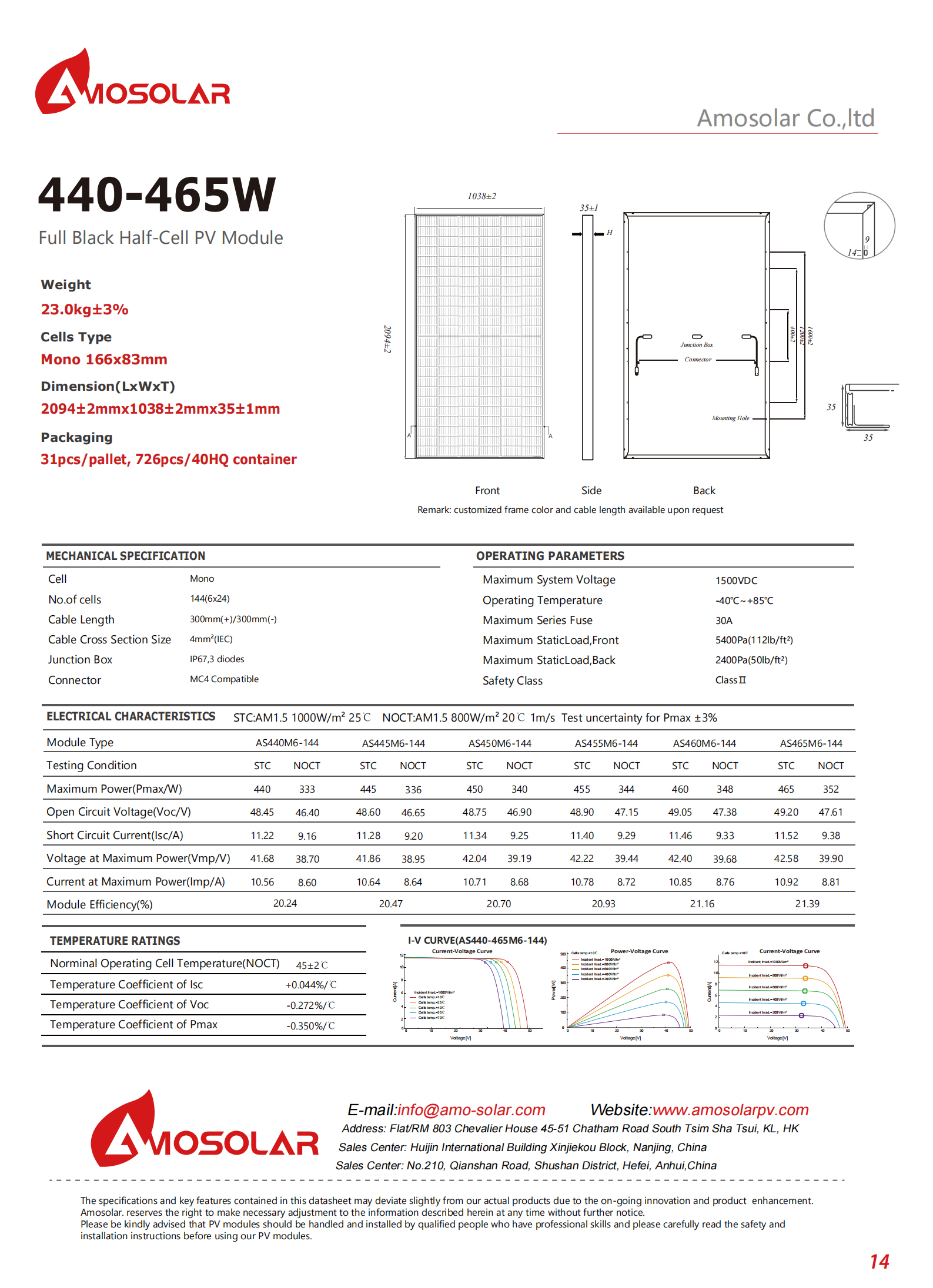

Electrical Performance Parameters (STC Test)


Model
AS440BM6-120 AS445BM6-120
AS450BM6-120
AS455BM6-120
AS460BM6-120
AS465BM6-120
Rated Maximum Power at STC 440W
445W 450W 455W 460W 465W
Open Circuit Voltage (Voc) 49.40 49.56 49.70 49.85 50.11 50.15
Maximum Power Voltage (Vmp) 40.90 41.21 41.52 41.82 42.13 42.43
Short Circuit Current (Isc) 11.28 11.32 11.36 11.41 11.45 11.49
Maximum Power Current (Imp) 10.76 10.80 10.84 10.88 10.92 10.96
PV Module Efficiency (%) 20.13 20.36 20.58 20.81 21.04 21.27
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP67, 3 diodes

  Weight:                   23.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2094×1038×35mm

  Packaging:              31 pcs / pallet

                                   726 pcs / 40HQ container


Factory For Solar Panel


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
