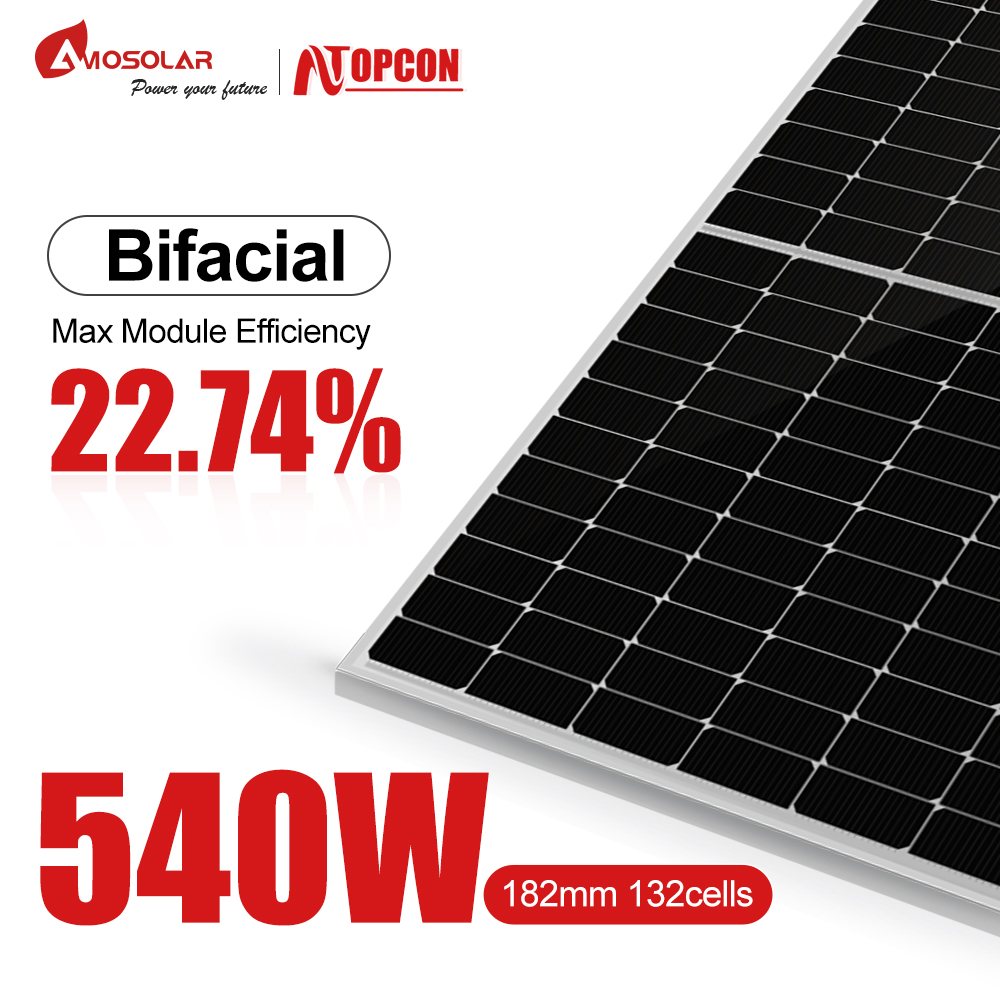

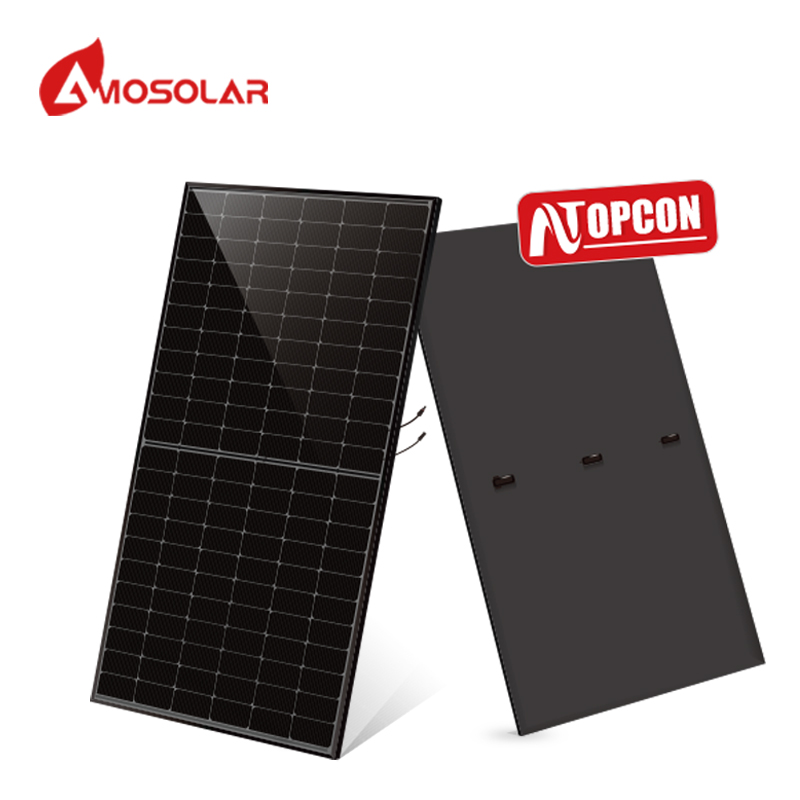

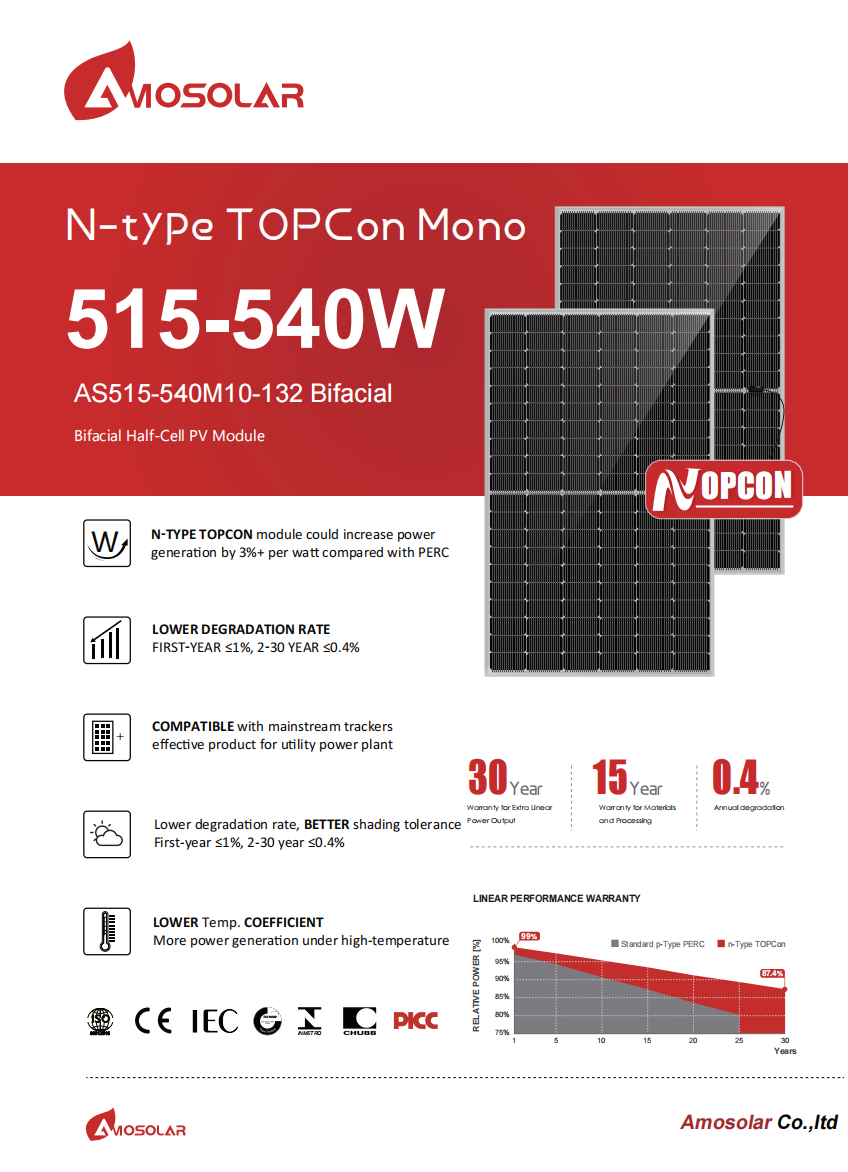

AS515-540M10-132
| Cell | N-type TOPCon Mono |
| No.of cells | 132(6x22) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 25.5kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 2094±2mmx1134±2mmx30/35±1mm |
| Packaging |
36pcs/pallet,792pcs/40HQ container(30mm) 31pcs/pallet,682pcs/40HQ(container(35mm) |
515W-540W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS515M10-132 | AS520M10-132 | AS525M10-132 | AS530M10-132 | AS535M10-132 | AS540M10-132 |
| Maximum Power(Pmax/W) | 515 | 520 | 525 | 530 | 535 | 540 |
| Open Circuit Voltage(Voc/V) | 48.22 | 48.34 | 48.46 | 48.58 | 48.70 | 48.82 |
| Short Circuit Current(Isc/A) | 13.57 | 13.63 | 13.69 | 13.75 | 13.81 | 13.87 |
| Voltage at Maximum Power(Vmp/V) | 39.30 | 39.50 | 39.70 | 39.90 | 40.10 | 40.30 |
| Current at Maximum Power(Imp/A) | 13.11 | 13.17 | 13.23 | 13.29 | 13.35 | 13.41 |
| Module Efficiency(%) | 21.69 | 21.90 | 22.11 | 22.32 | 22.53 | 22.74 |
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
AS485-505M10-108 Cell N-type TOPCon Mono No.of cells 108(2x54) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24kgs±3% Cells Type Mono 182x9mm Dimension(LxWxT) 1961±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 24 pcs/stack,;864pcs/40HQ(30mm) 31pcs/pallet, 24 pcs/stack,;744pcs/40HQ(35mm)
Learn More
AS575-600M10-132 Cell N-type TOPCon Mono No.of cells 144(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS370-395M6-120 Cell Mono Rated Maximum Power 395W Maximum Efficiency 21.67% Weight 20.5kgs±3% Cells Type Mono 166x83mm Dimension(LxWxT) 1756±2mmx1038±2mmx35±1mm Packaging 31pcs/pallet, 858pcs/40HQ container
Learn More
AS555-580G12-110 Cell N-type TOPCon Mono No.of cells 110(5x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 32.6kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1096±2mmx30±1mm Packaging 36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm)
Learn More
AS330-355P-72 Cell Poly Rated Maximum Power 355W Maximum Efficiency 18.30% Junction Box IP 67 Maximum System Voltage 1000V/1500V DC Operating Temperature -40℃ ~ +85℃ Connectors MC4 EVO2/QC4.10-35
Learn More
Hybrid Grid Solar System Brand Amosolar Type Hybrid Solar System Max.Power 30-150kW Application Home/Business Certificate TUV/IEC/CEC/CE/ISO/Inmetro
Learn More
TSM-DEG19RC.20 560-580W Cell Arrangement 132(22X 6) Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 1284 x1134x 30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
