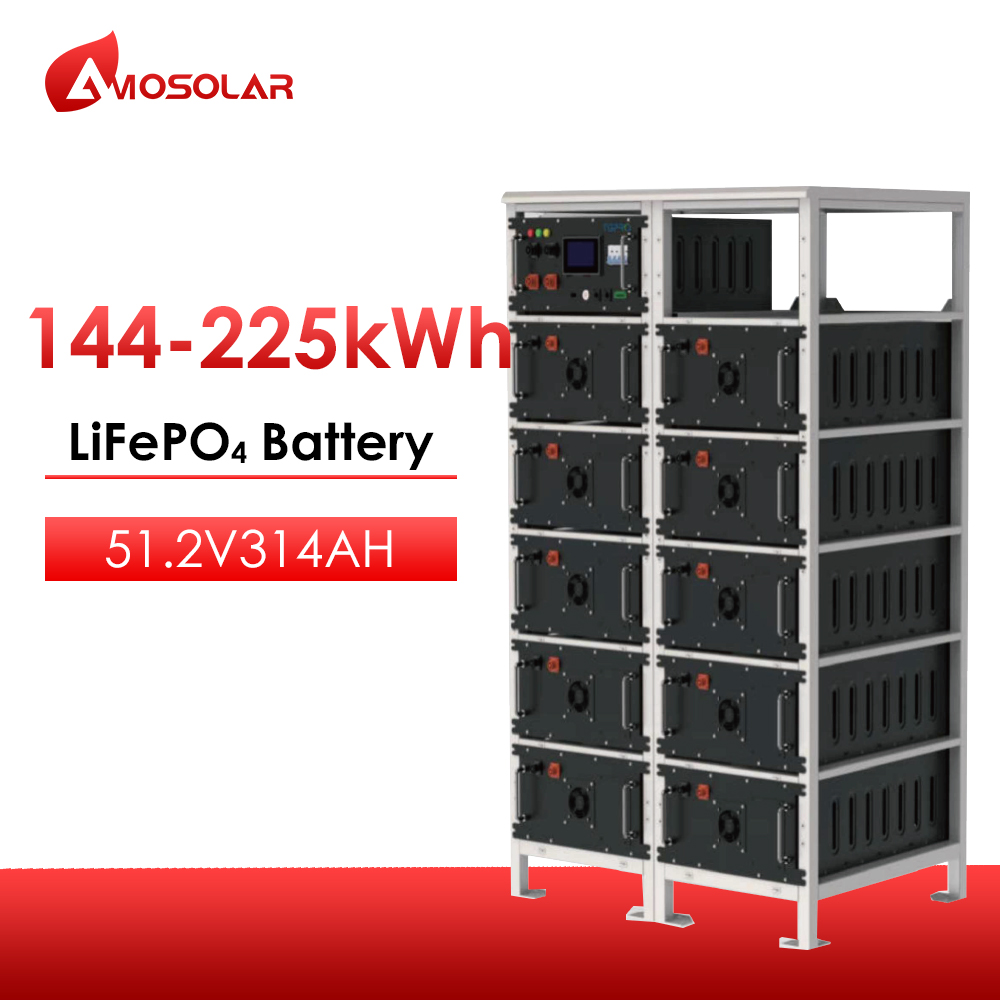

Model Number |
AMO144.69-225.08K HV-S1 |
|
Capacity(Ah)
|
314AH |
|
Battery Module
|
AMO16.077K_HV-S1(51.2V314Ah,136kg) |
|
Max. Charge
Discharge Current(A)
|
157A/200A
|
|
Scalability
|
Up to 4 parallel
|
|
Cycle Life
|
>6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
|
| PERFORMANCE SPECIFICATIONS | |||
| Model | AMO144.69K HV-S1 | AMO144.69K HV-S1 | AMO225.08K HV-S1 |
| Battery Module | AMO225.08K HV-S1 | ||
| Number of Modules | 9 | 12 | 14 |
| Rated Energy(KWH) | 144.69 | 192.92 | 225.08 |
| Nominal Voltage | 460.8 | 614.4 | 716.8 |
| Capacity(Ah) | 314AH | ||
| Max. Charge Discharge Current(A) | 157/200A | ||
| Scalability | Up to 4 parallel | ||
| Communication | RS485(B)-BAT/RS485(A)-PC/Canbus-Inverter | ||
| Cycle Life | >6000 Cycles @25'℃,0.5C,80%DOD, 70%EOL | ||
| Weight( Approx)(KG) | 1260kg | 1680kg | 1800kg |
| Dimension(W/D/H)(mm) | 1100*780*1700 | 1100*780*1968 | 1100*780*2208 |
| Charge Temperature | 0C~55 ℃C | ||
| Discharge Temperature | -20 °C~55 °C | ||
| Storage Temperature | -40'C~55C@ 60%+25% relative humidity | ||
| Installation Mode | Rack Mounting | ||
| IP Grade | IP20 | ||
| Safety(Pack) | UN38.3,MSDS | ||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | ||
| Working Temperature(°C) | Charge:0'C-55°℃; Discharge: -20°C-55℃ | ||
| Altitude (m) | ≤2000 | ||
| Humidity | 5~85%RH Humidity | ||
| Warranty | 5 Years(25°C) | ||
| Design Life | 10+Years (25°C/77F) | ||
Amosolar’s Stackable High Voltage Lithium Battery is a modular energy storage solution designed for high-performance residential and commercial solar systems. It offers both scalability and space-saving installation. Built with Lithium Iron Phosphate (LiFePO4) technology, it ensures longer life, higher safety, and greater efficiency.
Key Features:
Modular & stackable design for easy capacity expansion
Compatible with mainstream high voltage hybrid inverters
Long cycle life: 6000+ cycles @ 80% DOD
Smart BMS for real-time protection and monitoring
Plug & play connection, simplified installation
This battery is ideal for home solar battery storage, hybrid solar systems, and energy storage for commercial use.
