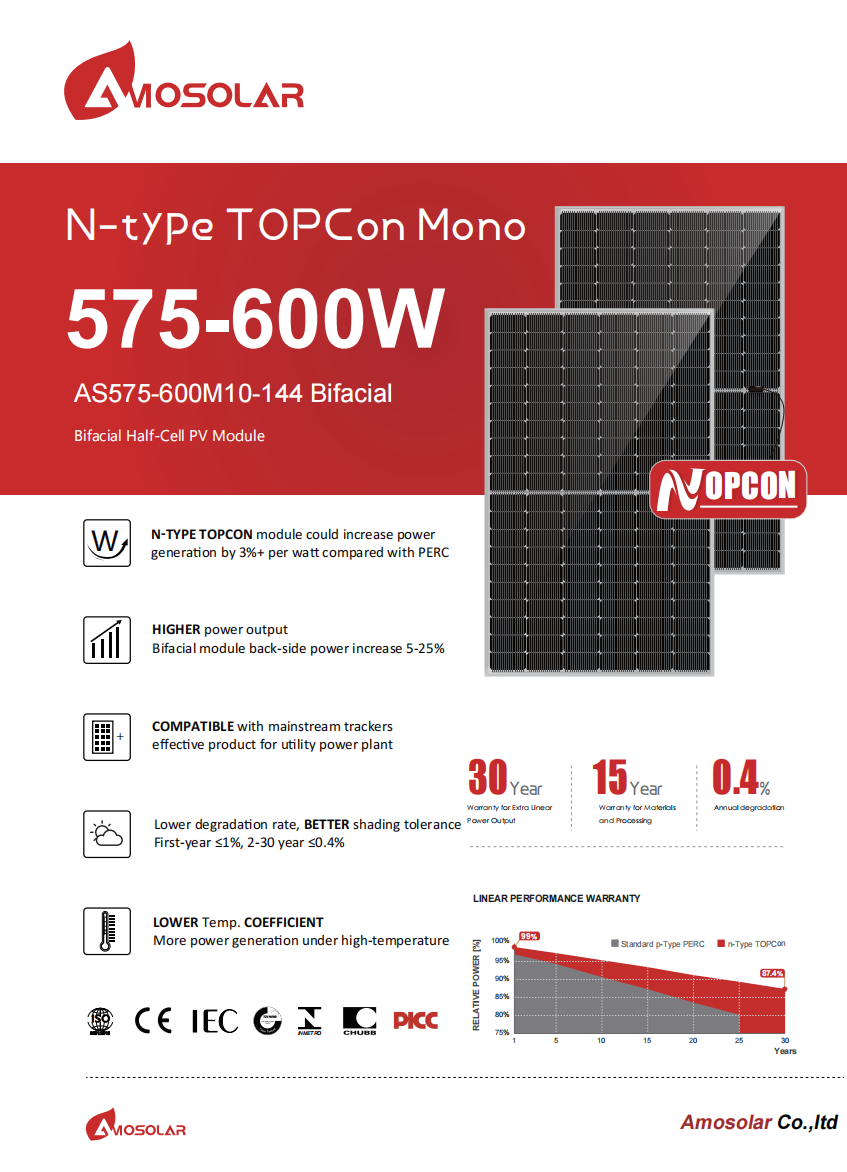

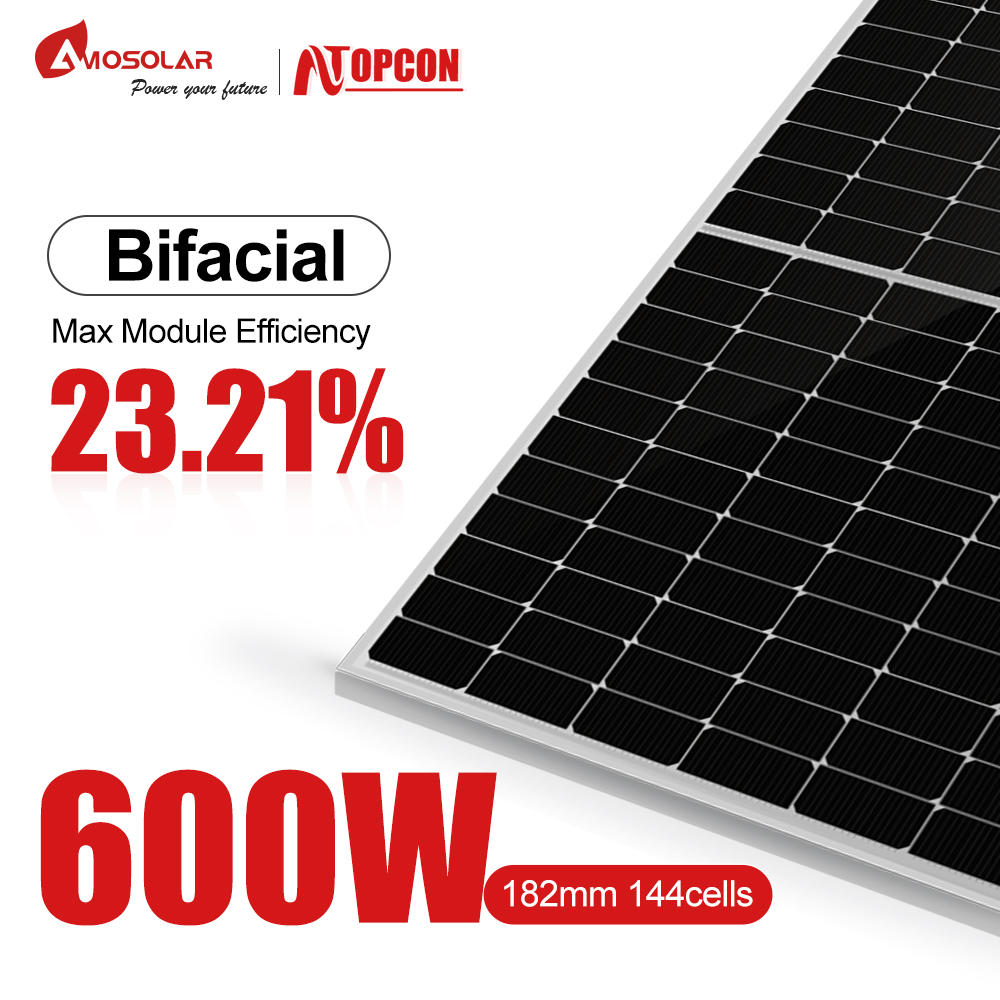

AS575-600M10-132
| Cell | N-type TOPCon Mono |
| No.of cells | 144(6x22) |
| Cable Length | 300mm(+)/300mm(-) |
| Cable Cross Section Size | 4mm²(IEC) |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Weight | 32.3kgs±3% |
| Cells Type | Mono 182x91mm |
| Dimension(LxWxT) | 2279±2mmx1134±2mmx30/35±1mm |
| Packaging |
36pcs/pallet, 720pcs/40HQ (30mm) 31pcs/pallet, 620pcs/40HQ (35mm) |
575W-600W Half Cells Mono Bifacial Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
| Module Type | AS515M10-132 | AS580M10-144 | AS585M10-144 | AS590M10-144 | AS595M10-144 | AS595M10-144 |
| Maximum Power(Pmax/W) | 575 | 580 | 585 | 590 | 595 | 600 |
| Open Circuit Voltage(Voc/V) | 52.93 | 53.05 | 53.17 | 53.29 | 53.41 | 53.53 |
| Short Circuit Current(Isc/A) | 13.72 | 13.78 | 13.84 | 13.90 | 13.96 | 14.02 |
| Voltage at Maximum Power(Vmp/V) | 43.66 | 43.86 | 44.06 | 44.26 | 44.46 | 44.66 |
| Current at Maximum Power(Imp/A) | 13.18 | 13.23 | 13.28 | 13.33 | 13.38 | 13.41 |
| Module Efficiency(%) | 22.25 | 22.44 | 22.64 | 22.83 | 23.02 | 13.43 |
AS560-590M10-144B Cell Mono Rated Maximum Power 590W Maximum Efficiency 22.84% Weight 32.3kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2278±2mmx1134±2mmx30±1m Packaging 36pcs/pallet, 720pcs/40HQ container
Learn More
AS485-505M10-108 Cell N-type TOPCon Mono No.of cells 108(2x54) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24kgs±3% Cells Type Mono 182x9mm Dimension(LxWxT) 1961±2mmx1134±2mmx30±1mm Packaging 36pcs/pallet, 24 pcs/stack,;864pcs/40HQ(30mm) 31pcs/pallet, 24 pcs/stack,;744pcs/40HQ(35mm)
Learn More
AS515-540M10-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 25.5kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2094±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,792pcs/40HQ container(30mm) 31pcs/pallet,682pcs/40HQ(container(35mm)
Learn More
Amosolar 150KW PV Solution Name Storage 150KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS645-675G12-132 Cell Mono Rated Maximum Power 675W Maximum Efficiency 21.73% Weight 33kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2384±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
Model Number AMO 15K-T2 Capacity(Ah) 104Ah Max. Charge/Discharge Current(A) 50A Energy(Kwh) 15KWh~40Kwh Safety(Pack) UN38.3,MSDS lPGrade IP65 Cycle Life 6000 Cycles
Learn More
AS480-505M10-132 Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More

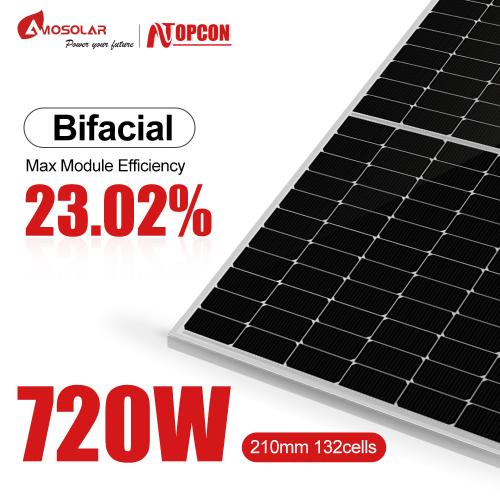

AS695-720G12-132 Cell N-type TOPCon Mono No.of cells 132(6x22) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 38.3kgs±3% Cells Type Mono 210x91mm Dimension(LxWxT) 2384±2mmx1303±2mmx33±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm) 33pcs/pallet, 594pcs/40HQ (33mm)
Learn More
