Amosolar Co.,Ltd ---- Professional Solar Manufacturer
Amosolar PV Module 150W Monocrystalline Small Solar Panel
Products
Home / SOLAR PANEL / Small PV Module / Mono 166mm /

Amosolar PV Module 150W Monocrystalline Small Solar Panel

Solar PV Module
Solar PV Module
Solar PV Module
Solar PV Module
Solar PV Module

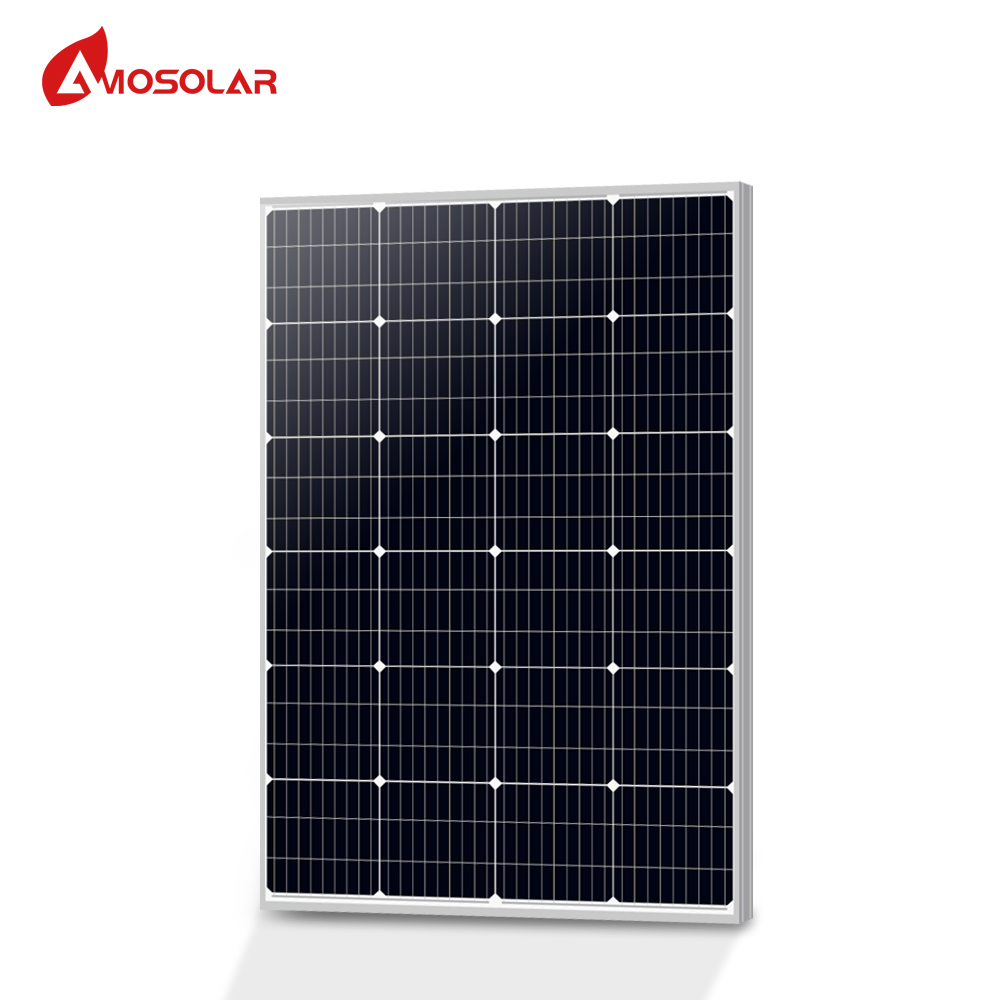

Amosolar PV Module 150W Monocrystalline Small Solar Panel

AS150M6-72

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
150W
Maximum Efficiency 19.7%
Junction Box IP 67
Maximum System Voltage 1000VDC
Weight
8kg
Solar Cells
Mono crystalline 166X55.33mm (4X18pcs)

150W Small Monocrystalline PV Panel Chinese Manufactory : This 150W high efficiency solar panels can be the perfect solar solution choice for home use, street light, solar boat kit and small solar system applications.

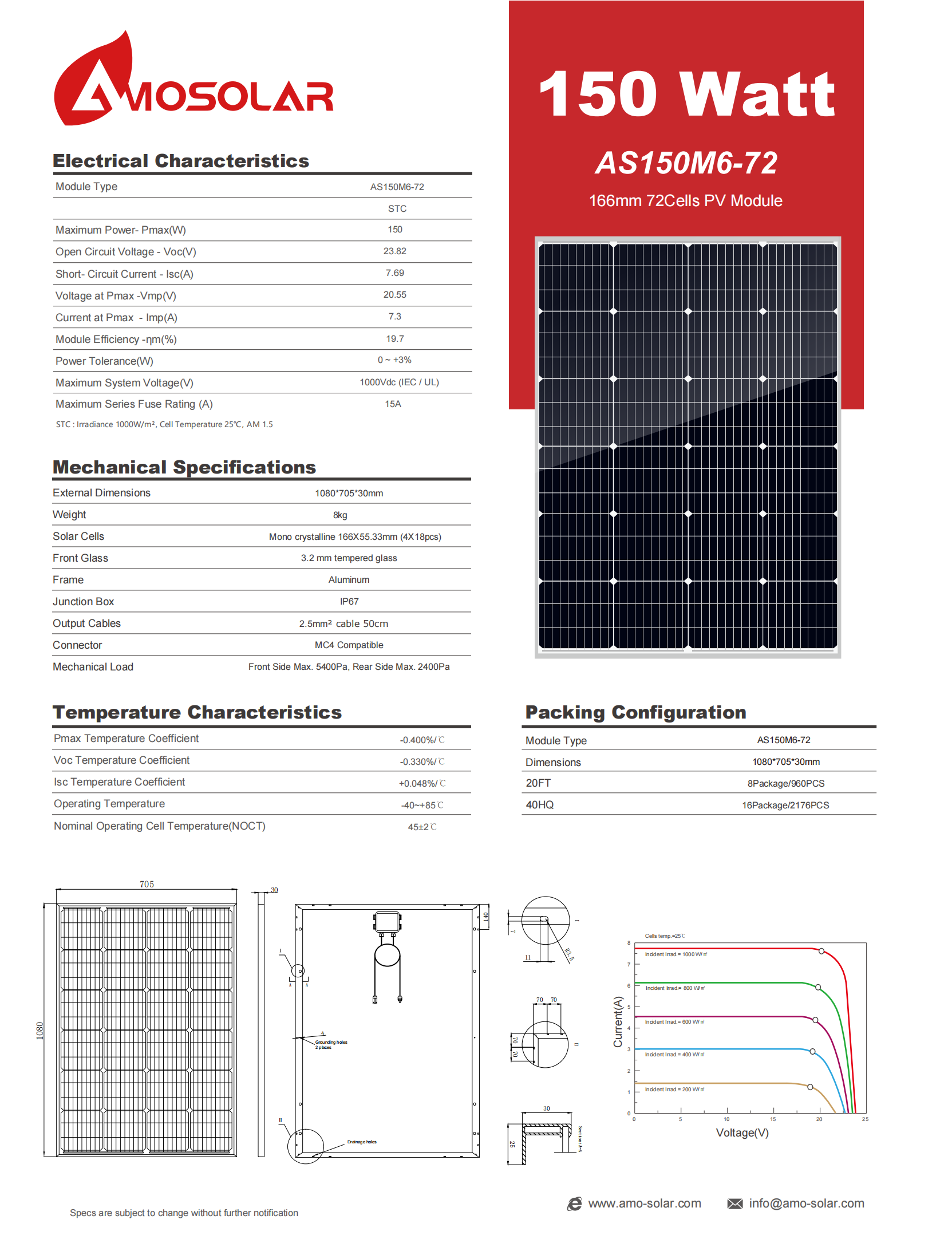

Model
AS150M6-72
     Rated Maximum Power at STC     150W
Open Circuit Voltage (Voc) 23.82
         Maximum Power Voltage (Vmp)                7.69
  Short Circuit Current (Isc) 20.55
Maximum Power Current (Imp) 7.3
PV Module Efficiency (%) 19.7
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5



Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  72( 4 × 18 )


  Junction Box :        Split junction box, IP67

  Weight:                  8KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1080x705x30mm

  Packaging:              16 pcs / pallet

                                2176 pcs / 40HQ container

                               8 pcs / pallet

                                960 pcs / 20FT container


Factory For Solar Panel
