Amosolar Co.,Ltd ---- Professional Solar Manufacturer
Small Solar Panel 55W Monocrystalline PV Module
Products
Home / SOLAR PANEL / Small PV Module / Mono 166mm /

Small Solar Panel 55W Monocrystalline PV Module

Mini Solar pv mudule
Mini Solar pv mudule
Mini Solar pv mudule
Mini Solar pv mudule
Mini Solar pv mudule

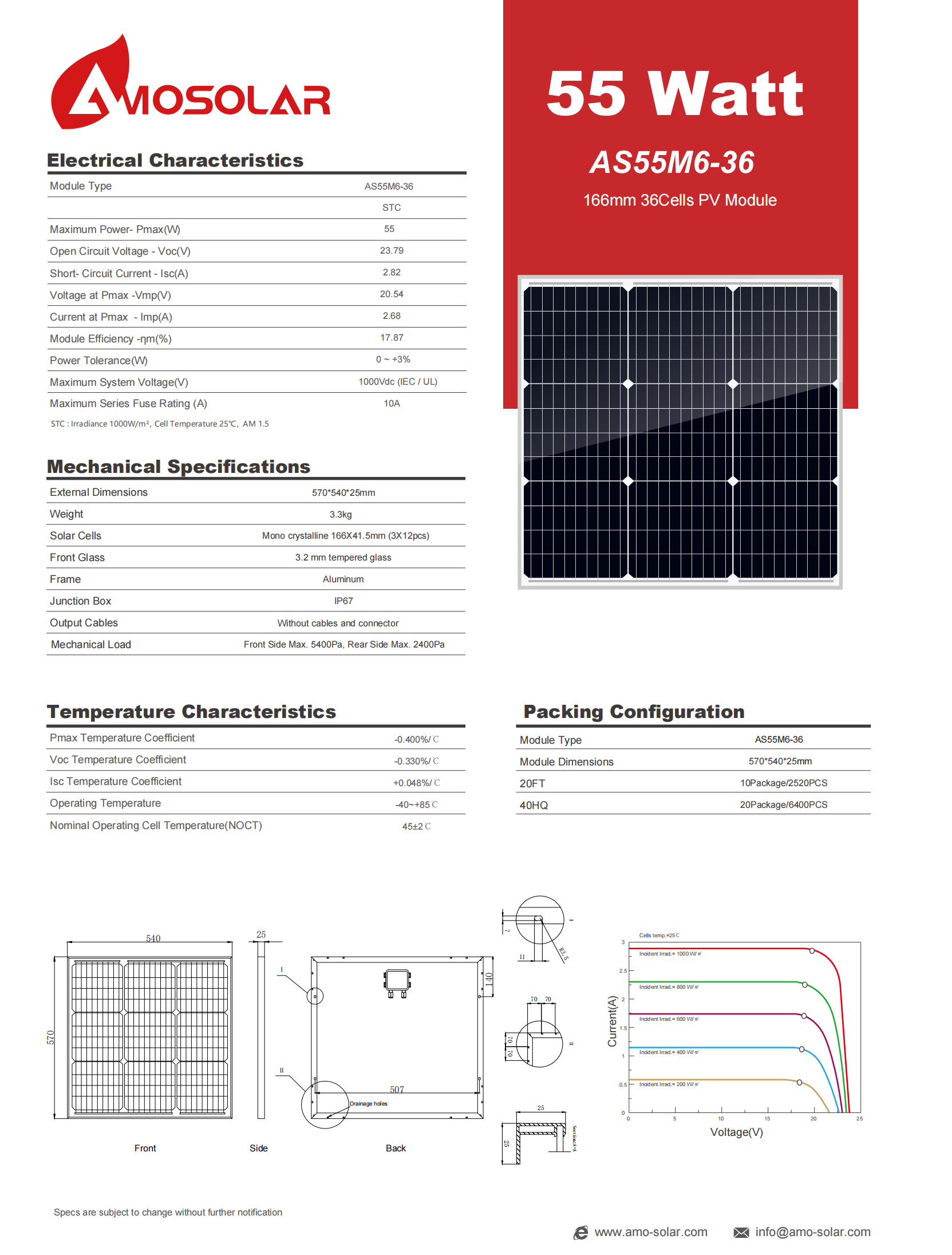

Small Solar Panel 55W Monocrystalline PV Module

AS55M6-36

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
55W
Maximum Efficiency 17.87%
Junction Box IP 67
Maximum System Voltage 1000VDC
Weight
3.3kg
Solar Cells
Mono crystalline 166X41.5mm (3X12pcs)

55W Small Monocrystalline PV Panel Chinese Manufactory : Our panels are designed to provide maximum efficiency, this type of solar pv mudule is easy to install and require minimal maintenance.


Model
AS55M6-36
  Rated Maximum Power at STC  55W
    Open Circuit Voltage (Voc)   23.79
           Maximum Power Voltage (Vmp)

2.82

Short Circuit Current (Isc) 20.54
Maximum Power Current (Imp) 2.68
PV Module Efficiency (%) 17.87
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5



Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  36( 3 × 12 )


  Junction Box :        Split junction box, IP67

  Weight:                  3.3KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)

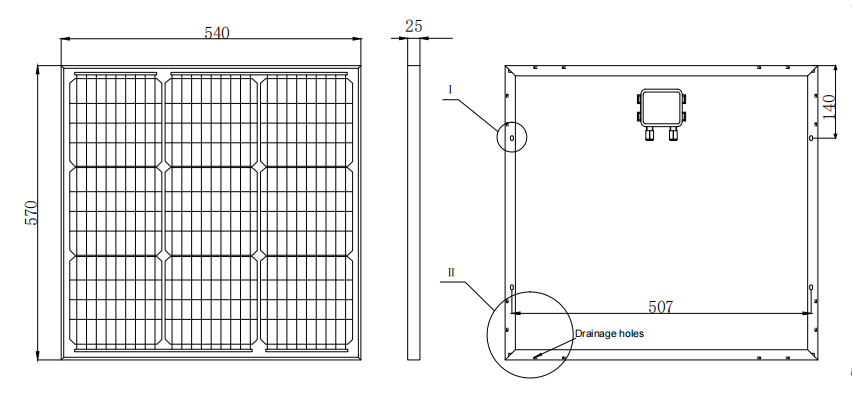

  PV Size:                   570×540×25mm

  Packaging:              20 pcs / pallet

                                6400 pcs / 40HQ container

                               10 pcs / pallet

                                2520 pcs / 20FT container


Factory For Solar Panel
