645W 650W 655W 660W 665W 670W 675W Half Cells Mono Solar Panel China Factory
Products
Home / SOLAR PANEL / AMO G12 Cells Serial /

645W 650W 655W 660W 665W 670W 675W Half Cells Mono Solar Panel China Factory

48 Volt Mono Solar Panels
48 Volt Mono Solar Panels
48 Volt Mono Solar Panels
48 Volt Mono Solar Panels
48 Volt Mono Solar Panels
48 Volt Mono Solar Panels

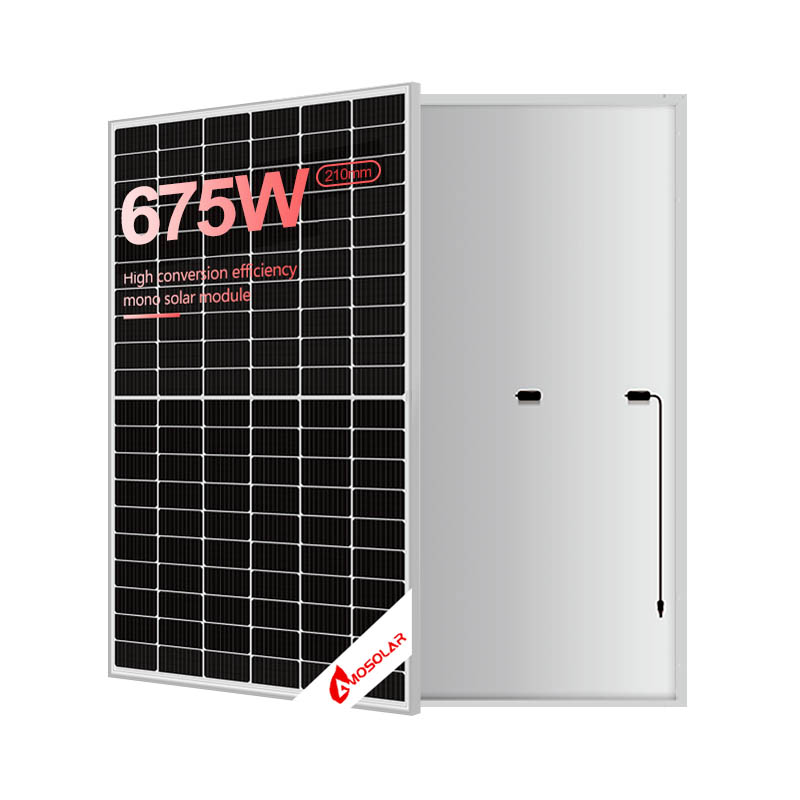

645W 650W 655W 660W 665W 670W 675W Half Cells Mono Solar Panel China Factory

AS645-675G12-132


Cell Mono
Rated Maximum Power
675W
Maximum Efficiency 21.73%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

645W-675W Half Cells Mono Solar Panel China Factory : With multi-busbar PERC cells, 210mm solar cells will bring extraordinary product performance, wider application conditions , reliability quality and higgest safety.

Panel Solar 400W Perc Monocristalino Era

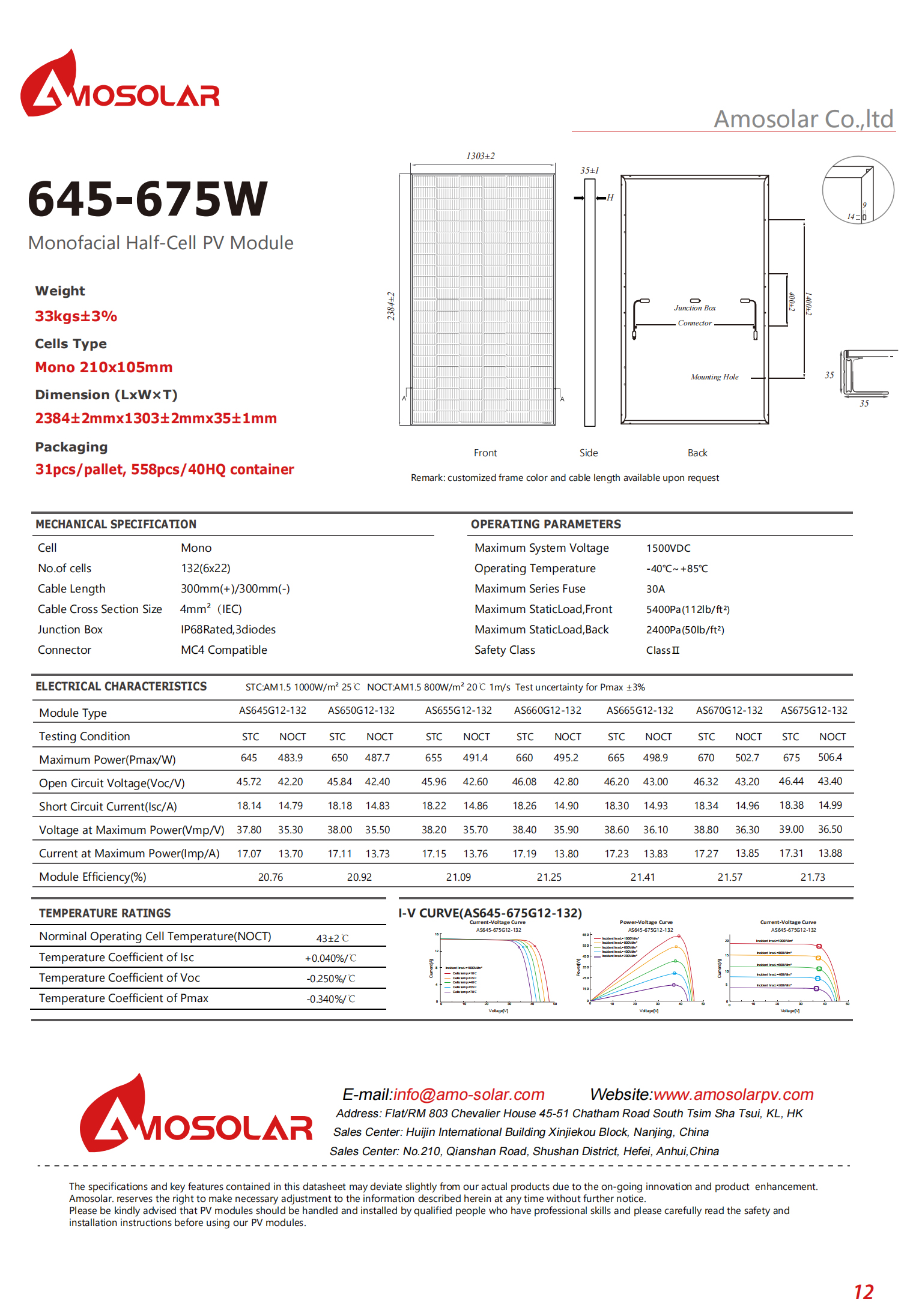

Electrical Performance Parameters (STC Test)


Model
AS645G12-132 AS650G12-132
AS655G12-132
AS660G12-132
AS665G12-132
AS670G12-132
AS675G12-132
Rated Maximum Power at STC 645W
650W 655W 660W 665W 670W 675W
Open Circuit Voltage (Voc) 45.00 45.20 45.40 45.60 45.80 46.00 46.20
Maximum Power Voltage (Vmp) 37.30 37.50 37.70 37.90 38.10 38.30 38.50
Short Circuit Current (Isc) 18.31 18.35 18.39 18.44 18.48 18.51 18.55
Maximum Power Current (Imp) 17.29 17.33 17.37 17.41 17.45 17.49 17.53
PV Module Efficiency (%) 20.76 20.92 21.09 21.25 21.41 21.57 21.73
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel For Home Electricity 240V

  Layout :                  132( 6 × 22 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   35.7KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2384×1303×35mm

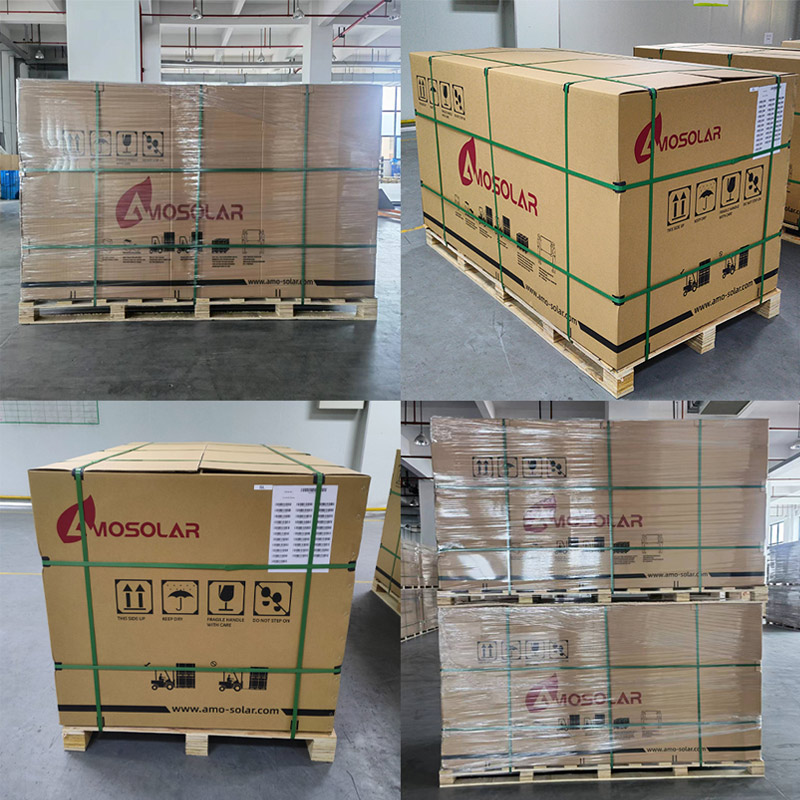

  Packaging:              31 pcs / pallet

                                   558 pcs / 40HQ container


455W Solar Panel


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
