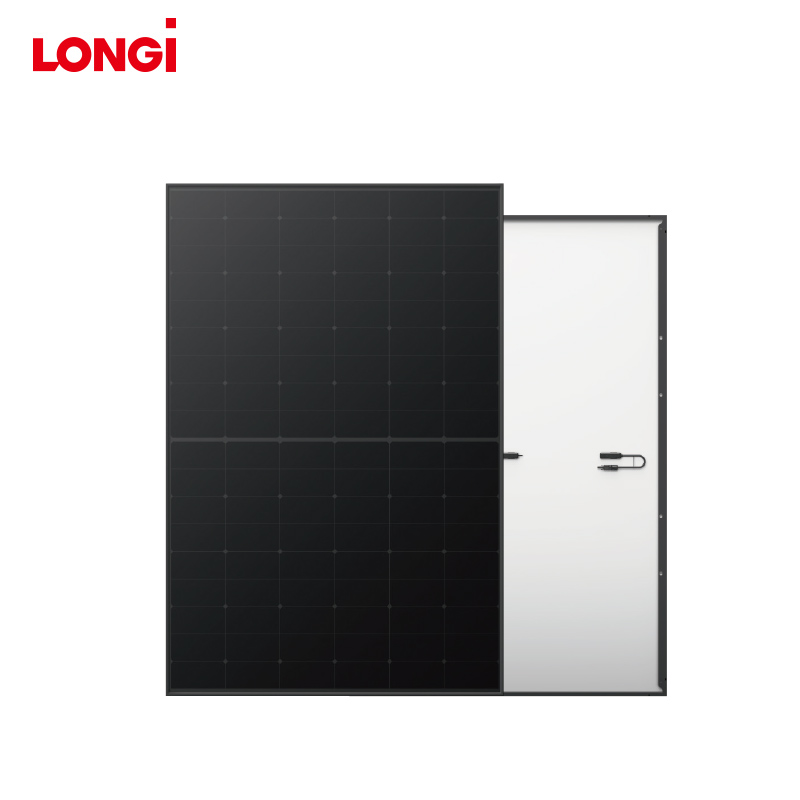

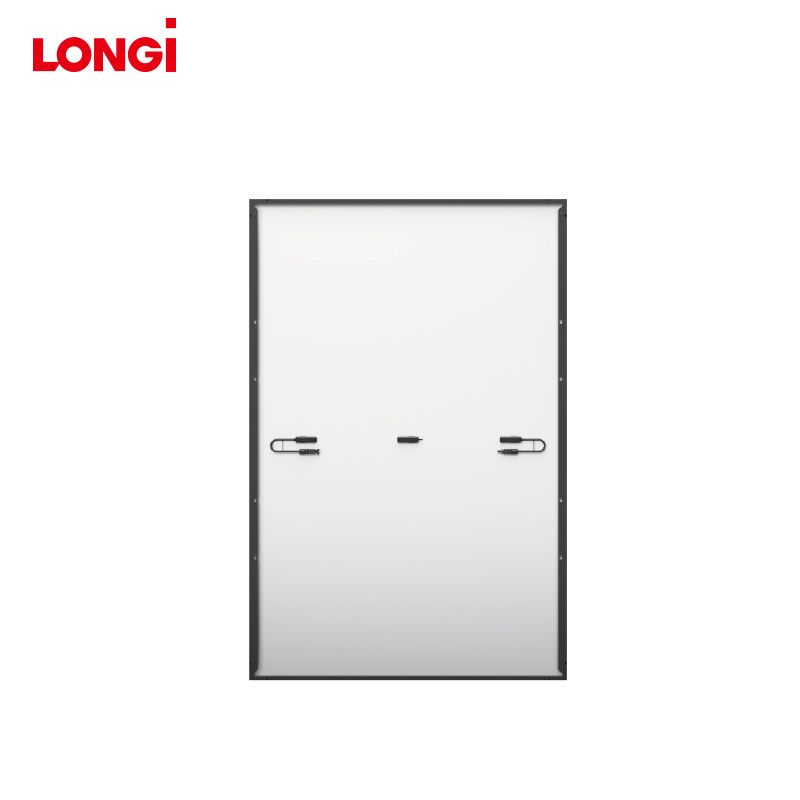

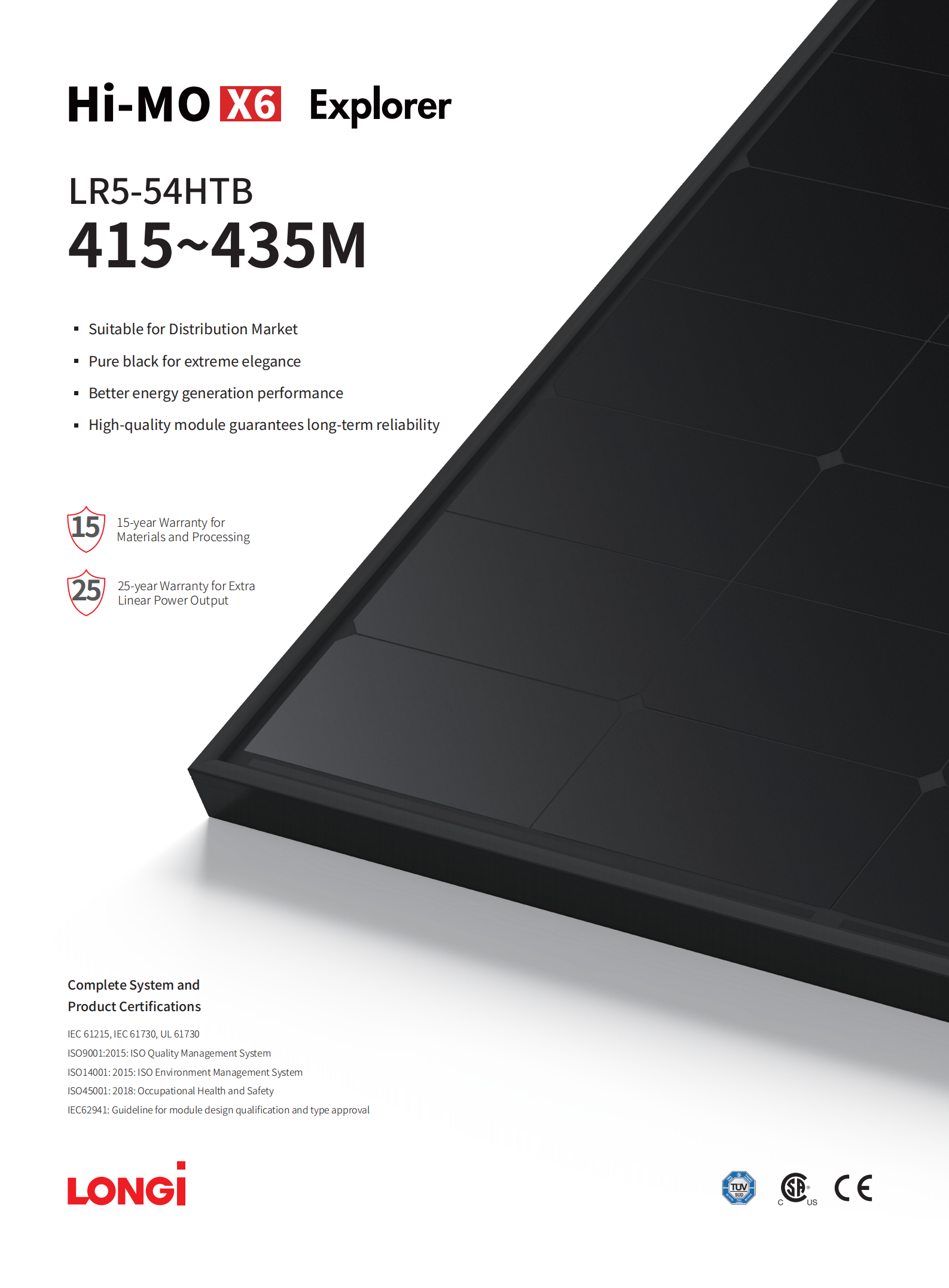

LR5-54HTB 415~435M
| Cell Arrangement | 108(6 X 18) |
| Junction Box | IP68, 3 diodes |
| Weight | 20.8KG |
| Cable Length | +400,-200mm/+1400mm |
| Cable Size | 4 mm2 (lEC) |
| PV Size | 1722x1134x30mm |
| Packaging | 36pcs/pallet 936pcs/40HQ container |
415~435W Longi Mono Solar Panels that's grade A quality for ensuring stable performance and 30 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( Lifepo4 battery，solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery, Gel batteries, OPZV battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.
Electrical Performance Parameters (STC Test)
| Model | LR5-54HTB-415M | LR5-54HTB-420M | LR5-54HTB-425M | LR5-54HTB-430M | LR5-54HTB-435M |
| Rated Maximum Power at STC | 415W | 420W | 425W | 430W | 435W |
| Open Circuit Voltage (Voc) | 38.83 | 39.03 | 39.23 | 39.43 | 39.63 |
| Maximum Power Voltage (Vmp) | 32.56 | 32.76 | 32.96 | 33.16 | 33.36 |
| Short Circuit Current (Isc) | 13.78 | 13.85 | 13.93 | 14.00 | 14.08 |
| Maximum Power Current (Imp) | 12.75 | 12.83 | 12.90 | 12.97 | 13.05 |
| PV Module Efficiency (%) | 21.30 | 21.50 | 21.8 | 22.00 | 22.30 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | ||||
CS3W-435-465MS Cell Arrangement 144 [2 X(12 X 6) Junction Box IP68, 3 bypass diodes Weight 24.3KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (lEC), 12 AWG (UL) PV Size 2108 X1048 X35 mm Packaging 30 pcs/pallet 660pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 120 [2 X (10 X 6)] Junction Box IP68, 3 bypass diodes Weight 31.0KG Cable Length 460 mm (18.1 in)(+)/340 mm (13.4 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2172 X1303 X35 mm Packaging 31 pcs/pallet 527pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 144 [2X(12 X6)] Junction Box IP68, 3 bypass diodes Weight 27.6KG Cable Length 410 mm (16.1 in) (+)/ 290 mm (11.4 in)(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2261 X 1134 X30 mm Packaging 35pcs/pallet 700pcs /40HQ container
Learn More
JAM54D41 430-455/LB Cell Arrangement 108 (6 X18) Junction Box IP68, 3 diodes Weight 22KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30 mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
JAM72D42 615-640W/LB Cell Arrangement 144(6 X 24) Junction Box IP68, 3 diodes Weight 34.6KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2465 X1052X35 mm Packaging 36 pcs/pallet 576pcs/40HQ container
Learn More
TSM-NEG9RC.27 415-445W Cell Arrangement 144 (24 X 6) Junction Box IP68 rated Weight 21.0KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 1762 x1134x 30mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement 150 Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 (IEC) PV Size 2384x1134x30 mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
TSM-NEG21C.20 675-700W Cell Arrangement 132 Junction Box IP68 rated Weight 38.3KG Cable Length 350/280mm Cable Size 4 mm2 (IEC) PV Size 2384 x1303x 35 mm Packaging 33 pcs/ pallet 594pcs/40HQ container
Learn More
