Amosolar PV Module 100W Monocrystalline Small Solar Panel
Products
Home / SOLAR PANEL / AMO Mini Serial /

Amosolar PV Module 100W Monocrystalline Small Solar Panel

Mini Solar PV Module
Mini Solar PV Module
Mini Solar PV Module
Mini Solar PV Module
Mini Solar PV Module

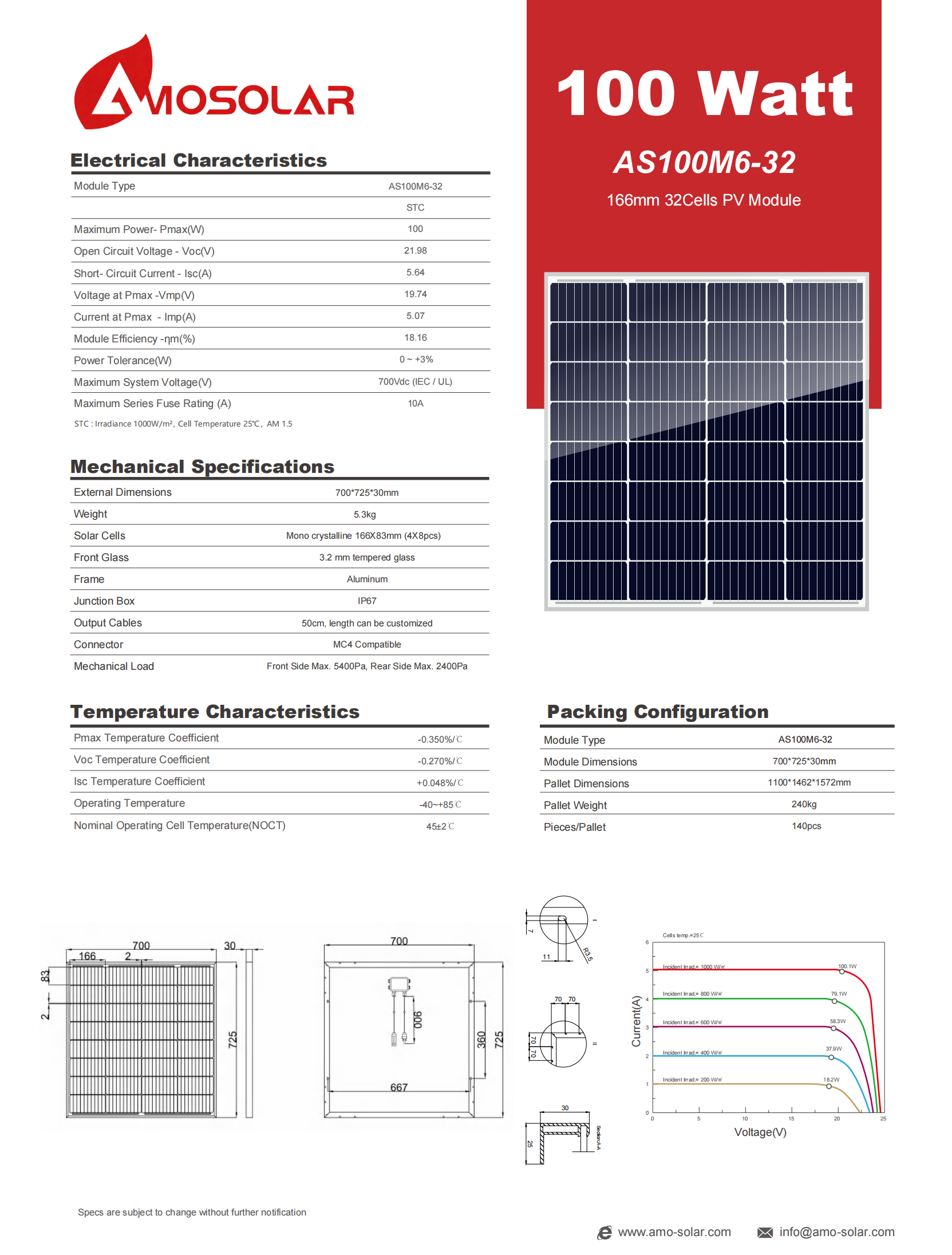

Amosolar PV Module 100W Monocrystalline Small Solar Panel

AS100M6-32

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
100W
Maximum Efficiency 18.16%
Junction Box IP 67
Maximum System Voltage 1000VDC
Weight
5.3kg
Solar Cells
Mono crystalline 166X83mm (4X8pcs)

100W Small Monocrystalline PV Panel Chinese Manufactory : High efficiency solar panels. The same as 55W mini solar panels, 100W solar pv mudule have become increasingly efficient and cost-effective, providing more reliable power for years to come.



Model
AS100M6-32
    Rated Maximum Power at STC   100W
    Open Circuit Voltage (Voc)   21.98
            Maximum Power Voltage           (Vmp)   5.64
   Short Circuit Current (Isc) 19.74
      Maximum Power Current (Imp)    5.07
    PV Module Efficiency (%) 18.16
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ ,Air Mass 1.5



Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  32( 4 × 8 )


  Junction Box :        Split junction box, IP67

  Weight:                  5.3KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   700x725x30mm

  Packaging:              140 pcs / pallet


Factory For Solar Panel
