400W 410W 420W Shingled Solar Panels Full Black

Shingled Solar Panel
Shingled Solar Panel
Shingled Solar Panel
Shingled Solar Panel
Shingled Solar Panel
Shingled Solar Panel

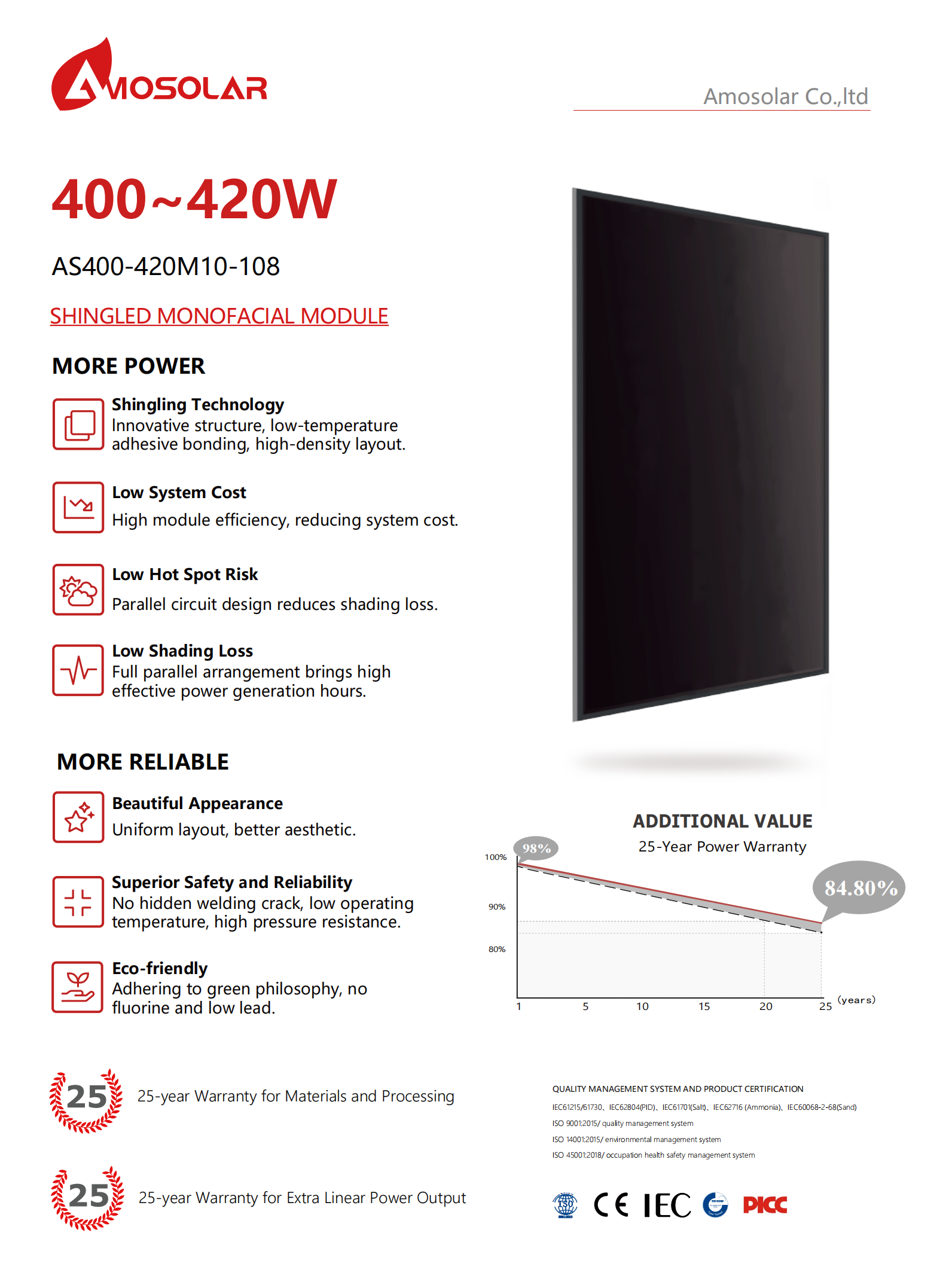

400W 410W 420W Shingled Solar Panels Full Black

AS400-420M10-108

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell
Mono silicon
Rated Maximum Power
420W
Maximum Efficiency 21.5%
Weight
20.90kgs±3%
Cells Type
Mono 210*35mm
Dimension(LxWxT)
1723±2mmx1134±2mmx35±1mm
Packaging
31pcs/pallet, 806pcs/40HQ container

400W-420W Half-Cell High Efficiency PV Module China Factory : Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

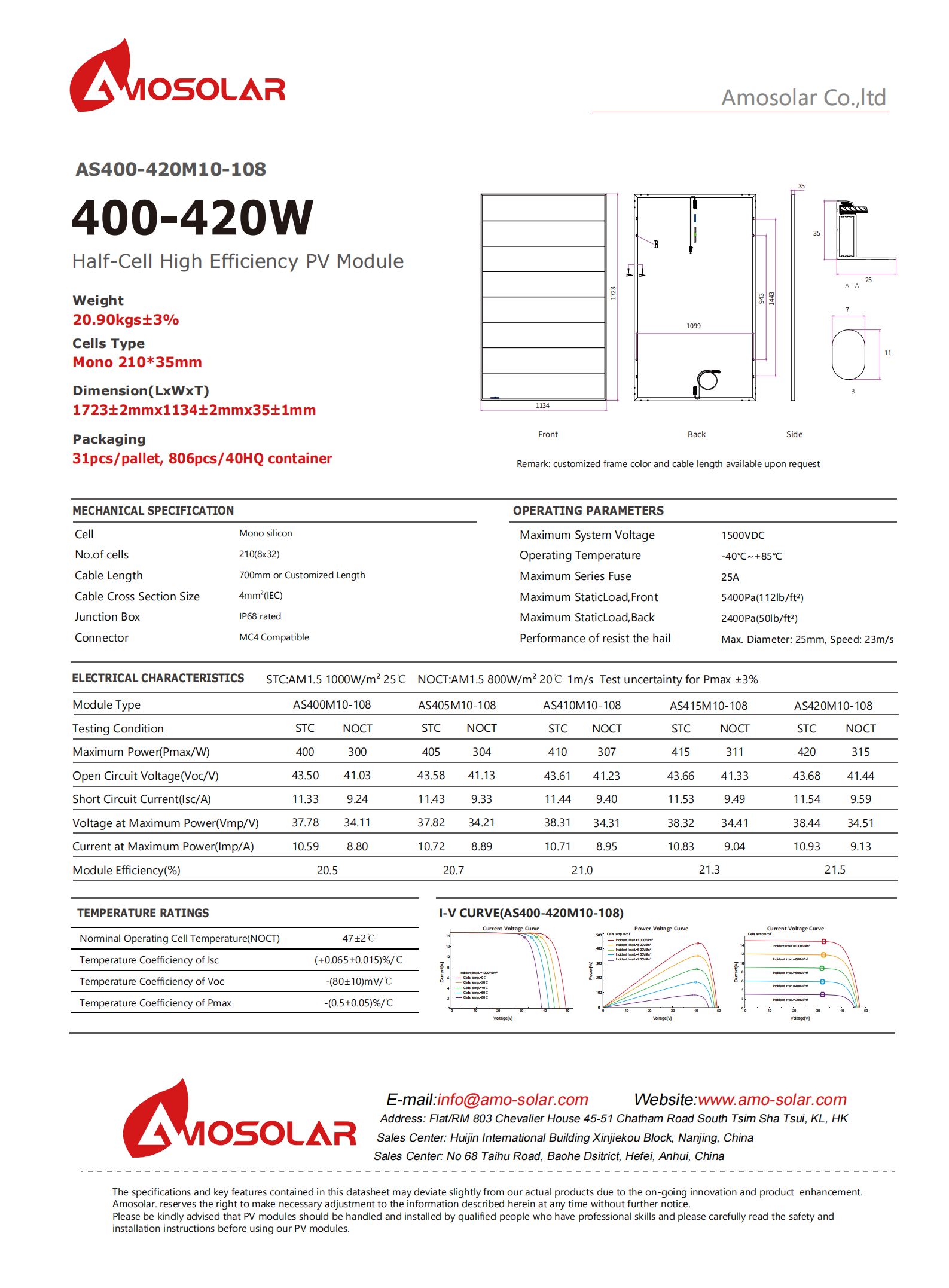

Electrical Performance Parameters (STC Test)


Model
AS400M10-108 AS405M10-108
AS410M10-108
AS415M10-108
AS420M10-108
Rated Maximum Power at STC 400W
405W 410W 415W 420W
Open Circuit Voltage (Voc)
43.50
43.58 43.61 43.66 43.68
Maximum Power Voltage (Vmp) 37.78 37.82 38.31 38.32 38.44
Short Circuit Current (Isc) 11.33 11.43 11.44 11.53 11.54
Maximum Power Current (Imp) 10.59 10.72 10.71 10.83 10.93
PV Module Efficiency (%) 20.5 20.7 21.0 21.3 21.5
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


500 Watt Solar Panels Mono

  Layout :                  210(8x32)


  Junction Box :        IP68 rated

  Weight:                   20.9KG


  Cable Length :        700mm or Customized Length

  Cable  Size :            4mm²(IEC)


  PV Size:                   1732×1134×35mm

  Packaging:              31 pcs / pallet

                                   806 pcs / 40HQ container


Paneles Solares Monocristalinos 450 W
