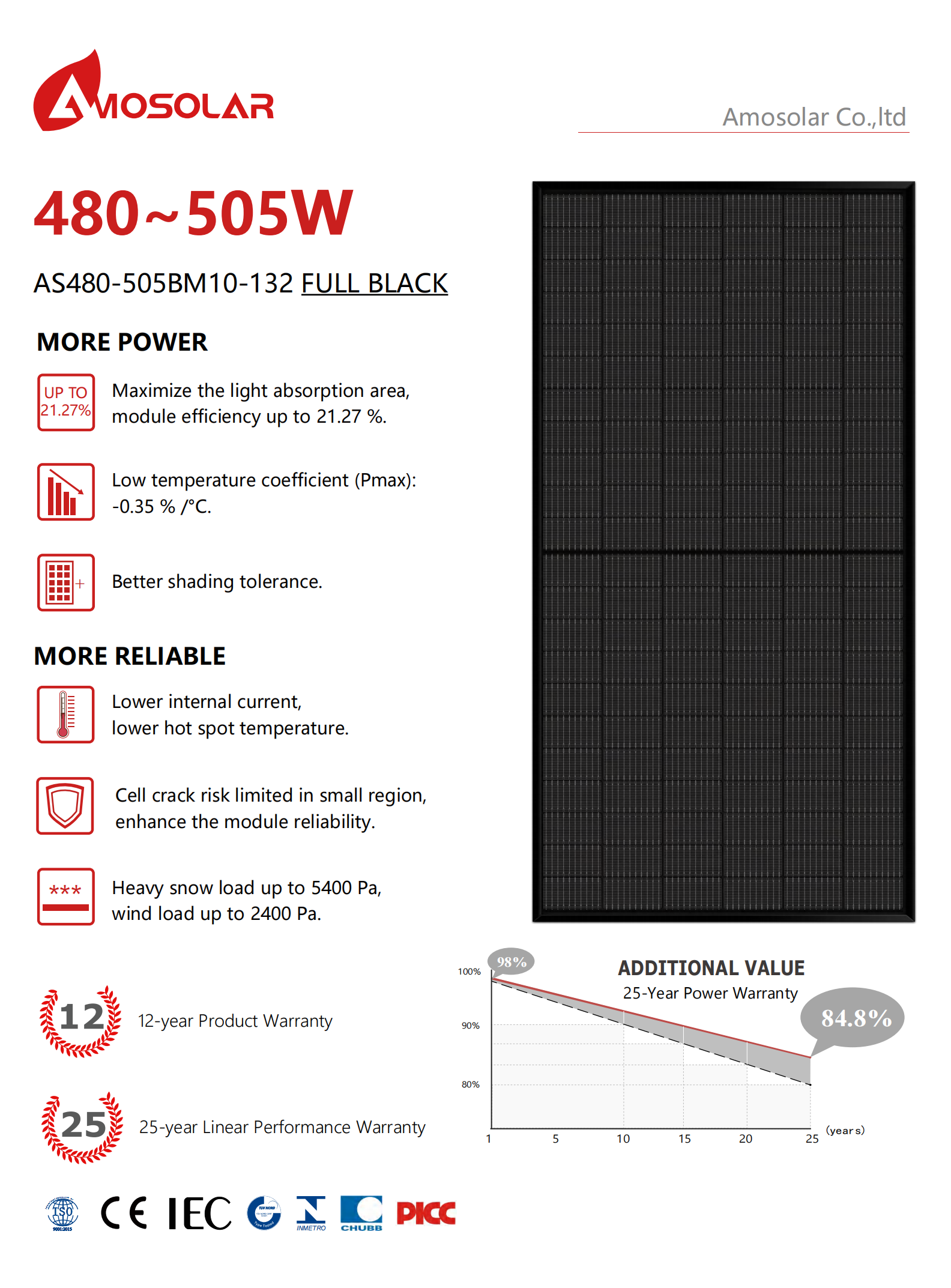

480W 485W 490W 495W 500W 505W All Black Half Cut Mono A Grade Solar Panel China Factory

AS480-505BM10-132


Cell Mono
Rated Maximum Power
505W
Maximum Efficiency 21.27%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

480W-505W All Black Half Cells Mono Solar Panel China Factory : High Quality PV Module  with latest PERC technology, 182mm half-cell solar panels with popular models.

500 Watt Solar Panel Monocrystalline

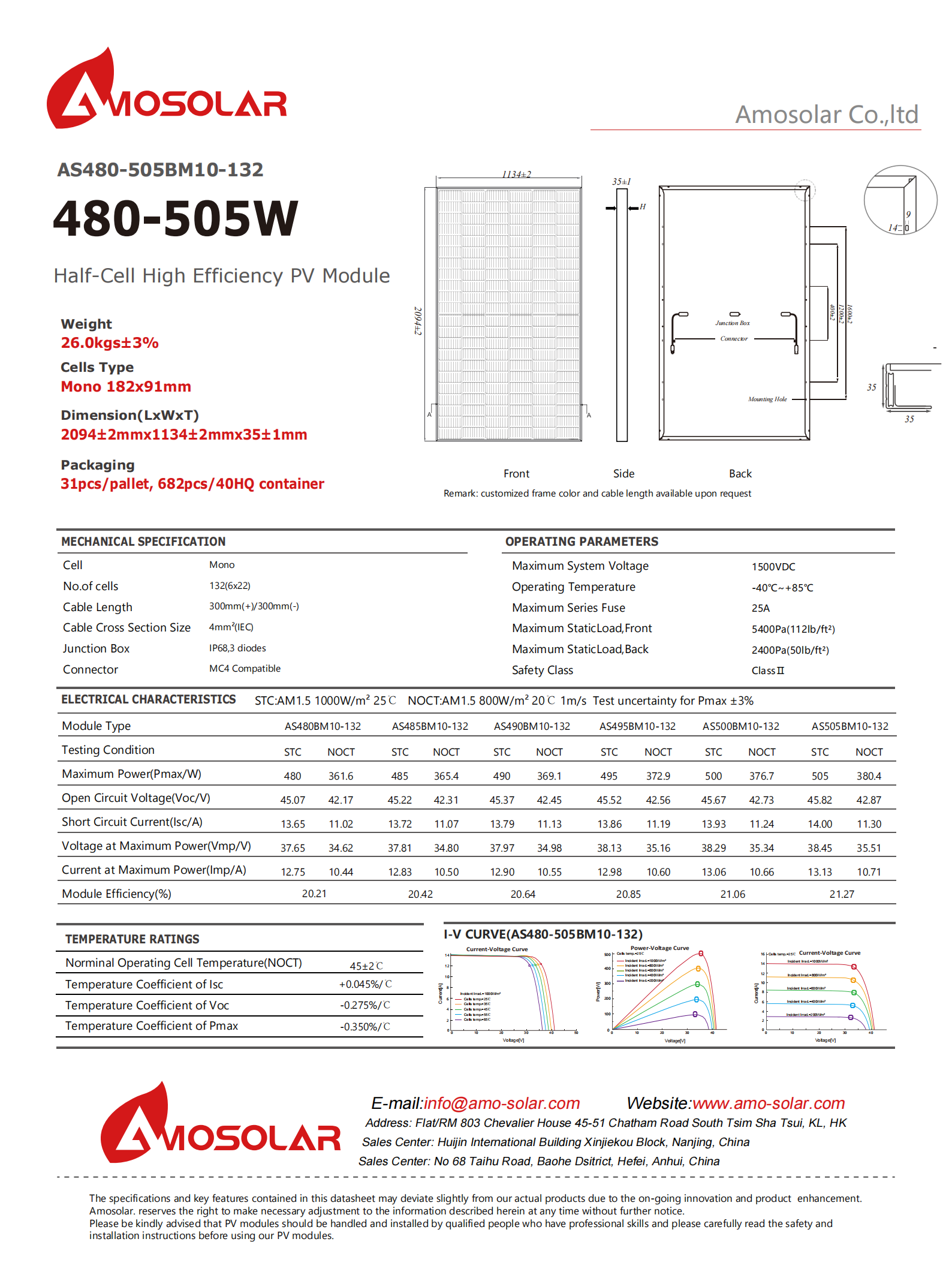

Electrical Performance Parameters (STC Test)


Model
AS480BM10-132 AS485BM10-132
AS490BM10-132
AS495BM10-132
AS500BM10-132
AS505BM10-132
Rated Maximum Power at STC 480W
485W 490W 495W 500W 505W
Open Circuit Voltage (Voc) 45.07 45.22 45.37 45.52 45.67 45.82
Maximum Power Voltage (Vmp) 37.36 37.81 37.97 38.13 38.29 38.45
Short Circuit Current (Isc) 13.65 13.72 13.79 13.86 13.93 14.00
Maximum Power Current (Imp) 12.75 12.83 12.90 12.98 13.06 13.13
PV Module Efficiency (%) 20.21 20.42 20.64 20.85 21.06 21.30
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Stock Solar Panel

  Layout :                  132( 6 × 22 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   26.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2094×1134×35mm

  Packaging:              31 pcs / pallet

                                   682 pcs / 40HQ container


Solar Panel Europe Warehouse


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
