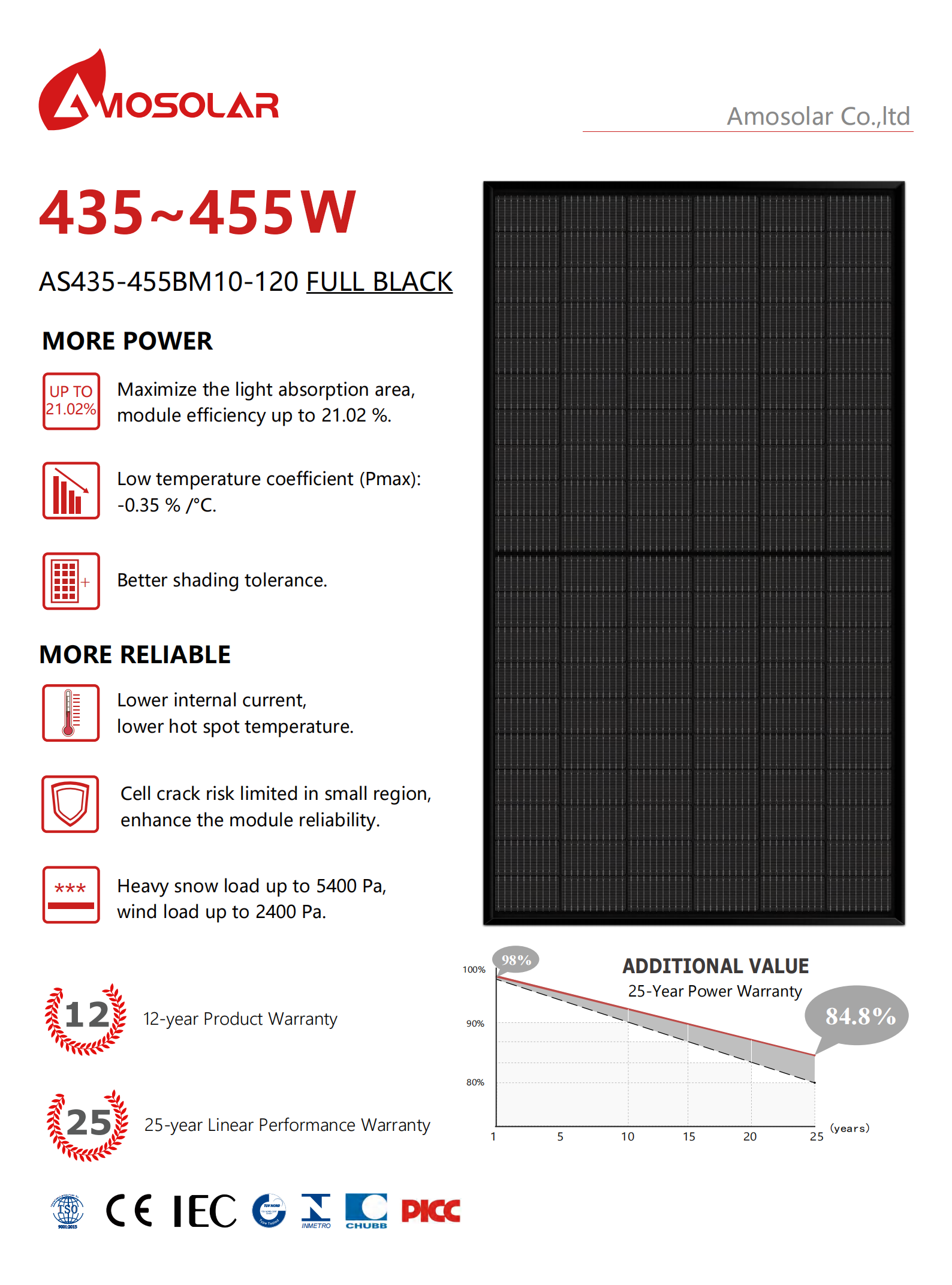

435W 440W 445W 450W 455W All Black Half Cells Mono A Level Solar Panel Chinese Supplier

AS435-455BM0-120


Cell Mono
Rated Maximum Power
455W
Maximum Efficiency 21.02%
Junction Box IP 68
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃ ~ +85℃
Connectors MC4 EVO2/QC4.10-35

435W-455W All Black Half Cells Mono Solar Panel Chinese Supplier : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

Mono Solar Panel 445W

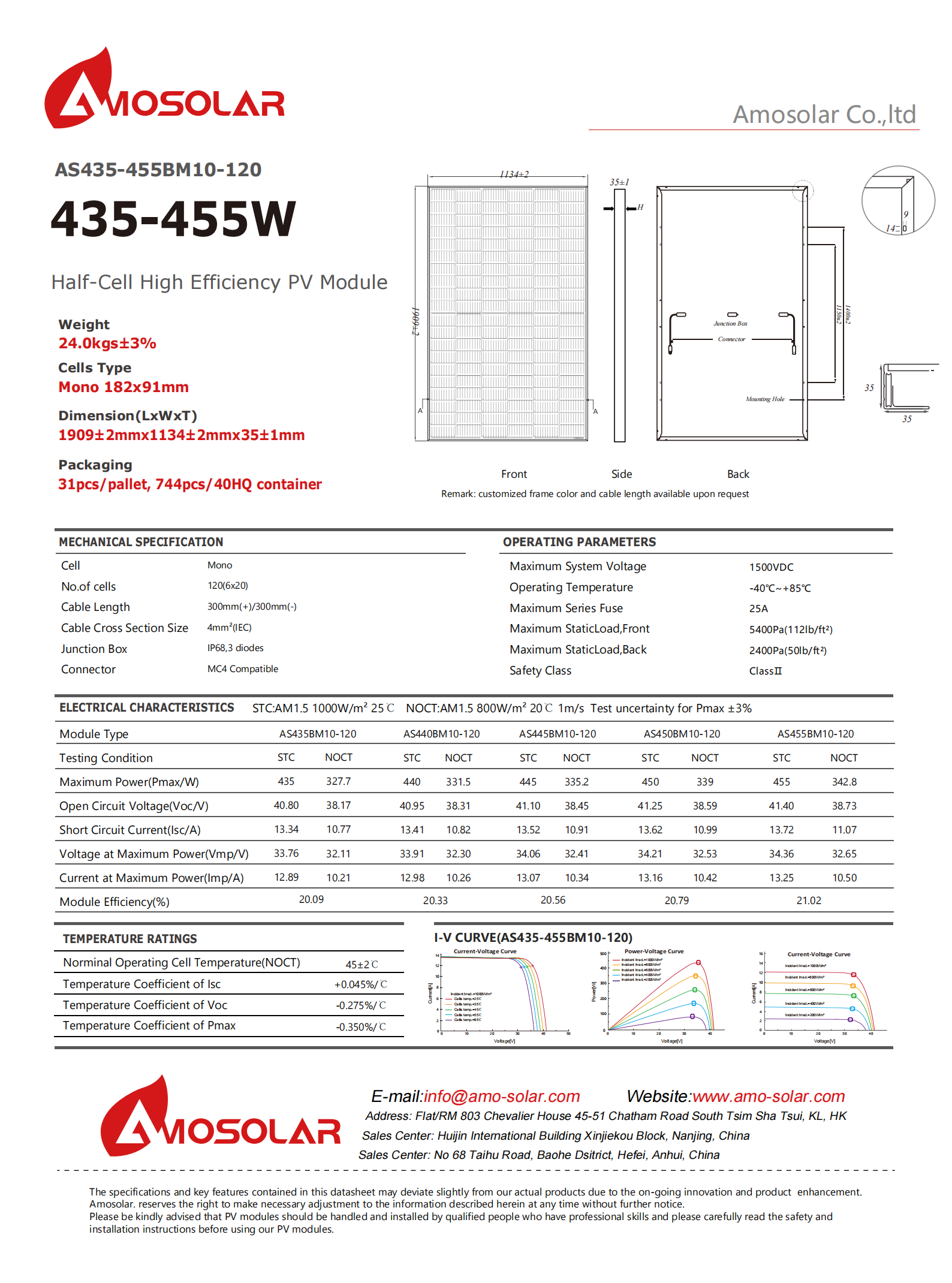

Electrical Performance Parameters (STC Test)


Model
AS435MB10-120
AS440MB10-120 AS445MB10-120
AS450MB10-120
AS455MB10-120
Rated Maximum Power at STC 435W 440W
445W 450W 455W
Open Circuit Voltage (Voc) 40.80 40.95 41.10 41.25 41.40
Maximum Power Voltage (Vmp) 33.76 33.91 34.06 34.21 34.36
Short Circuit Current (Isc) 13.34 13.41 13.52 13.62 13.72
Maximum Power Current (Imp) 12.89 12.98 13.07 13.16 13.25
PV Module Efficiency (%) 20.09 20.33 20.56 20.79 21.02
Standard
Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5

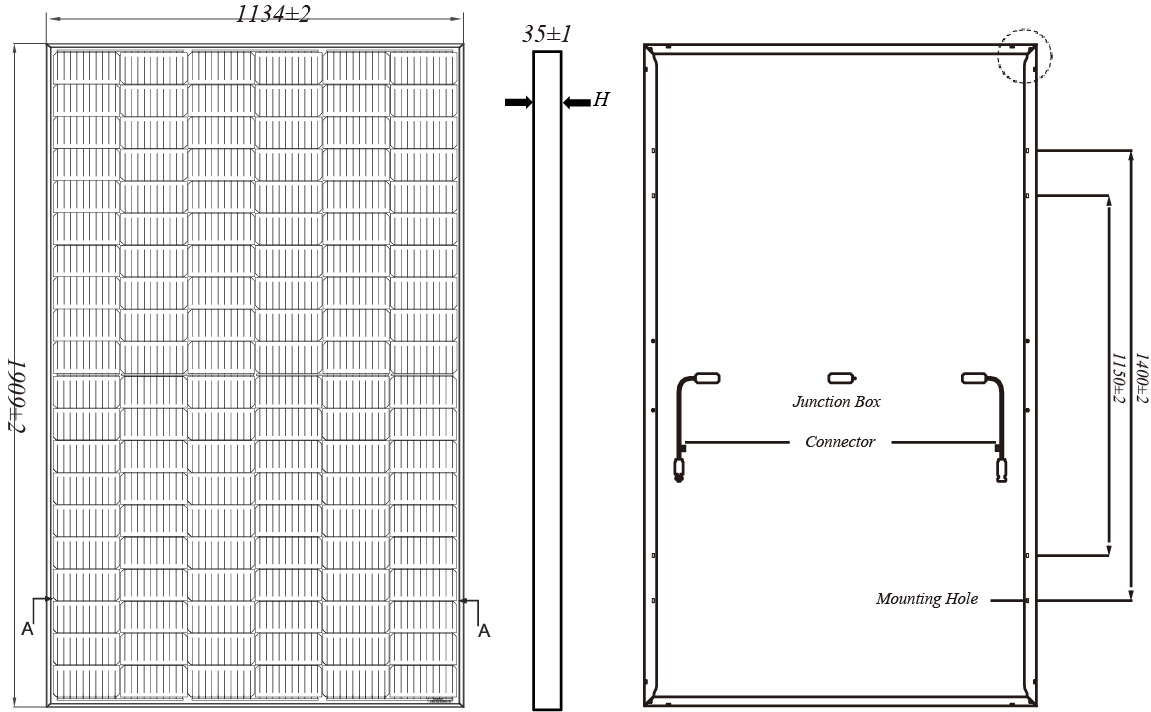

Mechanical Parameters


500 Watt Solar Panels Mono

  Layout :                  120( 6 × 20 )


  Junction Box :        Split junction box, IP68, 3 diodes

  Weight:                   24.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1909x1134×35mm

  Packaging:              31 pcs / pallet

                                   744 pcs / 40HQ container


Paneles Solares Monocristalinos 450 W


· Question 1: What kind of Solar Cells we have?

Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm, Poly solar cell 156.75*156.75mm.


· Question 2: What is the lead time?

Answer 2:Normally 15 working days after advance payment.


· Question 3: What is your monthly capacity?

Answer 3:Monthly capacity is about 200MW.


· Question 4:What is the warranty period, how many years?

Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.


· Question 5: How is your technical support?

Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
