AS585-605G12-120B
| Cell | Mono |
| Rated Maximum Power | 615W |
| Maximum Efficiency | 21.40% |
|
Weight
|
35.3kgs±3%
|
|
Cells Type
|
Mono 210x105mm
|
|
Dimension(LxWxT)
|
2172±2mmx1303±2mmx35±1mm
|
|
Packaging
|
31pcs/pallet, 558pcs/40HQ container
|

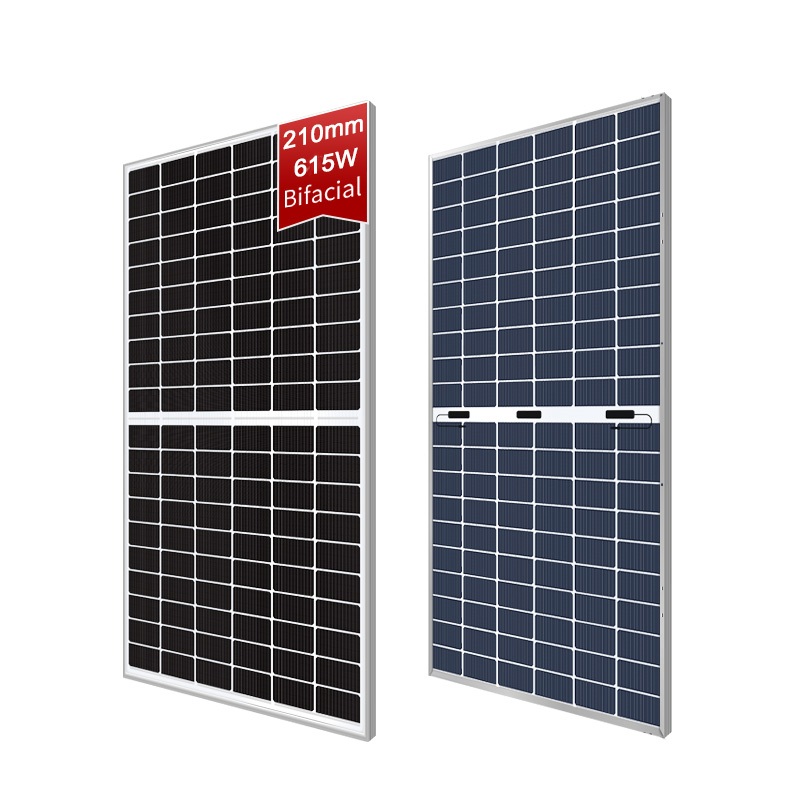

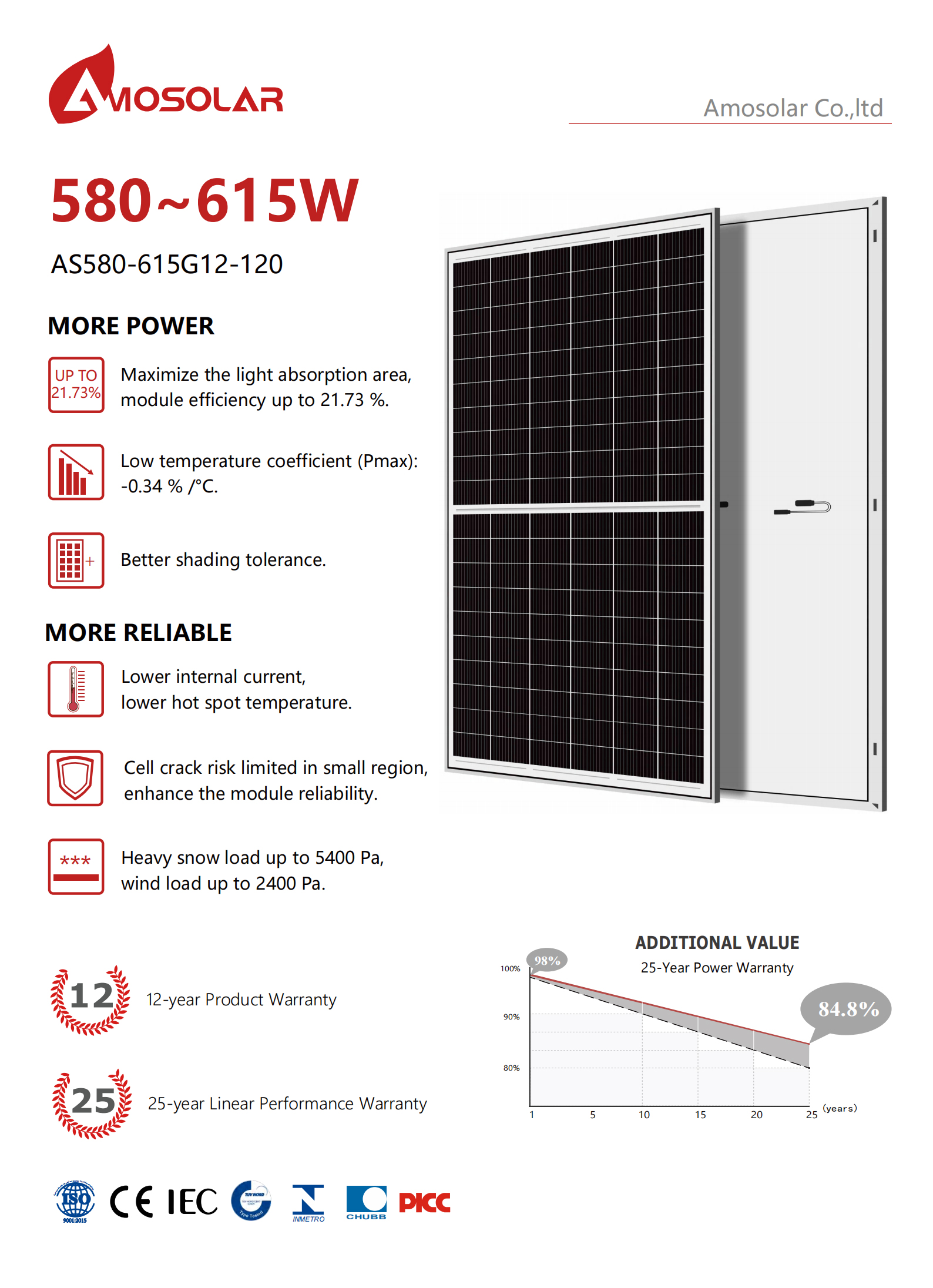

580W-615W Bifacial Double Glass Half Cells Mono Solar Panel China Factory that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.

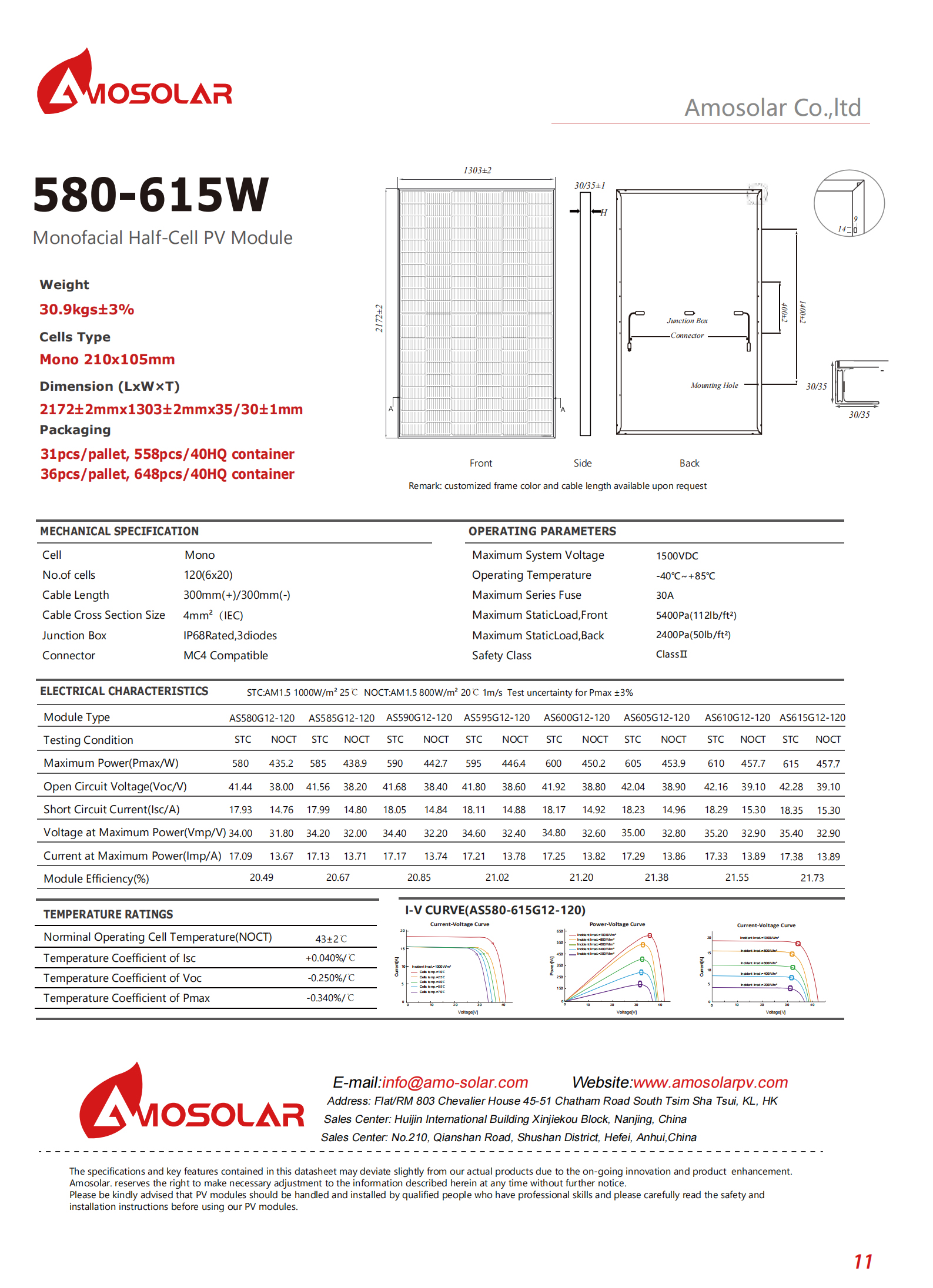

Electrical Performance Parameters (STC Test)
| Model | AS580G12-120 | AS585G12-120 | AS590G12-120 | AS595G12-120 | AS600G12-120 | AS605G12-120 | AS610G12-120 | AS615G12-120 |
| Rated Maximum Power at STC | 580W | 585W | 590W | 595W | 600W | 605W | 610W | 615W |
| Open Circuit Voltage (Voc) | 41.44 | 41.56 | 41.68 | 41.8 | 41.92 | 42.04 | 42.16 | 42.28 |
| Maximum Power Voltage (Vmp) | 34 | 34.2 | 34.4 | 34.6 | 34.8 | 35 | 35.2 | 35.4 |
| Short Circuit Current (Isc) | 17.93 | 17.99 | 18.05 | 18.11 | 18.17 | 18.23 | 18.29 | 18.35 |
| Maximum Power Current (Imp) | 17.09 | 17.13 | 17.17 | 17.21 | 17.25 | 17.29 | 17.33 | 17.38 |
| PV Module Efficiency (%) | 20.49 | 20.67 | 20.85 | 21.02 | 21.20 | 21.38 | 21.55 | 21.73 |
120 half cut solar cell MBB A grade PV Modules from Chinese manufactory.
AS645-675G12-132 Cell Mono Rated Maximum Power 675W Maximum Efficiency 21.7% Weight 38.7kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2384±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
AS380-410M10-108 Cell Mono Rated Maximum Power 410W Maximum Efficiency 21.00% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx35±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
AS435-455M0-120 Cell Mono Rated Maximum Power 455W Maximum Efficiency 21.02% Weight 24.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1909±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 744pcs/40HQ container
Learn More
AS480-505M10-132 Cell Mono Rated Maximum Power 550W Maximum Efficiency 21.28% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
AS48-RM-100/200 Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS51-RM-100/200 Capacity(Ah) 100/200 Nominal Voltage 51.2V Weight( Approx) (KG) 48kg Dimension(W/D/H)(mm) 483*480*133 mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
AS48-RM-100/200 Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS51-RM-100/200 Capacity(Ah) 100/200 Nominal Voltage 51.2V Weight( Approx) (KG) 45.1kg/81.6kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
AMO P15 1500W Portable Power Station, TUV CE UN38.3 FCC RoHS,Outdoor Adventure for campers, explorers, RV dwellers, Home&Emergency Backup for professionals and emergency preppers. Brand Amosolar Type Portable Power Station Max.Power 1500W
Learn More
