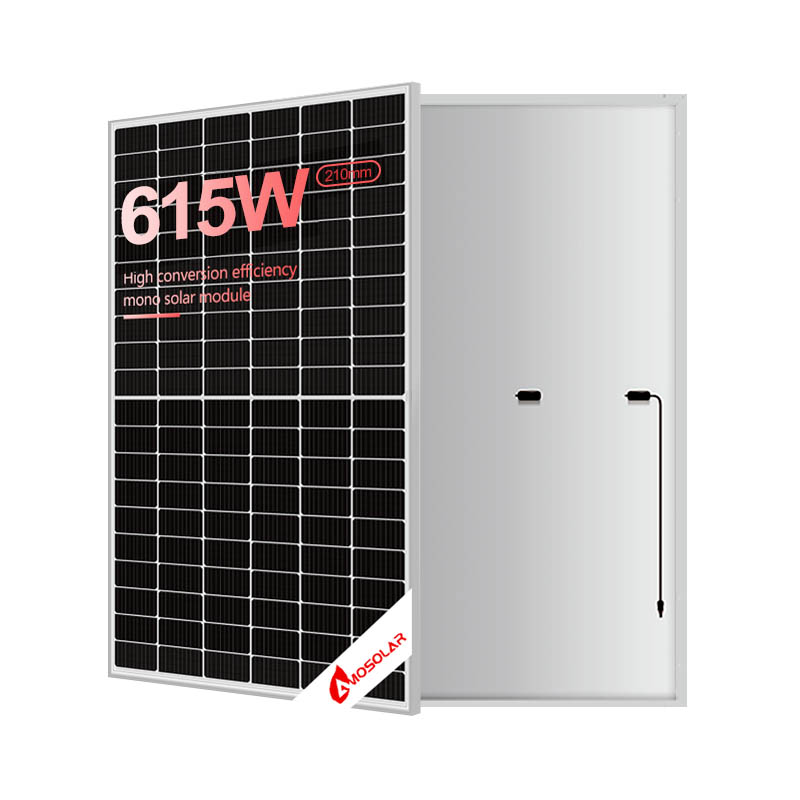

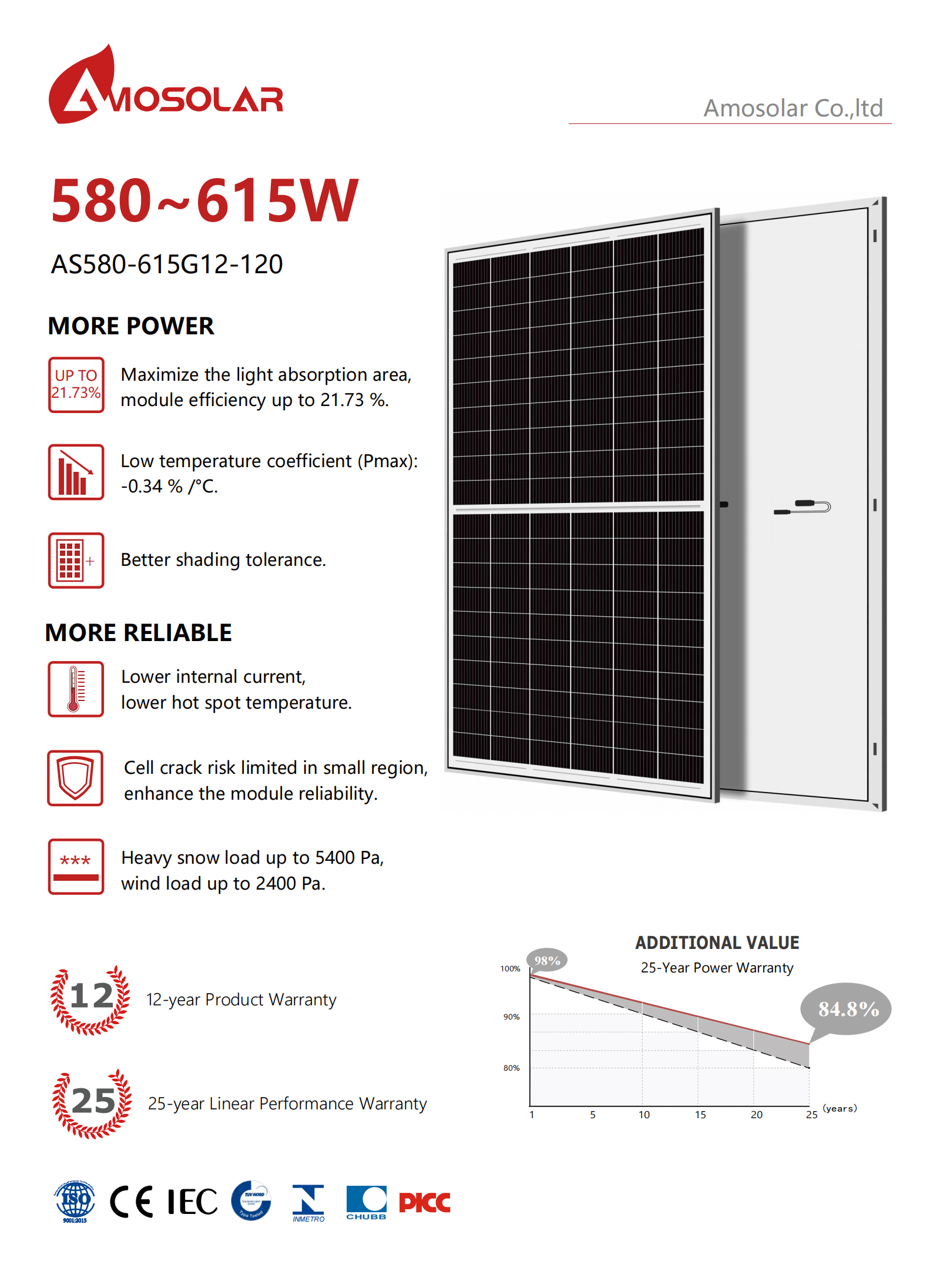

AS580-615G12-120
Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.
| Cell | Mono |
| Rated Maximum Power | 615W |
| Maximum Efficiency | 21.73% |
|
Weight
|
30.9kgs±3%
|
|
Cells Type
|
Mono 210x105mm
|
|
Dimension (LxW×T)
|
2172±2mmx1303±2mmx35±1mm
|
|
Packaging
|
31pcs/pallet, 558pcs/40HQ container
|
580W-615W Half Cells Mono Solar Panel China Factory : that's grade A quality for ensuring stable performance and 25 years output guarantee.
Our solar modules can be used on on-grid solar sytem, hybrid solar system, off-grid solar system, and all kinds of solar applicatons... and worked with lithium battery ( solar lithium ion battery ), lead-acid battery (Lead-Acid Deep Cycle Battery), solar inverters, mounting structure, ...for residential project, comercial projects and big unitlity projects.

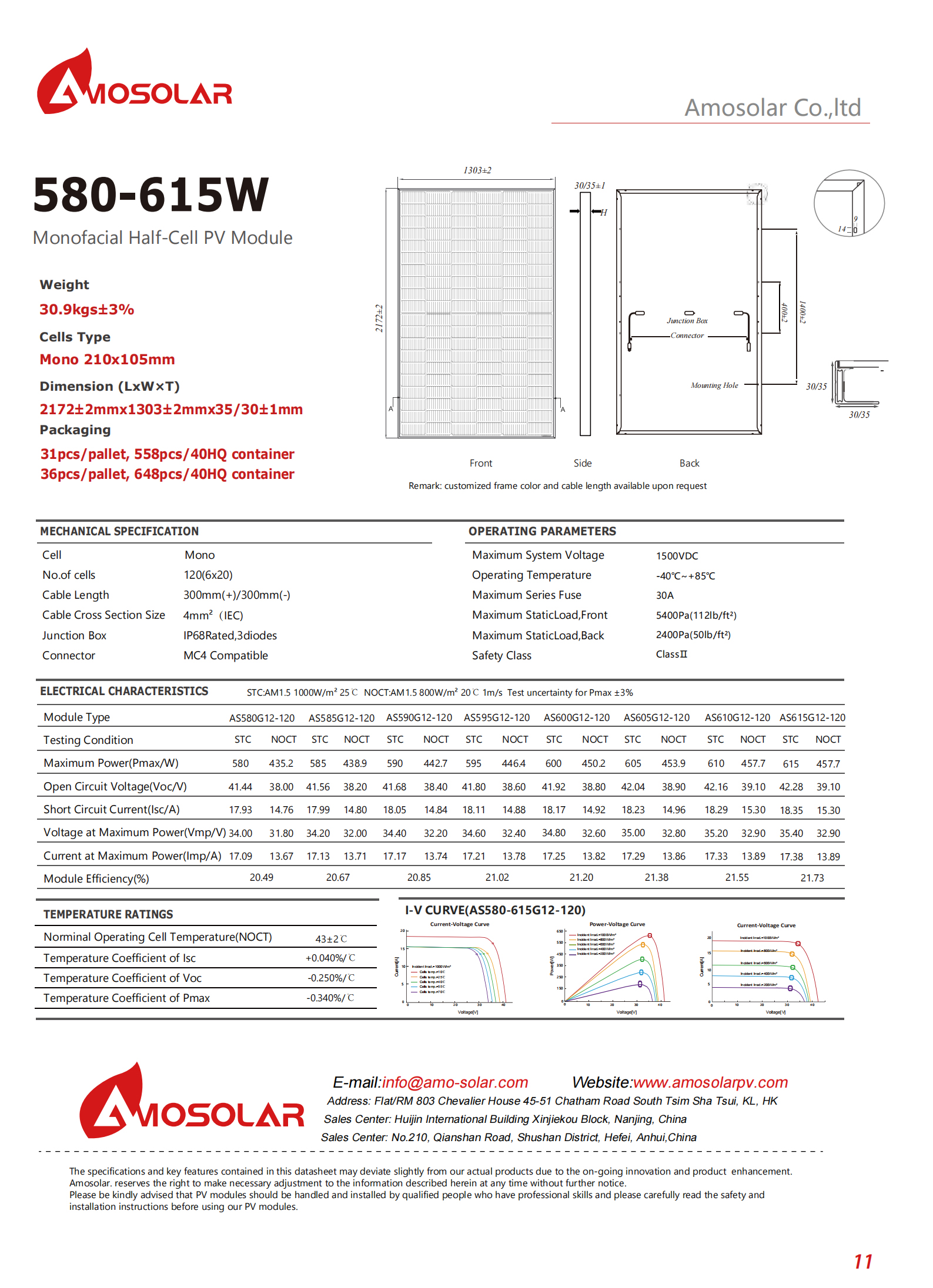

Electrical Performance Parameters (STC Test)
| Model | AS580G12-120 | AS585G12-120 | AS590G12-120 | AS595G12-120 | AS600G12-120 | AS605G12-120 | AS610G12-120 | AS615G12-120 |
| Rated Maximum Power at STC | 580W | 585W | 590W | 595W | 600W | 605W | 610W | 615W |
| Open Circuit Voltage (Voc) | 41.44 | 41.56 | 41.68 | 41.80 | 41.92 | 42.04 | 42.16 | 42.28 |
| Maximum Power Voltage (Vmp) | 34.00 | 34.20 | 34.40 | 32.60 | 32.80 | 35.00 | 35.20 | 35.40 |
| Short Circuit Current (Isc) | 17.93 |
1799. |
18.05 | 18.11 | 19.17 | 18.23 | 18.29 | 18.35 |
| Maximum Power Current (Imp) | 17.09 | 17.13 | 17.17 | 17.21 | 17.25 | 17.29 | 17.33 | 17.38 |
| PV Module Efficiency (%) | 20.49 | 20.67 | 20.85 | 21.02 | 21.20 | 21.38 | 21.55 | 21.73 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | |||||||
With multi-busbar PERC cells, 210mm solar cells will bring extraordinary product performance, wider application conditions , reliability quality and higgest safety.
AS645-675G12-132 Cell Mono Rated Maximum Power 675W Maximum Efficiency 21.73% Weight 33kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2384±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
6-GFM(G)-200Ah Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan Model Number 6-GFM(G)-200Ah Capacity(Ah) 200 Nominal Voltage 12V Size(L×W×H×TH) 522×238×221×250 mm Battery Type GEL Cycle Life 1500times
Learn More
AS610-630G12-120 Cell N-type TOPCon Mono No.of cells 120(6x20) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68, 3 diodes Connector MC4 Compatible Weight 35.3kgs±3% Cells Type Mono 210x105mm Dimension(LxWxT) 2172±2mmx1303±2mmx35±1mm Packaging 36pcs/pallet, 648pcs/40HQ (30mm)31pcs/pallet, 558pcs/40HQ (35mm)
Learn More
JAM72D42 615-640W/LB Cell Arrangement 144(6 X 24) Junction Box IP68, 3 diodes Weight 34.6KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2465 X1052X35 mm Packaging 36 pcs/pallet 576pcs/40HQ container
Learn More
LR5-54HTB 415~435M Cell Arrangement 108(6 X 18) Junction Box IP68, 3 diodes Weight 20.8KG Cable Length +400,-200mm/+1400mm Cable Size 4 mm2 (lEC) PV Size 1722x1134x30mm Packaging 36pcs/pallet 936pcs/40HQ container
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
AS425-450M10-108 Bifacial Cell N-type TOPCon Mono No.of cells 108(6x18) Cable Length 300mm(+)/300mm(-) Cable Cross Section Size 4mm²(IEC) Junction Box IP68 Connector MC4 Compatible Weight 24.2kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx30/35±1mm Packaging 36pcs/pallet,360pcs/20GP;936pcs/40HQ(30mm) 31pcs/pallet,306pcs/20GP;806pcs/40HQ(35mm)
Learn More
AS380-410M10-108 Cell Mono Rated Maximum Power 410W Maximum Efficiency 21.00% Weight 21.0kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 1722±2mmx1134±2mmx35±1mm Packaging 36pcs/pallet, 936pcs/40HQ container
Learn More
