Model Number |
M15S100BL-U0 |
|
Capacity(Ah)
|
100 |
|
Nominal Voltage
|
48V |
|
Weight( Approx) (KG)
|
45kg
|
|
Dimension(W/D/H)(mm)
|
515×493×175mm
|
| Battery Type | LiFePo4(LFP) |
| Cycle Life | 6000 Cycles |
| Product Description | Product parameters | |||
| Product model | M15S100BL-U | M16S100BL-U | M16S200BL-U | M16S280BL-U |
| Cells in series | 15S | 16S | 16S | 16S |
| Rated energy(KWh) | 4.8 | 5.0 | 10.24 | 14.3 |
| Rated voltage (V) | 48 | 51.2 | 51.2 | 51.2 |
| Charging Voltage (V) | 54.7 | 58.2 | 58.2 | 58.2 |
| Discharge cut-off voltage (V) | 40 | 42 | 42 | 42 |
| Standard Charge Current (A) | 20 | 20 | 20 | 56 |
| Maximum Charging Current (A) | 100 | 100 | 100 | 100 |
| Maximum Discharge Current (A) | 100 | 100 | 100 | 100 |
| Cycle life | ≥ 6000 times @ 80% DOD, 25 °C | |||
| Methods of Communication | RS485/CAN | |||
| Charging temperature | 0~60℃ | 0~60℃ | 0~60℃ | 0~60℃ |
| Discharge temperature | -10~65℃ | -10~65℃ | -10~65℃ | -10~65℃ |
| Product Dimensions (L×W×Hmm) | 515×493×175 | 515×493×175 | 630×490×255 | 768×450×275 |
| Net Weight (Kg) | 42 | 45 | 88 | 105 |
| Packing Dimensions (L×W×Hmm) | 550×523×230 | 550×523×230 | 710×570×455 | 865×550×345 |
| Gross Weight (Kg) | 45 | 48 | 103 | 130 |

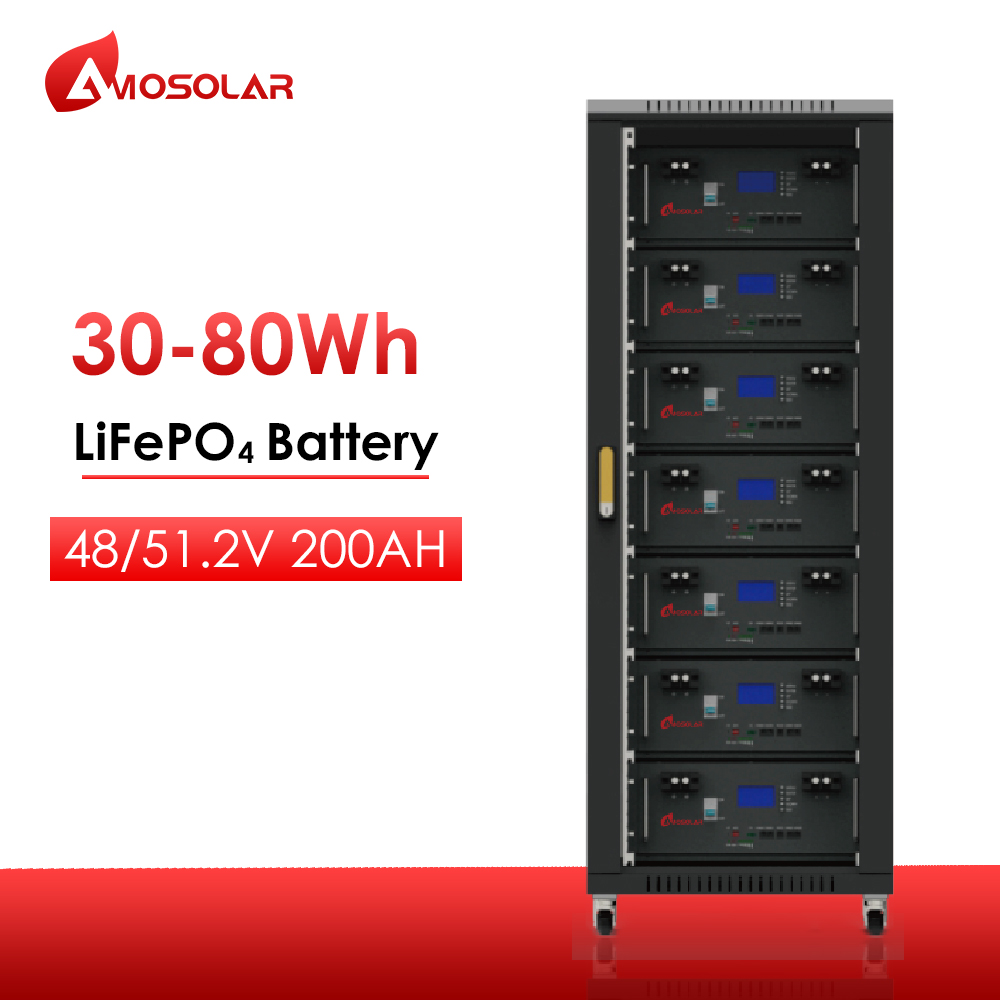

Rack Mounted 4.8~14.3KW Energy Storage Battery Low Voltage Solar Lithium Ion battery
LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information, including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.
AS48100/AS48200 Amosolar lithium battery:6000 Cycles, 10 Years+ design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AS48100/AS48200 Capacity(Ah) 100/200 Nominal Voltage 48V Weight( Approx) (KG) 43.2kg/76.8kg Dimension(W/D/H)(mm) 480*483*178mm/680*483*178mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Model Number M15S100BL-U0 Capacity(Ah) 100 Nominal Voltage 48V Weight( Approx) (KG) 45kg Dimension(W/D/H)(mm) 515×493×175mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More
Model Number AMO 20.48-51.20K_HV-S1 Capacity(Ah) 100AH Battery Module AMO5.12K_HV-S1(51.2V100Ah,48kg) Max. Charge Discharge Current(A) 100A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃,0.5C,80%DOD, 70%EOL
Learn More
Model Number AMO 20.48-51.20K_HV-S1 Capacity(Ah) 100AH Battery Module AMO5.12K_HV-S1(51.2V100Ah,48kg) Max. Charge Discharge Current(A) 100A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25'C,0.5C,80%DOD,70%EOL
Learn More
Model Number AMO 107.5-215K HV-S1 Capacity(Ah) 280AH Battery Module AMO17.92K HV-S1(64V280Ah) Max. Charge Discharge Current(A) 140A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
Learn More
Model Number AMO144.69-225.08K HV-S1 Capacity(Ah) 314AH Battery Module AMO16.077K_HV-S1(51.2V314Ah,136kg) Max. Charge Discharge Current(A) 157A/200A Scalability Up to 4 parallel Cycle Life >6000 Cycles @25℃, 0.5C,80%DOD,70%EOL
Learn More
Model Number M15S100BL-U0 Capacity(Ah) 100 Nominal Voltage 48V Weight( Approx) (KG) 45kg Dimension(W/D/H)(mm) 515×493×175mm Battery Type LiFePo4(LFP) Cycle Life 6000 Cycles
Learn More

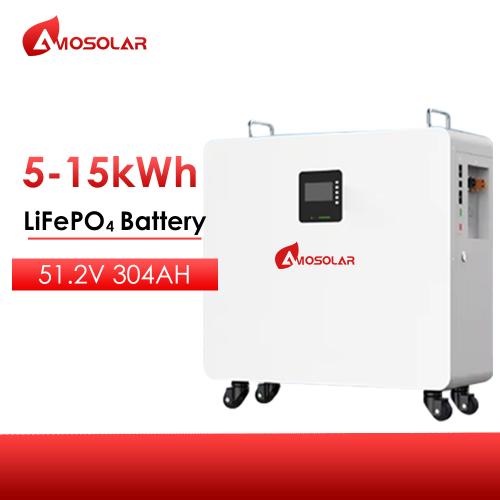

AMO 5.1-15. 5K_LV-M1 Model Number AMO 5.1K LV-M1 AMO 10.5K LV-M1 AMO 14.3K LV-M1 AMO 15.5K LV-M1 Capacity(Ah) 100AH 205AH 280AH 304AH Maximum Nominal Voltage 51.2V Energy(Kwh) 5.1~15.5Kwh Scalability Up to 6~8 parallel Design Life 10+ Years (25℃/77F) Cycle Life >6000 Cycles @25c,0.5C,80%DOD, 70%EOL
Learn More
