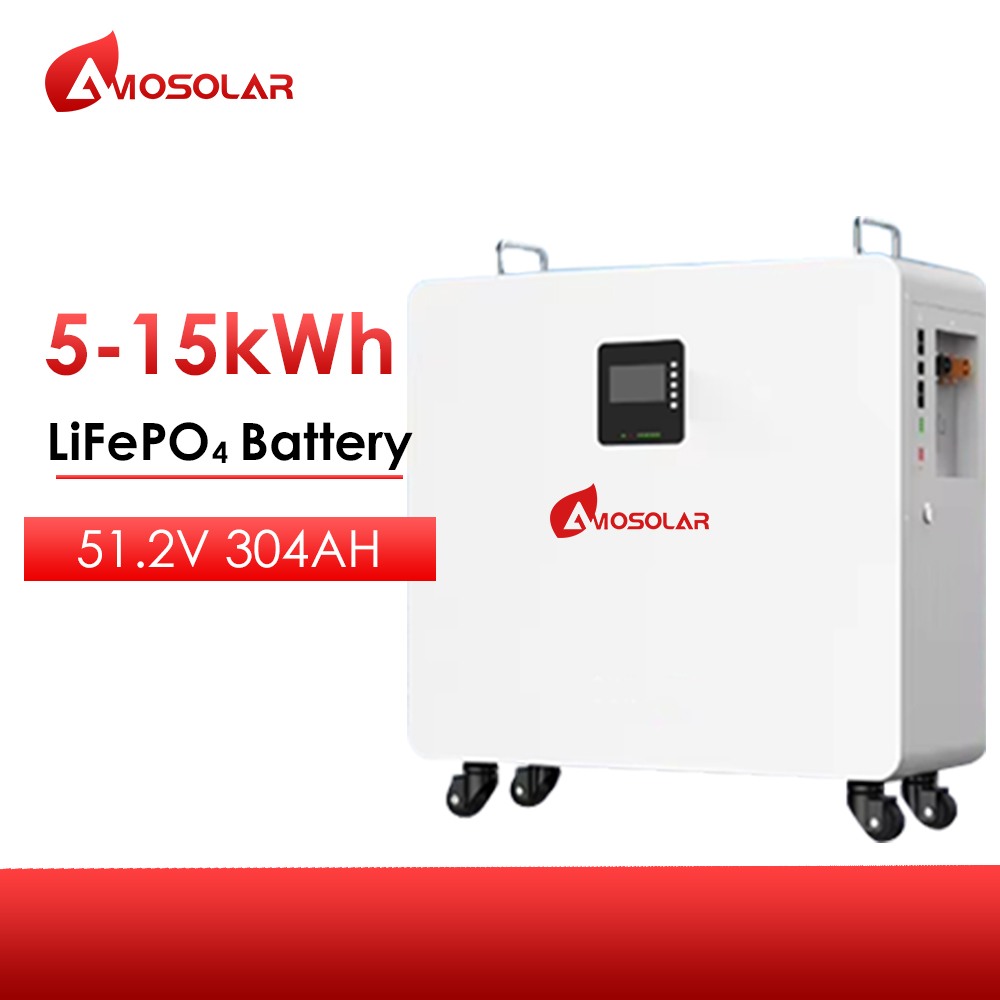

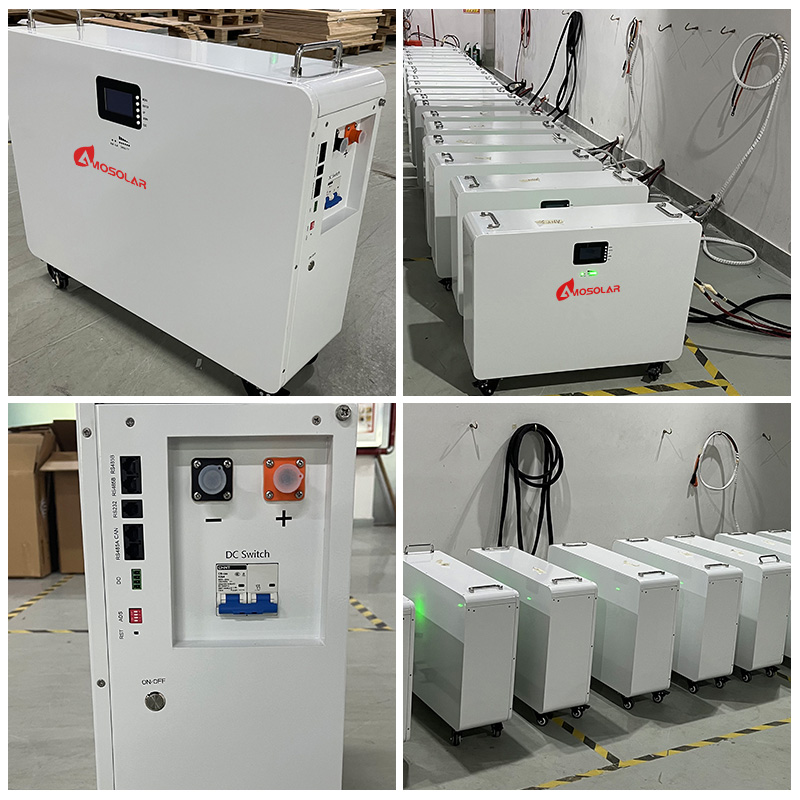

Model Number |
AMO 5.1K LV-M1
|
AMO 10.5K LV-M1
|
AMO 14.3K LV-M1
|
AMO 15.5K LV-M1
|
| Capacity(Ah) | 100AH | 205AH | 280AH | 304AH |
| Maximum Nominal Voltage | 51.2V |
|||
| Energy(Kwh) | 5.1~15.5Kwh |
|||
| Scalability | Up to 6~8 parallel |
|||
| Design Life | 10+ Years (25℃/77F) |
|||
| Cycle Life |
>6000 Cycles @25c,0.5C,80%DOD, 70%EOL
|
|||
| PERFORMANCE SPECIFICATIONS | ||||
| Model | AMO 5.1K_LV-M1 | AMO 10.5K_LV-M1 | AMO 14.3K_LV-M1 | AMO 15.5K_LV-M1 |
| Battery Type | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) | LiFePO4(LFP) |
| Nominal Voltage | 51.2V | |||
| Capacity(Ah) | 100AH | 205AH | 180AH | 304H |
| Rated Energy (KWH) | 5.1KWH | 10.5KWH | 14.3KWH | 15.5KWH |
| Usable Energy(KWH) | 4.1KWH | 8.4KWH | 11.4KWH | 12.4KWH |
| Max.Charge/Discharge Current(A) | 100A/100A | 100A/100A | 100A/100A | 150A/200A |
| Voltage Range (Vdc) | 43.2-57.6V | 43.2-57.6V | 43.2-57.6V | 43.2-57.6V |
| Scalability | Up to 6~8 parallel | |||
| Cycle Life | >6000 Cycles @25c,0.5C,80%DOD, 70%EOL | |||
| Warranty | 5 Years (25 ℃) | |||
| Design Life | 10+ Years (25 C/77F) | |||
AMO 10.24K-20.48K_LV-T1 Amosolar Low-voltage lithium battery:6000 Cycles,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS. Model Number AMO 10.24K_LV-T1 AMO 15.36K_LV-T1 AMO 20.48K_LV-T1 Capacity(Ah) 200Ah 300Ah 400Ah Maximum Nominal Voltage 51.2V Energy(Kwh) 10.24~20.48Kwh Charge Temperature(℃) 0~55℃ DisCharge Temperature(℃) -20~55℃ Cycle Life 6000 Cycles
Learn More
Model Number LFP12 Brand Name Amosolar Weight 12.8-28kg Place of Origin China Protection Grade IP65 Nominal Voltage 12.8V/25.6V Nominal Capacity 50Ah-300Ah BMS Integrated Cycle Life >6000 cycles @0.5C / 80%DOD
Learn More
AS700-735G12-132 Bifacial Cell Type HJT No. of Cells 132 (6x22) Dimensions 2384 x1303 x33 mm Weight 37.9kg Junction Box IP68 Cable 4mm2;+350/-250mm or customized; UV resistant Connector MC4/MC4-EV02A/PV-H4/Z4S-abcd/ST4 Frame Anodized aluminum alloy frame Max Static Load (front side/rear side) 5400Pa/2400Pa Glass Dual glass,2.0mm
Learn More
AS645-675G12-132 Cell Mono Rated Maximum Power 675W Maximum Efficiency 21.73% Weight 33kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2384±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
Model Number AMO 20K-T2 Capacity(Ah) 52Ah Maximum Nominal Voltage 512V Energy(Kwh) 7.5KWh~20Kwh Max. Charge/Discharge Current(A) 35A lPGrade IP65 Cycle Life 6000 Cycles
Learn More
AS400-420M10-108 Cell Mono silicon Rated Maximum Power 420W Maximum Efficiency 21.5% Weight 20.90kgs±3% Cells Type Mono 210*35mm Dimension(LxWxT) 1723±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 806pcs/40HQ container
Learn More
6-GFM(G)-100Ah Amosolar lead acid battery:Better operations across temperature extremes，Slower discharging for a longer lifespan Model Number 6-GFM(G)-100Ah Capacity(Ah) 100 Nominal Voltage 12V Size(L×W×H×TH) 330×172×219×230 mm Battery Type GEL Cycle Life 1500times
Learn More
AS580-615G12-120 Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price. Cell Mono Rated Maximum Power 615W Maximum Efficiency 21.73% Weight 30.9kgs±3% Cells Type Mono 210x105mm Dimension (LxW×T) 2172±2mmx1303±2mmx35±1mm Packaging 31pcs/pallet, 558pcs/40HQ container
Learn More
