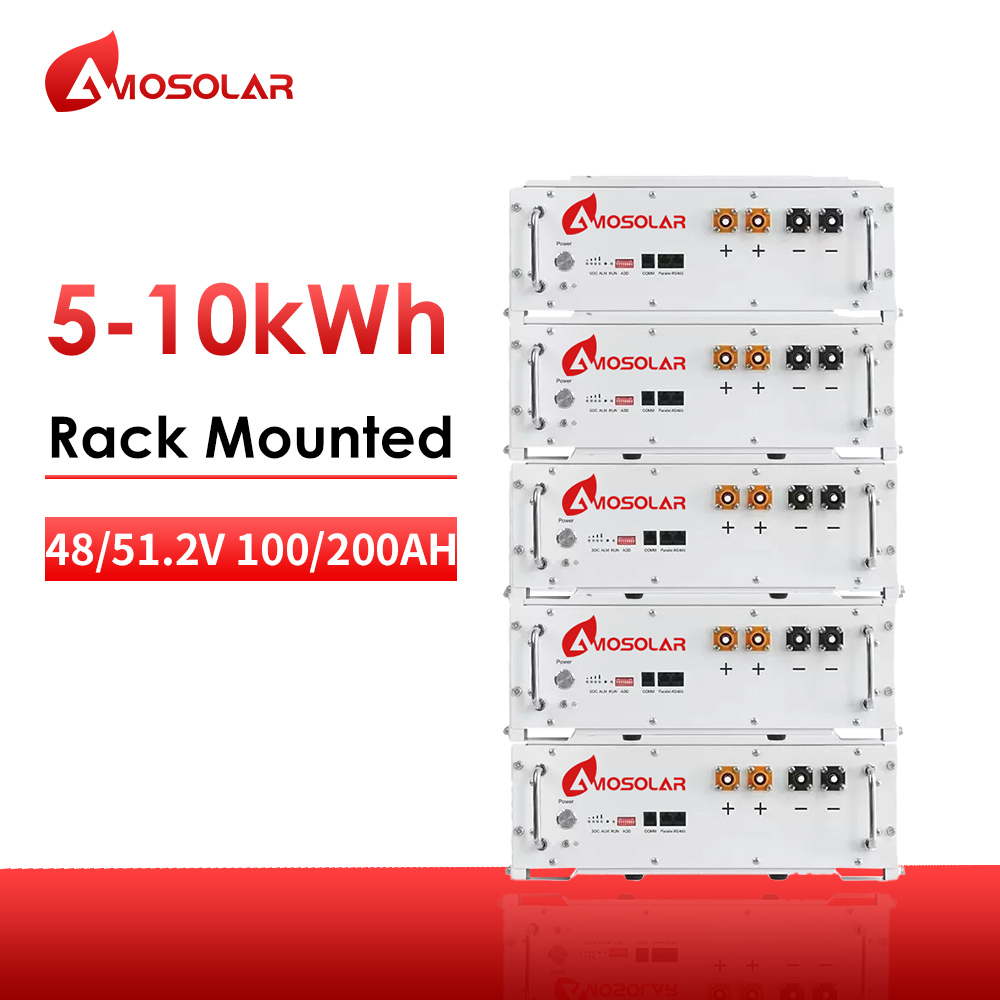

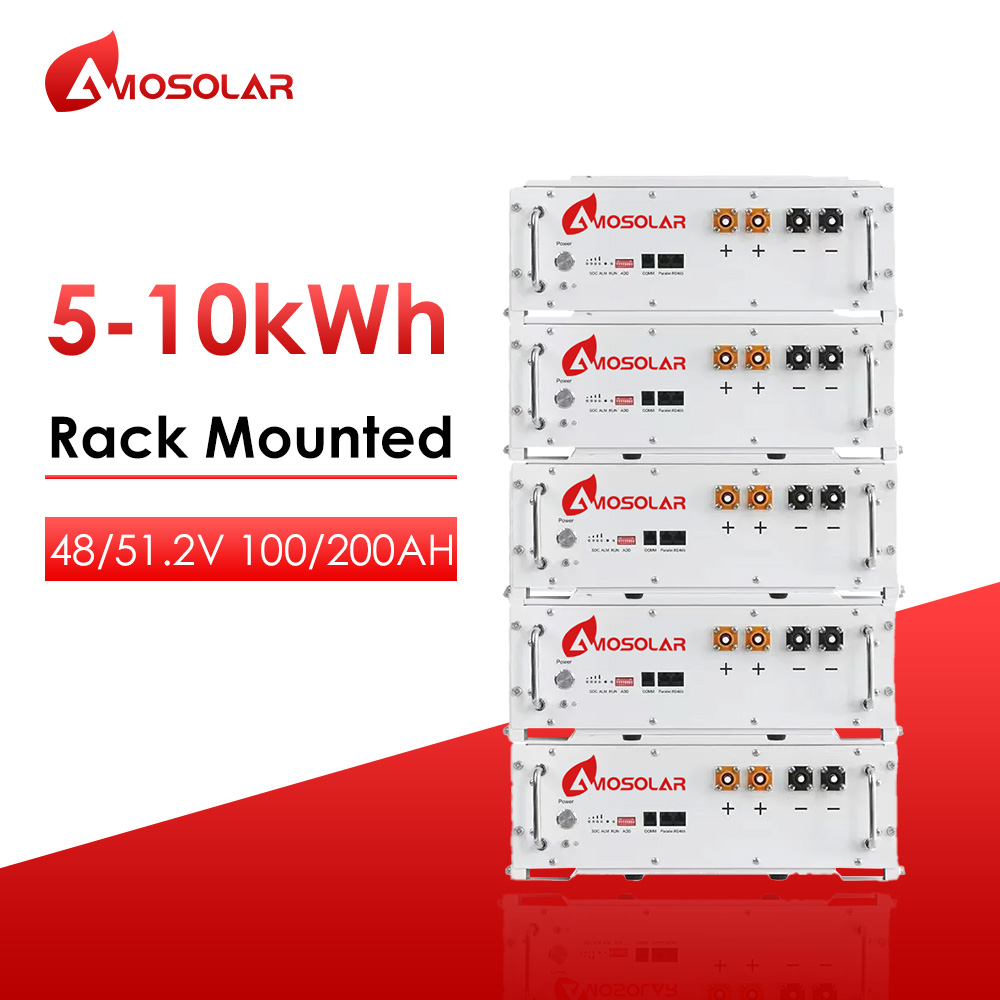

Rack Mounted 51.2V 100AH 200AH Lithium Ion Battery
Products
Home / SOLAR BATTERY / Lithium Battery / Rackmount /

Rack Mounted 51.2V 100AH 200AH Lithium Ion Battery

rack mount lithium battery
rack mount lithium battery
rack mount lithium battery
rack mount lithium battery
rack mount lithium battery

Rack Mounted 51.2V 100AH 200AH Lithium Ion Battery

AS48-RM-100/200

Amosolar lithium battery:6000 Cycles, 20 Years design life,TUV CE EN62619 IEC 62040 UN38.3 CEC,Built-in BMS.

Model Number

AS51-RM-100/200
Capacity(Ah) 100/200
Nominal Voltage 51.2V
Weight( Approx) (KG) 48kg
Dimension(W/D/H)(mm) 483*480*133 mm
Battery Type
LiFePo4(LFP)
Cycle Life
6000 Cycles

51.2V 100AH 200AH Lifepo4 Battery Lithium Ion Battery

LiFePO4 Solar Battery pack is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power.



PERFORMANCE SPECIFICATIONS
MODEL
100AH
200AH
Nominal Voltage
51.2V
Cell model/Configuration
3.2V 100Ah(ANC)/16S1P
3.2V 200Ah(ANC)/16S2P
Capacity(Ah)
100AH
200AH
Rated Energy (KWH)
5.12KWH
10.24KWH
Usable Energy(KWH)
4.6KWH
9.2KWH
Max.Charge/Discharge Current(A)
50A/100A
Voltage Range (Vdc)
48-56.5V
Scalability
Up to 10 parallel
Communication
RS232-PC,RS485(B)-BATRS485(A)-Inverter,Canbus-Inverter
Cycle Life
≥6000cycles@25℃,90%DOD,60%EOL
Design Life
≥10 Years (25℃)
MECHANICAL SPECIFICATIONS
Weight( Approx) (KG)
48kg
78kg
Dimension(W/D/H)(mm)
483*480*133mm
lnstallation Mode
Stack
lPGrade
lP21
SECURITY AND CERTIFICATION
Safety(Pack)
UN38.3,MSDS
Safety(Cell)
UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection
BMS, Breaker
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature(C)
Charge:-10°C~50℃; Discharge: -20°C-50°℃
Altitude (m)
≤2000
Humidity
≤95%(Non-condensing)
