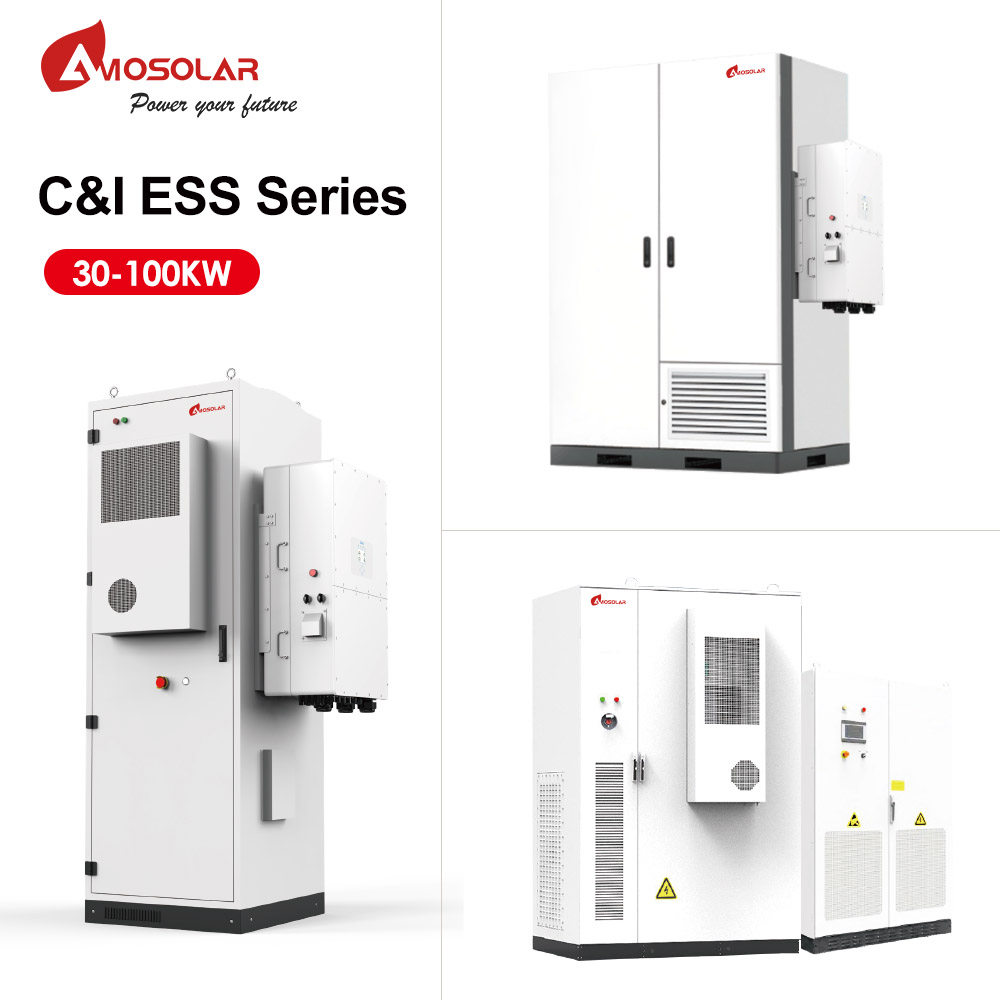

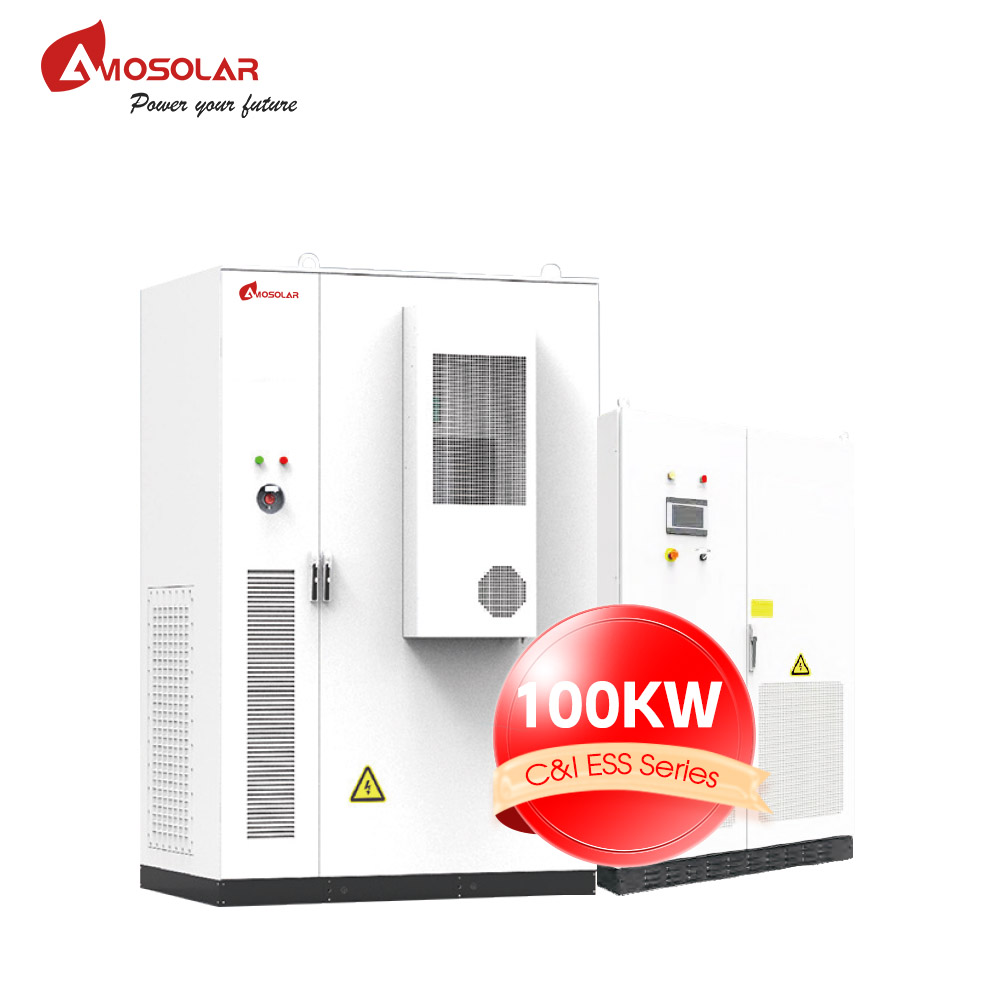

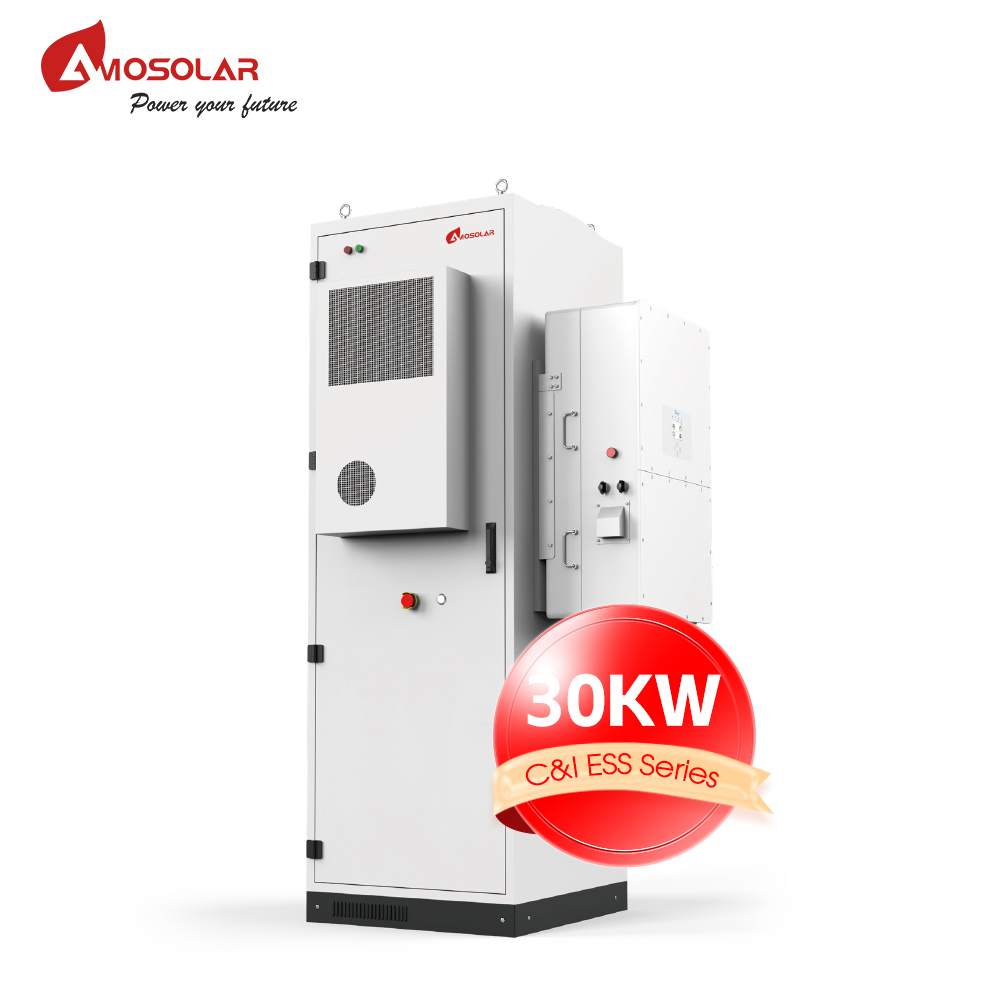

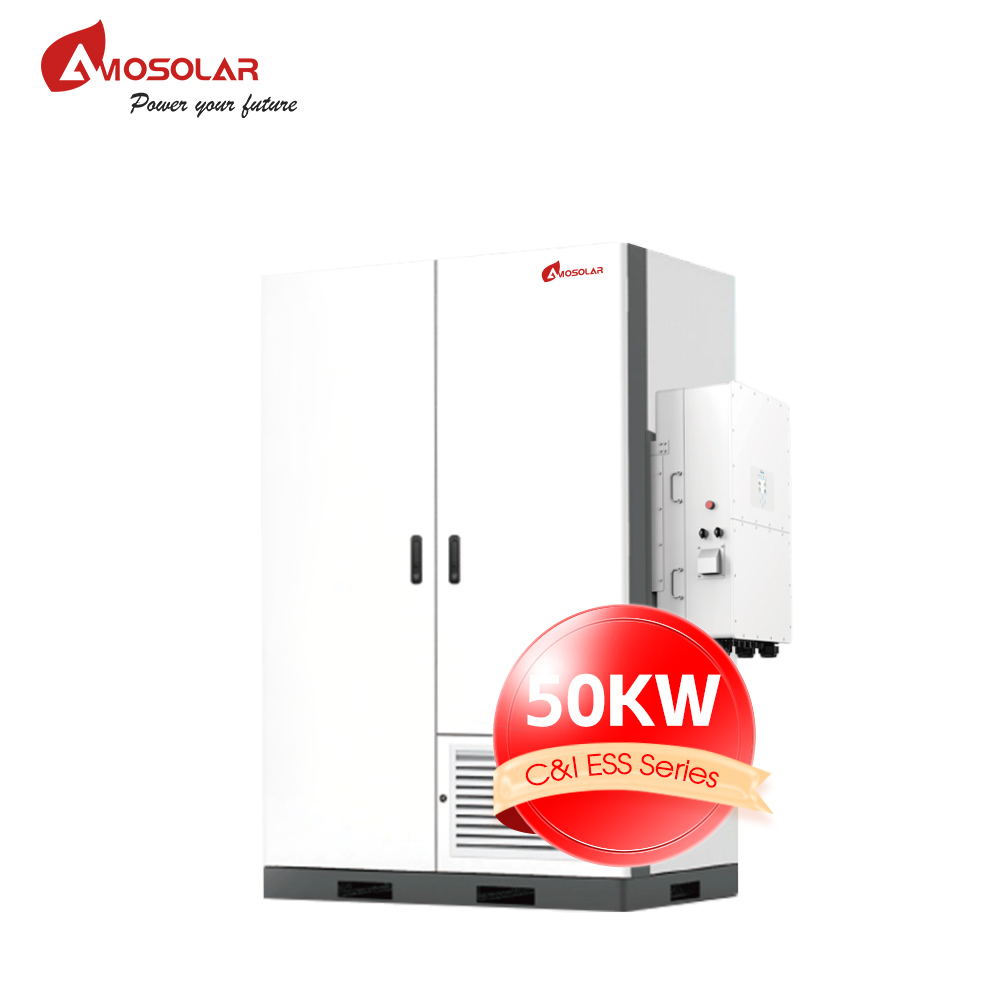

C&I ESS HV 30KW 50KW 100KW Energy Storage System Manufacturer 30000 Watt Battery System For Commercial And Industrial.
| Brand | Amosolar |
| Type | C&I ESS |
| Max.Power | 30-100kW |
|
30-100KW Commercial&Industrial ESS Solution |
||||
|
MODULE
|
AMO 3060
|
AMO 50100
|
AMO 100200
|
AMO 100230
|
|
Battery parameters
|
||||
|
Rated energy
|
60kWh
|
102.4kWh
|
200.074kWh
|
230.4kWh |
|
PV parameters
|
||||
|
Max.PV input power
|
39kW
|
65kW
|
150kW
|
100KW
|
|
AC side parameters
|
||||
|
AC rated input/output power
|
30KW
|
50KW
|
100KW
|
100KW
|
|
AC Max. input/output power
|
33KVA
|
55KVA
|
110KVA
|
|
|
System parameters
|
||||
|
Dimension (W*H*D)
|
1200x2160x750mm
|
1950x1200x1800mm
|
1200×1900×800mm&1500×1000×2200mm
|
1320*1280*2370mm
|
|
Weight
|
860kg
|
1980kg
|
1980kg
|
2500KG
|
|
Communication
|
CAN/RS485/WiFi/ETH
|
|||
|
Certifications
|
UN38.3/CE/IEC62619/VDE-AR-N 4105/IEC 62109
|
|||
|
Warranty
|
5 years
|
|||
ESS-100230 ESS HV 100KW 230KW Energy Storage System Manufacturer Battery System For Commercial And Industrial. Brand Amosolar Type ESS Max.Power 100-230kW
Learn More
JKM605-630N-66HL4M-BDV-F3-EN Cell Arrangement 132 (66 X2) Junction Box IP68, 3 diodes Weight 32.4KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2382X1134X30mm Packaging 36pcs/pallet 720pcs/40HQ container
Learn More
Amosolar 1KW 3KW 5KW Off Grid Solar System Name Off Grid 5KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V US:110/120V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS530-560M10-144 Cell Mono Rated Maximum Power 560W Maximum Efficiency 21.67% Weight 28.6kgs±3% Cells Type Mono 182x91mm Dimension(LxWxT) 2279±2mmx1134±2mmx35±1mm Packaging 31pcs/pallet, 620pcs/40HQ container
Learn More
CS3W-435-465MS Cell Arrangement 144 [2 X(12 X 6) Junction Box IP68, 3 bypass diodes Weight 24.3KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (lEC), 12 AWG (UL) PV Size 2108 X1048 X35 mm Packaging 30 pcs/pallet 660pcs/40HQ container
Learn More
Amosolar 3KW 5KW 6KW Hybrid Solar System Name Hybrid 5KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:220/230/240V ; 380/400V Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
Amosolar 500KW PV Solution Name 500KW System Warranty 25 Years Output Power Guarantee Certificate TUV/IEC/CEC/CE/ISO/Inmetro Application Home/Business Output Voltage EU:380/400V(330-440V) Monitoring Wifi/GPRS Mounting Brackets Roof/Ground installation
Learn More
AS330-355P-72 Cell Poly Rated Maximum Power 355W Maximum Efficiency 18.30% Weight 20.5kgs±3% Cells Type Poly-crystalline 156.75×156.75mm Dimension(LxWxT) 1956±2mmx992±2mmx35±1m Packaging 31pcs/pallet, 804pcs/40HQ container
Learn More
