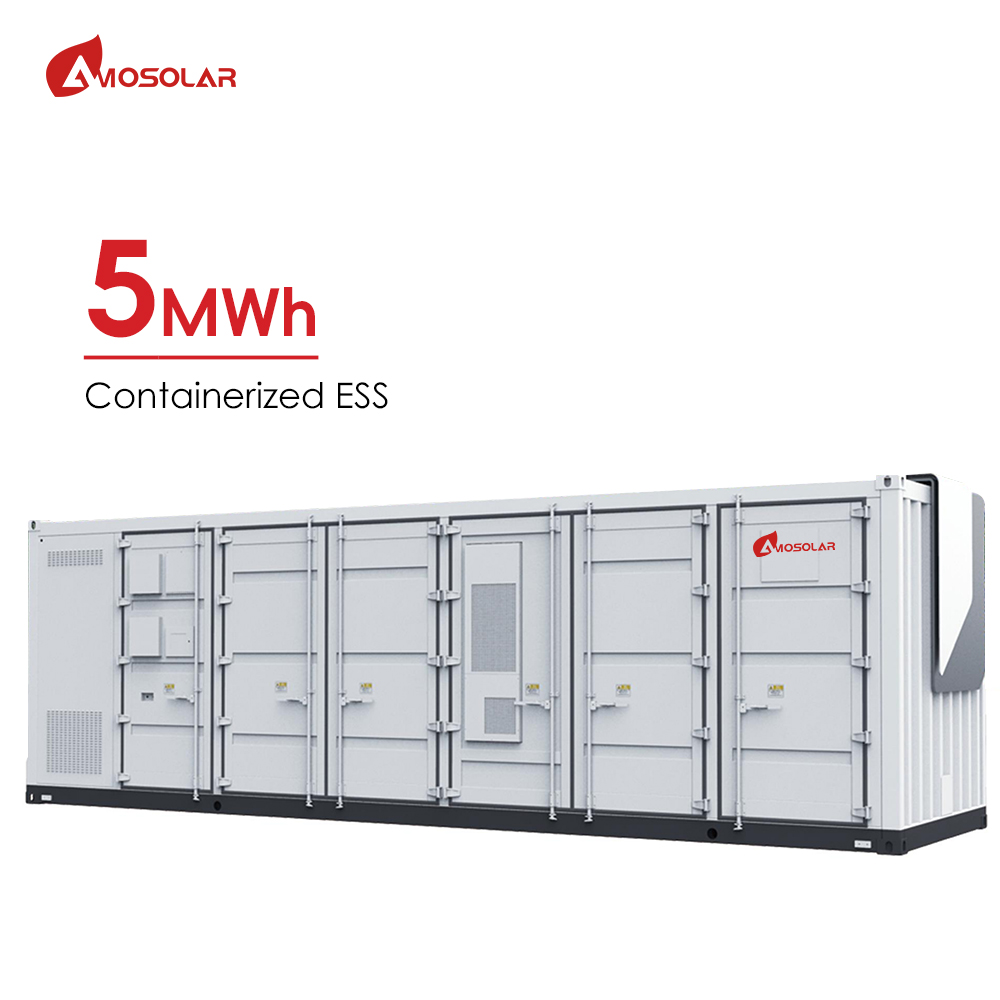

Commerical 5MW Container Solar Battery Energy Storage

AS5MW Energy Storage Container

Place of Origin Anhui, China
Brand Name Amosolar
BatteryType LiFePO4
Dimension (L*W*H) 12192*2438*2896mm
 Weight ~30TON ~70TON
Communication Interface CAN

ESS container

ESS

ess

ess



Container Energy Storage System
Rated output power   5MWh(0.5C) 2.5MWh(0.5C)
Rated capacity   3.2V28OAH CELL/51.2V28OAH module
AC Phases   Three-phase Four-wire
Grid discharge mode Rated voltage 380V
  Voltage range 380±15%V
  Rated frequency 50Hz
  Frequency range 47551.5Hz
  Total current waveform <5%
  distortion rate(THD) <5%
  Output power factor 20.99
Off-grid operation mode Rated voltage 380V
  Voltage accuracy <±3%
  Output voltage distortion <5%
  Rated output frequency 50±2%Hz
  Voltage transition range <10%
  Can withstand three - phase load imbalance 1
Grid-connected charging operation mode Rated yoltage 400V
  Voltage range is allowed 380±15%V
  Frequency range 475~51.5HZ
  Power factor 20.99(absolute value)
Noise   <70dB
IP GRADE   IP54
External communication   Ethernet

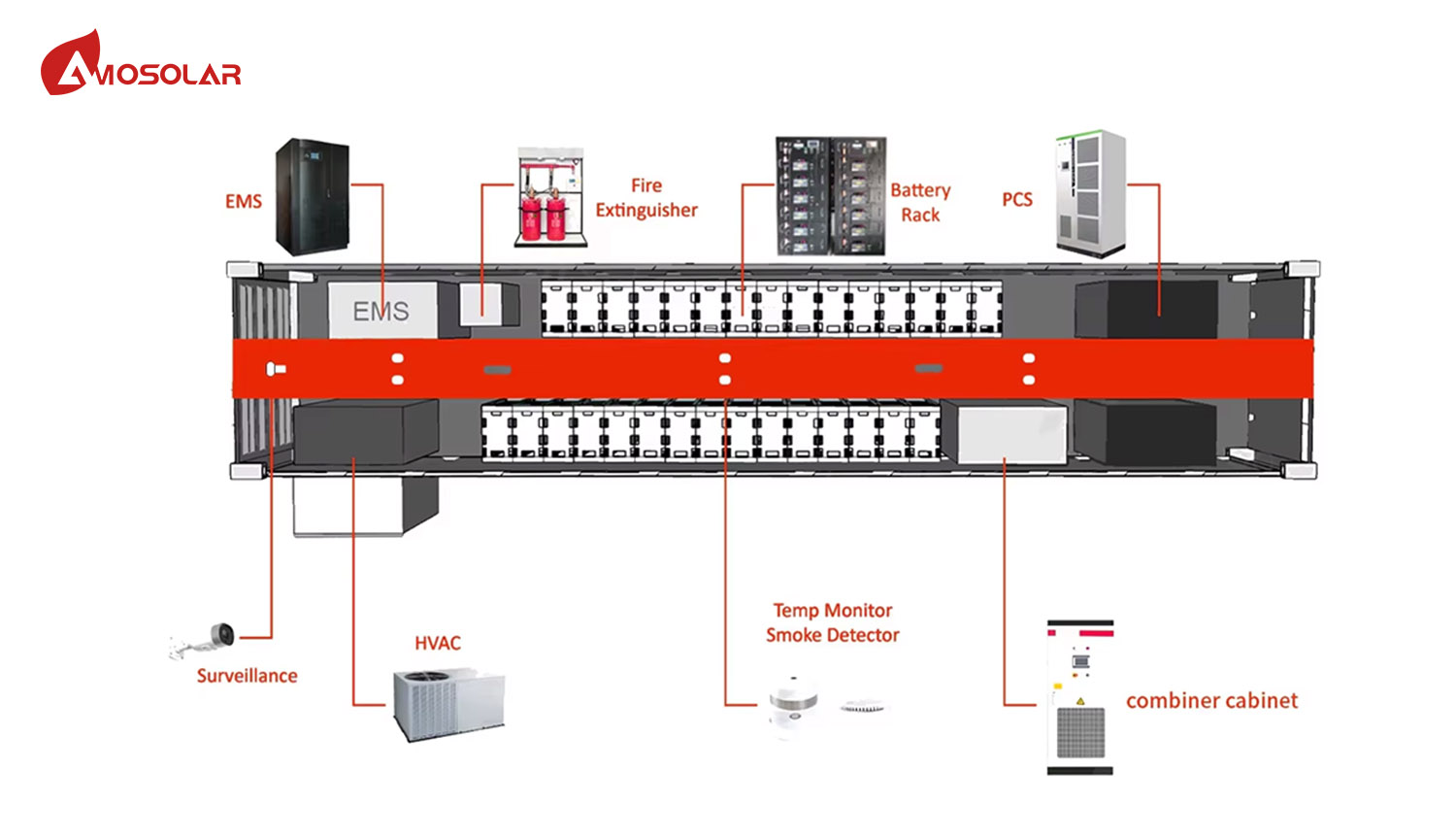

Customized Container   Fire Extinguisher/Lighting system/Air conditioner (Water cooling system optional/Anti fire Layer etc)
Dimension   40'HQ 20'HQ
Weight   ~70TON ~30TON
Cooling method   Air conditioner/Liquid cooling
Certification   CE/MSDS/UN38.3/UL/IEC62619/VDE4110

Amosolar’s 2.5MWh–5MWh Solar Energy Storage Container is a cutting-edge solution designed for large-scale renewable energy storage and power management. This fully integrated containerized ESS (Energy Storage System) combines advanced LiFePO4 battery technology with intelligent BMS and PCS systems to ensure high safety, efficiency, and scalability.
