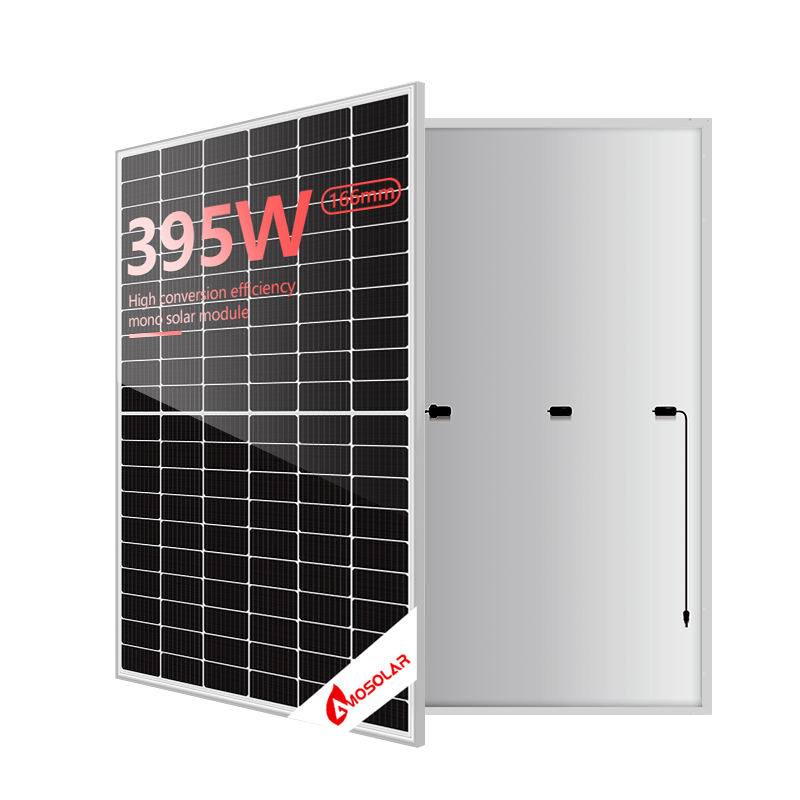

370w 375w 380w 385w 390w 395w Half Cut Mono PV Panel Chinese Manufactory
Products
Home / SOLAR PANEL / PERC PV Module / Monofacial 166mm M6 /

370w 375w 380w 385w 390w 395w Half Cut Mono PV Panel Chinese Manufactory

450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144
450W Solar Panel 144

370w 375w 380w 385w 390w 395w Half Cut Mono PV Panel Chinese Manufactory

AS370-395M6-120

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
395W
Maximum Efficiency 21.67%
Weight
20.5kgs±3%
Cells Type
Mono 166x83mm
Dimension(LxWxT)
1756±2mmx1038±2mmx35±1mm
Packaging
31pcs/pallet, 858pcs/40HQ container

370W-395W Half Cut Mono PV Panel Chinese Factory : With multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance.

500W Half Cell Mono PV Module



Electrical Performance Parameters (STC Test)


Model
AS370M6-120 AS375M6-120
AS380M6-120
AS385M6-120
AS390M6-120
AS395M6-120
Rated Maximum Power at STC 370W
375W 380W 385W 390W 395W
Open Circuit Voltage (Voc) 40.60  40.75 40.90  41.05 41.20  41.35
Maximum Power Voltage (Vmp) 34.84 35.02 35.20 35.38 35.56 35.74
Short Circuit Current (Isc) 11.25 11.32 11.39 11.46 11.53 11.60
Maximum Power Current (Imp) 10.62 10.71 10.80 10.89 10.98 11.07
PV Module Efficiency (%) 20.30 20.57 20.85 21.12 21.40 21.67
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


535 Watt Solar Panel

  Layout :                  120( 6 × 20 )


  Junction Box :        Split junction box, IP67, 3 diodes

  Weight:                   20.5KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   1756×1038×35mm

  Packaging:              31 pcs / pallet

                                   858 pcs / 40HQ container


600W Mono Solar Panel
