Balcony Solar System 600W 800W
Products
Home / SOLAR SYSTEM / Balcony Solar System /

Balcony Solar System 600W 800W

Balcony Solar System
Balcony Solar System
Balcony Solar System
Balcony Solar System
Balcony Solar System
Balcony Solar System
Balcony Solar System

Balcony Solar System 600W 800W

AS-600/800BL



Model Number

AS-600/800BL
Load Power
600W,800W
Peak Efficiency
97.1%/97.3%
Certificates
CE/TUV/ISO/CQC/MCS/INMETRO/IEC
Warranty
10Years

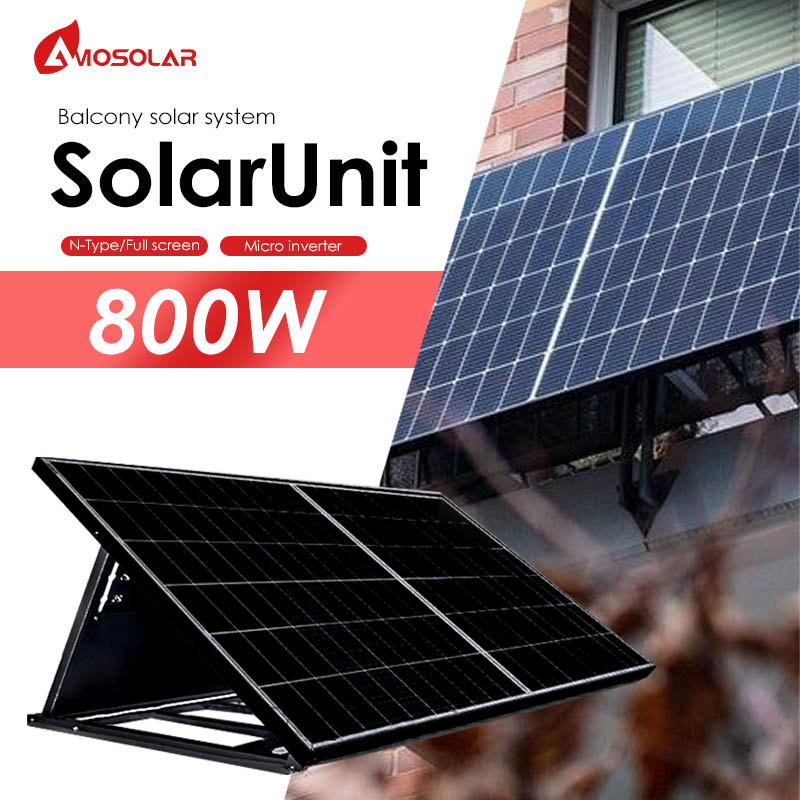

600W 800W Balcony Solar System

Generate your own energy,Saving electricity bill,Rapid shutdown function,More effective, Max. Efficiency 97.1%,More secure: Built-in grounding Lightning,protection 6000V,More Reliability





All in one balcony solar kit,one plug in solar system,solar mounting,microinverter,solar photovoltaic modules



Input Data (DC)
Inverter power 600W 800W
Recommended input Power(STC) 410W (PERC) *2 430W (N-TOPCON) *2 460W (PERC) *2 510W (N-TOPCON) *2
Maximum input DC Voltage 60V
Startup Voltage 24V
MPPT Voltage Range 22-55
Maximum input DC Current 18A
Output Data (AC)
Rated output Power 600w 800W
Rated output Current 2.52 3.26
Rated Output Voltage /V 220/230v,L+N+PE
Output Frequency Range 50 / 60Hz
Power Factor (Nominal/Adjustable Range) 1.0/0.8 leading…0.8 lagging
Output Current Total Harmonic Distortion <3%
Efficiency
Peak Efficiency 97.1% 97.3%
MPPT Efficiency >99.5% >99.5%
Night Power Consumption /MW <100 <100
Mechanical Data
Operating Ambient Temperature Range '-40°C ~+65°C
Microinverter Dimensions (W x H x D) /MM 227 x 132 x 50
Microinverter Weight 2.9kg
Cooling Natural convection-No fans
Protection Class NEMA-6 / IP-66 / IP-67
Overvoltage class III
Features
Noise <10db
Communication PLC or WiFi
System Integration Integration of System and Module
Certificates CE,EMC,RED,ROHS,EN50549,VDE-0126,VDE-4105,VDE-0124,CEI-021,UL1741,CSA22.2,CEC,AS 4777
Warranty 10 years



balcony solar system in Europe
