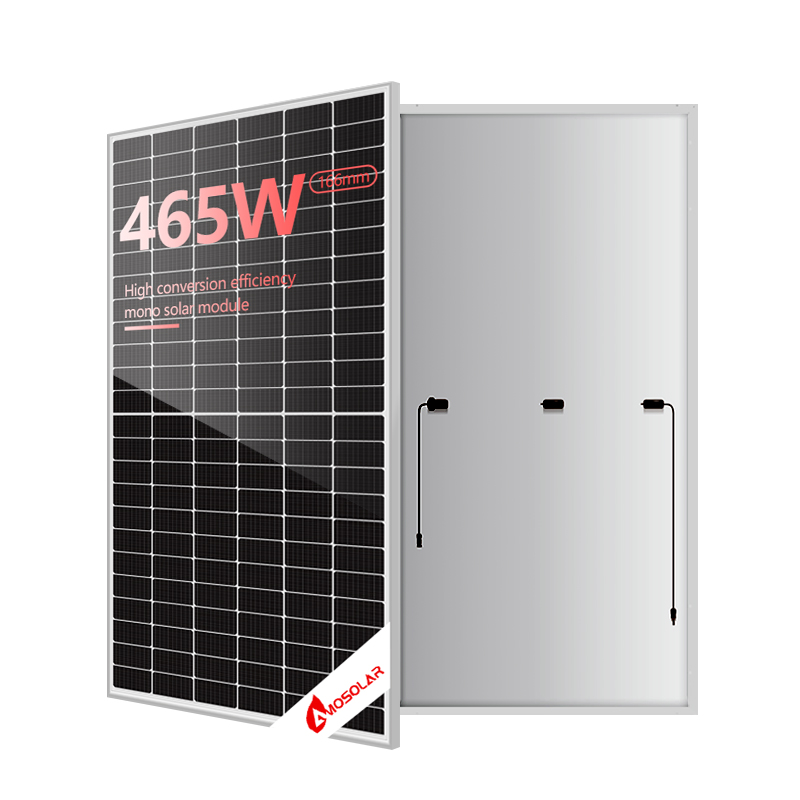

440w 445w 450w 455w 460w 465w Half Cut Mono PV Panel Chinese Manufactory
Products
Home / SOLAR PANEL / PERC PV Module / Monofacial 166mm M6 /

440w 445w 450w 455w 460w 465w Half Cut Mono PV Panel Chinese Manufactory

Solar Panel 380-500 W
Solar Panel 380-500 W
Solar Panel 380-500 W
Solar Panel 380-500 W
Solar Panel 380-500 W

440w 445w 450w 455w 460w 465w Half Cut Mono PV Panel Chinese Manufactory

AS440-465M6-144

Amosolar soalr panel :High Efficiency,Grade A Quality,Factory Price.

Cell Mono
Rated Maximum Power
465W
Maximum Efficiency 21.27%
Weight
23.0kgs±3%
Cells Type
Mono 166x83mm
Dimension(LxWxT)
2094±2mmx1038±2mmx35±1mm
Packaging
31pcs/pallet, 726pcs/40HQ container

440W-465W Half Cut Mono PV Panel Chinese Manufactory : 166mm half cut solar cells with multi-busbar PERC technology, high effiency solar panels .

550W Single Solar Panel



Electrical Performance Parameters (STC Test)


Model
AS440M6-120 AS445M6-120
AS450M6-120
AS455M6-120
AS460M6-120
AS465M6-120
Rated Maximum Power at STC 440W
445W 450W 455W 460W 465W
Open Circuit Voltage (Voc) 49.40 49.56 49.70 49.85 50.11 50.15
Maximum Power Voltage (Vmp) 40.90 41.21 41.52 41.82 42.13 42.43
Short Circuit Current (Isc) 11.28 11.32 11.36 11.41 11.45 11.49
Maximum Power Current (Imp) 10.76 10.80 10.84 10.88 10.92 10.96
PV Module Efficiency (%) 20.13 20.36 20.58 20.81 21.04 21.27
Standard Inradiance 1000w/m² , Cell Temperature 25 ℃ , Air Mass 1.5


Mechanical Parameters


Solar Panel Monocrystalline Price

  Layout :                  144( 6 × 24 )


  Junction Box :        Split junction box, IP67, 3 diodes

  Weight:                   23.0KG


  Cable Length :        300mm (+) / 300mm(-)

  Cable  Size :            4mm²(IEC)


  PV Size:                   2094×1038×35mm

  Packaging:              31 pcs / pallet

                                   726 pcs / 40HQ container

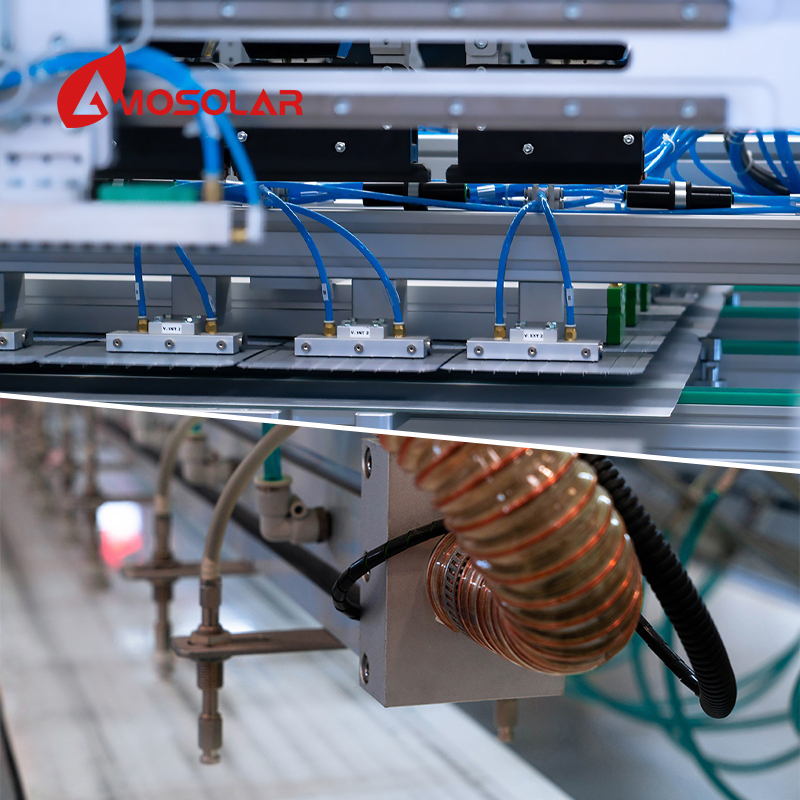

Factory For Solar Panel
