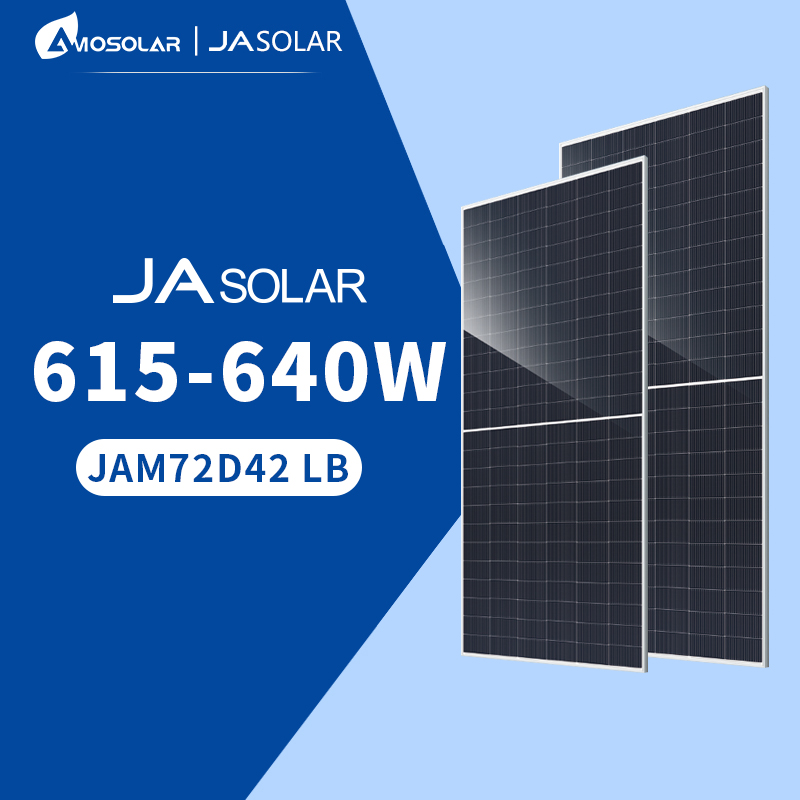

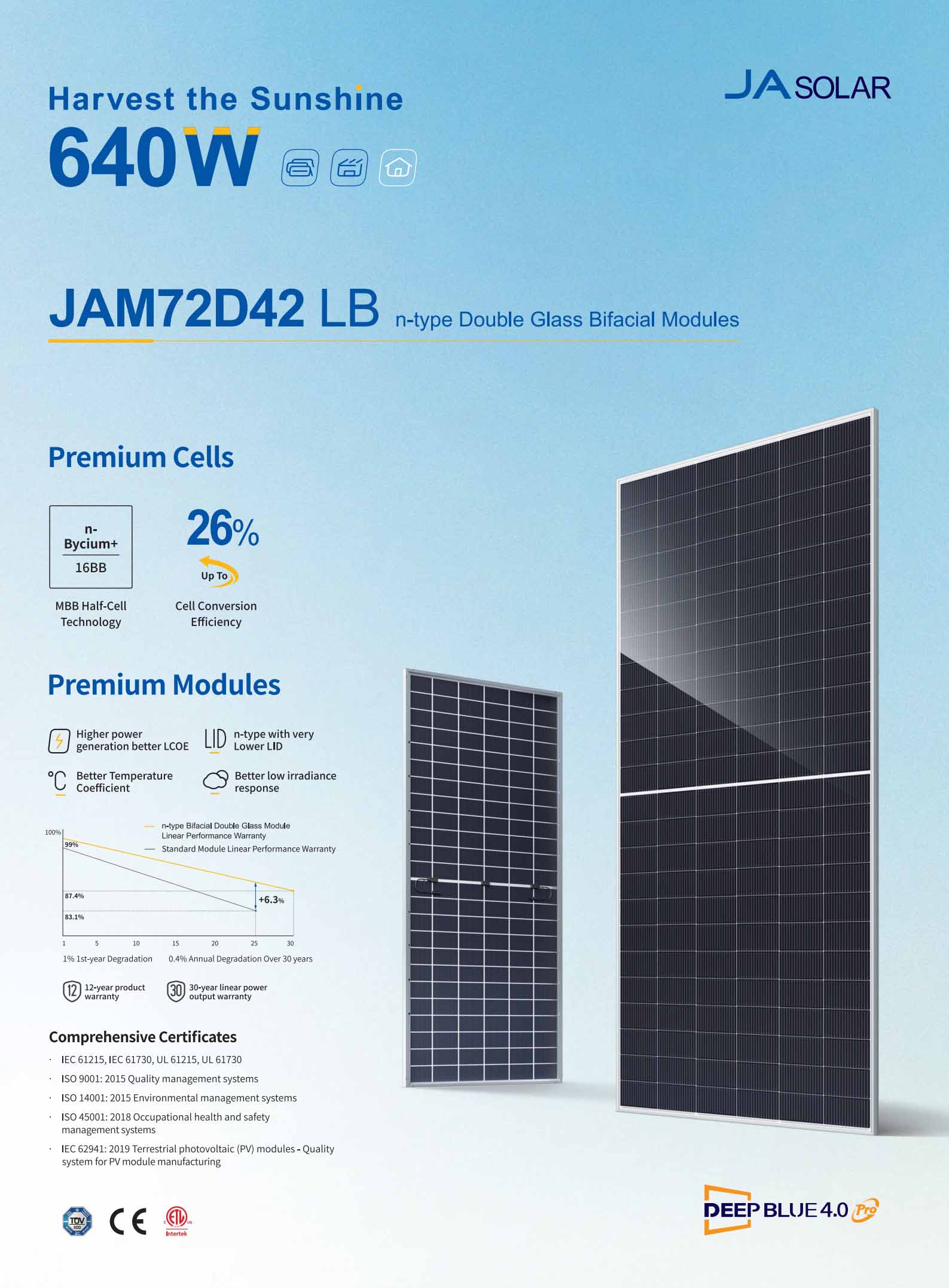

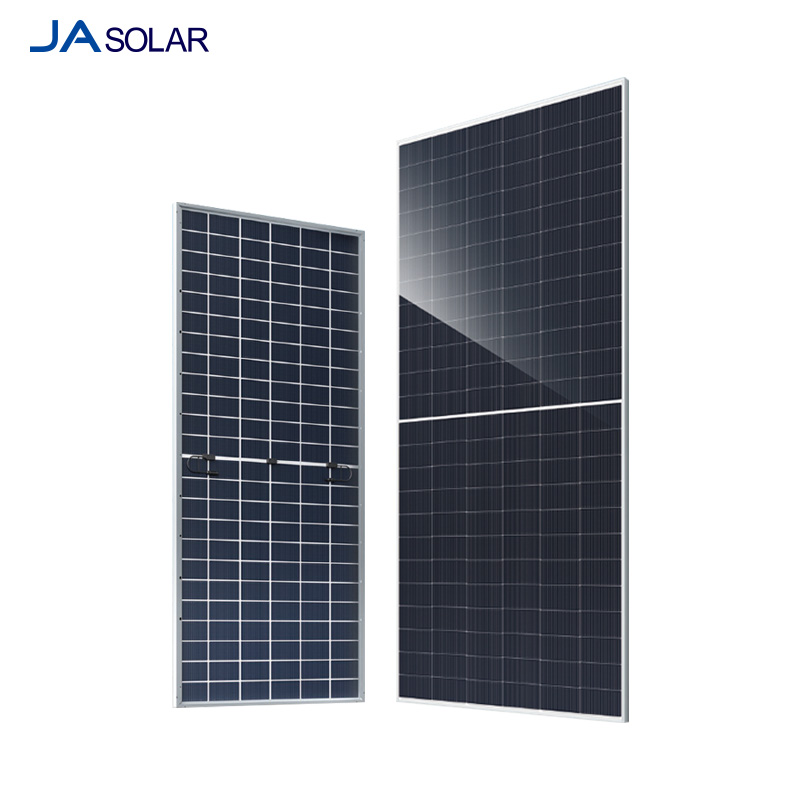

JAM72D42 615-640W/LB
| Cell Arrangement | 144(6 X 24) |
| Junction Box | IP68, 3 diodes |
| Weight | 34.6KG |
| Cable Length | 300mm(+)/400mm(-) |
| Cable Size | 4 mm2 (IEC), 12 AWG (UL) |
| PV Size | 2465 X1052X35 mm |
| Packaging | 36 pcs/pallet 576pcs/40HQ container |
Electrical Performance Parameters (STC Test)
| Model | JAM72D42615/LB | JAM72D42620/LB | JAM72D42625/LB | JAM72D42630/LB | JAM72D42635/LB | JAM72D42640/LB |
| Rated Maximum Power at STC | 615W | 620W | 625W | 630W | 635W | 640W |
| Open Circuit Voltage (Voc) | 51.87 | 52.07 | 52.27 | 52.47 | 52.67 | 52.87 |
| Maximum Power Voltage (Vmp) | 43.31 | 43.51 | 43.71 | 43.90 | 44.10 | 44.29 |
| Short Circuit Current (Isc) | 14.20 | 14.25 | 14.30 | 14.35 | 14.40 | 14.45 |
| Maximum Power Current (Imp) | 13.39 | 13.47 | 13.55 | 13.63 | 13.71 | 13.79 |
| PV Module Efficiency (%) | 22.00 | 22.20 | 22.40 | 22.50 | 22.70 | 22.90 |
| Standard | Inradiance 1000w/m² ， Cell Temperature 25 ℃ ， Air Mass 1.5 | |||||
CS3W-435-465MS Cell Arrangement 144 [2 X(12 X 6) Junction Box IP68, 3 bypass diodes Weight 24.3KG Cable Length 500 mm (19.7 in)(+)/350 mm (13.8 in) (-) Cable Size 4 mm2 (lEC), 12 AWG (UL) PV Size 2108 X1048 X35 mm Packaging 30 pcs/pallet 660pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 120 [2 X (10 X 6)] Junction Box IP68, 3 bypass diodes Weight 31.0KG Cable Length 460 mm (18.1 in)(+)/340 mm (13.4 in) (-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2172 X1303 X35 mm Packaging 31 pcs/pallet 527pcs/40HQ container
Learn More
CS6W-530-555MS Cell Arrangement 144 [2X(12 X6)] Junction Box IP68, 3 bypass diodes Weight 27.6KG Cable Length 410 mm (16.1 in) (+)/ 290 mm (11.4 in)(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 2261 X 1134 X30 mm Packaging 35pcs/pallet 700pcs /40HQ container
Learn More
JAM54D41 430-455/LB Cell Arrangement 108 (6 X18) Junction Box IP68, 3 diodes Weight 22KG Cable Length 300mm(+)/400mm(-) Cable Size 4 mm2 (IEC), 12 AWG (UL) PV Size 1762X1134X30 mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
TSM-NEG9RC.27 415-445W Cell Arrangement 144 (24 X 6) Junction Box IP68 rated Weight 21.0KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 PV Size 1762 x1134x 30mm Packaging 36 pcs/pallet 936pcs/40HQ container
Learn More
TSM-NEG19RC.20 580-605W Cell Arrangement 150 Junction Box IP68 rated Weight 33.7KG Cable Length N 280mm/P 280mm Cable Size 4 mm2 (IEC) PV Size 2384x1134x30 mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
TSM-NEG21C.20 675-700W Cell Arrangement 132 Junction Box IP68 rated Weight 38.3KG Cable Length 350/280mm Cable Size 4 mm2 (IEC) PV Size 2384 x1303x 35 mm Packaging 33 pcs/ pallet 594pcs/40HQ container
Learn More
LR7-72HGD 585~620M Cell Arrangement 144(24 X 6) Junction Box IP68, 3 diodes Weight 33.5KG Cable Length +400,-200mm/±1400mm Cable Size 4 mm2 (lEC) PV Size 2382x1134x30mm Packaging 36 pcs/pallet 720pcs/40HQ container
Learn More
